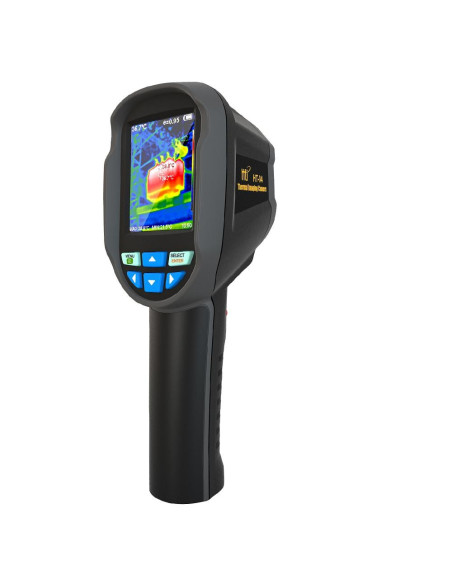

AO-HT-04 THERMAL CAMERA (220 × 160)

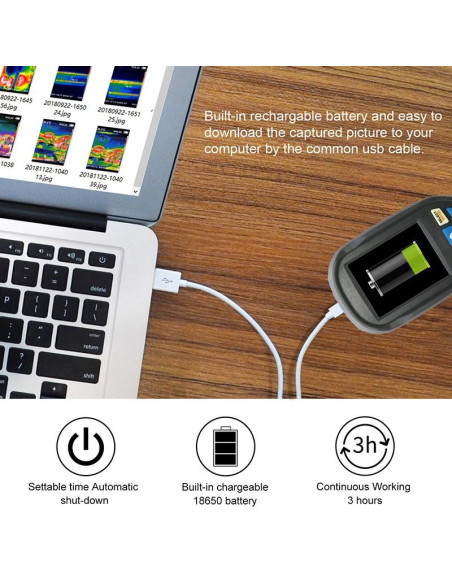

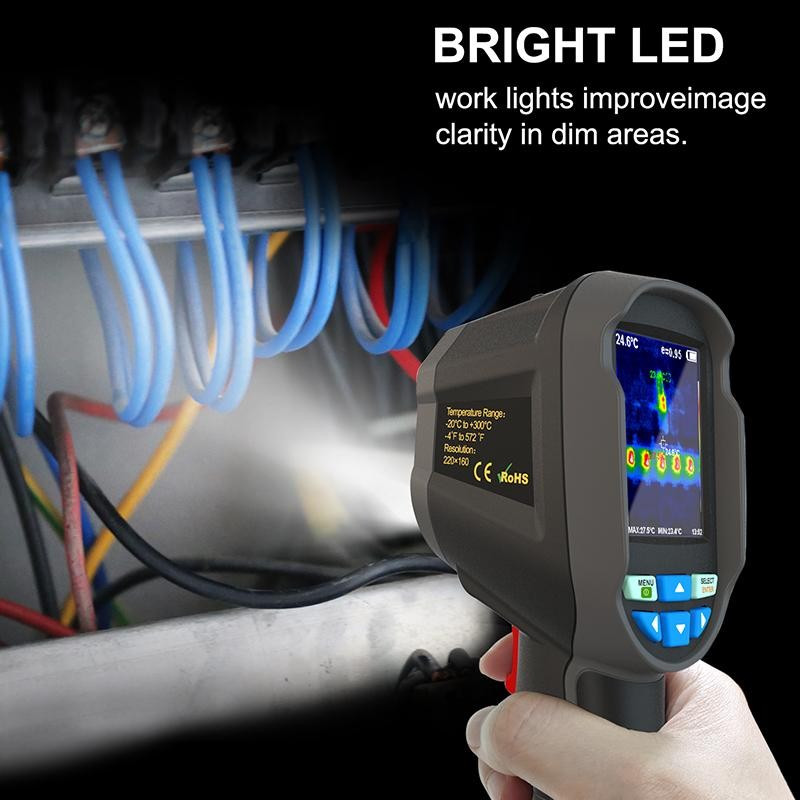

The new AO-HT-04 has a larger screen for easier viewing and helps you get the job done better. The new infrared camera can be charged with the USB cable and the rechargeable battery can be used up to 2-3 hours after being fully charged. Built-in LED spotlight that can be used as a flashlight and for photo lighting.
NON-INVASIVE TROUBLESHOOTING: Infrared thermography is a safe, powerful, and non-invasive way to allow you to view hot or cold spot patterns, measure temperature reliably, and store images for instant troubleshooting. Help you predict problems before they happen. Quickly and accurately identify hidden problem areas to save energy and costs.
HIGH RESOLUTION AND PIXELS: This IR camera comes with high resolution image quality, a sharp infrared resolution of 35,200 (220 x 160) pixels, a 2.8-inch color screen, and a thermal sensitivity of 0.07 ° C. The accuracy of the measurement is ± 2 ° C or 2%. To help professionals see and detect common subtle temperature differences in a measurement. Find and display hot or cold patterns that signal wasted energy, structural defects, pipe clogs, and other invisible trouble spots.
MULTIFUNCTIONAL APPLICATION: The infrared camera has the ability to "see" the heat in this way creates a whole new level of consciousness for professionals and consumers, it is very different from a traditional inspection. In buildings and mechanical systems, this includes water penetration, loss of heat or cooling, blockages or leaks in plumbing systems, malfunctioning mechanical systems (motors, bearings, belts, heat pumps, etc.), overloaded electrical circuits or lost and diagnostic problems of the building.

Color: black
Material: ABS
Monitor: 2.4 inch full color screen
Infrared image resolution: 220 x 160
Visible Image Resolution: 0.3 million pixels
Total Pixel: 35200
Shortest focal length / field angle: 27 ° × 35 ° / 0.5m
Thermal sensitivity: 0.07 ℃
Measurement mode: thermopile
Temperature range: -20 ℃ to 300 ℃ (-4 ℉ to 572 ℉)
Measurement accuracy: ± 2.5 ℃ or ± 2.5%
Emissivity: adjustable from 0.1 to 1.0
Image frequency: 8HZ
Wavelength range: 8-14 μm
Focus mode: fixed
Color palette: Rainbow, red iron oxide, cold color, black and white, black and white
Display option: full infrared and full vision Visible image with 25% stride length
Image Storage Medium: Built-in 4G
Picture format: JPG
Setting Control: Unit Setting / Language / Date / Time Format / Auto Power Off
Auto power off time: selectable 5 minutes / 20 minutes / does not turn off automatically
Battery Type: 4 x 1.5V AA Battery (Not included)
Battery life: 2 hours
Certification: CE, RoHS
Vibration resistance: 2G, IEC, 60068-2-6
Anti-fall: 2M
Operating temperature: 0 ℃ to 50 ℃
Storage temperature: -40 ℃ to 80 ℃
Relative humidity: <85% RH
Item Size: 62 x 95 x 212mm / 2.44 x 3.74 x 8.35in
Item Weight: 242g / 8.55oz
Package size: 27.5 x 18.6 x 11.2cm / 10.8 x 7.3 x 4.4in
Package Weight: 881g / 31.09oz

Package included:
1 x AO-HT-04 220x160 Thermal Imaging Camera
1 x user manual
1 x Drop Resistance Rope
1 x Protection Bag
