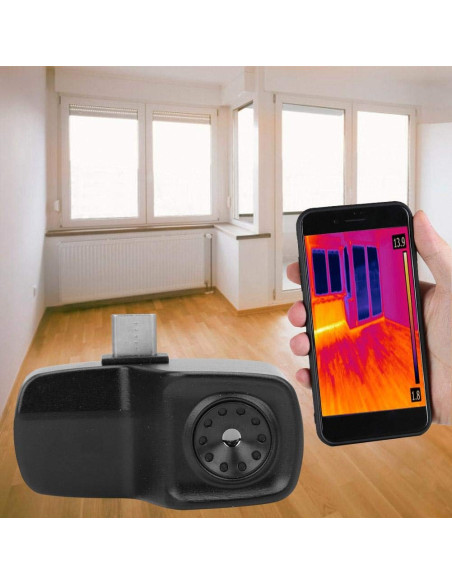

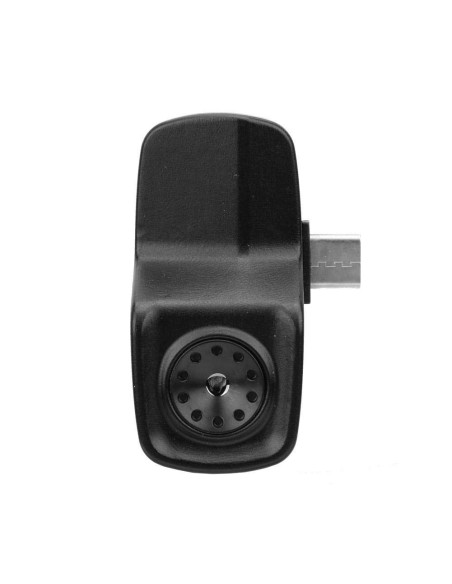

AO-HT-201 Mobile Phone Thermal Imager Camera (320×240)

Only made for Android USB C models, NOT applicable for iOS mobile phones.

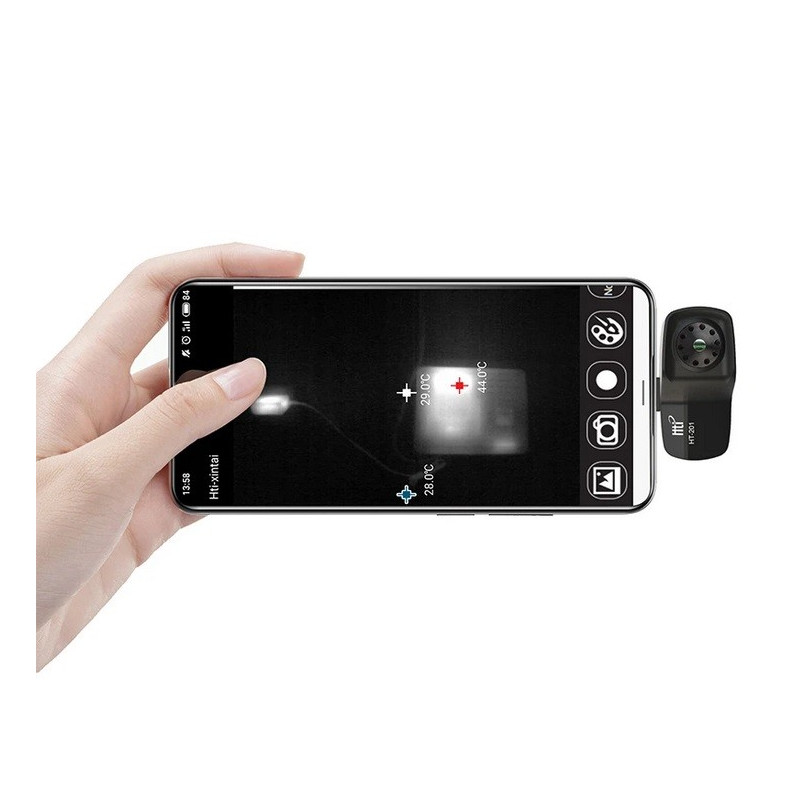

AO-HT-201 transforms your smartphone or tablet into a powerful and professional thermal imaging tool.

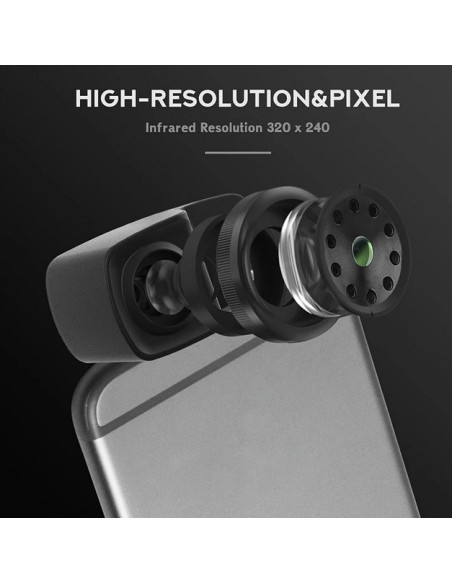

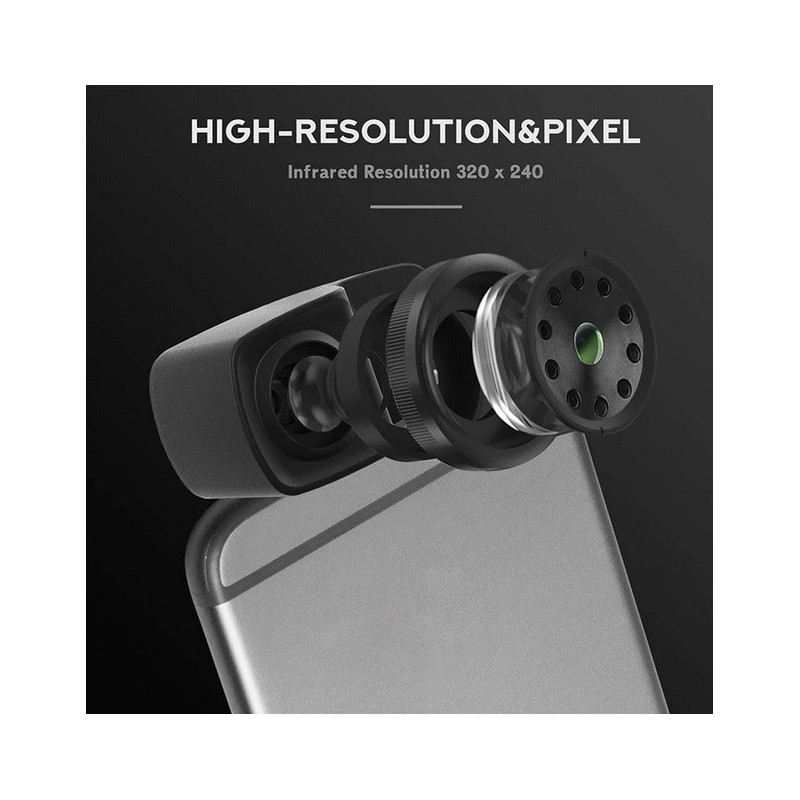

320 * 240 High Resolution: The AO-HT-201 comes with high resolution image quality, crisp infrared resolution of 76,800 pixels.

It's one of our most advanced smartphone cameras yet with unprecedented thermal resolution.

Low Power Consumption - AO-HT-201 IR cameras are designed to run low on power from your smartphone and require no batteries or charging. That means you don't have to worry about not having enough power when you use it.

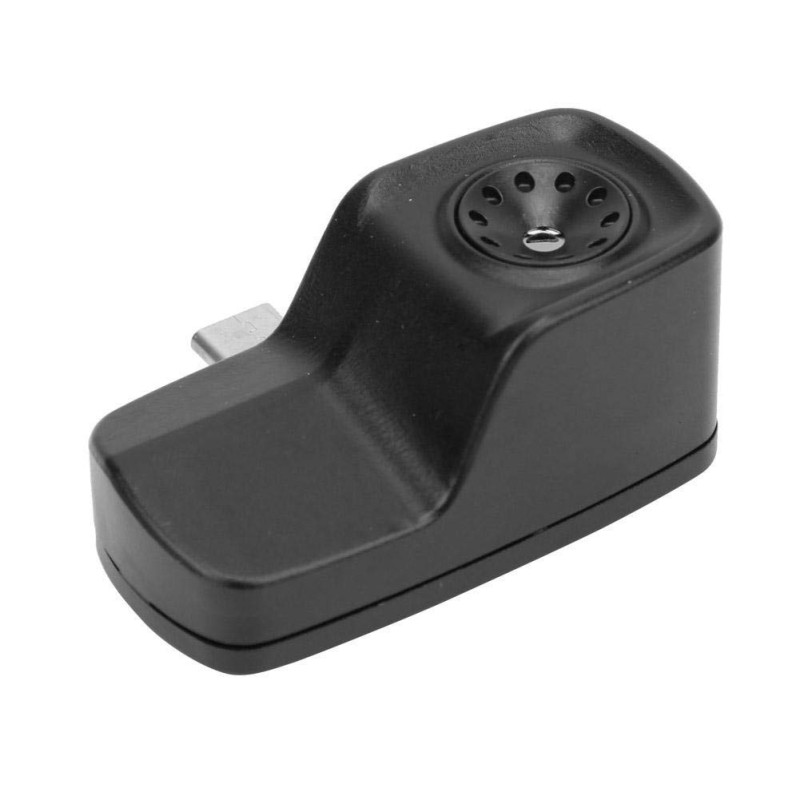

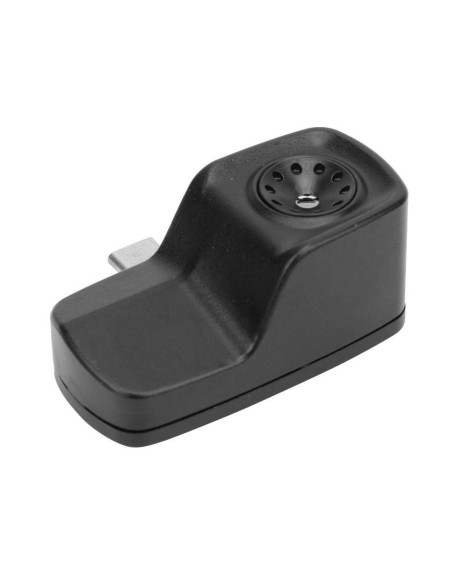

Portable and easy to use - weighs less than 1.5OZ. The slim and lightweight profile fits comfortably in your work pocket so you can always have your camera by your side and never miss an opportunity to discover problems.

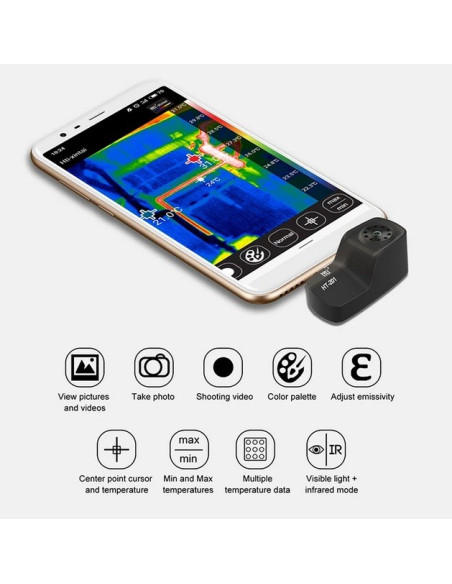

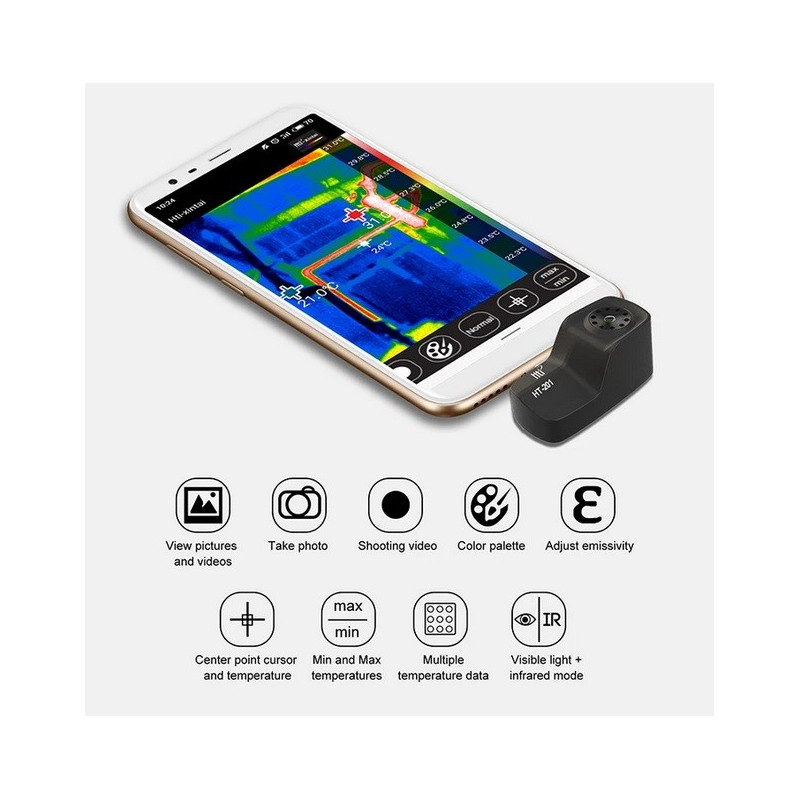

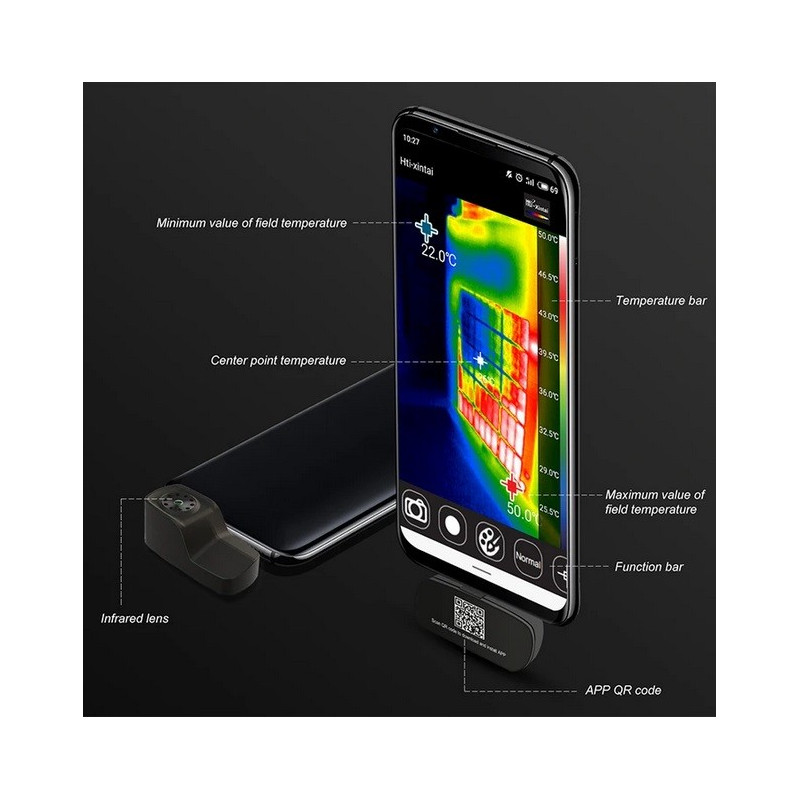

The menu of this infrared camera uses intuitive icons that make it easy to use. No special training is required.

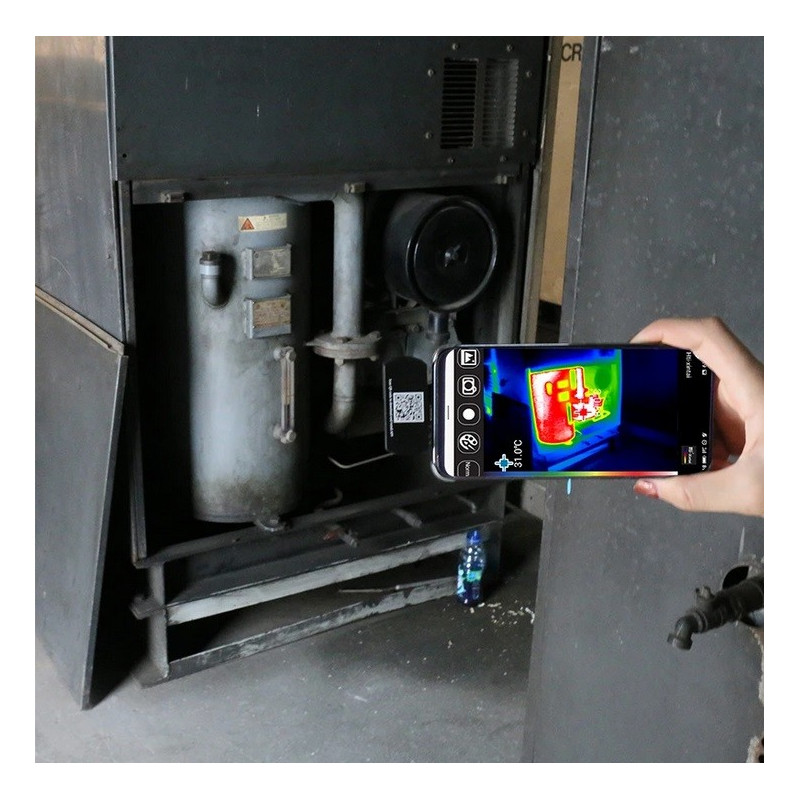

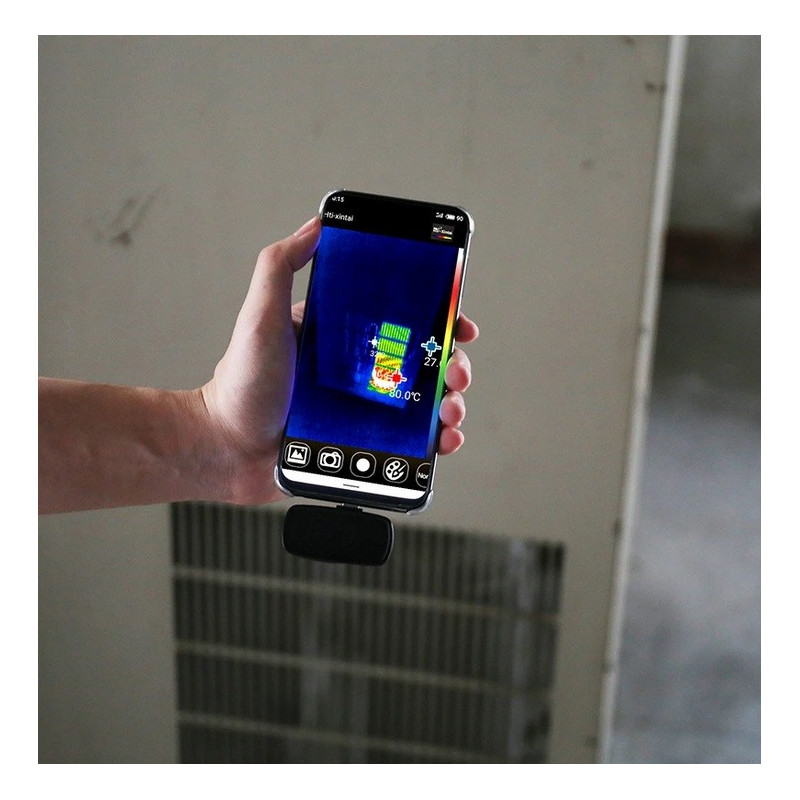

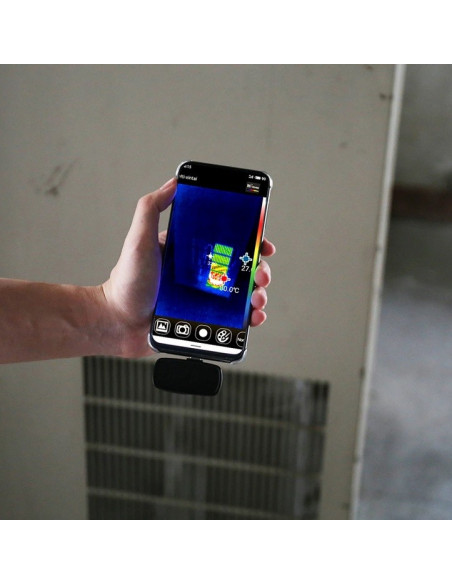

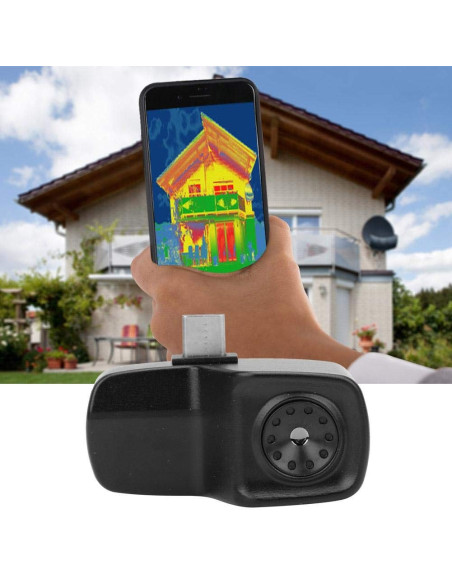

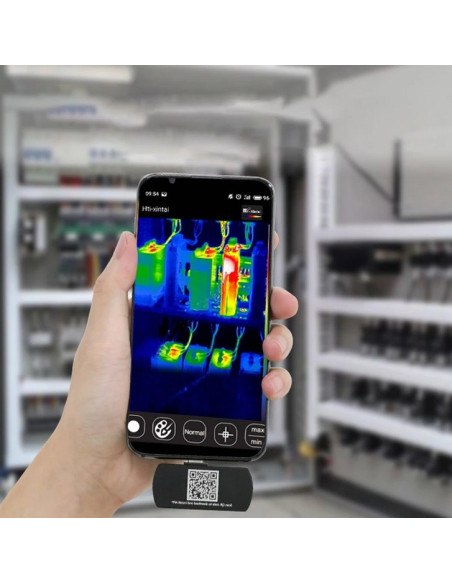

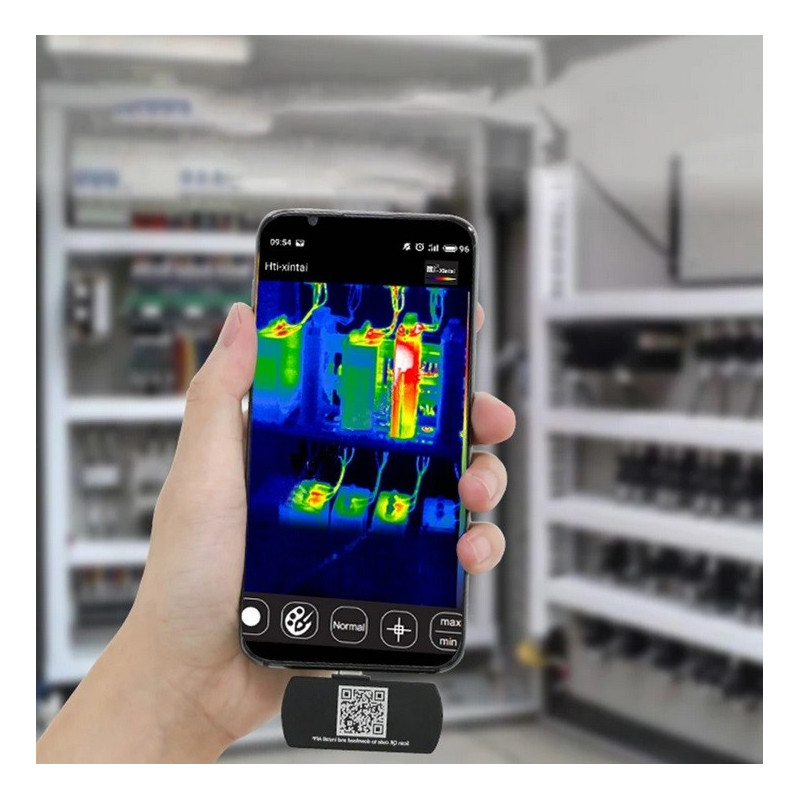

Multifunctional applications: for almost all maintenance applications within industrial or commercial facilities, including electrical, HVAC/R, mechanical & facility maintenances, predictive maintenance for electrical & mechanical problems in building diagnostic problems.

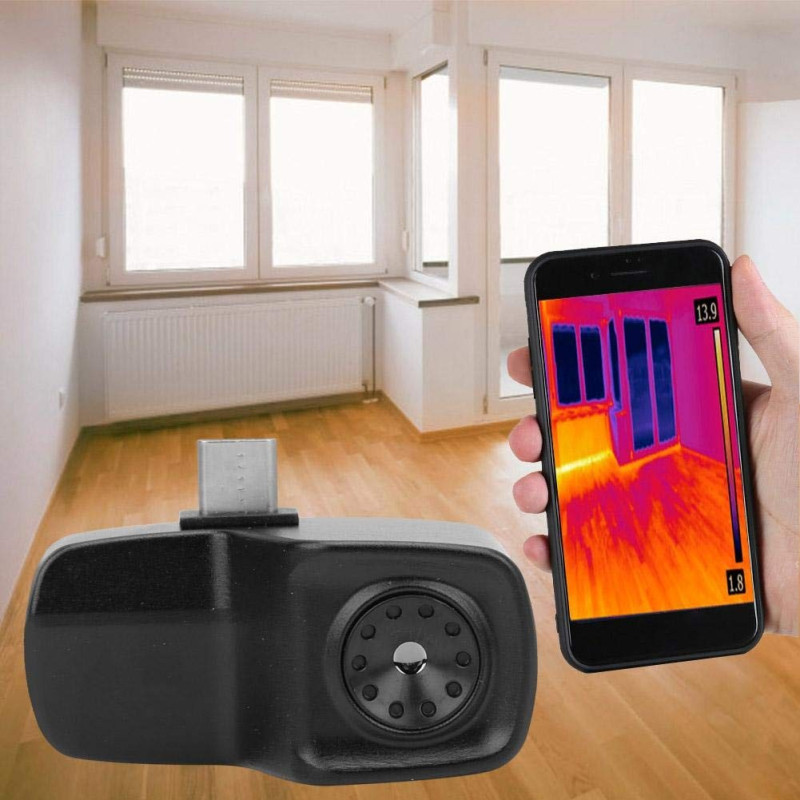

For use in an apartment, an office complex or in manufacturing plants.

- Item Type: Infrared Imager
- Material: ABS
- Resolution: 320x240
- Temperature range_ -40 ° C to 330 ° C
- Wavelength range: 8-14 μm
- Field Angle / Focus Length: 26 ° x34 °
- Image format: jpg
- Video format: mp4
- Frame rate: 9Hz
- Detection mode: Fixed
- Detection range: 300m
- Definition of detection: When an object is found in the field of view, the image of the object should occupy more than 1.5 pixels in the direction of fatal size.
- Shortest focus length: 0.15m
- Target size: Cover 4 pixels
- Working temperature: 0 ℃ to 40 ℃
- Storage temperature: -20 ℃ to 60 ℃

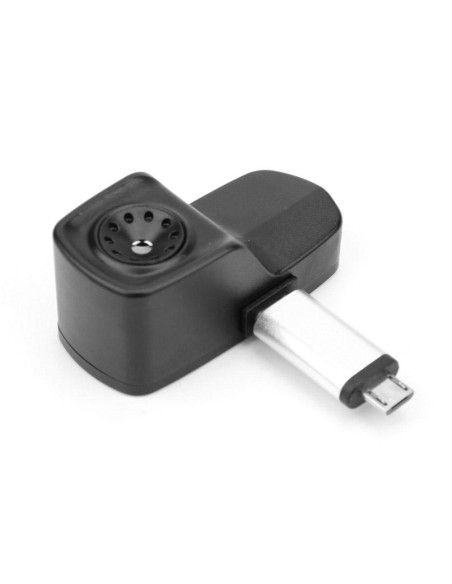

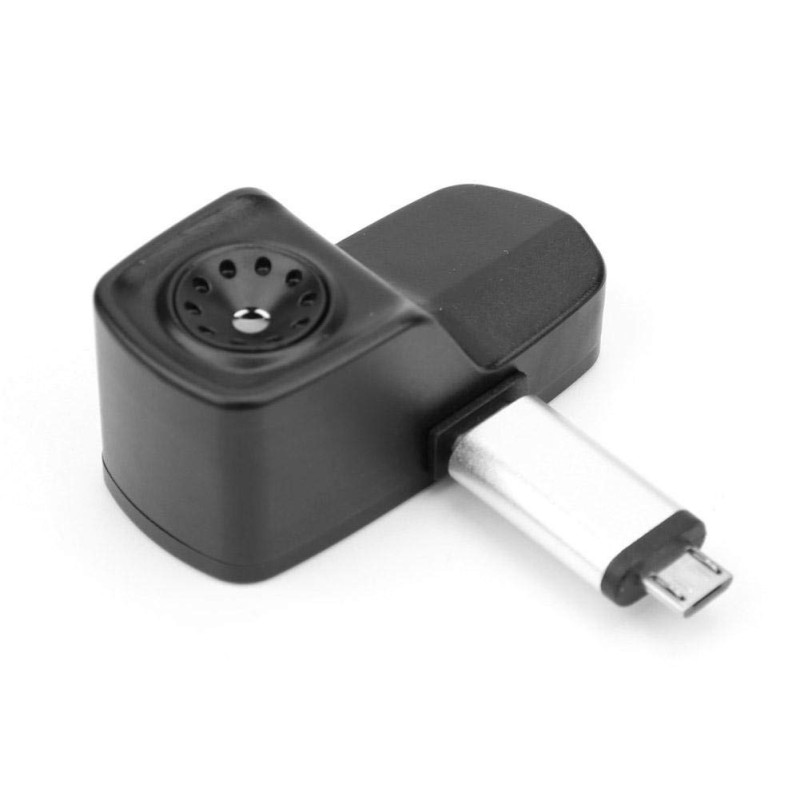

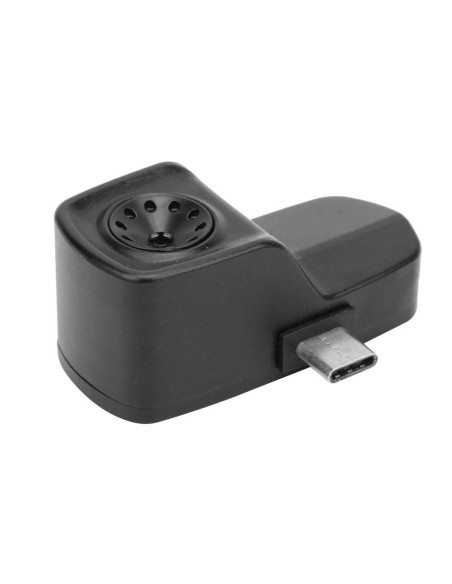

- Plug: Type-C, micro USB
- Power supply: 5V （External equipment power supply）
- Weight: 40g / 1.4oz
