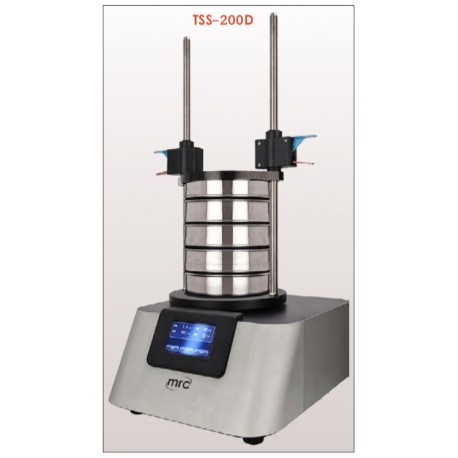

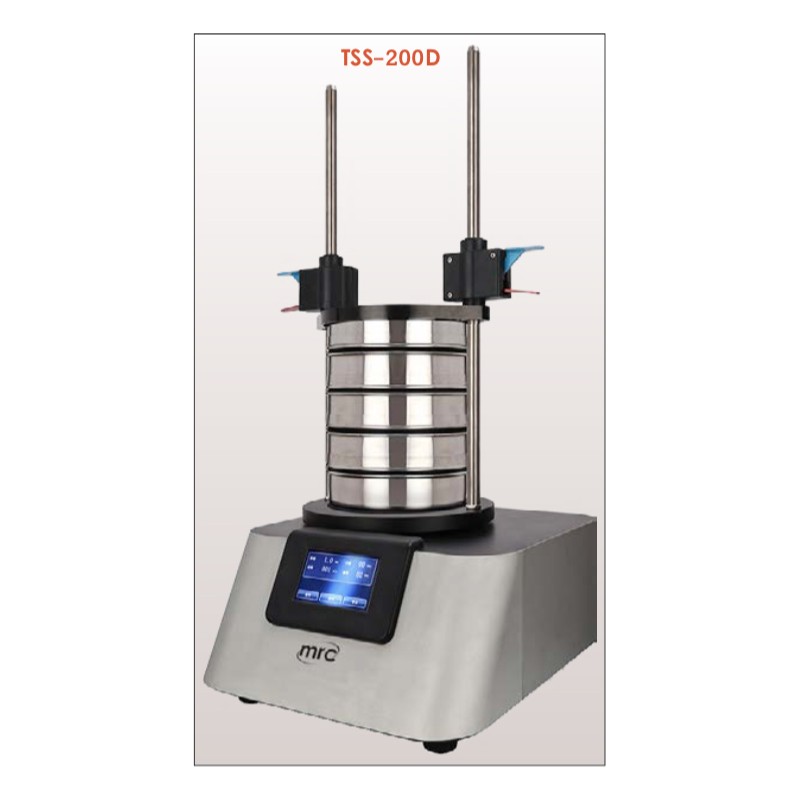

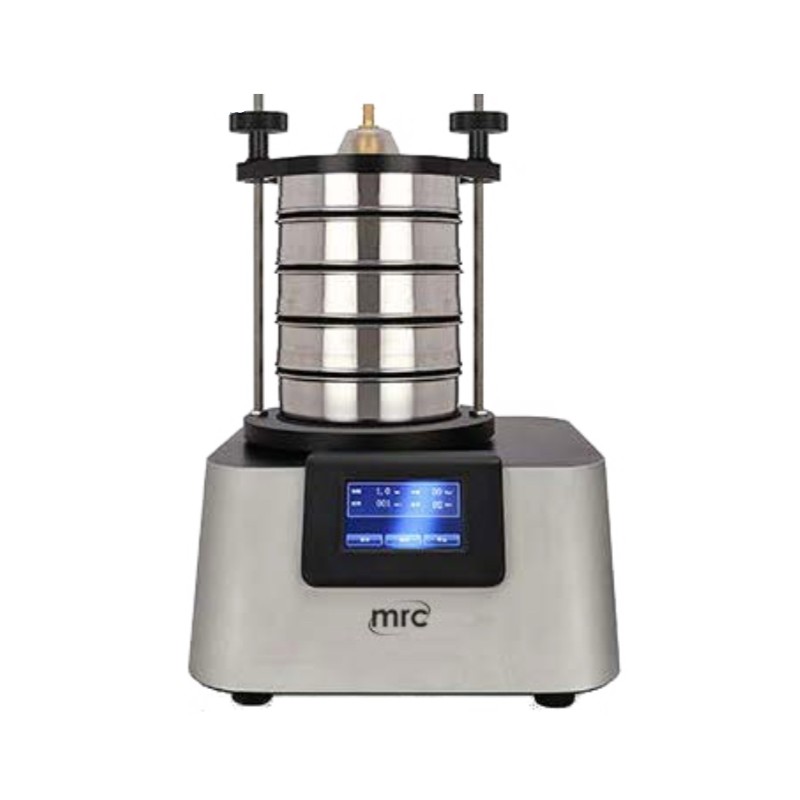

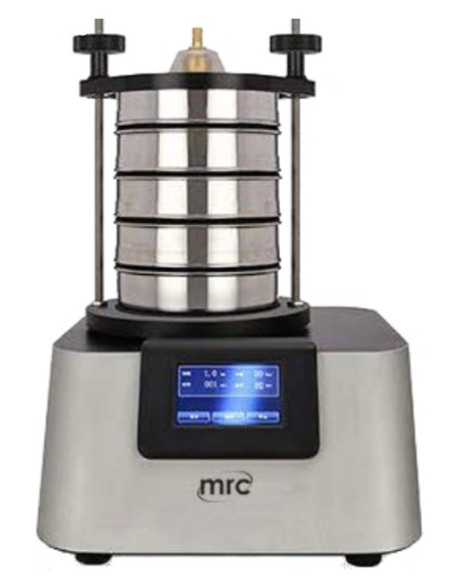

TSS-200D Digital Sieve Shaker for 200 mm Sieves

TSS-200D

MRC

New

Is used to batch analyses the particle size and distribution of the soft, medium-hard, hard and brittle sample within a short time. The result is accurate and repeatable.Most parameters can be digital preset to perform dry sieving and wet sieving for samples.

Add to wishlist

---------- INDUSTRY ------------ Sieve Shakers

Uses electromagnetic drive system which generates unique 3D motion pattern to throw samples, that make the samples distribute evenly on the whole sieve. Intermittent vibration can improve sieving effects & guarantee sieving hole are free from blocking.

  • Applications:

Applies for all the inorganic and organic compounds including the sand, rocks, clay, granite, feldspar, coal, soil and all kinds of solid particles, such as powder, grains & seeds.

  • Advantages:

● Digital setting, the sieving time, amplitude can be preset, simple operation
● Unique sieving with 3D motion, high accuracy
● Dry, wet sieving
● Reliable, repeatable and high efficient
sieving result
● Low noise, maintenance-free.

Model

TSS-200D

Measuring range

20μm~25mm

Amplitude adjustment range

0.2~3.0mm

Time setting

01~99min

Interval operation adjustment range

01~99s

Drive/sieving mode

Electromagnetic drive

Electromagnectic drive

9

Sieve diameters

100/150/200/203mm (8”)

Parameter combinations that can be stored

9

Max. mass of sieve stack

3kg

Rated power

400W

Powe supply

220V,50Hz

Instrument size (WxDxH)

400x480x240mm

Package size (WxDxH)

400x615x615mm

Weight

43kg
