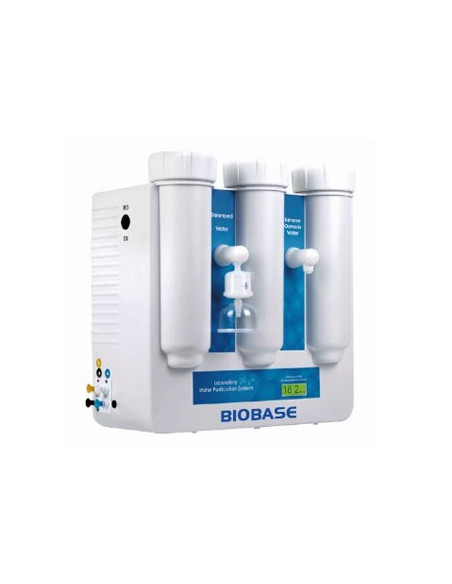

AO-SCSJ-III30 Water Purifier (Automatic RO/DI Water) (30 L/H)

Model

AO-SCSJ-III30

Water Output Type

RO and DI water

Water Output Speed

30 L/H

Purifying Procedure

PF + AC + RO + DI

Water Supply Requirement

Tap water: TDS < 200 ppm, 5 ~ 45 °C, 1.0 ~ 4.0 Kgf/cm2 (if inlet TDS > 200 ppm, extra pretreatment filter is recommended)

Purification System

Pretreatment unit

Special spun fiber filter x 1, Special active carbon block filter x 1, Special active carbon block filter x 1

RO unit

100 GPD RO membrane x 2

Subsequent unit

Mixed bed resin cartridge x 3

Pure Water

Quality

Desalination rate

> 99 %

TDS

RO water: 5 ~ 10 ppm

Resistivity

15 ~ 18.2 MΩ·cm

Conductivity

0.067 ~ 0.055 μs/cm

Control System

Automatic electronic pressure sensor controlling, RO membrane auto flushing, Automatic stop when water supply shortage, Automatic stop when water tank full, Automatic cutting off water when pump stop, 24 hours non-stop work

Water Quality Monitor

TDS meter, Online resistivity monitor (Optional)

Consumption

72 W

Power Supply

AC 110/220 V ± 10 %, 50/60 Hz

Standard Configuration

Main body (include 1 set cartridge),15 L water tank,TDS meter

Externa lSize(W x D x H)

220 x 410 x 420 mm

Package Size(W x D x H)

590 x 490 x 550 mm

Gross Weight

22 kg
