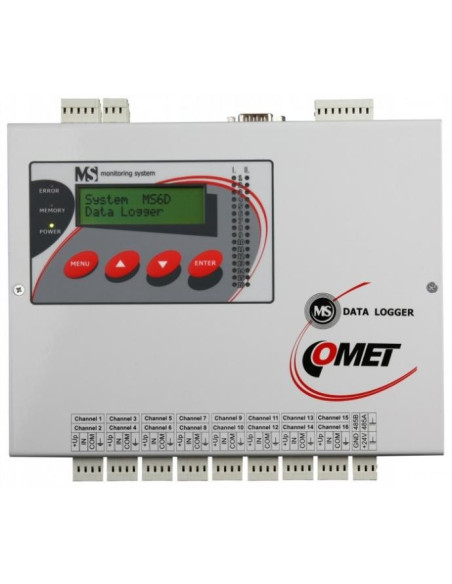

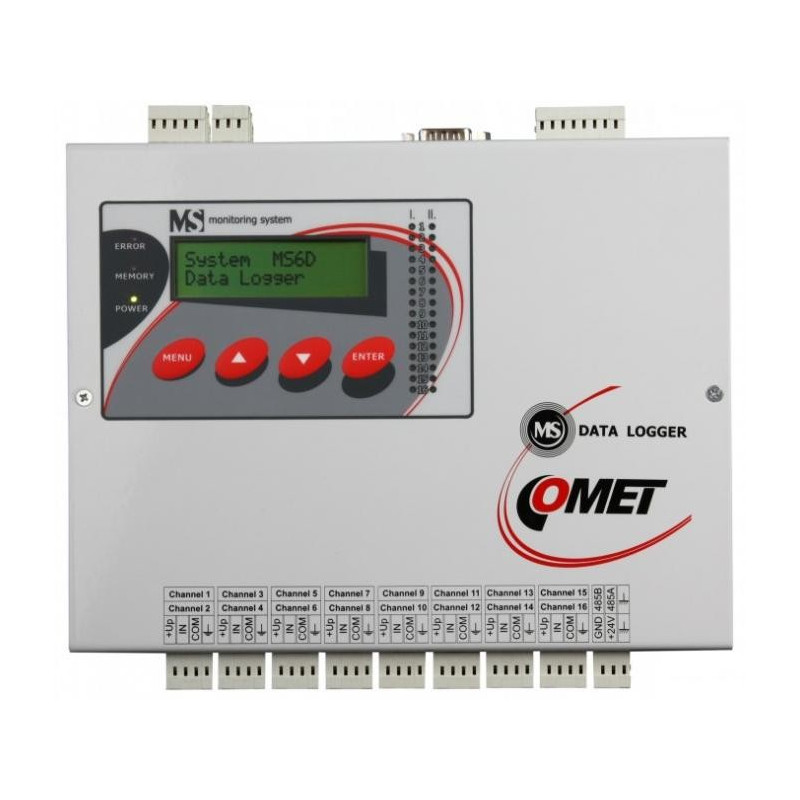

MS6D Registrador de Datos de 16 Canales

Referencia: MS6D

Condición: Nuevo

La solución completa para el control de la temperatura , la humedad y otros valores. Los registradores de datos están diseñados para la medición , registro , evaluación y posterior procesamientode señales eléctricas de entrada, que están sujetas a cambios relativamente lentos ( > 1s ).En conjunción con los sensores y transductores apropiados son adecuados para el seguimiento de cantidades físicas.

El dispositivo incluye certificado de calibración.

Más detalles

Consulta este producto

Compartir en Facebook
Remove this product from my favorite's list.
Add this product to my list of favorites.
Imprimir

General
Especificaciones
MÃ³dulos de Entrada
Accesorios Opcionales
Documentación

The complete solution for monitoring of temperature, humidity and other values.

Data loggers are designedfor measuring, recording, evaluationand subsequent processing ofinput electrical signals,which are subject torelativelyslow changes (> 1s).In conjunctionwith the appropriatesensorsandtransducers are suitableformonitoringphysical quantities.

The device includes traceable calibration certificate

Data Logger permite:

Medir y el proceso de 1 a 16 variables de entrada
Software 16 entradas programables

Cada uno de los 16 canales ofrece el canal virtual ( contable )

Adquirir la grabación autónoma de valores medidos

Crear condiciones de alarma

Sobre la base de las alarmas creadas realizar otras acciones ( acústica , señalización óptica , salidas de relé de control , el envío de mensajes SMS , manipulación marcador telefónico , mensajería utilizando diferentes protocolos de interfaz Ethernet , etc. )

Monitoreo on-line de los valores y estados medidos

Alarmas por:

Módem GSM

Los correos electrónicos Dialer

Teléfono

Zumbador integrado

Sirena externa o luz

Relay

Aplicaciones:

Alimentos y bebidas industria (HACCP )

Las salas de servidores , centros de datos

Las salas de servidores , centros de datos

Industria farmacéutica (GMP )

Estaciones de sangre , farmacias

La horticultura y el cultivo de plantas

HVAC - calefacción, ventilación, aire acondicionado , refrigeración

Construcción y gestión de la energía

La automatización de edificios

Investigación y desarrollo

Laboratorios (BPL)

Monitoring system inputs

Figure: data logger inputs with switch 12Vdc/24 voltage power supply for connecting sensors.
Serial input RS485IN a surcharge.

Figure: communication interface, alarm outputs, connection of power. Ethernet interface is optional.

Features of Ethernet Interface:

	Ethernet interface Data logger is designed for connection to standard computer network. The 10 and 100Mb/s Ethernet is supported.No need to build new data lines. Thanks this installation cost are essentially reduced and instant easy start of monitoring system operation is enabled.
	Modbus protocol Enables to read actually measured values by means of industrial standard Modbus. Data is available in several formats. Protocol is suitable for implementing of MS data logger to SCADA system.
	SNMPv1 protocol Actually measured values can be acquired by means of SNMPv1 protocol. MIB tables are available for free. Designed especially for IT applications and use in “managed” computer networks.
	Fast data download Record download speed was increased four-times from previous MS5 data logger generation.
	SOAP protocol Protocol designed for data logger integration to own www infrastructure. Available actual values can be captured by www server (Apache, IIS) and processed by the user.Communication protocol SOAP version 1.1. is supported. By means of this protocol data logger sends actual values in preset intervals to specified server.
	Syslog protocol Syslog message is sent after alarm state or data logger error appears. Syslog is compatible with RFC5424.
	E-mail Data logger sends warning emails up to three different addresses. E-mail is immediately sent after alarm state of monitored technological process appears. User is also informed on error states of device itself (measuring channel error, fulfilling of internal memory, self-test error). SMTP servers requiring autentization are also supported.
	XML file Actual values can be downloaded to XML file. This option is suitable for data logger integration to SCADA systems.
	Data logger display Network parameters can be set directly from data logger display. It is possible to change IP address, subnetwork mask and initial gate.
	Secured WEB server WWW server is built in the device. Here it is possible to monitor actual values, alarm states and information on data logger. Also access password for www pages can be entered. WWW pages are user modifiable. Free SDK description is available to create own www pages.
	SNMP Trap SNMP Traps are sent after alarm state or device error appears.
	Database system Prepared for connection to database system including online values transfer.
	WWW remote conditions Control of remote condition and relays is enabled also via www interface.

Included in Delivery:

Data logger including the battery
Traceable calibration certificate. Calibration certificate contains calibration of 16 inputs 4-20mA, if it is not defined required configuration of inputs by the user. If required configuration of inputs is defined by the user, calibration certificate proves calibration of inputs in accordance with this required configuration - maximum one range for each of 16 inputs.
Calibration of other ranges is optional.
USB communication cable
Basic manual
Free basic Windows software is ready to download at folder

Total memory capacity

2MB (up to 480 000 values)

Memory type

internal SRAM, backed-up by Lithium battery

Data logging modes

noncyclic - logging stops after filling the memory

cyclic - after filling memory oldest data is overwritten by new

Data logging interval

adjustable individually for all input channels from 1 second to 24 hours

Real time clock

year, leap year, month, day, hour, minute, second, backed-up by Lithium battery

Resolution of the AD converter (analog channels)

16 bits, conversion duration approximately 60ms/channel

Communication speed

9600, 19200, 57600, 115200 Bd, 230400* Bd (* applicable for USB, Ethernet)

Power

24Vdc, consumption of data logger itself approximately 80 mA

Operating temperature range

0 to +50°C

Dimensions including connectors

215 x 225 x 44 mm (W x D x H)

Protection

IP20

Weight

approximately 800 g

Warranty

2 years
