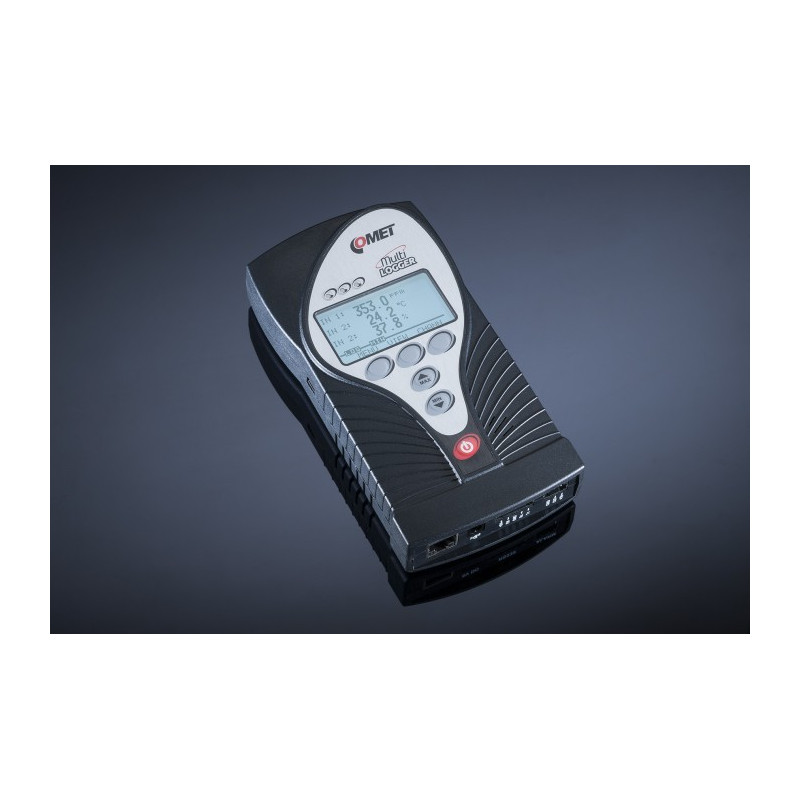

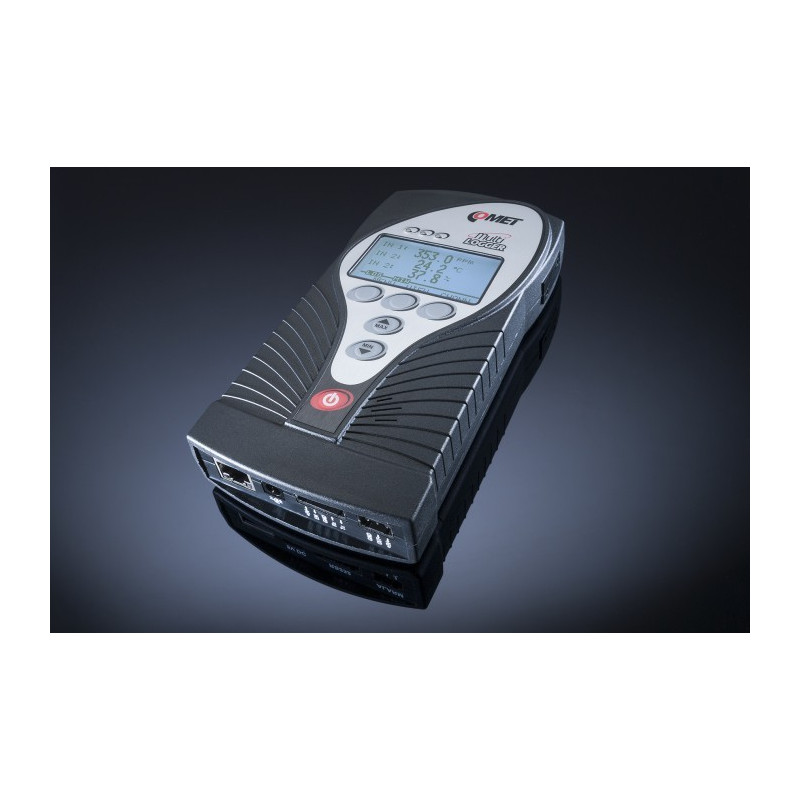

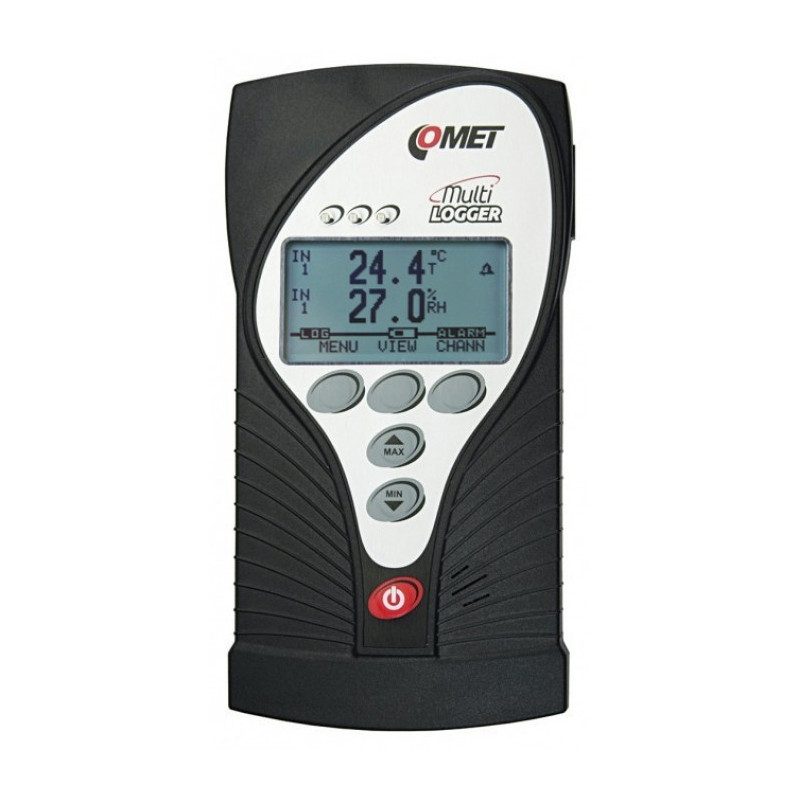

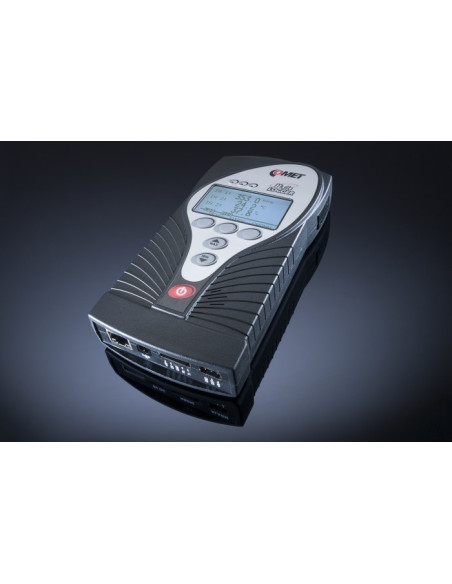

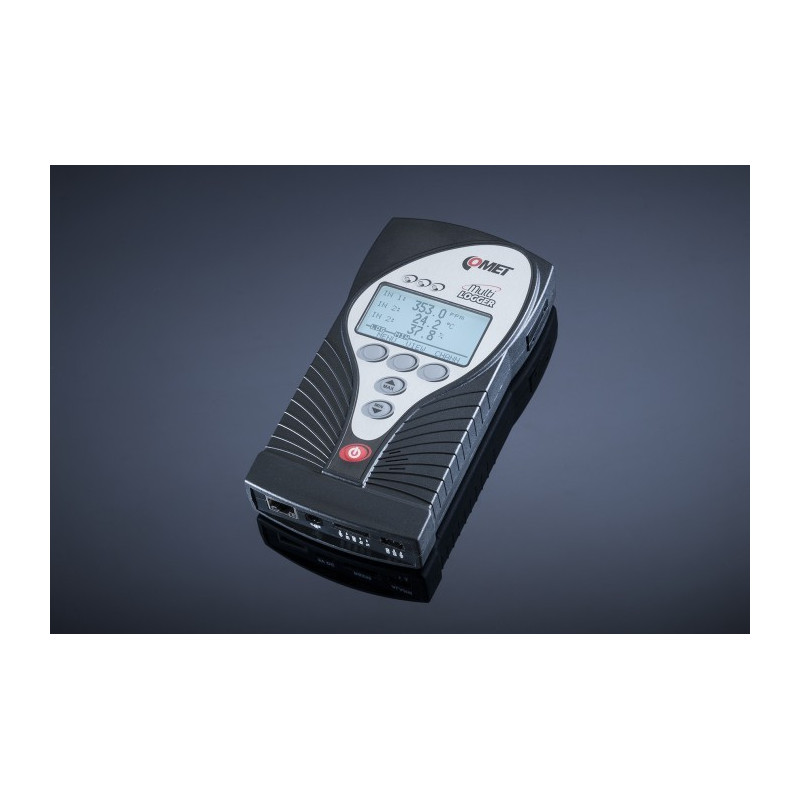

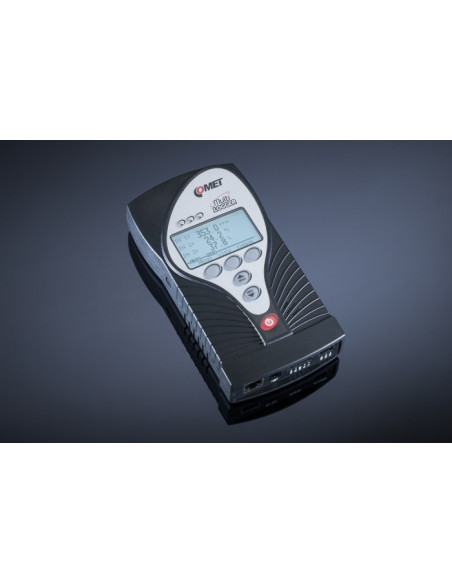

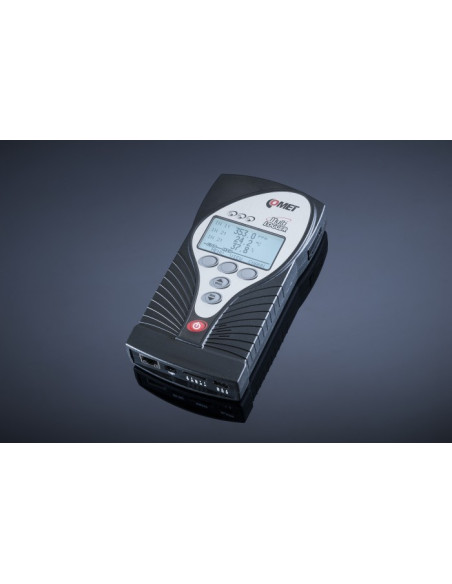

M1323 Registrador de Datos Multilogger CO2, Barómetro, Termohigrómetro con 2 MiniDIN y 2 Terminales

M1323

Comet System

Nuevo

799,00 €

sin IVA

Entorno de Uso Interior
Parámetros Medidos Multiples parámetros (sensores int. y ext.)

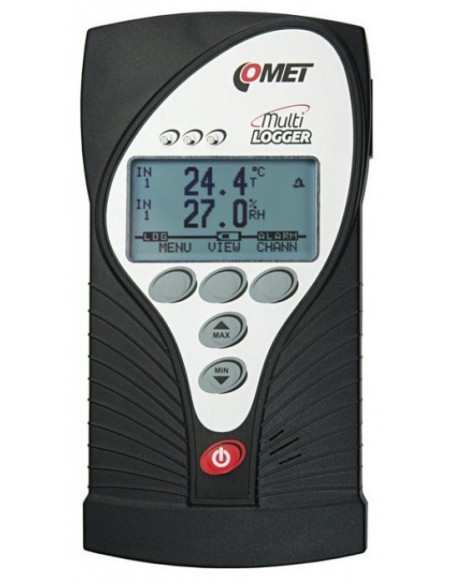

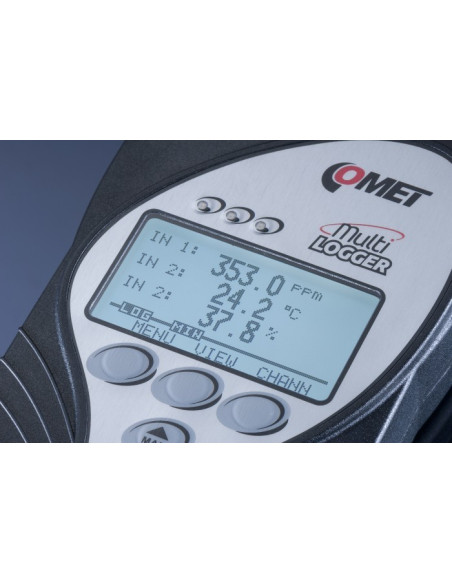

Con Display LCD Multifunción
Periodo de Garantía 3 años

Registrador de datos universal con 4 entradas de hardware, CO2 interno y sensores de presión atmosférica.
Multilogger puede instalarse permanentemente a una red Ethernet o trabajo como dispositivo portátil.
Certificado de calibración trazable expedidos conforme a EN ISO/IEC17025 está incluido.

El Multilogger es un datalogger de pilas capaz de medir y de grabación sensor y valores eléctricos a través de sus entradas.

Registrador de datos se puede conectar a Ethernet. Entonces los valores de medición pueden ver en un navegador web, así como almacenar y descargados para su posterior análisis.

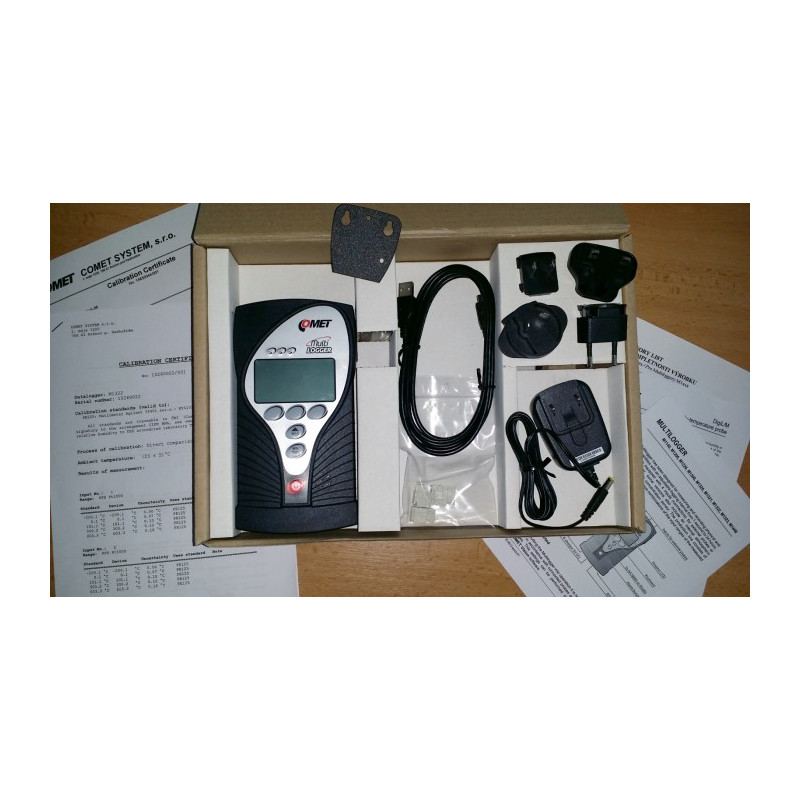

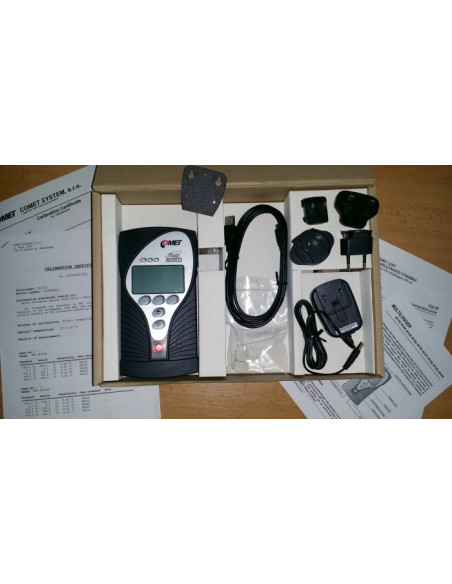

Incluye:

- Multilogger de M1323 con sensor interno de presión barométrica y concetration de CO2
- 3 x baterías AA, adaptador de corriente, soporte de pared, cable USB
- Manual de inicio rápido
- Certificado de calibración trazable

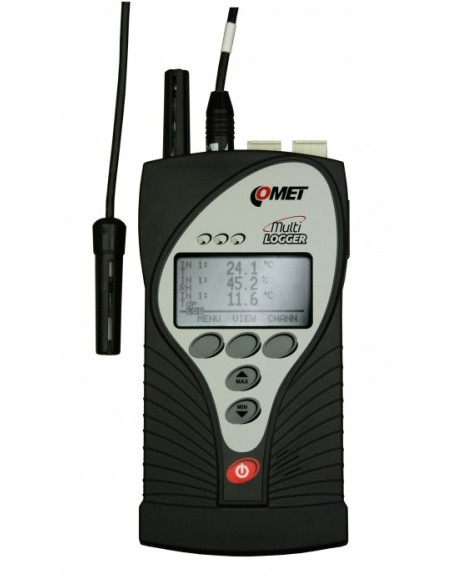

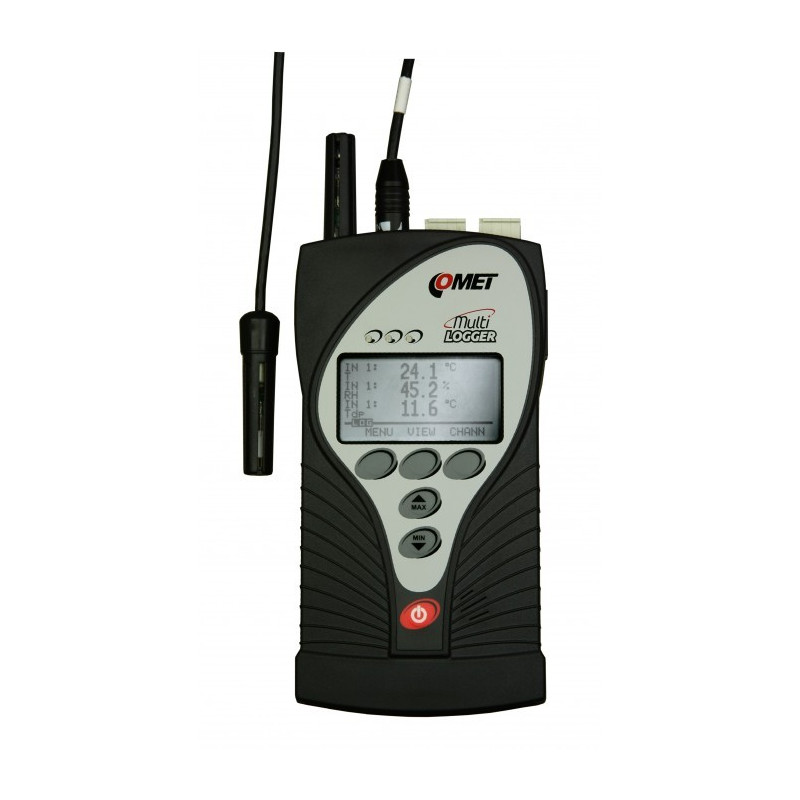

MiniDIN Temperature probes Pt1000 (serie xxx/M) Temperature/relative humidity probes with digital output - DigiS/M, DigiL/M
The probes are interchangeable without calibration to a specific device and regardless of the length of the cable. The length of the cable can be 1, 2, 5, 10, 15 meters.

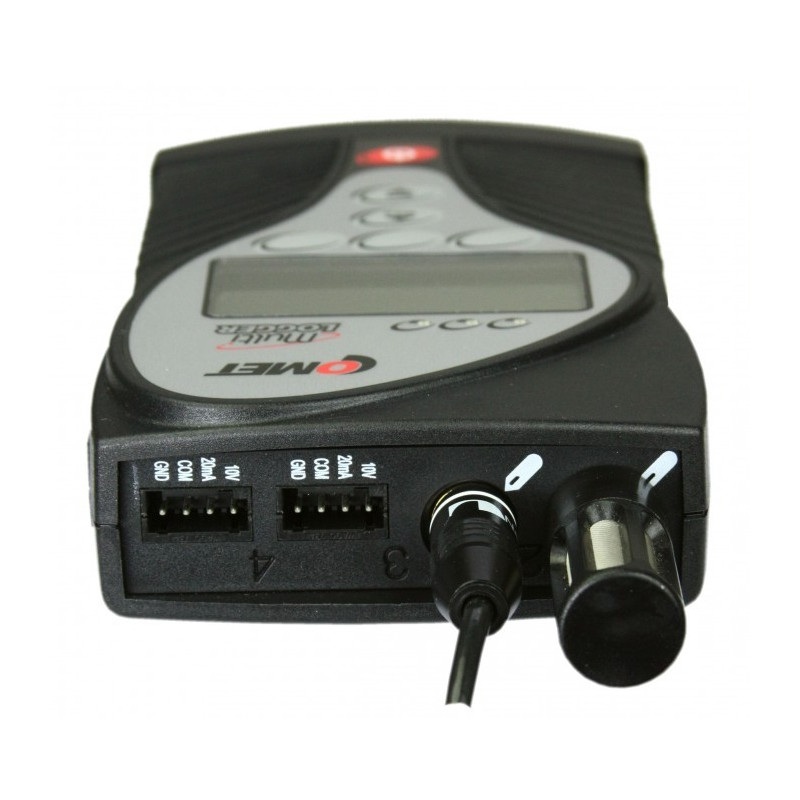

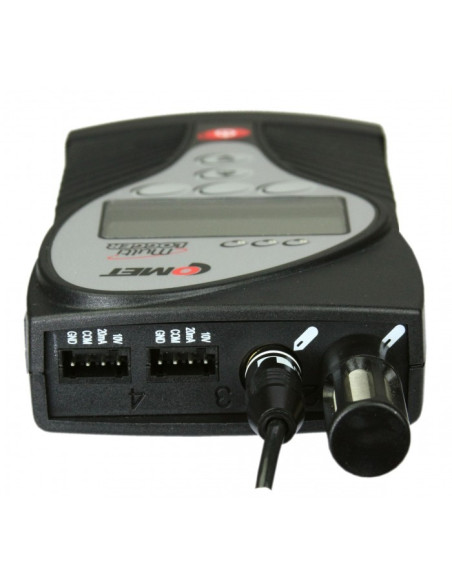

Termininals  Devices with two-state output (monitoring of machine run, door open/close, etc.)  Device with pulse out (gas and water meters, counter pieces on a production line, etc.)  Sensors of physical quantities with voltage output 0-10V (0-5V, 0-1V) or current output 0-20 mA (4-20mA)
Sensors with voltage output Range
0 V to 10 V
Accuracy
± 10mV
Sensors with current output Range
0 mA to 20 mA
Accuracy
± 20 µA
Two-state signal
As the two-state may be used only input 3 and 4.
Pulse signal
As the pulse may be used only input 4.
Potential-less contact
Voltage signal 0-30 V
Internal sensor

Barometric pressure

 Range
600 hPa to 1100 hPa
 Accuracy
±1.3 hPa at 23 °C
the possibility of conversion to sea level
Internal sensor

CO2

Range
0 to 2000 ppm*
Accuracy
 ± (50 ppm + 2% of MV) at 23 °C and 1013 hPA
* custom range 10.000 ppm

Evaluation of up to 16 variables

Up to 16 values can be calculated from 4 connected sensors/signals. This is the sum of measured and calculated values. E.g. dew point temperature, absolute humidity, specific enthalpy, inter-channel conversion (difference between two connected temperature sensors).

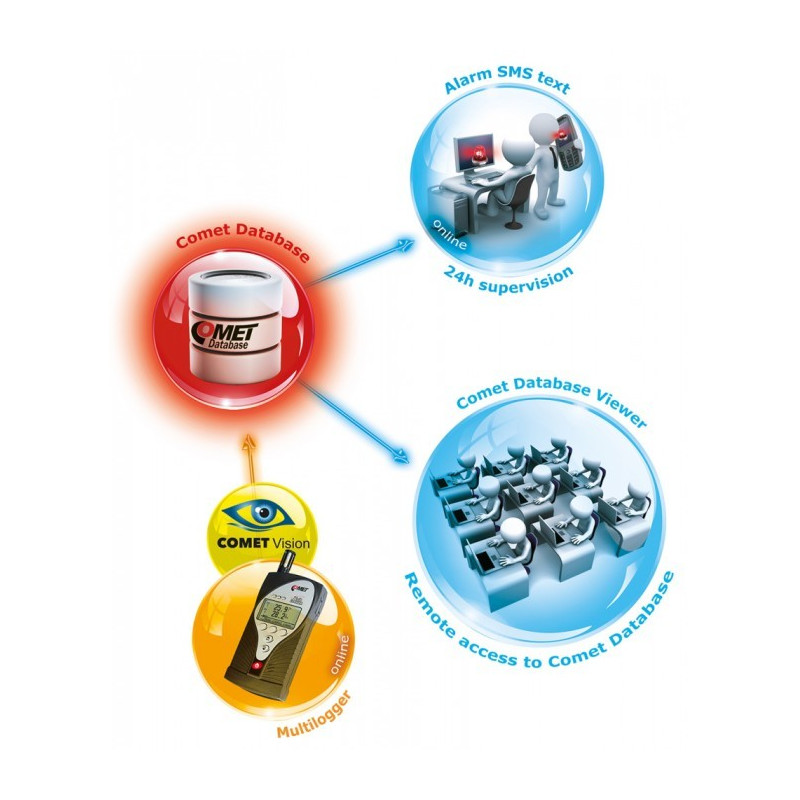

COMMUNICATION

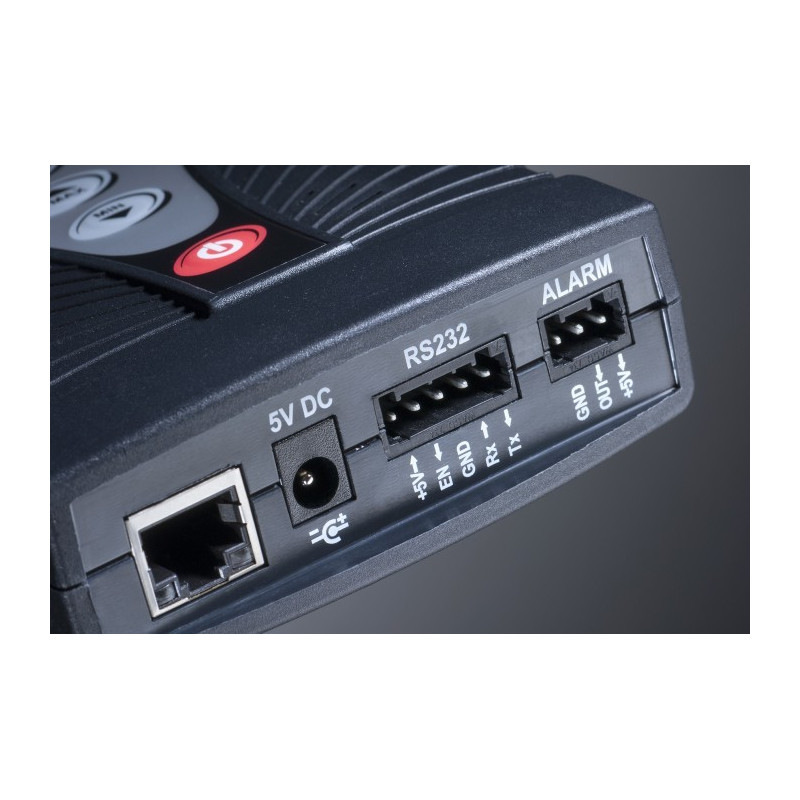

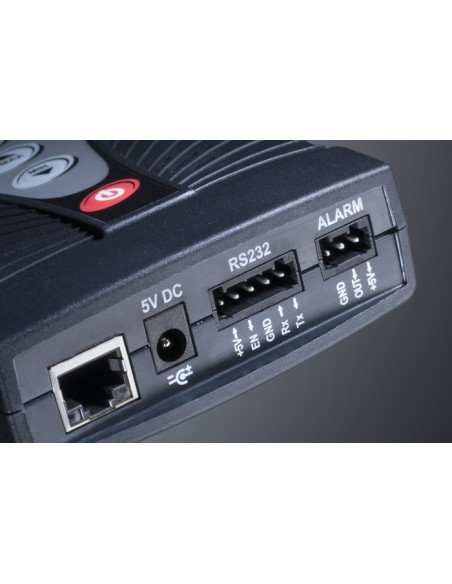

  • The data logger is equipped with USB, Ethernet and RS232 interfaces.
  • For WiFi communication the multilogger can be connected to a WiFi router.

Technical parametersValue
Temperature operating range -10 to +60°C
Humidity operating range 5% to 85%RH, without condensation
Accuracy and range of dew point temperature output - for more details see graphs in manual ±1.5°C at ambient temperature lower than 25°C and RH>30%
range -60 to +80°C
Temperature compensation of the humidity sensor all temperature range
Measuring interval 1s to 24 hours
Available temperature units degrees Celsius, degrees Fahrenheit
Computed values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Memory capacity (approx.) 1 000 000 values (noncyclic record), 600 000 values (cyclic record)
IP protection IP20
Communication interface Ethernet, USB, RS232
Ethernet communication protocols WWW, SNMPv1, XML, DATALINK
Alarm protocols E-Mail
Configuration Comet Vision, WWW configuration
Power AC adapter 230Vac/5Vdc (neccessary for Ethernet interface)
NiMH rechargeable batteries 3x 1.2V AA (backup or portable application) or Alkaline batteries 3x 1.5V AA (for portable applications)
Power connector co-axial, diameter 5.5 x 2.1mm
Dimensions 178 x 95 x 37mm (W x H x D), without attached cables
Pt1000TG8/M, temperature probe, cable 1 m
code: SN104M
Pt1000TG8/M, temperature probe, cable 1 m
Pt1000TG8/M, temperature probe, cable 2 m
code: SN105M
Pt1000TG8/M, temperature probe, cable 2 m
Pt1000TG8/M, temperature probe, cable 5 m
code: SN108M
Pt1000TG8/M, temperature probe, cable 5 m
Pt1000TG8/M, temperature probe, cable 10 m
code: SN113M
Pt1000TG8/M, temperature probe, cable 10 m
Pt1000TR050S/M, temperature probe, cable 1 m
code: SN247M
Pt1000TR050S/M, temperature probe, cable 1 m
Pt1000TR050S/M, temperature probe, cable 2 m
code: SN248M
Pt1000TR050S/M, temperature probe, cable 2 m
Pt1000TR050S/M, temperature probe, cable 5 m
code: SN249M
Pt1000TR050S/M, temperature probe, cable 5 m
Pt1000TG7/M, temperature probe, cable 1 m
code: SN164M
Pt1000TG7/M, temperature probe, cable 1 m
Pt1000TG7/M, temperature probe, cable 2 m
code: SN165M
Pt1000TG7/M, temperature probe, cable 2 m
Pt1000TG7/M, temperature probe, cable 5 m
code: SN166M
Pt1000TG7/M, temperature probe, cable 5 m
Pt1000TG7/M, temperature probe, cable 10 m
code: SN167M
Pt1000TG7/M, temperature probe, cable 10 m
2301-220/M, temperature probe, cable 1 m
code: SN168M
2301-220/M, temperature probe, cable 1 m
2021-150/M, temperature probe, cable 1 m
code: SN169M
2021-150/M, temperature probe, cable 1 m
2034-220/M, temperature probe, cable 1 m
code: SN175M
2034-220/M, temperature probe, cable 1 m
2061-200/M, temperature probe, cable 1 m
code: SN178M
2061-200/M, temperature probe, cable 1 m
2061-200/M, temperature probe, cable 2 m
code: SN179M
2061-200/M, temperature probe, cable 2 m
2061-200/M, temperature probe, cable 5 m
code: SN180M
2061-200/M, temperature probe, cable 5 m
2061-200/M, temperature probe, cable 10 m
code: SN181M
2061-200/M, temperature probe, cable 10 m
PTS350A-5/M, temperature probe, cable 5 m
code: SN182M
PTS350A-5/M, temperature probe, cable 5 m
PTS350A-10/M, temperature probe, cable 10 m
code: SN183M
PTS350A-10/M, temperature probe, cable 10 m
Pt1000TGL40/M, temperature probe, cable 1 m
code: SN185M
Pt1000TGL40/M, temperature probe, cable 1 m
Pt1000TGL40/M, temperature probe, cable 2 m
code: SN186M
Pt1000TGL40/M, temperature probe, cable 2 m
Pt1000TGL40/M, temperature probe, cable 5 m
code: SN187M
Pt1000TGL40/M, temperature probe, cable 5 m
Pt1000TGL40/M, temperature probe, cable 10 m
code: SN188M
Pt1000TGL40/M, temperature probe, cable 10 m
Pt1000TR160/M, temperature probe, cable 1 m
code: SN199M
Pt1000TR160/M, temperature probe, cable 1 m
Pt1000TR160/M, temperature probe, cable 2 m
code: SN200M
Pt1000TR160/M, temperature probe, cable 2 m
Pt1000TR160/M, temperature probe, cable 5 m
code: SN201M
Pt1000TR160/M, temperature probe, cable 5 m
Pt1000TR160/M, temperature probe, cable 10 m
code: SN202M
Pt1000TR160/M, temperature probe, cable 10 m
Pt1000TR160/M, temperature probe, cable 15 m
code: SN203M
Pt1000TR160/M, temperature probe, cable 15 m
2091-250/M, Stick-in probe, cable 1 m
code: SN210M
2091-250/M, Stick-in probe, cable 1 m
2091-250/M, Stick-in probe, cable 2 m
code: SN211M
2091-250/M, Stick-in probe, cable 2 m
2091-250/M, Stick-in probe, cable 5 m
code: SN212M
2091-250/M, Stick-in probe, cable 5 m
2091-250/M, Stick-in probe, cable 10 m
code: SN213M
2091-250/M, Stick-in probe, cable 10 m
Pt1000TG68/M, temperature probe, cable 2 m
code: SN232M
Pt1000TG68/M, temperature probe, cable 2 m
Pt1000TG68/M, temperature probe, cable 5 m
code: SN233M
Pt1000TG68/M, temperature probe, cable 5 m
Pt1000TG68/M, temperature probe, cable 10 m
code: SN234M
Pt1000TG68/M, temperature probe, cable 10 m
Pt1000TR125/M, temperature probe, cable 1 m
code: SN239M
Pt1000TR125/M, temperature probe, cable 1 m
Pt1000TR125/M, temperature probe, cable 2 m
code: SN240M
Pt1000TR125/M, temperature probe, cable 2 m
Pt1000TR125/M, temperature probe, cable 5 m
code: SN241M
Pt1000TR125/M, temperature probe, cable 5 m
Pt1000TR125/M, temperature probe, cable 10 m
code: SN242M
Pt1000TR125/M, temperature probe, cable 10 m
DIGIL/M, digital temperature/humidity probe, for direct insertion
code: DIGIL/M
DIGIL/M, digital temperature/humidity probe, for direct insertion
DIGIL/M, digital temperature/humidity probe, cable 1 m
code: DIGIL/M-1
DIGIL/M, digital temperature/humidity probe, cable 1 m
DIGIL/M, digital temperature/humidity probe, cable 10 m
code: DIGIL/M-10
DIGIL/M, digital temperature/humidity probe, cable 10 m
DIGIL/M, digital temperature/humidity probe, cable 15 m
code: DIGIL/M-15
DIGIL/M, digital temperature/humidity probe, cable 15 m
DIGIL/M, digital temperature/humidity probe, cable 2 m
code: DIGIL/M-2
DIGIL/M, digital temperature/humidity probe, cable 2 m
DIGIL/M, digital temperature/humidity probe, cable 5 m
code: DIGIL/M-5
DIGIL/M, digital temperature/humidity probe, cable 5 m
DIGIS/M, digital temperature/humidity probe, for direct insertion
code: DIGIS/M
DIGIS/M, digital temperature/humidity probe, for direct insertion
DIGIS/M, digital temperature/humidity probe, cable 1 m
code: DIGIS/M-1
DIGIS/M, digital temperature/humidity probe, cable 1 m
DIGIS/M, digital temperature/humidity probe, cable 10 m
code: DIGIS/M-10
DIGIS/M, digital temperature/humidity probe, cable 10 m
DIGIS/M, digital temperature/humidity probe, cable 15 m
code: DIGIS/M-15
DIGIS/M, digital temperature/humidity probe, cable 15 m
DIGIS/M, digital temperature/humidity probe, cable 2 m
code: DIGIS/M-2
DIGIS/M, digital temperature/humidity probe, cable 2 m
DIGIS/M, digital temperature/humidity probe, cable 5 m
code: DIGIS/M-5
DIGIS/M, digital temperature/humidity probe, cable 5 m
DIGIH/M, Ultra thin digital temperature/humidity probe, cable 1 m
code: DIGIH/M-1
DIGIH/M, Ultra thin digital temperature/humidity probe, cable 1 m
DIGIH/M, Ultra thin digital temperature/humidity probe, cable 2 m
code: DIGIH/M-2
DIGIH/M, Ultra thin digital temperature/humidity probe, cable 2 m
DIGIH/M, Ultra thin digital temperature/humidity probe, cable 5 m
code: DIGIH/M-5
DIGIH/M, Ultra thin digital temperature/humidity probe, cable 5 m
Plastic transport case for Multilogger
code: BM511
Plastic transport case for Multilogger
Wall holder for the Multilogger
code: MLP002
Wall holder for the Multilogger
Holder for mounting the Multilogger on magnetic surfaces
code: MLP003
Holder for mounting the Multilogger on magnetic surfaces
150Mbps Wireless N Nano Router - TL-WR702N
code: TL-WIFI
150Mbps Wireless N Nano Router - TL-WR702N
TL-POE10R - PoE splitter
code: TL-POE
TL-POE10R - PoE splitter
Wall holder for external probes DIGIL
code: SP009
Wall holder for external probes DIGIL

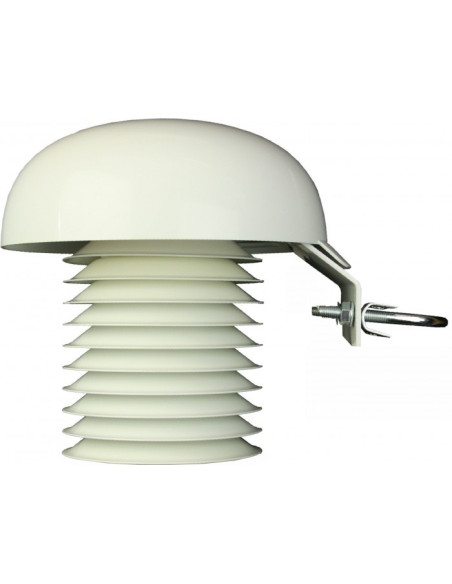

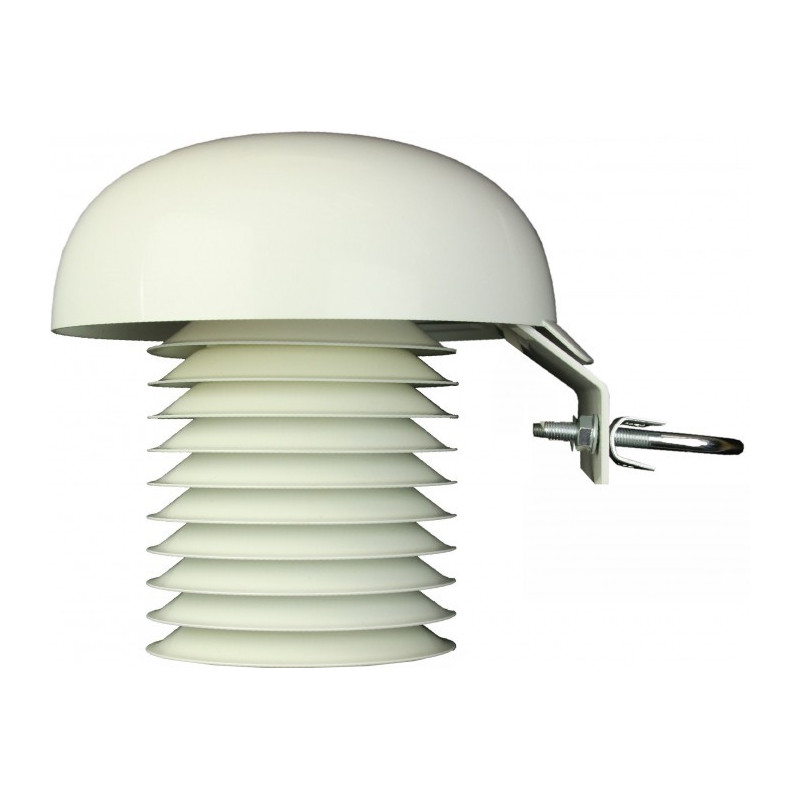

COMETEO Multi-plate Meteo Shield for Weather Sensors
code: F8100
COMETEO Multi-plate Meteo Shield for Weather Sensors
External audio unit for MSxx and Multilogger
code: MP026
External audio unit for MSxx and Multilogger
Adapter for easy connection U/I signals to Multilogger
code: MLP006
Adapter for easy connection U/I signals to Multilogger
Magnetic door contact SA-200-A
code: SA200A
Magnetic door contact SA-200-A
Magnetic door contact with cable length 2m
code: SA200A-2
Magnetic door contact with cable length 2m
Magnetic door contact with cable length 5m
code: SA200A-5
Magnetic door contact with cable length 5m
Magnetic door contact with cable length 10m
code: SA200A-10
Magnetic door contact with cable length 10m
Magnetic door contact with cable length 15m
code: SA200A-15
Magnetic door contact with cable length 15m
Magnetic door contact with cable length 20m
code: SA200A-20
Magnetic door contact with cable length 20m
Magnetic door contact with cable length 30m
code: SA200A-30
Magnetic door contact with cable length 30m
Motion detector JS20
code: JS20
Motion detector JS20
The LD-12 flood detector
code: LD12
The LD-12 flood detector
The optical smoke detector SD-280
code: SD280
The optical smoke detector SD-280
