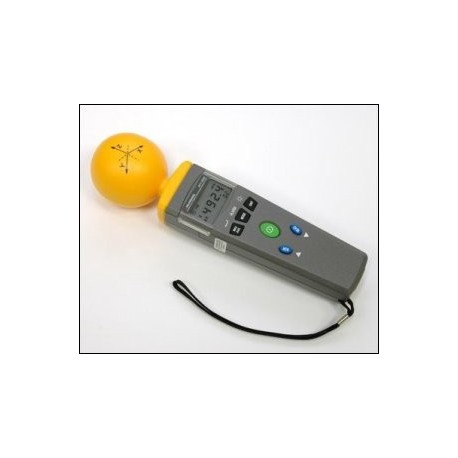

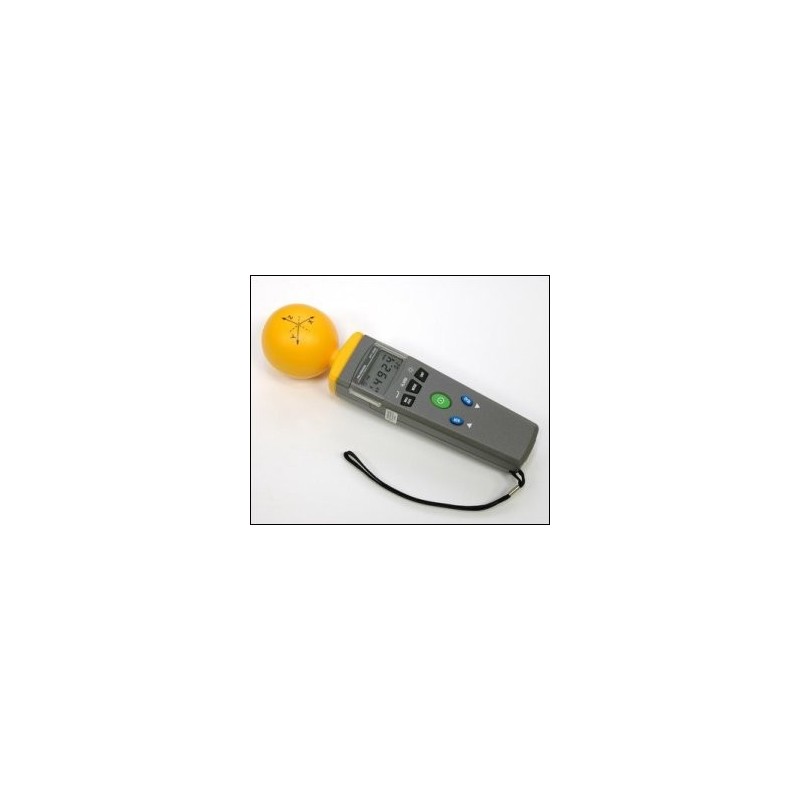

TES-92 Medidor de Contaminación Eléctrica

Measurement  method

Digital, triaxiol measurement

Direclionol characteristic

Isotropic, trioxiol

Measurement range selection

One continuous range

Display resolution

O. lmV/m, O. l vA/m, 0.0011JW/m2

Setting time

Typica lly 1s [0 to 90% of meat value)

!:>isploy refresh r6te

Typically 400mS

Display type

LC0 4 digit

Audible alarm

Buzzer

Measurement units

mV/m, V/m, IJA/m, mA/m, fJW/m2, mW/m2

Measurement display value

Instantaneous measured volue1 maximum value or average value since power-on.

Measurement average time (in per·set steps)

4s to 15 minutes

Measureme11t olal'l11 function

Adiusloble threshold with ON/OFF

Measurement  calibration Factor CAL

Adjustable

Manual data memory and read storage

99 sets (only recall by meter)

Battery

9V

Battery life

>15hours

Accessory

.9V battery, Carrying Cose & Manaul

Sensor fyoe

Electric field (E).

Frequency ranQe

50MHz to 3.5GHz

Directional  characteristic

Isotropic, 3-dimensional.

Measurement ronge

(CW signal > 50MHzl

38mV/m to ll V/m. 3.8µW/m2 to 320mW/m 2

Absolute error

(@l V/m and 50MHz)

±1.0dB

Frequency response (taking into account typ. CAL factor

±1 .0dB (50MHz to 1.9GHz)

±2.4dB (1 .9GHz to 3.5GHz)

Isotropy deviatkm

Typ.± 1.OdB for f >50MHz

overload limit

4.2W/m2  (40V/m)

Temperature reSponse

(0 to 50°C)

±l .5dB

Note :

Unless otherwise stated, all specifications hold under the following assumptions :

Sinusoidal signals;device in for·field of a source; probe head pointing toward source; ambient temperature +23°C:t3°C; relative air humidify 25% to 75%.
