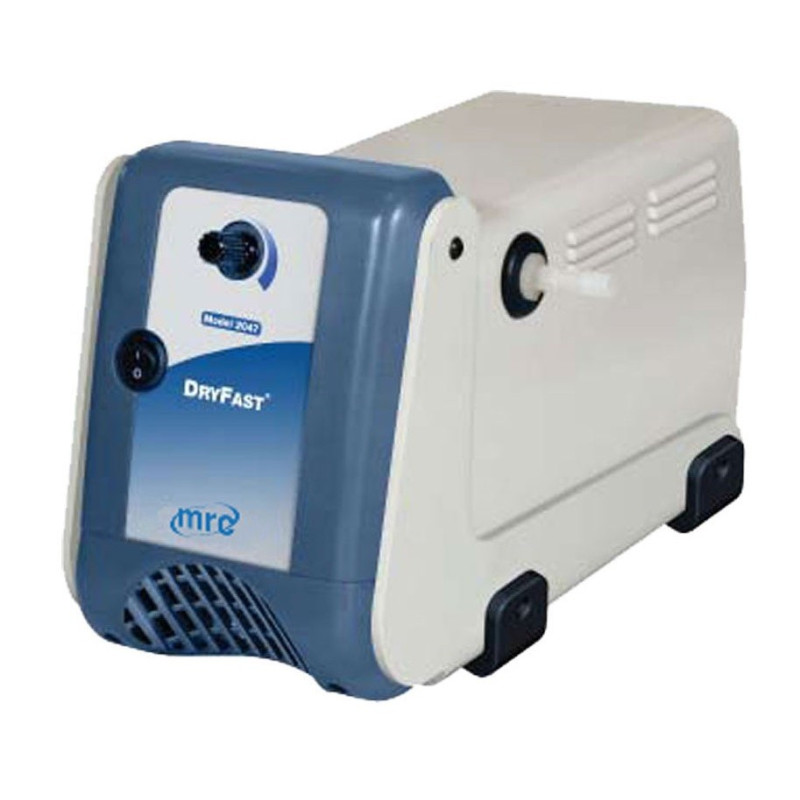

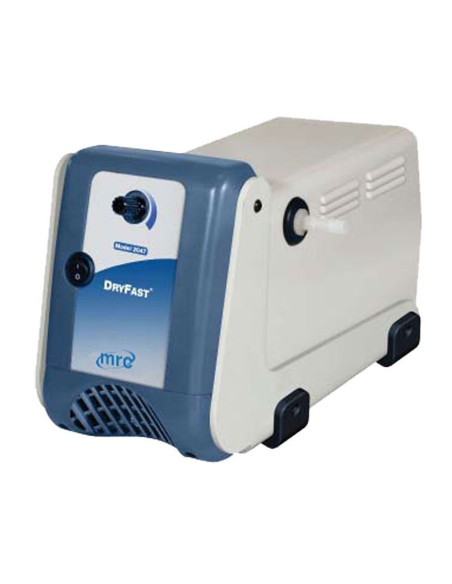

2044C-02 Bomba seca de PTFE, 12 mbar, 29L / min con marca CE, 230V

Reference: 2044C-02

Manufacturer: MRC

Condition: New

◆ Aplicações laboratoriais: Rotativa, Evaporação/destilação (volatilidade média do solvente <110oC B.P., volume ~ 2 litros)
◆ Concentrador centrífugo (por exemplo, peletização de DNA), fornos a vácuo - pequenos, bombeamento
vapores e gases fortes...

More info about this product.

Partilhar no Facebook
Retirar este produto da minha lista de favoritos.
Adicionar este produto à minha lista de favoritos.
Print

GERAL
ESPECIFICAÇOES
MODELOS
Data sheet
Download

Função:	Bombas

2044C-02 Specs Download (534.12k)

Deslocamento de Ar Livre cfm (l/min.) @ 60Hz: 1,2 (35)
Deslocamento de ar livre m3/h (l/min.) a 50Hz: 1,75 (29)
Pressão máxima: 9 Torr (12 miliBar)
Vácuo Máximo: 29,6 mmHg
Potência do motor (watts): 1/5 (150)
Vácuo ajustável. / Gás Lastro

Specifications				WELCH DryFast Pumps
Model	2019	2014	2034	2044	2037	2047
Free Air Displacement
cfm(l/min.) @60Hz	1.3(37)	1.2(35)	0.9(25)	1.2(35)	1.8(50)	2.5(70)
m3/hr(l/min.) @50Hz	1.9(31)	1.75(29)	1.25(21)	1.75(29)	2.5(42)	3.5(58)
Ult. Vac. Pressure, torr(mbar)	150(200)	40(53)	9(12)	9(12)	35(47)	35(47)
Maximum Vacuum, in. Hg	24	28.3	29.6	29.6	28.5	28.5
Motor Horsepower - HP(watts)	1/15	1/5(150)	1/5(150)	1/5(150)	1/5(150)	1/5(150)
Adjustable Vac./Gas Ballast		Yes	Yes	Yes	Yes	Yes
Tubing Needed, I.D. in.(mm)	1/4(7)	1/4(7)	1/4(7)	1/4(7)	1/4(7)	1/4(7)
Intake(Exhaust) Thread NPT		M14(1/8)	M14(1/8)	M14(1/8)	M14(1/8)	M14(1/8)
Weight lbs.(kg)	10.2(4.6)	15.0(6.8)	21.25(9.6)	21.25(9.6)	21.25(9.6)	21.25(9.6)
Overall Dimensions LxWxH in.(cm)	8.8x5.0x8.8 (22.4x12.7x22.4)	12x7.0x8.3 (30.5x 17.8x21.1)	13.8x6.8x8.8 (35.2x7.2x22.3)	13.8x6.8x8.8 (35.2x7.2x22.3)	13.8x6.8x8.8 (35.2x7.2x22.3)	13.8x6.8x8.8
Overall Dimensions LxWxH in.(cm)	8.8x5.0x8.8 (22.4x12.7x22.4)	12x7.0x8.3 (30.5x 17.8x21.1)	13.8x6.8x8.8 (35.2x7.2x22.3)	13.8x6.8x8.8 (35.2x7.2x22.3)	13.8x6.8x8.8 (35.2x7.2x22.3)	(35.2x7.2x22.3)
Ship Weight, lbs.(kg)	10.2(4.6)	19(8.6)	25(11.3)	25(11.3)	25(11.3)	25(11.3)
Shipping Carton Dimensions LxWxH in.(cm)	16x12x12.8 (41x30x33)	21x14x15 (52x35x37)	21x14x15 (52x35x37)	21x14x15 (52x35x37)	21x14x15 (52x35x37)	21x14x15 (52x35x37)
Ordering Information
Wired for 115V, 60Hz,1 Ph with N. Amer. 115V Plug	2019B-01	2014B-01	2034B-01	2044B-01	2037B-01	2047B-01
Wired for 230V, 50/60Hz, 1Ph, w/ UK and Schuko cord sets included	2019C-02	2014C-02	2034C-02	2044C-02	2037C-02	2047C-02
Wired for 100V, 50/60Hz for Japan	----	2014C-05	2034C-05	2044C-05	---	---
