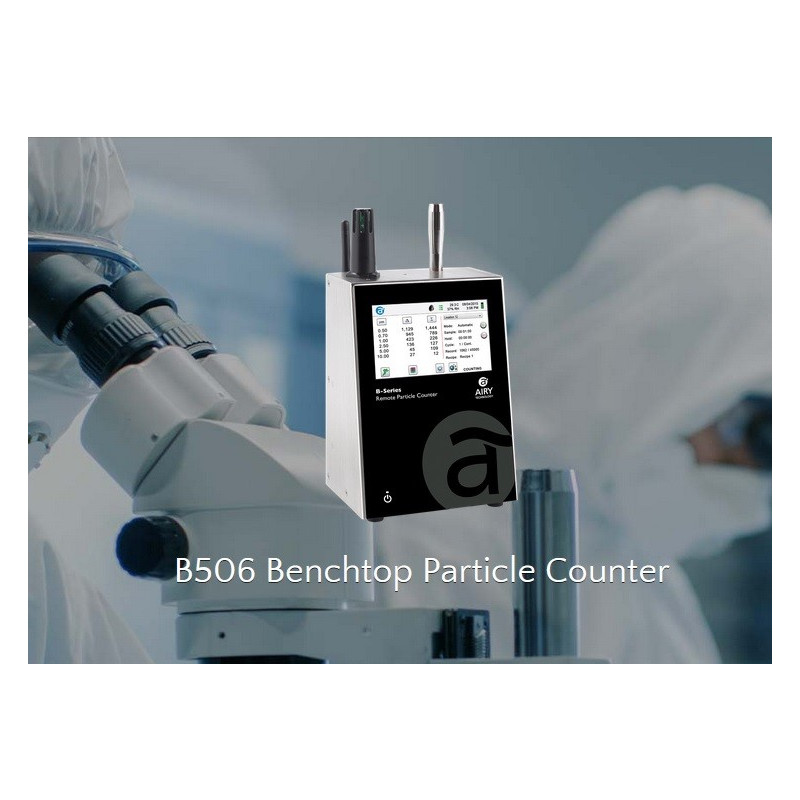

B506 Contadores remotos de Partículas en el Aire 0.1 CFM (2.83 LPM)

View larger

B506 Contadores remotos de Partículas de Ar 0,1 CFM (2,83 LPM)

Reference: B506

Condition: New

Os contadores remotos de partículas Airy Technology® B506 medem de 0,5 a 25,0 μm com uma taxa de fluxo de 0,1 CFM (2,83 LPM). Fácil de configurar, esses instrumentos exibem até 6 canais de tamanho selecionável pelo usuário, além de temperatura e umidade relativa. Visualize dados ou exporte-os para o Instrument Management Software (IMS). Os contadores da Airy Technology podem ser controlados e monitorados remotamente através do navegador da web.

O B506 pode ser usado como instrumento independente, alimentado por bateria ou pode ser facilmente integrado a um sistema de automação predial e de gerenciamento de salas limpas via Ethernet, USB ou (opcional) sem fio 802.11 b / g, RS485 ou RS232 (opcional) sem fio.

More info about this product.

Partilhar no Facebook
Retirar este produto da minha lista de favoritos.
Adicionar este produto à minha lista de favoritos.
Print

GERAL
ESPECIFICAÇOES
Data sheet
Download

Tipo de Instrumento	Medidor Partículas no ar
O instrumento mede:	Contagem Óptica de Partículas
Instrumento para:	Partículas no Ar
Função:	Analisador Tamanho Partículas

B506 Download (7.91M)

Os contadores remotos de partículas Airy Technology® B506 medem 0,5 a 25,0 μm com uma taxa de fluxo de 0,1 CFM (2,83 LPM). Fácil de configurar, esses instrumentos exibem até 6 canais de tamanho selecionáveis pelo usuário, além de temperatura e umidade relativa. Visualize dados ou exporte para o Instrument Management Software (IMS). Os contadores da Airy Technology podem ser controlados e monitorados remotamente via navegador da web.

O B506 pode ser usado como instrumentos operados por bateria autônomos ou pode ser facilmente integrado a um sistema de automação predial e gerenciamento de salas limpas via Ethernet, USB ou (opcional) Wireless 802.11 b / g, RS485 ou RS232 (opcional).

Todos os contadores Airy Technology® atendem às normas ISO 21501-4 e JIS B9921. O B506 garante a conformidade com um analisador de altura de pulso integrado.

Model B506: measures 0.5 to 25 μm

0.1 CFM (2.83 LPM) flow rate

Long life laser diode technology

Measures up to 6 channels of simultaneous data

Approximates mass concentration in μg/mÑ

Large easy-to-use icon driven color touch screen display

Optional temperature and relative humidity probe available

Stores up to 45,000 sample records and 1,000 sample locations

Easy configuration and transferable from instrument to instrument

Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485, or RS232

Static or dynamic IP address (DHCP)

Remote diagnostics allows for remote service investigation through the Internet

Internal audible alarm

User-selectable channel sizes

Complies with ISO 21501-4 and JIS B9921 standards

Easy to clean and wipe down with minimal particle traps

Seamless integration into a facility monitoring system

Light weight stainless steel enclosure

1 year warranty. Extended warranties available

Model	B506
Size Range	0.5 to 25μm
Size Channels	0.5, 0.7, 1.0, 2.5, 5.0, 10 μm
Counting Efficiency	50% @ 0.5 μm; 100% for particles >0.75 μm per JIS
Flow rate	0.1 CFM (2.83 LPM)
Concentration Limit	15,000,000 Particles/ft³ @ 10% coincidence loss
Battery Run Time	>10 hours continuous operation
Light Source	Long life laser diode
Zero Count	<1 count / 5 minutes (<2 particles / ft³) (per ISO 21501-4 & JIS)
Count Modes	Cumulative/differential count/m³ & count/ft³
Count Alarms	1 to 9,999,999 counts
Calibration	NIST traceable
Display	4.3" (10.9 cm) WQVGA (480x272) color touch screen
Printer (Optional)	Optional external thermal printer available. Prints in all available languages
Vacuum Source	Internal pump with automatic flow control
Filtered Exhaust	Internal HEPA filter
Number of Channels	6
Custom Size Channels	Calibration for custom size channels available
Audible Alarm	Adjustable built-in alarm
Battery	Removable Li-ion
Battery Recharge Time	4 hours within instrument (<2 hours with external battery charger)
Recipes	50 user-configurable recipes
Communication Modes	Ethernet and USB
Optional Communication Modes	Wireless 802.11 b/g, RS485 or RS232
Environmental Sensor	(Optional) temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC), 15-90% ±2% relative humidity
Alarm	Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
Standards	ISO 21501-4 and JIS B9921
Calibration	Recommended minimum once per year
External Surface	Stainless steel
Dimensions (L x W x H)	5.2” x 4.15” x 8.25” (13.3 cm x 10.5 cm x 21 cm) includes barb fittings
Weight	4 lb (1.8 kg)
Accessories	Operating manual on USB flash drive, isokinetic probe, purge filter, battery, data download software, USB cable, power supply & cable
Optional Accessories	Printed manual, spare battery, external battery charger, external printer, temperature relative humidity sensor, and isokinetic probes
Buffer Memory	45,000 sample records (rotating buffer) including particle count data, environmental data, locations and times. Scrollable on screen or printout
Sample Locations	Up to 1,000 locations 20 characters long
Sample Time	1 second to 99 hours
Power	110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions	41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions	32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
Warranty	1 Year. Extended warranties available
