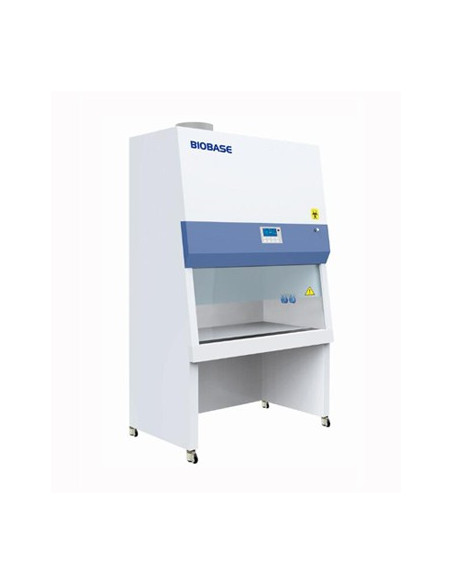

AO-11234BBC86 Sino de Segurança Citotóxico

Model

AO-11234BBC86

Internal size(W*D*H)

1220*600*660mm 48”*26”*24.8”

External size(W*D*H)

1380*760*2100mm(8”) 53.9’*29.9”*86.6”

Tested Opening

Safety Height 200 mm（8’’）

Working Opening

440mm(17’)

Internal Work Area,space

0.73m3

Inflow Velocity

0.53 m/s

Down Flow Velocity

0.33 m/s

Exhaust Volume

465m3/h(273cfm)

Air Supply Filter

ULPA filter,efficiency＞99.999% for partical size at 0.12 μm

Exhuast Filter

2pieces HEPA filters, efficiency＞99.999% for particle at 0.3 μm.

Fiter life indicator and filter working time indicator

Alarm

Abnormal airflow velocity; Filter replacement; Front window at unsafe height.

Noise

EN12469≤58dB/NSF49≤ 61 dB

Water &Gas Tap

Water Tap*1,Gas tap*1

UV lamp

30 W*1

Emission of 253.7nanometers for most efficient decontamination

UV life indicator

Fluorescent Lamp

16 W*2

Illumination

≥1000 lux

Consumption

900 W

Waterproof Socket

Two ; total load of two sokets :≤500W

Display

LCD Display

Control Sys tem

Microprocessor

Humidity and Temperature

Humidity and temperature can be displayed on the control panel

Material

Work Area:304 stainless steel;

Main Body :Cold-rolled steel with anti-bacteria powder coating

Front Window

Moterized,two-layer laminated 5mm toughened glass.Anti UV.

Caster

Footmaster Caster

Power Supply

AC220V± 10%,50/60HZ；110V±10%，60HZ

Standard Configuration

Base stand, Drain valve, waterproof sockets*2, Remote control,

UV lamp*2 and Fluorescent Lamp,Water tap ,Gas tap

Optional accessory

Armrest,Formalin fumigation sterilizer,infrared sterilizer,

Airflow tester,PVC duct

Gross weight

371kg

Package Size(W*D*H)

1540*910*2280mm
