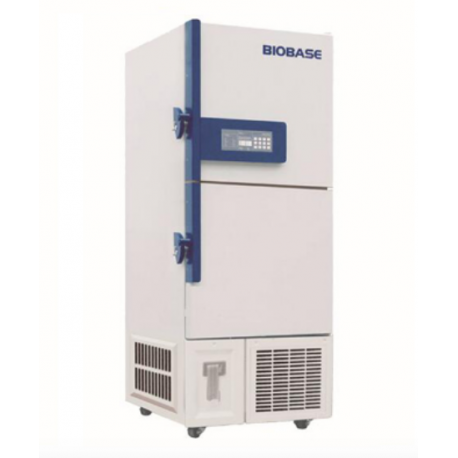

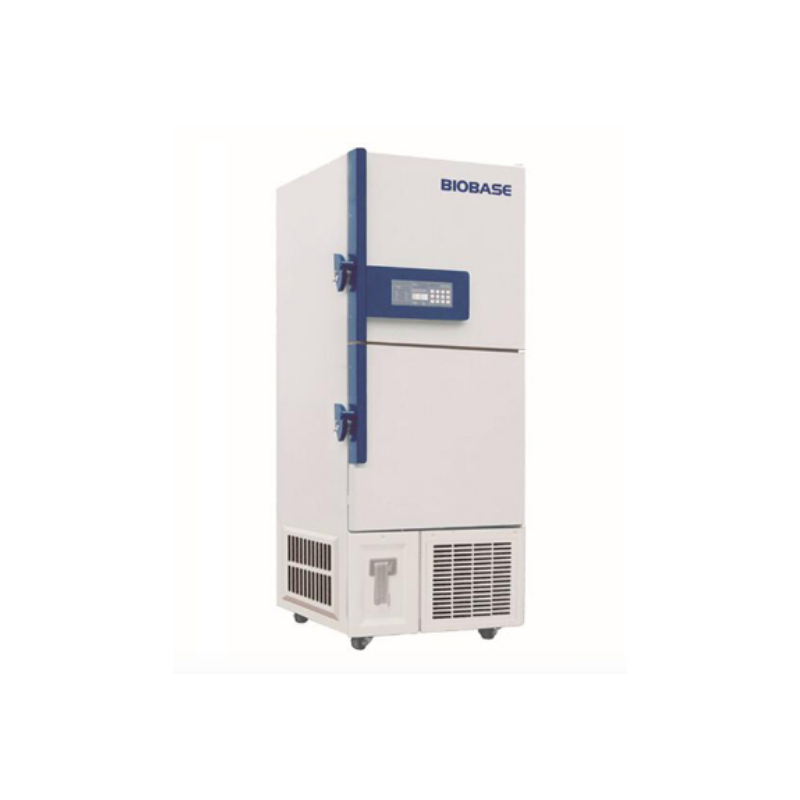

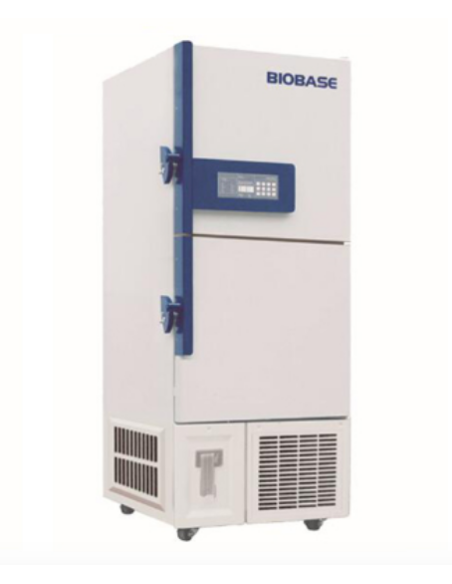

AO-BDF-86V540 Ultra-freezer Medical -86ºC Vertical de 540L

Model

BDF-86V540

External Size (W*D*H)mm

840*918*1984

Internal Size (W*D*H)mm

Upper:600*659*593

Down:600*659*593

Capacity

540L

Type

Vertical

Temp.Range

-10~ -86℃

Temp. Accuracy

0.1 ℃

Control System

Microprocessor control& Large Screen LED Display

Microprocessor control& LCD touch screen

Audio and visual alarm

High and low temperature, System failure, Door ajar, Sensor failure, Low voltage, Filter blocking; Power failure（only for BDF-86V100 and BDF-86V540）

Refrigeration Type

Direct refrigeration

Refrigerant

Mixture refrigerant

Compressor

2sets

Condenser&Evaporator

Made of copper

Construction

Structure

Unibody design, two-time foaming technology,

100~155mm foaming insulation, with VIP+

Internal

Material

SS304

External Material

Cold-rolled steel coated with anti-bacteria powder

Door

Lockable door

Caster

4 casters

Chamber with inner door

4

Temp.Test Port

1,φ40mm

Consumption

1900w

Power Supply

AC220V±10%，50/60HZ

Standard Accessory

Temperature printer, record 7 days data,

72 hours battery backup for printer and controller display

USB port

Optional Accessory

Back-up system

CO2 Back-up system

Storage racks

and boxes

8 racks:5*5

8 racks:4*5

360 boxes

Package Size

(W*D*H)mm

990*1100*2230

Gross Weight

360kg
