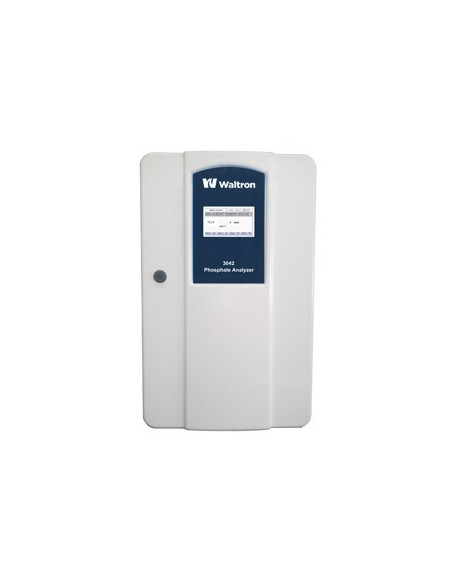

3042 Analizador de Fosfato
Los analizadores colorimétricos de la serie 3040 de Waltron proporcionan resultados excepcionales para la medición en línea de sílice, fosfato y otros parámetros. El diseño pequeño y compacto hace de la serie 3040 una excelente opción para una variedad de aplicaciones y entornos. Los analizadores colorimétricos de la serie 3040 de Waltron han sido completamente rediseñados para ofrecer configuraciones únicas y simplificadas en comparación con los modelos anteriores.
Sensor Classification
Colormetric with glass flowcell and LED source
Application
Boiler water, and cooling water
Digital Outputs
Communication interface via RS-232 & RS-485 using MODBUS RTU protocol
Power Supply
110-220Vac, 50-60 Hz 80 VA
Humidity
Up to 90% not condensable
Ambient Temperature Range
10-45º C analyzer (50-113º F)
Range
0 – 5ppm, 0 – 15ppm; 0 – 150ppm*, 0 – 750ppm*
*By Auto Dilution
Accuracy
+/– 2% of full scale
Unit Dimensions
Height=23.6”(60 cm), Width=15”(38 cm), Depth=8.3”(21 cm)
Atmospheric Pressure Range
No Limits
Positioning and installation details
Wall mounting or with bench support, panel mounting (optional)
Response Time (approximate)
<10min, batch process, programmable cycle>
Alarms
2 or 4 configurable alarm relays
Reproducibility
+/– 2% of reading
Degree of Protection (approximate)
IP55 (NEMA 4): Wet section, IP65 (NEMA 4x): Electronics
Required Maintenance
Once a month replenish reagents, Quarterly replace tubing
Reagent Consumption (approximate)
1 or 2 reagents (depending on range), 2L each per month
Materials in Contact with Sample
Glass, Silicone, Plexiglass, Stainless Steel AISI 316
Certification (on request):
Meets low voltage and low electromagnetic compatibility directives
Sample Conditioning Requirements
Filtering between 10 and 60 micron, depending on the matrix, needed only to avoid clogging.
Weight
17 kg (37.5 lbs.)
SAMPLE DELIVERY OPERATING CONDITIONS
Temperature Range
5-55º C (41-131º F)
Inlet Sample
100–500 ml/min, atmospheric, flexible tubing O.D. 1/4
Outlet Sample
Atmospheric, waste tubing O.D. 3/8
Turbidity
Not applicable, sample blank correction
Color
Not applicable, sample blank correction
PH
3-12
SIGNAL OUTPUTS
Analog Outputs:
4-20mA (galvanic isolator module available as option) or 0-5V
Serial I/O for Signals:
Serial data output RS232 standard, RS485 available as option
OPERATIONAL CALIBRATION
Frequency/Intervals
Recommended: 7 days
Single/Multi Point
Multi-Point: zero and mid range
Matrix Corrections
Yes, sample blank correction
Manual/Automatic
Both
