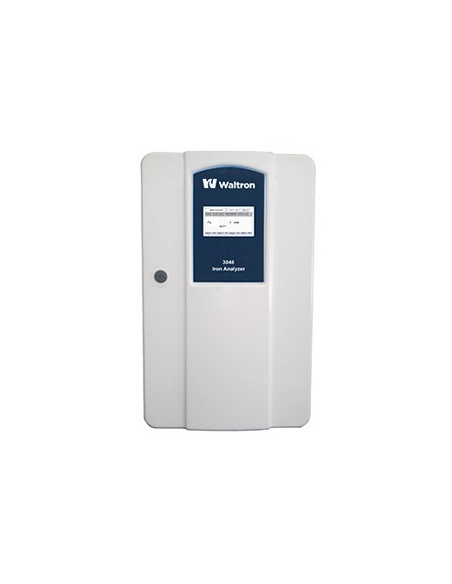

3048 Analizador de Hierro en Agua

El analizador de hierro Waltron 3048 le ofrece tecnología de vanguardia para la medición en línea de hierro disuelto en aplicaciones de agua ultrapura. Análisis de hierro disuelto en línea es un creciente en popularidad como un método eficaz para monitorear la corrosión dentro de los sistemas de agua de vapor y caldera. Mejore su proceso manual de prueba de banco al análisis automático en línea para obtener resultados precisos y confiables, mayor visibilidad de los cambios en las concentraciones de hierro y detección temprana de problemas potenciales.

Range
0 – 1000ppb, 0 – 5ppm

Accuracy
+/– 2% of full scale

Reproducibility
+/– 2% of reading

Analysis Time
7.5 minutes

Sampling Frequency (Cycle Time)
One reading every 20 minutes (adjustable)

Required Maintenance
Once a month replenish reagents, Quarterly replace tubing

Reagent Consumption (approximate)
1 reagent, 1L per month

Sensor Classification
Colorimetric with glass flowcell and LED source

Application
Boiler water and cooling water

Ambient Temperature Range
10-45ºC analyzer (50-113ºF)

Atmospheric Pressure Range
No Limits

Humidity
Up to 90% not condensable

Unit Dimensions
Height=23.6”(60 cm), Width=15”(38 cm), Depth=8.3”(21 cm)

Positioning and installation details
Wall mounting or with bench support, panel mounting (optional)

Weight
17 kg (37.5 lbs.)

Degree of Protection
IP55 (NEMA 4): Wet section, IP65 (NEMA 4x): Electronics

Alarms
2 or 4 configurable alarm relays

Power Supply
110-220Vac, 50-60 Hz 80 VA

CE Certification (on request)
Meets low voltage and low electromagnetic compatibility directives

SAMPLE DELIVERY OPERATING CONDITIONS

Temperature Range
5-55º C (41-131º F)

Inlet Sample
100–500 ml/min, atmospheric, flexible tubing O.D. 1/4”(6 mm)

Outlet Sample
Atmospheric, waste tubing O.D. 3/8”(9 mm)

PH
3-12

Sample Conditioning Requirements
Filtering between 10 and 60 micron, depending on the matrix, needed only to avoid clogging

Materials in Contact with Sample
Glass, Silicone, Plexiglass, Stainless Steel AISI 316

SIGNAL OUTPUTS

Analog Outputs
4-20mA (galvanic isolator module available as option) or 0-5V

Serial I/O Options

OPERATIONAL CALIBRATION

Single/Multi Point
Multi-Point: zero and mid range

Matrix Corrections
Yes, sample blank correction

Manual/Automatic
Both
