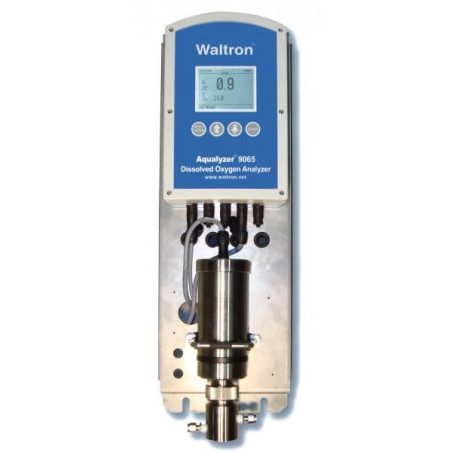

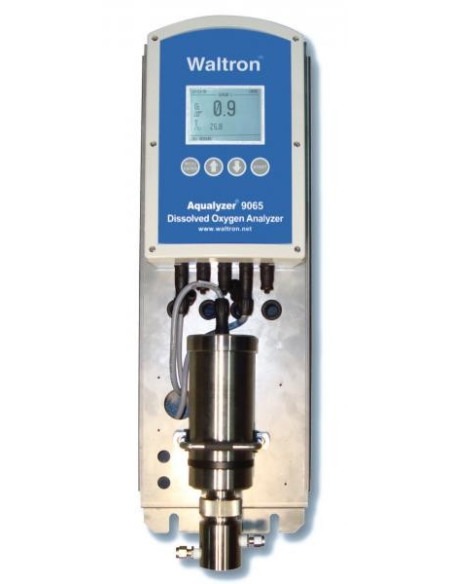

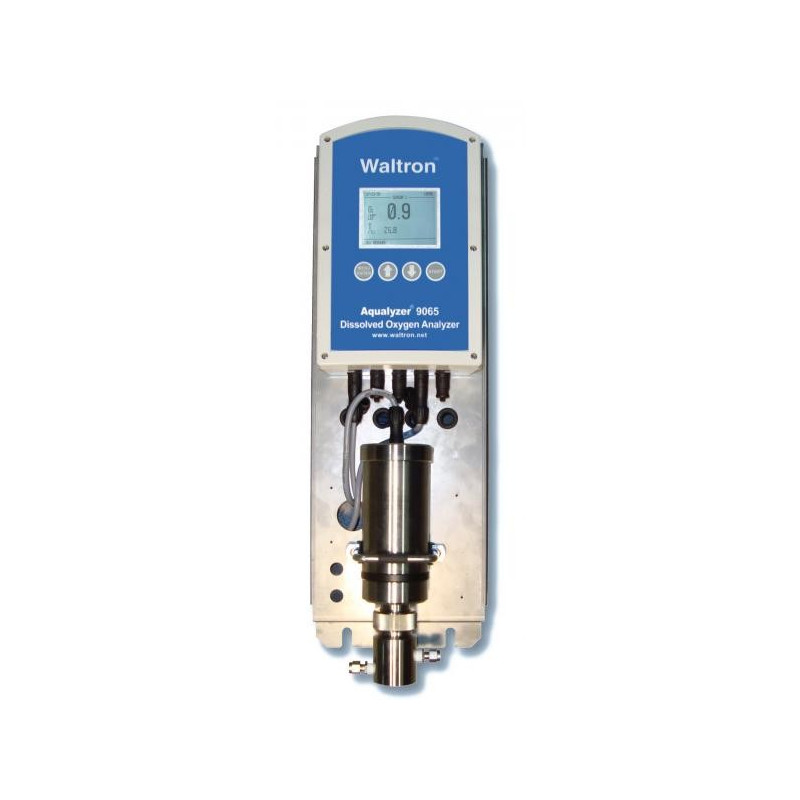

Aqualyzer® 9065 Analizador de Oxígeno Disuelto

Referencia: Aqualyzer-9065

Fabricante: Waltron

Condición: Nuevo

Analizador de Oxígeno Disuelto en Agua Waltron

Consulta este producto

Compartir en Facebook
Remove this product from my favorite's list.
Add this product to my list of favorites.
Imprimir

General
Especificaciones

El Analizador de Oxígeno luminiscencia 9065 utiliza una nueva tecnología luminiscente para medir el oxígeno disuelto en el agua a niveles de ppb.

Luminescent Dissolved Oxygen Technology

Tecnología luminiscente tiene características y beneficios únicos en comparación con tecnologías de detección de oxígeno disuelto tradicionales. El 9065 proporciona una alta precisión con una excelente estabilidad a largo plazo. El Analizador de Oxígeno Disuelto 9065 se puede utilizar en una variedad de aplicaciones de análisis en línea a través de muchas industrias diferentes.

CARACTERÍSTICAS		BENEFICIOS
Wide range analysis: 0.10ppb – 2000ppb (other ranges available on request)		No sensor maintenance (no membrane, no electrolyte)
No calibration for up to 2 years		Simple operation
Extremely fast response time		Compact design
No sample interference
Excellent results independent of sample flow rate
Use in liquid and gas applications
High temperature alarm
Multiple sensor configuration

Range		0.10ppb – 2000ppb (other ranges available on request)



Accuracy		± +/- (1ppb + 2% of the measured value)




Response Time		t90 (90%) < 15 sec



Units		ppb, ppm, µg/L, mg/L, % O2, % a.s





Current Outputs		Two configurable 4-20mA current (analog) outputs



Digital Output		Communication interface using RS-232 and RS-485



Alarms		General Alarm, Temperature Alarm, Two Concentration Alarms



Response Time		90%of a step change in 60 second





Power		90 – 240 VAC ~ 50 – 60 Hz, 25 W



CE Certification (on request)		Meets low voltage and low electromagnetic compatibility directives



Options		Profibus; multiple sensor configuration; certificate of measurement


Operating Conditions




Sample Temperature		23 – 113°F (-5 – 45°C)



Ambient Temperature		32 – 131°F (0 – 55°C)



Pressure		Maximum of 145 psig (10 bar)



Sample Connection		1/4” (6 mm) Swagelok



Sample Medium		Liquid or gas



Sample Memory		Up to 500 measurements



Mechanical



Construction		Transmitter – high strength ABS, IP65 (NEMA 4x) Wet section – high strength ABS and sheet metal, all wetted parts stainless steel or PVC, IP55 (NEMA 4)



Dimensions		Combined Analyzer: Height=25.75”(65.4 cm), Width=8”(20.3 cm), Depth=6.25”(15.9 cm) Separated Transmitter: Height=10.92”(27.74 cm), Width=7” (17.78 cm), Depth=7.63”(8.99 cm) Separated Wet Section: Height = 10.5” (26.7 cm), Width = 4.5” (11.4 cm), Depth = 3.5” (8.9 cm)



Mounting		Wall mount or Panel mount



Wiring		IP 65 Connections



Distance		Up to 49ft (15 meters) on request



Finish		Corrosion resistant
