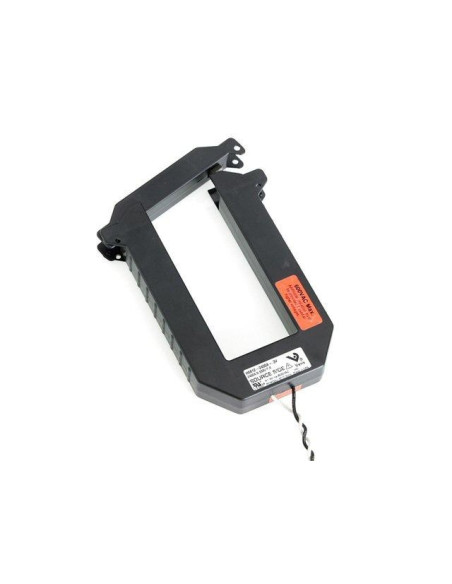

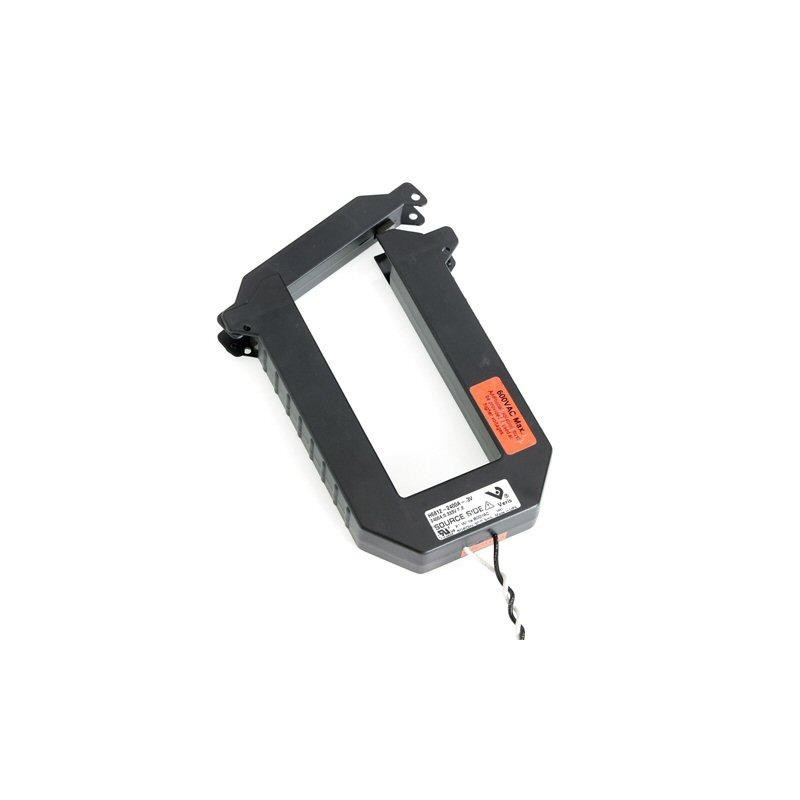

H6812-1000A-.3V Transductores de Corrien AC con Salida 0-0.333VAC
1000A a 0.333V
"
El Hawkeye 681 X serie de transductores de corriente de núcleo partido proporcionar un seguro 0-0.333VAC para uso con registradores de datos, tabla de grabadoras y equipos de monitoreo de energía.
APLICACIONES
- Registro de datos
- Grabación
- Monitoreo de energía
Múltiples opciones de salida para flexibilidad de aplicación
- Alta exactitud: 1 de 10 a 100 de la corriente
- Output at Rated Current 1.0 VAC
- Accuracy 1% from 10% to 100% of rated current
- Frequency Range 50/60 Hz
- Leads 18AWG, 600VAC, UL 1015 twisted pair, 6 ft. (1.8m) standard length
- Weight 0.340 kg
- Operating Temperature Range -15° to 60°C (5° to 140°F)
- Storage Temperature Range -40° to 70°C (-40° to 158°F)
- Humidity Range 0-95% noncondensing
- Max. Voltage L-N Sensed Conductor 600VAC (basic insulation rating) *
- Altitude of Operation 3km max.
- Installation Category Cat II or Cat III
* Do not apply 600V Class current transducers to circuits having a phase-to-phase voltage greater than 600V, unless adequate additional insulation is applied between the primary conductor and the current transducers. Veris assumes no responsibility for damage of equipment or personal injury caused by products operated on circuits above their published ratings.
