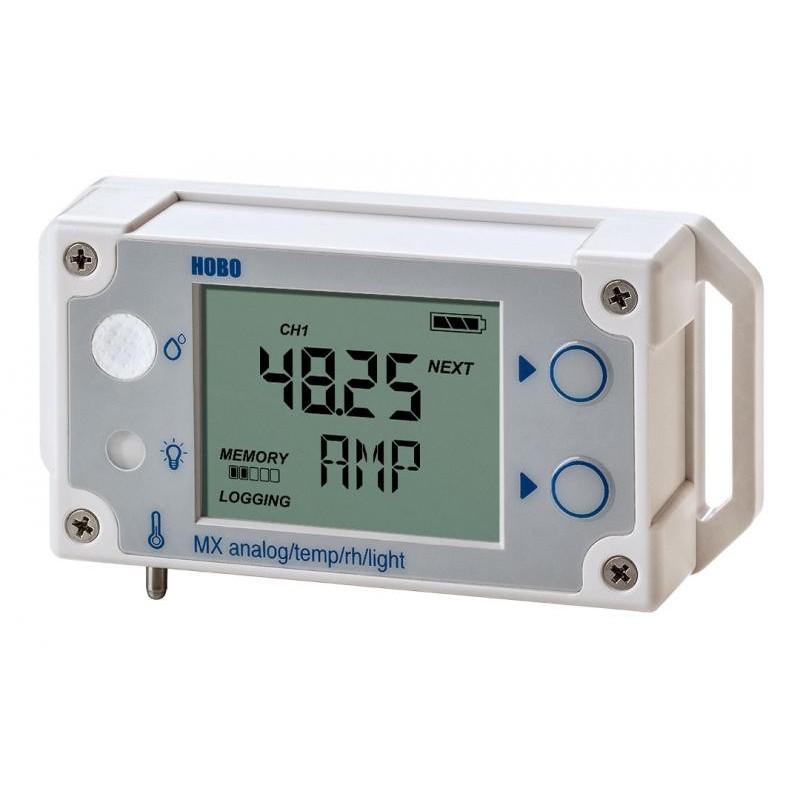

MX1104 Registrador de Dados analógico HOBO para Temp / HR / Luz

View larger

MX1104 Registrador de Dados Bluetooth para Temp/HR/Luz/Canal Externo

Reference: MX1104

Manufacturer: Onset

Condition: New

O registrador de dados multicanais HOBO MX1104 mede e transmite dados de temperatura, umidade relativa e intensidade da luz sem fio.
Ele também inclui uma entrada analógica externa para conectar uma variedade de sensores adicionais.

More info about this product.

Partilhar no Facebook
Retirar este produto da minha lista de favoritos.
Adicionar este produto à minha lista de favoritos.
Print

ESPECIFICAÇOES
OUTROS MODELOS
VÍDEO
Data sheet
Download
Accessories

Ambiente de Uso	Interior
Número de Canais	4 Analógicos
Nº Bits ADC	16 bit
Com Display	LCD
Classificação IP	IP54
Comunicações	Bluetooth BLE
Duração da Bateria	1 ano
Capacidade da Memória	1,9 milhões de medidas
Instrumento para:	Data Loggers (T, Umidade, etc.)
Função:	Parâmetros físicos (T, HR, etc.)

MX1104 Download (86.45k)

MX1104-QSG Download (590.29k)

MX1104-Manual Download (1.29M)

To see the full specifications for this product, please see our product manual found under the documentation tab if available

Temperature Sensor (MX1104)
Range	-20° to 70°C (-4° to 158°F)
Accuracy	±0.20°C from 0° to 50°C (±0.36°F from 32° to 122°F)
Resolution	0.002°C at 25°C (0.004°F at 77°F)
Drift	<0.1°C (0.18°F) per year
RH Sensor* (MX1104)
Range	0% to 100% at -20° to 70°C (-4° to 158°F); exposure to conditions above 95% may temporarily increase the maximum RH sensor error by an additional 1%
Accuracy	±2.5% from 10% to 90% (typical) to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical
Resolution	0.01%
Drift	<1% per year typical
Response Time (MX1104)
Temperature	11 minutes in air moving 1 m/s (2.2 mph)
RH	30 seconds to 90% in airflow of 1 m/s (2.2 mph)
Light Sensor (M1104)
Range	0 to 167,731 lux (15,582 lum/ft2)
Accuracy	±10% typical for direct sunlight (see Light Measurement on page 4 for more details)
Logger with Cable Type	SD-MA-420 or CABLE-4-20mA	SD-VOLT-2.5 or CABLE-2.5-STEREO	SD-VOLT-05 or CABLE- ADAP5	SD-VOLT-10 or CABLE-ADAP10	SD-VOLT-24 or CABLE-ADAP24
Measurement Range	0 to 20.1 mA	0 to 2.5 V	0 to 5.0 V	0 to 10 V	0 to 24 V
Accuracy	±0.001 mA ±0.2% of reading	±0.1 mV ±0.1% of reading	±0.2 mV ±0.3% of reading	±0.4 mV ±0.3% of reading	±1.0 mV ±0.3% of reading
Resolution	0.3 µA	40 µV	80 µV	160 µV	384 µV
Logger
Operating Range	-20° to 70°C (-4° to 158°F)
Radio Power	1 mW (0 dBm)
Transmission Range	Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard	Bluetooth Low Energy (Bluetooth Smart)
Logging Rate	1 second to 18 hours
Logging Modes	Fixed interval (normal, statistics) or burst
Memory Modes	Wrap when full or stop when full
Start Modes	Immediate, push button, date & time, or next interval
Stop Modes	When memory full, push button, date & time, or after a set logging period
Restart Mode	Push button
Time Accuracy	±1 minute per month at 25°C (77°F)
Battery Type	Two AAA 1.5 V alkaline batteries, user replaceable
Battery Life	1 year, typical with logging interval of 1 minute and Bluetooth Always On enabled; 2 years, typical with logging interval of 1 minute and Bluetooth Always On disabled; and temperatures between 0° and 50°C (32° and 122°F). Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
Memory	4 MB (1.9 million measurements, maximum)
Full Memory Download Time	Approximately 4 to 15 minutes depending on the mobile device; may take longer the further the device is from the logger
LCD	LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Size	11.28 x 5.41 x 2.92 cm (4.44 x 2.13 x 1.15 in.)
Weight	123 g (4.34 oz)
Environmental Rating	IP54
	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
