U23-004 Data Logger HOBO (2 canales) Temp. Int./Ext.

U23-004

Onset

New

Registrador de Datos de Intemperie para 2 sensores de Temperatura (interior y Exterior)

Onset Data Loggers

Onset Computer Corporation

195,00 €

Imposto Excluido

Número de Canais 2 x temp
Nº Bits ADC 12 bit
Precisão ±0.2°C
Resolução 0.02°C
Com Display No
Classificação IP IP67
Comunicações Óptica
Duração da Bateria 3 anos
Capacidade da Memória 21,000 Medições de temperatura e RH

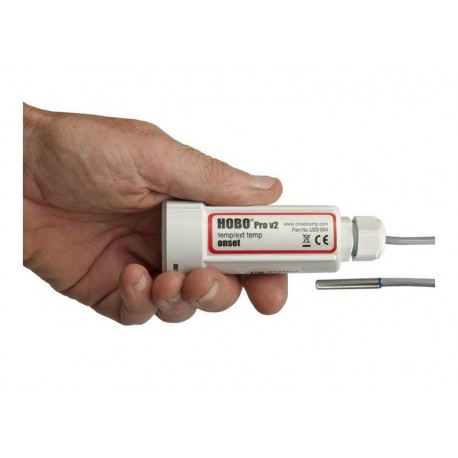

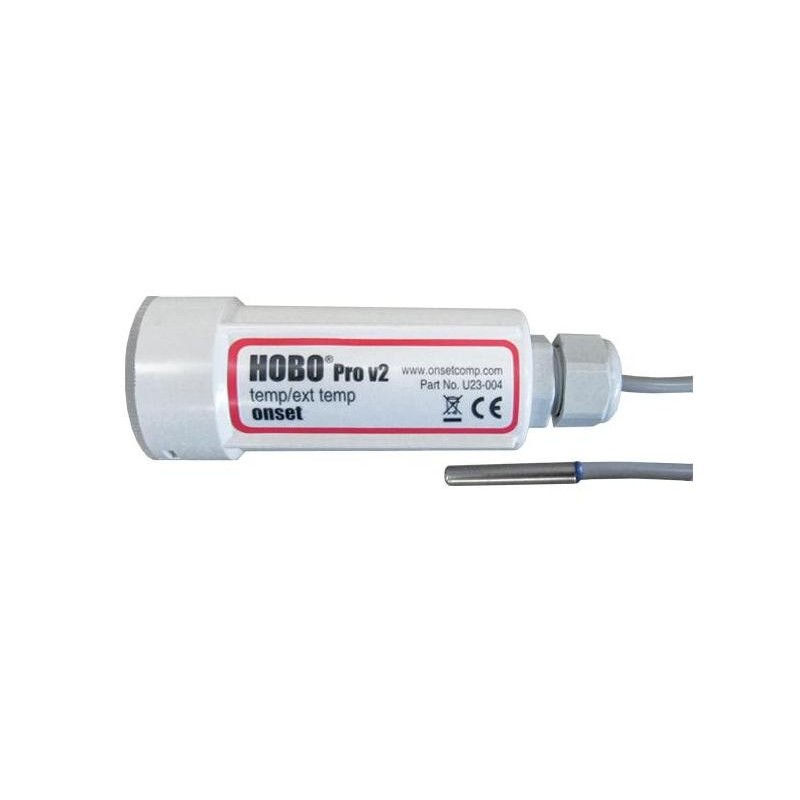

Data Logger U23-004 HOBO Pro v2 (dos canales)

Temperatura interna/ Temperatura Externa en cable de 1,8 m -40ºC a + 100ºC.
Memoria de 42.000 datos y batería de aprox. 3 años de duración.
Dimensiones: 10.2 cm x 3.8 cm. Peso: 102 g.

Características:

• Carcasa Intemperie para utilización en campo y entornos de alta condensación
• Alta Precisión
• Sensor HR reemplazable por el usuario, lo que permite una respuesta más rápida a la recuperación en condiciones de condensación s
• Sensores externos de reducido diámetro para instalación en espacios reducidos
• Puerto USB Óptico para transferir los datos de forma rápida y segura
• Transportador HOBO Waterproof Shuttle para manejo y recuperación de datos en campo

Sensor Temperatura
Rango Operativo:
Sensor Interno: -40° a 70°C (-40° to 158°F)
Sensor Externo: -40° a 100°C (-40° to 212°F), with tip and cable immersion in fresh water up to 50°C (122°F) for one year
Accuracy: 0.2°C over 0° to 50°C (0.36°F over 32° to 122°F);
Resolution: 0.02°C at 25°C (0.04°F at 77°F);
Response time: (typical to 90%)
Internal sensors: 40 minutes in air moving 1 m/sec
External sensors: 3 minutes in air moving 1 m/sec; 30 seconds in stirred water
Stability (drift): < 0.1°C (0.18°F) per year

Registrador
Operation range: -40° to 70°C (-40° to 158°F)
Real-time clock: ± 1 minute per month 0° to 50°C (32° to 122°F)
Battery: 1/2 AA, 3.6 Volt lithium, user-replaceable (part # HP-B)
Battery life (typical use): 3 years with 1 minute or greater logging interval
Memory (non-volatile): 64K bytes memory (approx. 21,000 temperature and RH measurements)
Materials: ASA styrene polymer housing and mounting clamp; polypropylene protective cap; Buna-N o-ring(s)
Cables: One 184 cm (6 ft.) PVC cable; sensor diameter 0.5 cm (0.20 in.)
Environmental rating: Electronics housing is NEMA 6P equivalent (tolerant of brief submergence)
Units with RH sensors are NEMA 4 equivalent (splash-resistant)
Launch modes: Immediate start; delayed start
Logging interval: Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours (refer to HOBOware software manual)
Offload modes: Offload while logging; stop and offload
Battery indication: Battery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
Peso: 102 g (2.7 oz)
Dimensiones: Housing measures 10.2 × 3.8 cm (4.0 × 1.5 in.)

HOBO Communications
