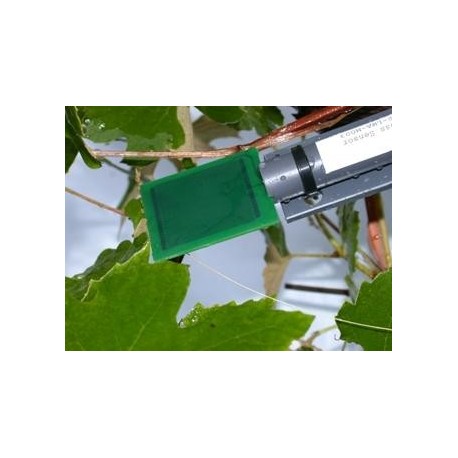

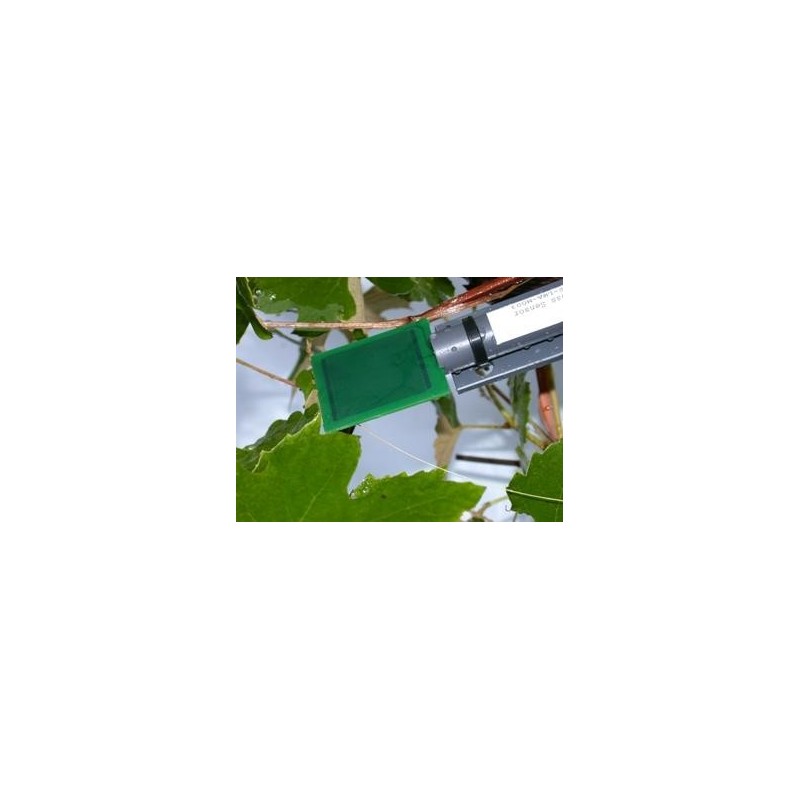

S-LWA-M003 SENSOR DE HUMEDAD DE HOJA HOBO

Este sensor S-LWA-M003 de humedad de hoja inteligente ha sido diseñado para ser compatible con las estaciones HOBO® Weather Station ó Micro Station Loggers para medir la Humectación de Hoja. The smart sensor has a plug-in modular connector that allows it to be added easily to a HOBO Weather Station.
All calibration parameters are stored inside the smart sensor, which automatically communicates configuration information to the logger without the need for any programming, calibration, or extensive setup. Unlike other leaf wetness sensors, the HOBO Leaf Wetness smart sensor does not require any painting or coating—it is ready to use.

The Leaf Wetness Smart Sensor provides accurate leaf wetness data in a number of growing and research applications. The sensor is ready to use and does not require any painting or coating. It uses a capacitive grid that is less sensitive to surface residues than resistive grid-based sensors, and comes preconditioned for consistent measurements between sensors and for long-term stability. Along with a 3-meter cable, a mounting bracket is included so the sensor can be easily positioned to mimic the wet-dry characteristics of the plants being studied.

Entorno: The S-LWA-M003 Sensor is for use in Outdoor environments

Medidas: The S-LWA-M003 Sensor supports the following measurements: Leaf Wetness

Distribuidor Oficial Autorizado de los Productos de Onset Computer Corporation en España desde hace màs de 25 años.

AlphaOmega-Electronics es distribuidor Autorizado de Onset
en España desde hace más de 25 años.

Hobo Data Loggers - Onset Computer Corporation

Especificaciones del Sensor de Humectación de Hoja Inteligente S-LWA-M003

Rango de medida: 0 (seco) a 100% (mojado)

Operating Range: -40°C to 70°C, (-40°F to 158°F)

Repeatablility: ± 5%

Resolution: 0.59%

Stability: < ± 5% per year

Interchangeability between sensors (over the range 10-90%): ± 10%

Measurement Averaging Option: No

Housing: No coating required

Sensor Type: Capacitive Grid

Dimensions:

Sensor plate: 4.7 cm x 5.1 cm (1.8” x 2.0”)

Tube: 12.2 cm length x 1.8 cm diameter (4.8” x 0.7”)

Cable length: 3m (9.8’)

Approximate Weight: 127 g (4.5 oz) for sensor, and 290 g (10.2 oz) with mounting bracket

Mounting Bracket: 20 cm long (8”);Sensor can be positioned at any angle between 0 and 90 degrees (vertical)

Number of Data Channels: 1

For mounting on Onset tripods or masts 3.2 cm to 4.1 cm (1 1/4” to 1 5/8”), Cross Arms (Part # M-CAA or M-CAB), or flat surfaces. U-bolt and tie-wraps included.

 - The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
