2060-A Fiberoptics Soporte para Superficies WALZ

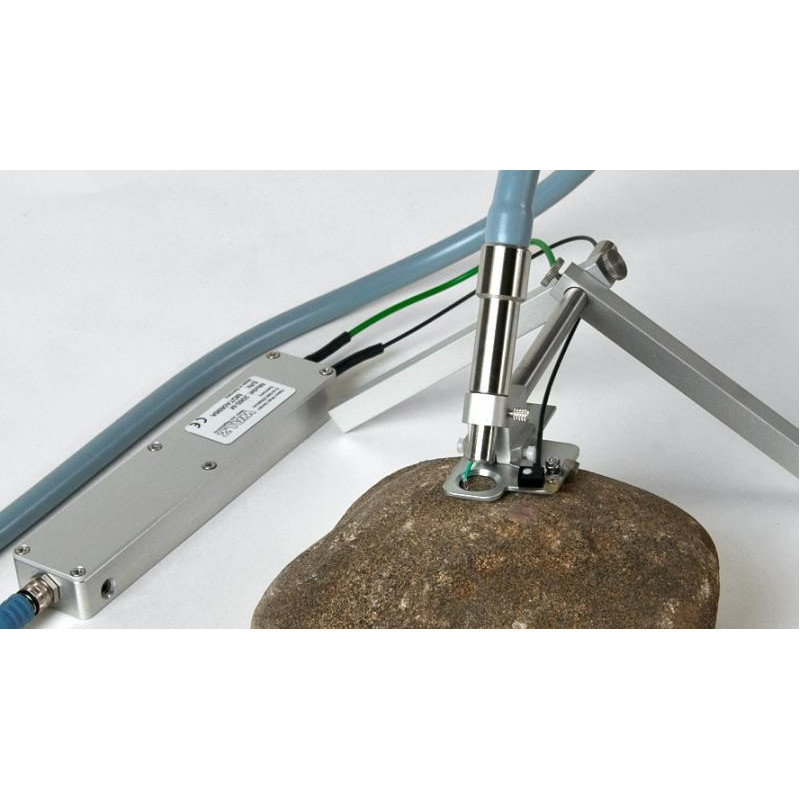

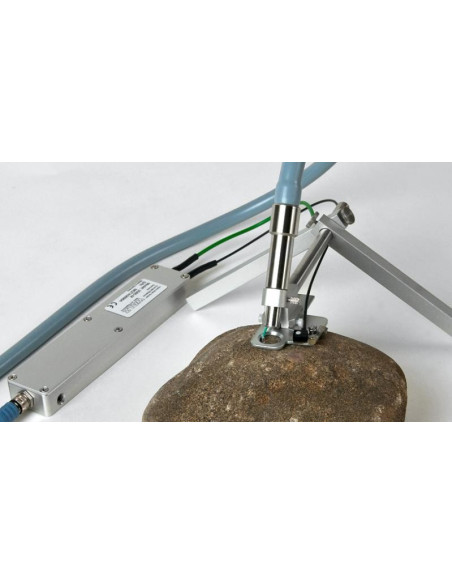

The holder positions the fiberoptics of the MINI-PAM-II on bulky samples. Combinable with the 2065-M Mini Quantum/Temp.-Sensor, to measure temperature and impinging PAR of the surface area investigated.

Aluminum plate (6.0 x 3.3 cm max.) with 11 mm diameter circular hole (measuring area) and aluminum port to position fiber at an angle of 60° relative to the aluminum plate. With port for temperature sensor of 2060-M unit to measure surface temperature and thread to mount the PAR sensor of the 2060-M unit. Connected to a 10 x 0.8 cm (L x Ø) steal rod with two lateral aluminum supports (12 cm x 1 cm x 1 cm, L x W x H) which are lockable by knurled screws

Dimensions (without aluminum supports): 15 cm x 3.3 cm x 2.5 cm (L x W x H)

Weight: 125 g
