DS1921H-F5
Nuevo
Registrador de Datos Económico Thermochron iButton
Disponible el:
Entorno de Uso | Interior |
Tipo de Registrador | Miniatura |
Parámetros Medidos | Temperatura |
Número de Canales | 1 canal (temperatura) |
Con Display | No |
Capacidad Memoria | 2000 datos |
Thermochron DS1921H Registrador de Datos Económico Thermochron iButton 1921H con rango de medida de temperatura de +15 a +46ºC con resolución de 0,125ºC y memoria de 2K.

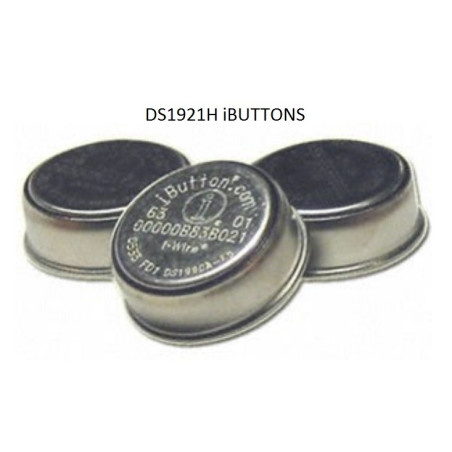

The DS1921H Thermochron iButton is a rugged, self-sufficient system that measures temperature and records the result in a protected memory section. The recording is done at a user-defined rate, both as a direct storage of temperature values as well as in the form of a histogram. Up to 2048 temperature values taken at equidistant intervals ranging from 1 to 255 minutes can be stored. The histogram provides 64 data bins with a resolution of 0.5°C. If the temperature leaves a user-programmable range, the DS1921H will also record when this happened, for how long the temperature stayed outside the permitted range, and if the temperature was too high or too low. Additional 512 bytes of read/write NV memory allow storing information pertaining to the object to which the DS1921H is associated.
Data is transferred serially via the 1-Wire protocol, which requires only a single data lead and a ground return. Every DS1921H is factory-lasered with a guaranteed unique electrically readable 64-bit registration number that allows for absolute traceability. The durable stainless steel package is highly resistant to environmental hazards such as dirt, moisture, and shock. Accessories permit the DS1921H to be mounted on almost any object, including containers, pallets, and bags.
Constante de Respuesta Térmica: 130s para 60% de rango total del cambio de temperatura.
Gama de temperaturas | +15 a +46ºC |
Capacidad de memoria | Hasta 2048 lecturas |
Intervalo de Lectura | Desde 1 hasta 255 minutos |
Resolución de Temperatura | 0,125°C |
Error de Temperatura | Mejor que ±1°C |
Inicio lecturas retardada | Desde 1 minuto hasta 11650 días |
Batería | Litio internal, no re-emplazable |
Duración de la batería | Hasta 10 años, dependiendo de las condiciones de operación |
Dimensiones [mm] | 17,35x5,89 (Ø x h) |
Peso [g] | 3g |
Error del Reloj | ±3 min./mes @ +25ºC |
Memora para el usuario |
512 Bytes |
