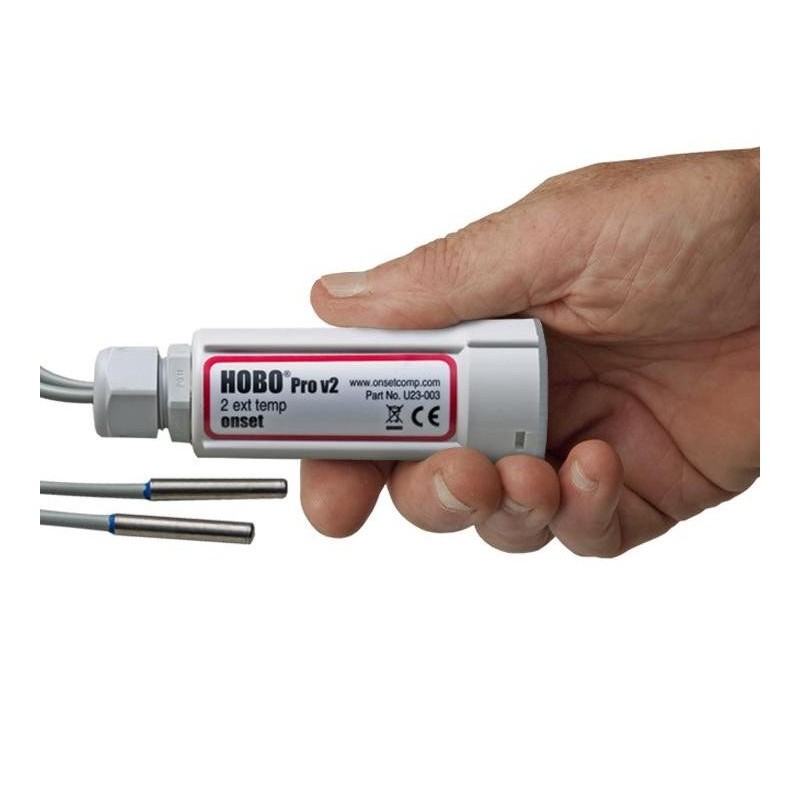

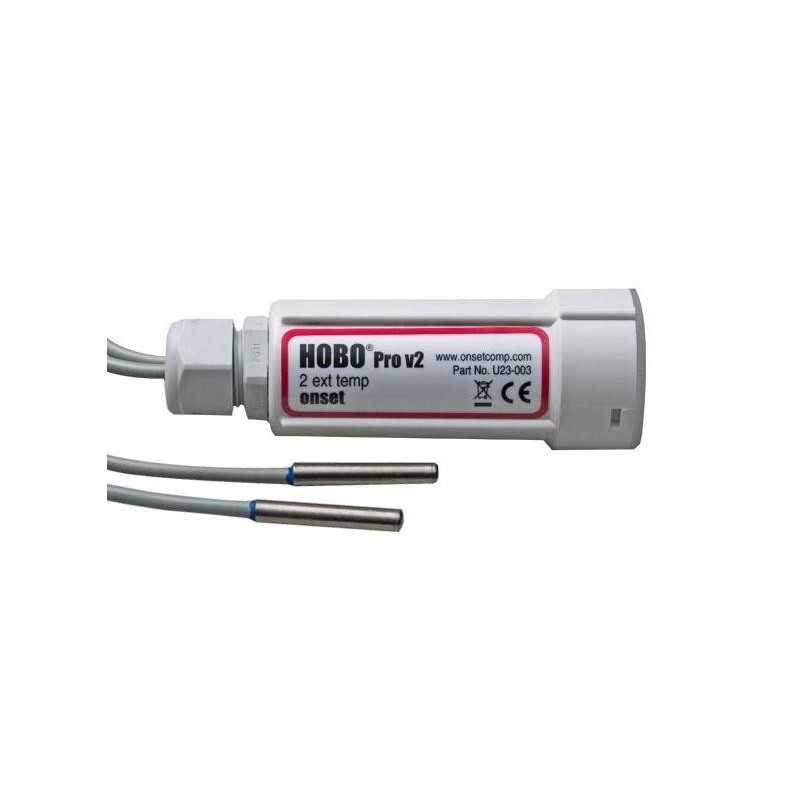

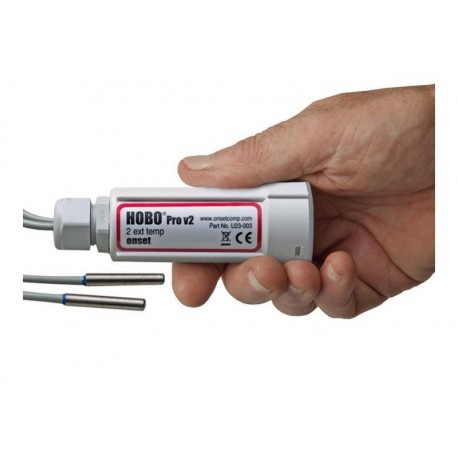

U23-003 HOBO Data Logger with 2 Ext. Temperature Sensors

The HOBO Pro v2 2x External Temperature Data Logger is a weatherproof data logger with two external soil/water temperature probes on 6-foot cables for fast sensor response and deployment in tight spaces.

Features:

• Weatherproof housing for use in outdoor or condensing environments
• High accuracy
• Replaceable Relative Humidity sensor provides fast response and superior recovery from condensing conditions
• Small-diameter external sensor versions for measurements in tight spaces
• Optic USB interface for fast and reliable download

U23-003 Data Logger

Temperature Sensor
Operation range:
Internal sensors: -40° to 70°C (-40° to 158°F)
U23-002 external temperature sensor: -40° to 70°C (-40° to 158°F)
U23-003 and U23-004 external sensors: -40° to 100°C (-40° to 212°F), with tip and cable immersion in fresh water up to 50°C (122°F) for one year

Accuracy: 0.2°C over 0° to 50°C (0.36°F over 32° to 122°F);

Resolution: 0.02°C at 25°C (0.04°F at 77°F);

Response time: (typical to 90%)
Internal sensors: 40 minutes in air moving 1 m/sec
U23-002 external temperature sensor: 5 minutes in air moving 1 m/sec
U23-003 and U23-004 external sensors: 3 minutes in air moving 1 m/sec; 30 seconds in stirred water

Stability (drift): < 0.1°C (0.18°F) per year

Logger
Operation range -40° to 70°C (-40° to 158°F)
Real-time clock ± 1 minute per month 0° to 50°C (32° to 122°F)
Battery 1/2 AA, 3.6 Volt lithium, user-replaceable (part # HP-B)

Battery life (typical use): 3 years with 1 minute or greater logging interval

Memory (non-volatile): 64K bytes memory (approx. 21,000 temperature and RH measurements)

Materials All models:
ASA styrene polymer housing and mounting clamp; polypropylene protective cap; Buna-N o-ring(s)
U23-001, U23-002 only: ASA styrene polymer RH sensor cap; modified hydrophobic polyethersulfone membrane

Cables:
U23-001: No cables
U23-002: One 184 cm (6 ft.) PVC cable; sensor diameter 1 cm (0.38 in.)
U23-003: Two 184 cm (6 ft.) PVC cables; sensor diameter 0.5 cm (0.20 in.)
U23-004: One 184 cm (6 ft.) PVC cable; sensor diameter 0.5 cm (0.20 in.)

Environmental rating: Electronics housing is NEMA 6P equivalent (tolerant of brief submergence)
Units with RH sensors are NEMA 4 equivalent (splash-resistant)

Launch modes: Immediate start; delayed start

Logging interval: Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours (refer to HOBOware software manual)

Offload modes: Offload while logging; stop and offload

Battery indication: Battery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.

Weight:
U23-001: 57 g (1.5 oz)
U23-002: 118 g (3.1 oz)
U23-003: 138 g (3.7 oz)
U23-004: 102 g (2.7 oz)

Dimensions: Housing measures 10.2 × 3.8 cm (4.0 × 1.5 in.)

NIST certificate Temperature certificate available for additional charge
