AutoEDU AE37900M Marine outboard engine 2 strokes cutaway Educational Trainer

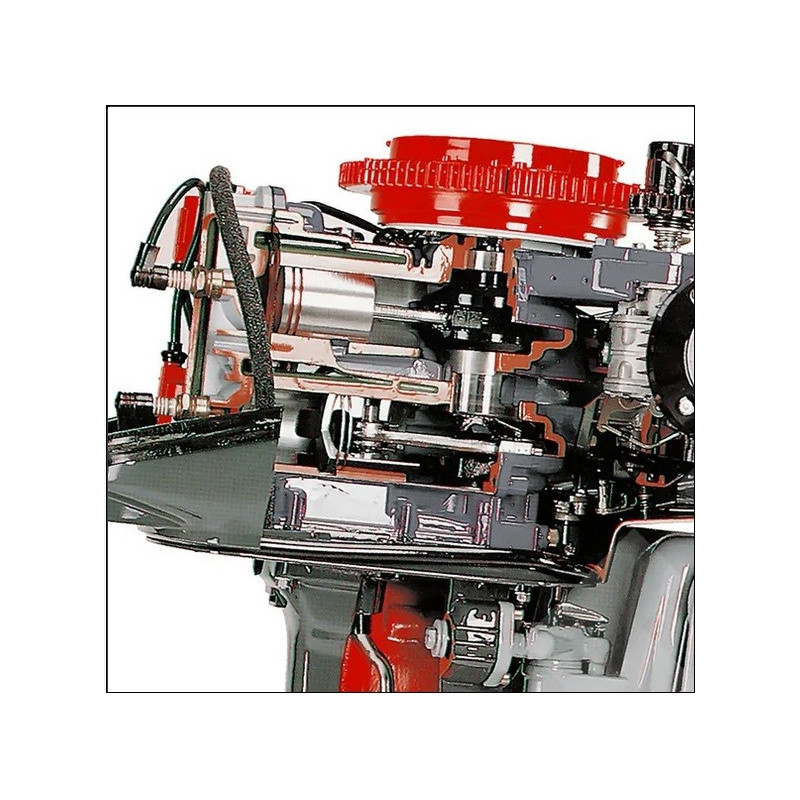

Educational cross-sectional training model of a marine engine featuring a 2-stroke engine with 2 or 3 cylinders and offering a detailed look at the internal mechanics.

This training model integrates a water cooling system with a centrifugal pump and a mechanical type converter, providing a comprehensive understanding of the engine's operation and cooling processes.

With its cross-sectional design, the training model allows for clear visibility of critical components and systems, making it an essential tool for technical and vocational education in marine engineering.

Value for Students:
The cutaway design of the 2-stroke engine allows students to see internal components such as pistons, cylinders, and the water cooling system. This visibility helps to understand the workings of the engine, including intake, compression, power, and exhaust timing.
The trainer features a water cooling system with a centrifugal pump, allowing students to study the cooling mechanism in detail. They can observe how the centrifugal pump circulates water to regulate engine temperature and prevent overheating.
With the components exposed, students can engage in hands-on exercises such as assembling and disassembling engine parts, understanding engine configuration, and troubleshooting common problems.

Value for Instructors:
The cutaway OEM engine model serves as an effective teaching aid, making complex engine operations accessible. Teachers can use it to illustrate theoretical concepts and demonstrate practical applications in a classroom setting.
Visible components and functional parts allow for interactive teaching methods, enabling instructors to provide clear explanations of engine mechanics and troubleshooting techniques.
Mobile and space-saving in the classroom, it allows simultaneous use by multiple students.
Requires minor adjustments to restore default parameters, making it easy to set up and start each lesson.

◆ Dimensions: 800 x 800 x 1500 mm (31.50 in×31.50 in×59.06 in)
◆ Weight: 60 kg (132 lb)
◆ Product number: AE37900M

• The 2-stroke engine features a cutaway view, allowing full visibility of the internal components including pistons, cylinders and cooling system.

• Equipped with a centrifugal pump to show the water-based cooling mechanism, essential for maintaining engine temperature.

• Includes a mechanical type converter to demonstrate its function and impact on engine operation.

• Shows a 2 or 3 cylinder configuration, highlighting variations in engine design and performance.

• Durable and mobile design for increased durability and space saving in classrooms.
