MSCR 1 Diesel Engine Control System CR/EDC 15 Educational Trainer

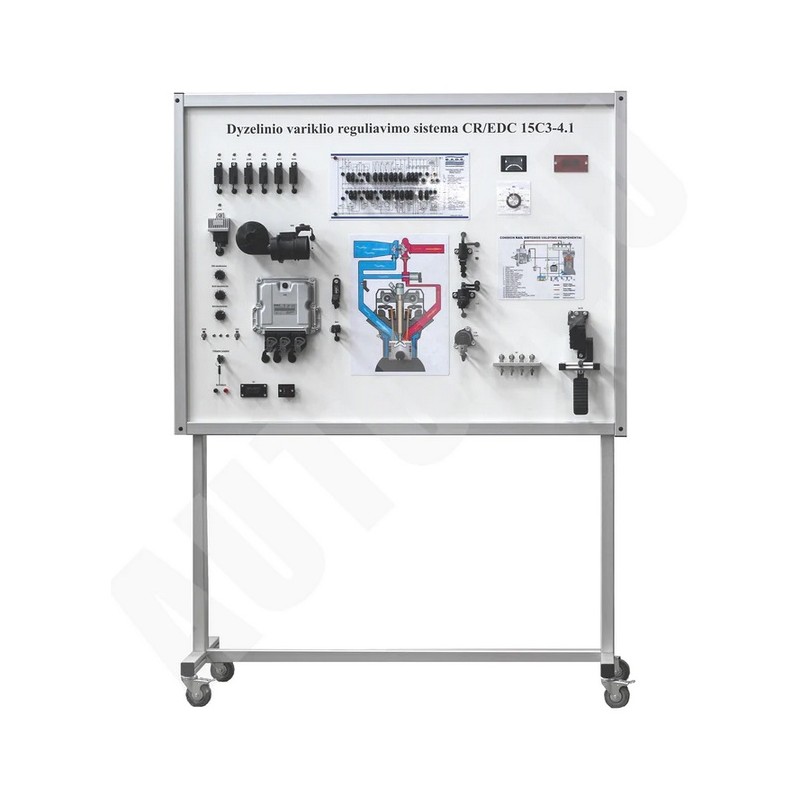

Common Rail training board – simulator with engine control system Bosch EDC 15C3-4.1 is installed in a mobile aluminum frame.
This training board-simulator is specially designed to help technical students understand the system of diesel injection Common Rail.

The educational training board is based on Renault OEM components. The integrated engine control system Bosch EDC 15 shows the different operation modes of the direct fuel injection system.

► Diagnostic and measurement

Oscilloscope/multimeter
- System’s parameters are measured by connecting to the banana connector

- Ability to measure electrical signal parameters of each system component (such as sensor or actuator)

Control unit diagnosis
- Diagnosis through OBD 16 – pin diagnostic connector

- Electronic control unit (ECU) identification

- Reading/erasing fault codes

- Displaying the operating system parameters (live data)

- Activating the actuators (depends on the control unit)

- Control unit encoding/configuration

► Optional accessories

- Examination console for 10 hidden fault simulations

- Automotive oscilloscope

- OBD diagnostic scan tool

• Fully functional engine control system is installed in a mobile aluminum frame. This training board – simulator is specially designed to help technical students understand better direct diesel injection system.
• Educational training board is based on OEM components. Integrated engine control system shows different operation modes of the direct fuel injection system.

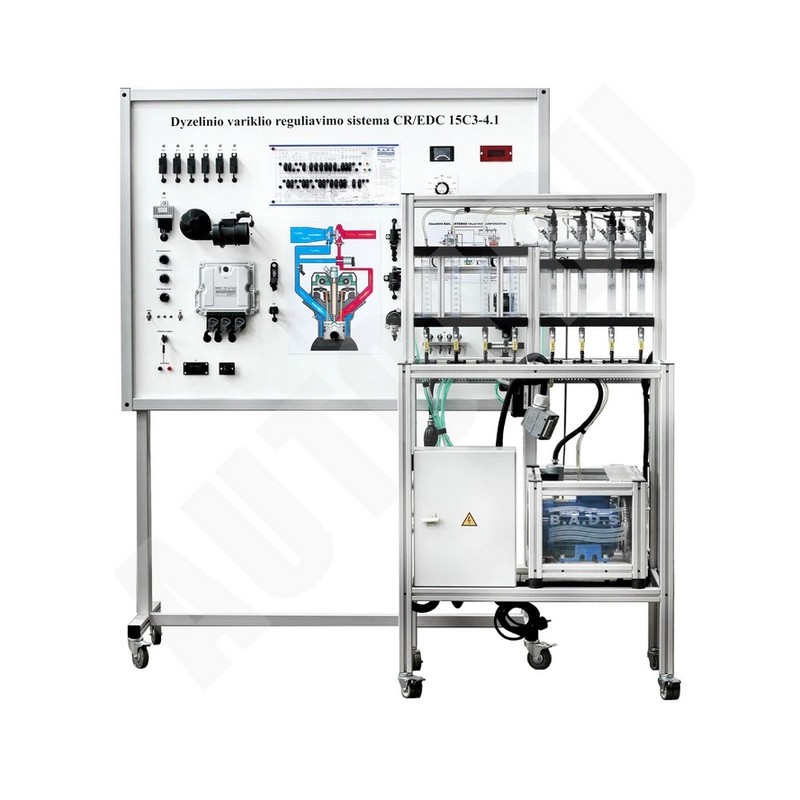

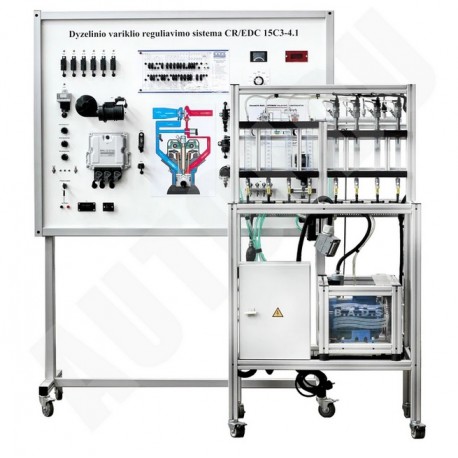

• The stand is designed to demonstrate a work of the high pressure pump, injectors and electronic engine management system.

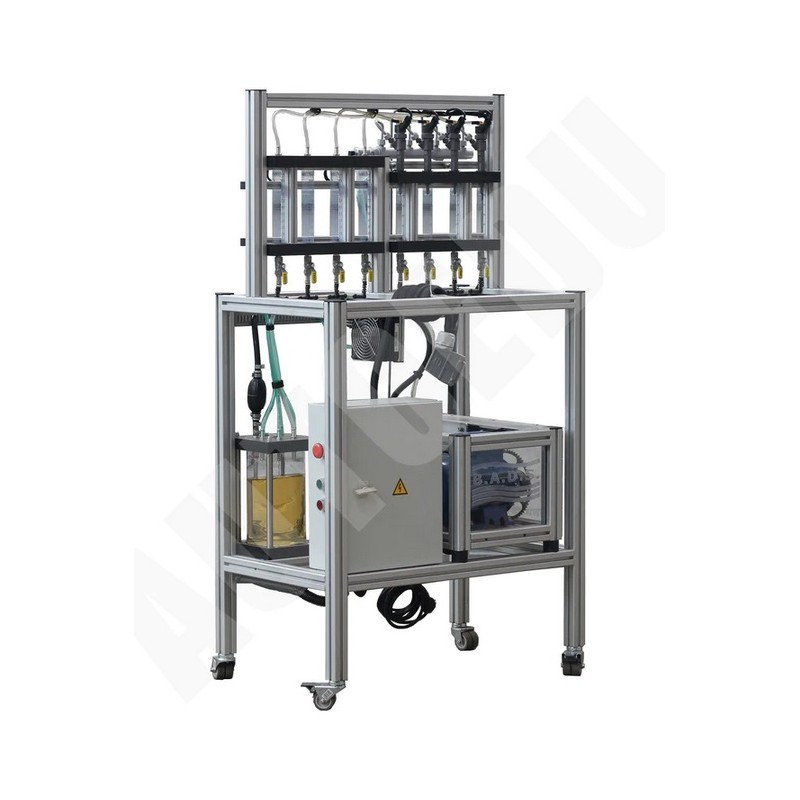

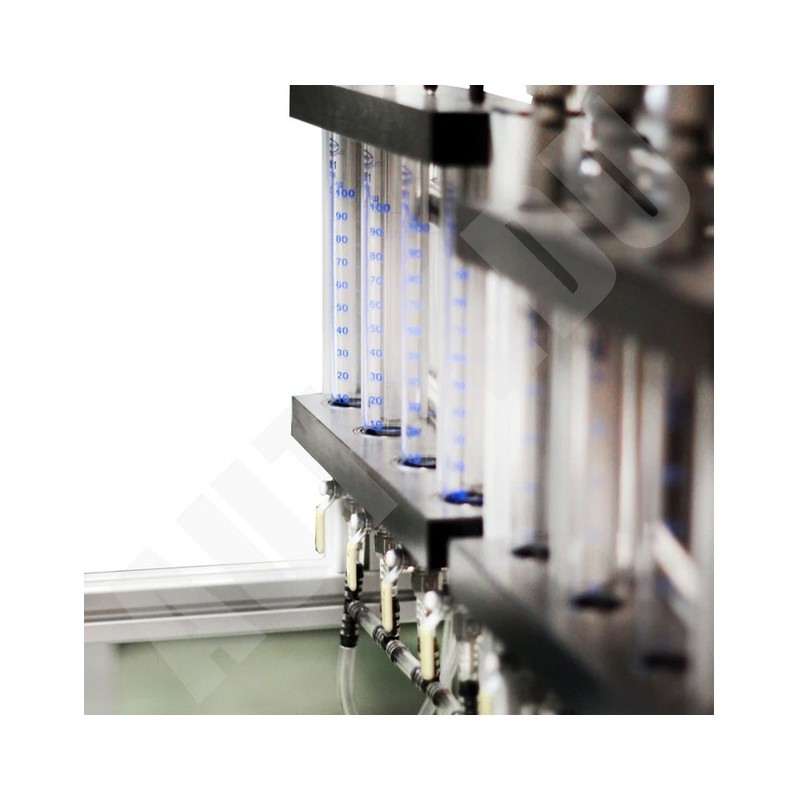

• Monitoring operation of high pressure fuel supply system, injected fuel quantity, the amount of fuel back leak, spray pattern quality.

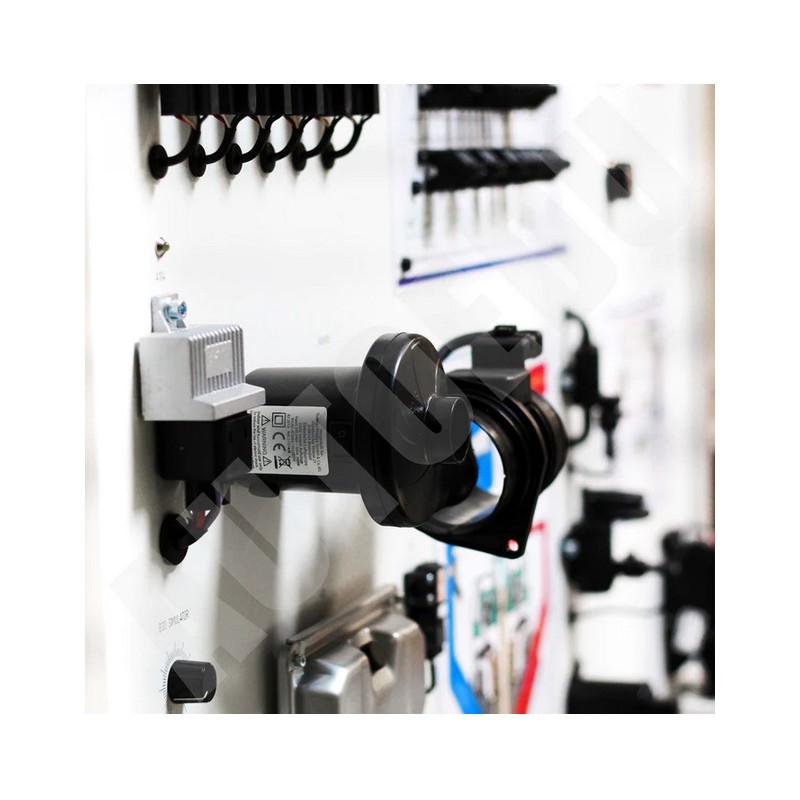

• Adjustable air flowrate simulator allows to demonstrate a work of mass – air flow meter and air temperature sensor.
• Manual adjustment of the engine crankshaft speed.
• Integrated simulators allow to change parameters of engine temperature sensor.
• Integrated simulators allow to change parameters of intake air pressure sensor.
• Electric wiring diagram with built – in banana plug jumpers for measurements and simulation of system fault codes. Possibility to monitor the changing operation mode of each system component.
• Possibility to simulate more than 20 system faults by disconnecting banana plug jumpers.
• Training board – simulator has an integrated voltmeter. It displays voltage of different electronic system components.
• The stand has a closed structure – internal wiring is not visible.
• Power supply: 220/12 V
• Dimensions (H x L x W) not bigger than:
                         -- Electronic part (board) 1850 x 1380 x 600 mm
                         -- Mechanical part (trolley) 1530 x 900 x 600 mm
• Weight (netto) approx.: 135 kg
• CE certificate
