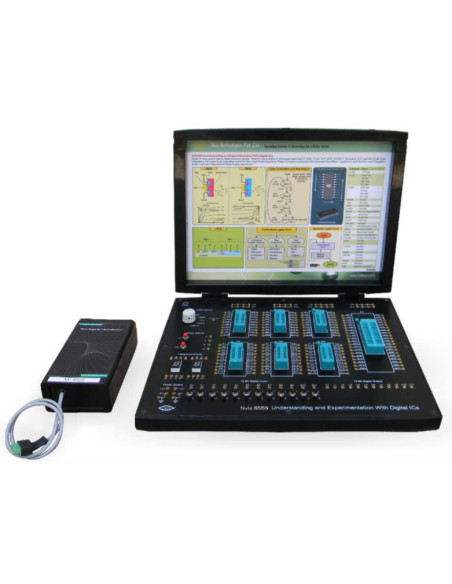

Nvis 6550 Techbook for Understanding and Experimentation with Digital ICs

Nvis 6550 Techbook for Understanding and Experimentation with Digital ICs is an ideal platform to enhance education, training, skills & development amongs our young minds.

Students can use digital ICs and connect their Input & Output to design & implement in the circuit. Nvis 6550 can be a part of library & can be issued to students to perform the experiments.

• Features:

- Illustration of Combinational and Sequential circuits
- ZIF Socket provided for easy connections
- Compact size
- Simultaneous use of multiple ICs
- Learning material CD

- Study of Basic Gates
- Study of Half Adder using Logic Gates
- Study of Full Adder
- Study of Half & Full Subtractor using Logic Gates
- Study of Magnitude Comparator
- Study of Encoder / Priority Encoder
- Study of Decoder & Demultiplexers
- Study of Multiplexers
- Study of BCD to 7 Segment Display
- Study of Flip-Flop
- Study of Register
- Study of Counter
