Reference: MC16 - Manufacturer: NVIS TECHNOLOGIES

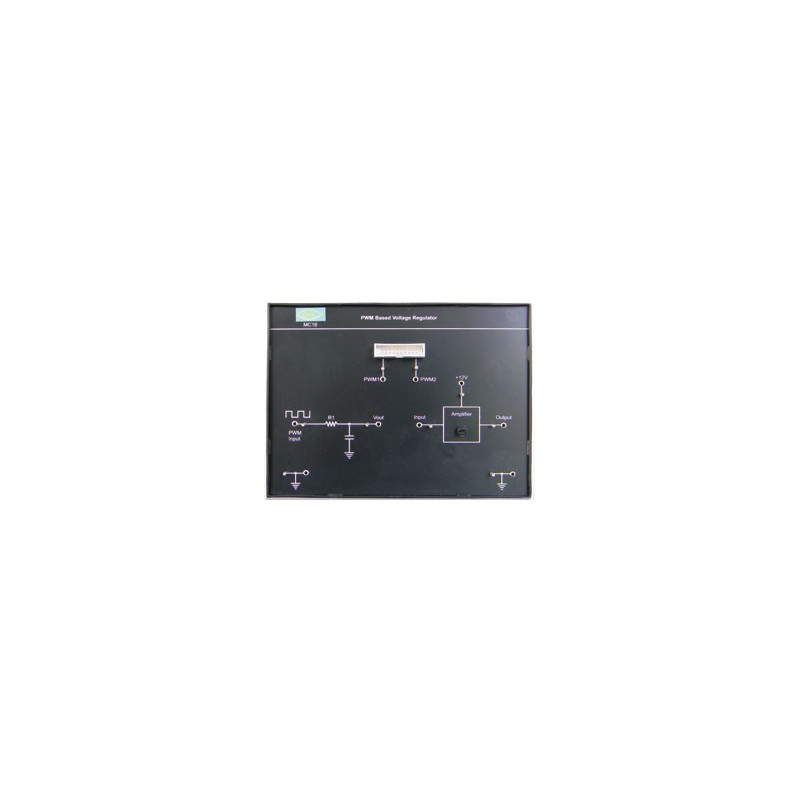

MC16 PWM Based Voltage Regulator Module enable students and practicing engineers to gain invaluable practical experience of voltage regulation using Pulse width modulation (PWM). The object is to have a clear understanding of how PWM is generated using Microcontroller to use in various applications like Servo Motor speed control etc.

MC16 PWM Based Voltage Regulator Module is an ideal platform to enhance education, training, skills & development amongs our young minds.

Features:

- Onboard Amplifier to amplify voltage
- PC based programming
- Expansion connectors for plug in with Microcontroller unit and prototyping area
- Every pin is marked in order to make work easier
- Input/Output & test points provided on board
- Exhaustive Learning Material

- Study of generate PWM and convert into Voltage
