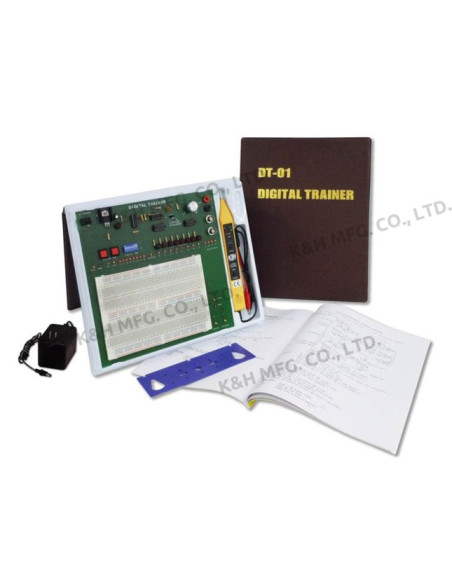

Reference: DT-01 - Manufacturer: KandH

With breadboard, digital circuits, flip - flops and monostable multivibrators, counters, encoders, decoders, multiplexers, demultiplexers and sequencers, resistor, LED, 7 segments LED displays and memory devices, etc..

help_outlineAsk for Quote

DT-01 Digital Trainer

I accept privacy policy rules



Specifications

01.    AC adaptor Jack: IP/DC + 8v, 1.5ª
02.    Pulse switch: Two bounce - free push - buttons
03.    Logic switch: Eight logic level switches in DIP type
04.    DC O/P: DC + 5V, 750mA for use
05.    B-023 breadboard: Solderless breadboard with 1580
06.    Clip terminal: Logic probe clip terminal
07.    LED display: Eight LED buffered logic level indicators
08.    BNC jacks
09.    Banana jacks
10.    Clock adjustment: Fine adjustment of clock frequency
11.    Select switch: Clock range selection
L: 10 - 40Hz.         H: 1K - 20KHz


Accessories

1.    ADP - 01 AC Adaptor
2.    LP-2800 Logic Probe
3.    User's Guide

Category
Analog and Digital Electronics
Display:
Yes
DC power supply
Onboard DC Power Supply
