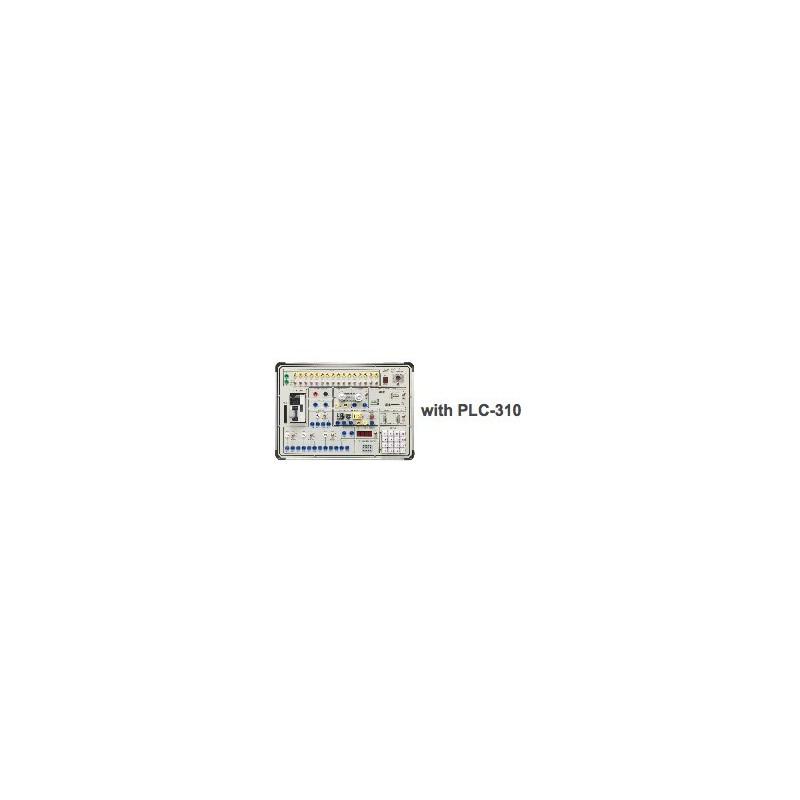

MS-7600 Portable Mechatronics Training System (for PLC-310)

Each model offers at least ten training courses, beginning from learning the characteristic of every mechatronic component to controlling of whole mechatronic system. It provides an efficient way to build solid knowledge and concept of “Factory Automation” control.


01. Its portable size makes it easy to carry out experiments on lab table.

02. Using 4mm safety plugs and sockets for terminal interconnections of devices to ensure the physical safety of users

03. The status of input and output signals is monitored and displayed on nearby status LED.

04. Colorful I/O sockets to represent different port function -  yellow sockets for signal input, blue sockets for signal output, red socket for DC power input, black socket for DC power ground.

05. External interface supports extensions which are particularly suitable for PLC-310.



MS-7601 Automatic Sorting Robot Training System

01. Suitable for PLC beginners

02. Systematic training for trainees

03. Abundant experimental practices
    a. Six basic practices (experiment 1 - 6) for learning basic PLC instructions
    b. Six advanced practices (experiment 7-12) for upgrading the PLC programming capability

4. Widespread control applications

    DC motor control, various sensors, pneumatic cylinder control, position control and detection for sliding table, PLC wiring practice


MS-7602 Linear Positioner Training System

1. Using stepper motor to drive a sliding mechanism

2. Diverse applications for servo control

3. Combining BCD toggle switches and a 7-segment LED in the trainer

4. Providing limit switch to avoid over-movement of the sliding guide

MS-7601 Automatic Sorting Robot Training System

01. Conveyer belt position control
02. Workpiece detecting and sorting
03. Z-Axis cylinder up/down control
04. Rotary cylinder right/left control
05. Vacuum generator control
06. Slide table position control
07. 3-Axis pick & place robot control
08. Picking and placing on conveyer belt
09. Storing Work pieces sequentially
10. Workpiece sorting and storing control
11. Conveyer loading control
12. Automatic loading-unloading control


MS-7602 Linear Positioner Training System

01. Linear motion control
02. Open-loop position control
03. Vibration and torque control
04. Positioning time and speed control
05. Closed-loop position control
06. Linear acceleration-deceleration control
07.  Positioning with thumbwheel and 7-segment display
08. Teaching single-position control
09. Multi-speed control
10. Multi-position control
