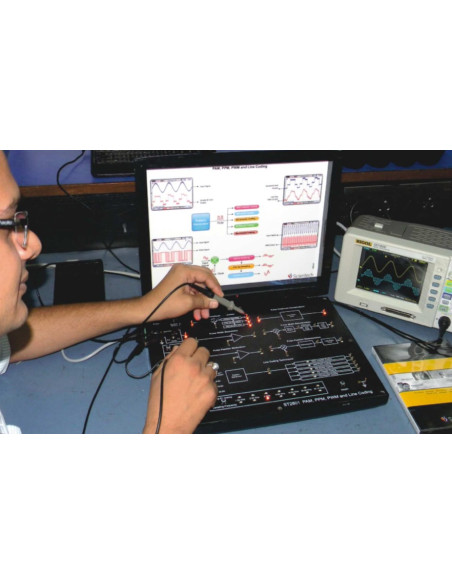

Scientech2801 TechBook for PAM, PPM, PWM Techniques and Line Coding Techniques
Scientech2801 TechBook for PAM, PPM, PWM Techniques and Line Coding Techniques provides an extensive hands on learning on PAM, PPM, PWM and Line Coding Techniques.
Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information.
Product Features:
- Modulator and Demodulator on same board
- Different type of sampling, Natural, Flat top, sampled and hold
- On-board DDS Signal Generator for standard and arbitrary signals
- Selectable sampling frequencies for PAM
- Selectable Ramp frequencies for PWM and PPM
- On board 2nd order Butterworth low pass filter
- SMD LED Indicators
- Can be issued just like a book for hands-on learnings
-- PAM Modulator & Demodulator
+ Study and Analysis of:
- Pulse Amplitude Modulation(PAM).
- Nyquist sampling rate.

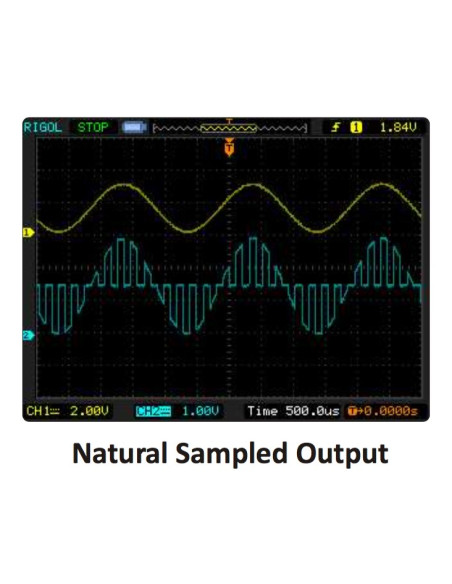

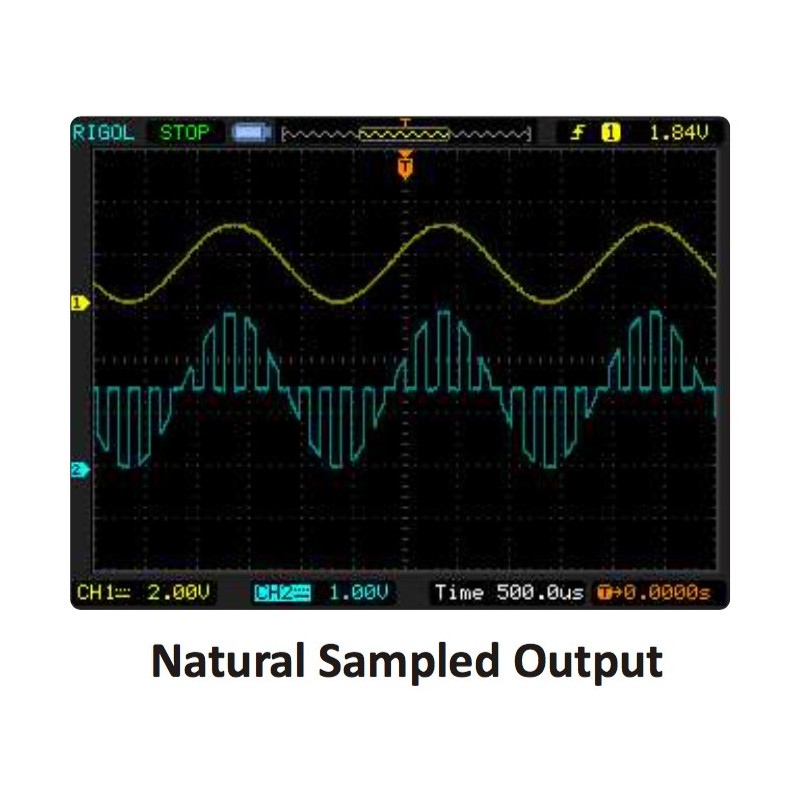

- Natural sampling with different types of message signals at different frequencies.

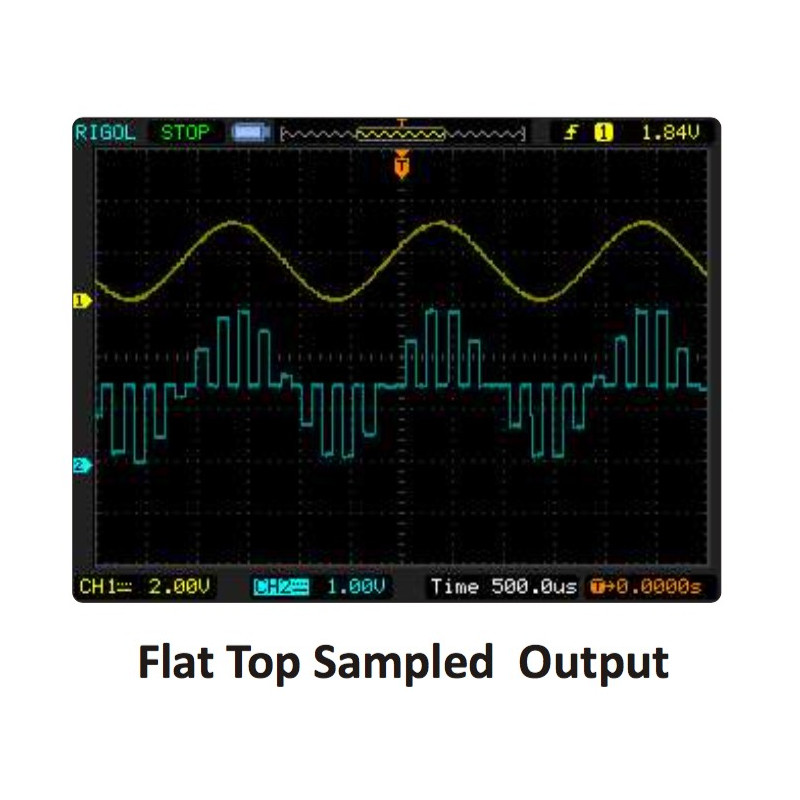

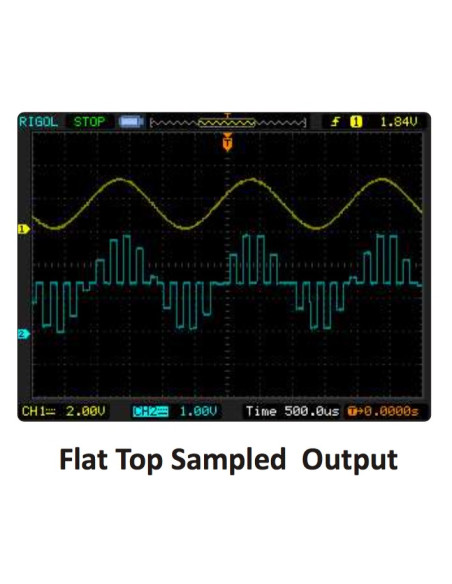

- Flat top sampling with different types of message signals at different frequencies.
- Sample & Hold output with different types of message signals at different frequencies.
- Under sampling by varying the message frequency and sampling rate.
- Second order Low Pass Butterworth filter.
- Demodulation of Sample & Hold output with Second Order Low Pass Butterworth filter.
- Analyze all these Natural sampling, Flat top sampling and Sample & Hold output simultaneously and observe the difference.
-- Line Coding Techniques
+ Study and Analysis of:
- Different Line Coding techniques.
- Different 8-Bit, 16-Bit and 32-Bit Pattern Generator by changing Pattern selection.
- NRZ Unipolar.
- NRZ Polar.
- RZ Bipolar.
- RZ Unipolar.
- Manchester.
- Analyze all types of Line coding outputs simultaneously and observe differences.
-- PWM Modulator & De-modulator
+ Study and Analysis of:
-Pulse Width Modulation(PWM) and Demodulation.

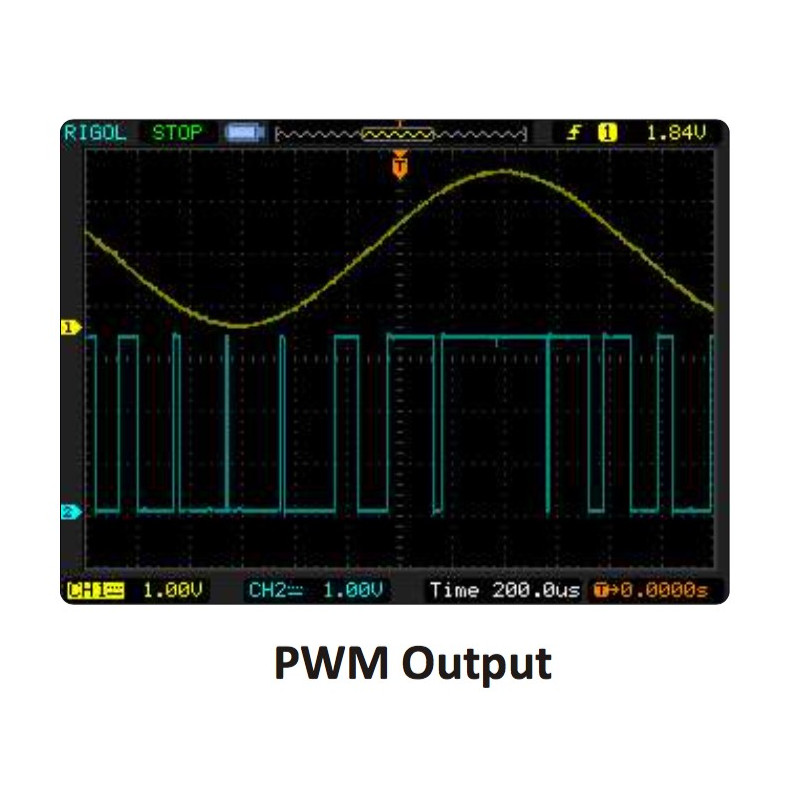

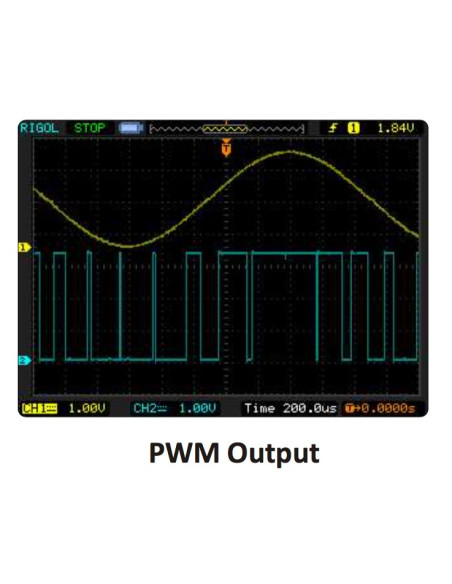

-Single bit PWM output by varying the Ramp frequency and signal type.
-PWM demodulated output by varying the Ramp frequency.
- Sample & Hold output of demodulated PWM signal.
- Second order Low Pass Butterworth filter.
- Analyze the final PWM demodulated output with Second order Low Pass Butterworth filter.
-- PPM Modulator & De-modulator
+ Study and Analysis of:
- Pulse Position Modulation(PPM) and Demodulation
- Single bit PPM output by varying the Ramp frequency and signal type.
- Sample & Hold output of demodulated PPM signal.
- Second order Low Pass Butterworth filter.
- Analyze the final PPM demodulated output with Second order Low Pass Butterworth filter.
