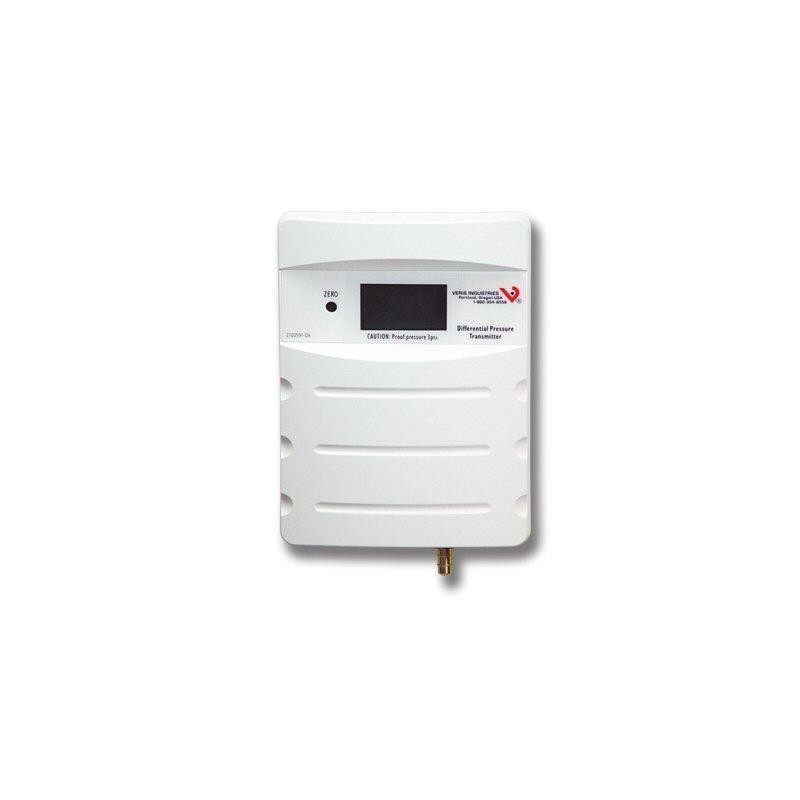

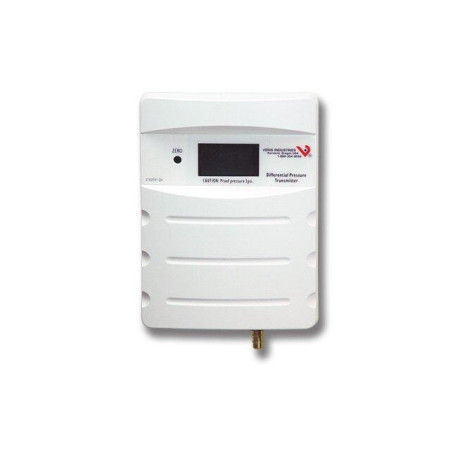

PXPLX01S Differential Pressure Sensor (Panel Mount)

The digital PX Series differential pressure transducers utilize highly accurate, microprocessor profiled sensors. Designed to monitor duct and room pressure in commercial buildings, the PX Series offers exceptional job-site flexibility, with four field-selectable range options. The directional mode jumper is used to configure the transducer in unidirectional or bidirectional mode for room and building static pressure applications. All models feature a pushbutton and digital input terminal to zero the output. The microprocessor is programmed to prevent accidental zero adjustment during normal operation. PX Series pressure transducers utilize an advanced ceramic capacitive sensing element that provides a highly stable linear output, reducing offset errors.


Applications

• Static pressure in duct or room applications
• Variable air volume system control
• Filter status monitoring

Exceptional accuracy and stability

• Excellent tolerance to overpressure and vibration reduces field failures
• High accuracy digital sensor maintains calibration and reduces callbacks
• High reliability sensor technology for long-term maintenance-free operation

• Media Compatibility Dry air or inert gas
• Input Power 12-30VDC, or 24VAC nominal
• Output Field-selectable: 2-wire, loop-powered 4-20mA (DC only, clipped and capped) or 3-wire 0-5V/0-10V
• Pressure Ranges: Unidirectional: 0.1/0.25/0.5/1.0” W.C. F.S. (25 pa/50 pa/100 pa/250 pa, F.S.), switch selectable; Bidirectional: ±0.1/±0.25/±0.5/±1.0” W.C. F.S. (±25 pa/±50 pa/±100 pa/±250 pa, F.S.), switch selectable
• Response Time Standard: T95 in 20 sec, Fast: T95 in 2 sec, switch selectable
• Mode Unidirectional or bidirectional, switch selectable
• Display (option) Signed 3-1/2 digit LCD, indicates pressure, overrange indicator
• Proof Pressure 3 psid (20.6kPa)
• Burst Pressure 5 psid (34.5kPa)
• Accuracy ±1% F.S. of selected range (combined linearity and hysteresis)
• Temperature Effect 1' 0.05%/°C; 10'
• Zero Drift (1-year) 1' 2.0% max.
• Zero Adjust Pushbutton auto-zero and digital input (2-pos terminal block)
• Operating Environment 0°- 60°C (32° to 140°F); 0 to 90% RH non-condensing
• Fittings Brass barb; 0.24” (6.1mm) o.d.
• Physical UL 94 V-O Fire Retardant ABS.
