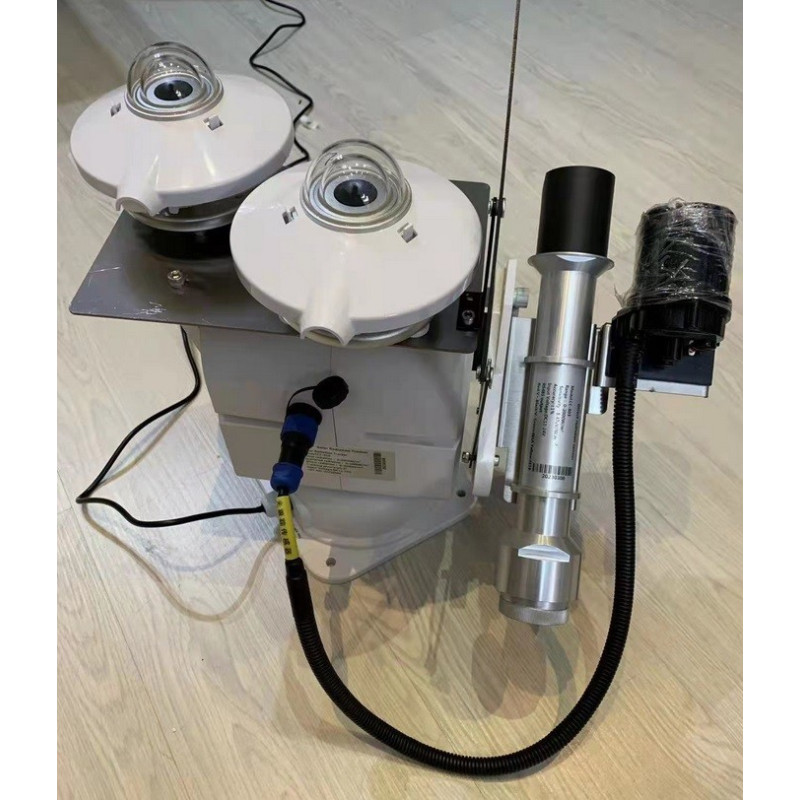

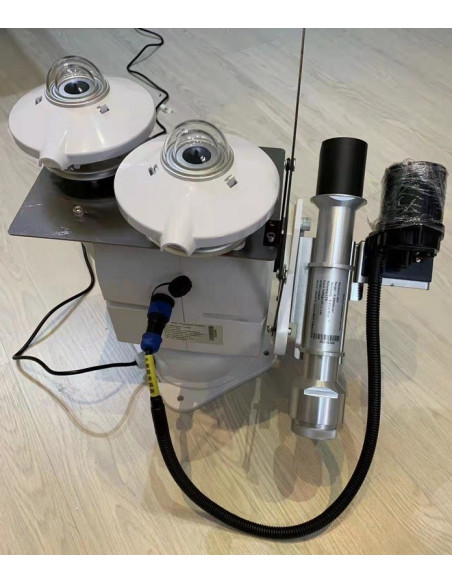

CC-S10 Automatic Sun Tracker with Piranometer

Reference CC-S10

Condition: New

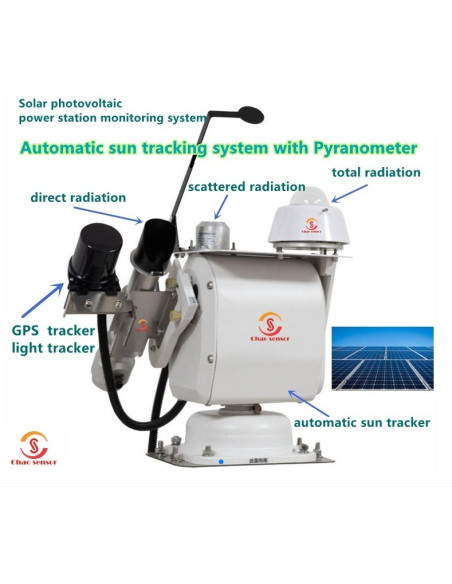

Automated sun tracker with Pyranometer system
Total radiation： 0-2000W/m²
Scattered radiation： 0-2000W/m²
Direct radiation： 0-2000W/m²

Fully automatic solar tracker CC-S10 can be loaded with various types of pyranometers, with excellent performance, high tracking accuracy, excellent load capacity, and strong environmental adaptability.
It can work stably under various extreme climatic conditions, and is widely used in photovoltaic environmental monitoring, meteorological radiation observation , agriculture and forestry research and many other fields.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet

The Sensor measures:	Solar Light Radiation W/m2
Power Supply:	12-24 Vdc

1. High precision: maximum precision and response speed.

2. Self-contained deviation compensation: The standard four-quadrant sun sensor can compensate for geometric positioning deviation, making the measurement more accurate.

3. Automatic positioning: It has its own GPS receiver, which automatically sets the position coordinates and time information, so that it can accurately align with the sun.

4. Aim at the sun at all times: When the sun is blocked by clouds, etc., the tracker accurately aligns the running path of the sun by calculating; when the sun appears, the direct meter is aimed at the sun at any time.

5. Flexible operation: You can completely control or monitor the running status of the tracker through PC commands.

6. Maintenance-free: It has the most advanced power transmission device in China, which can be maintenance-free for a long time; due to the use of no power belt transmission, the system will not be too tight or loose due to changes in ambient temperature and cannot work normally.

7. High adaptability: all-weather, high stability.

8. Low power consumption: can be powered by solar panels.
