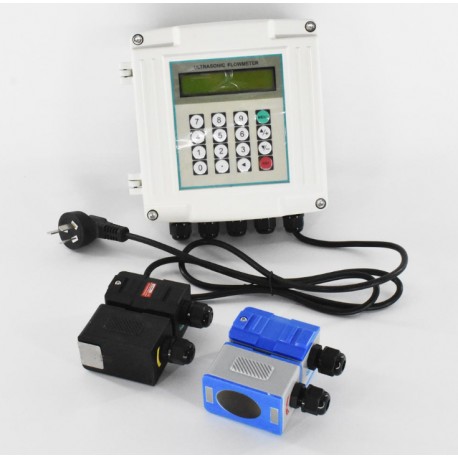

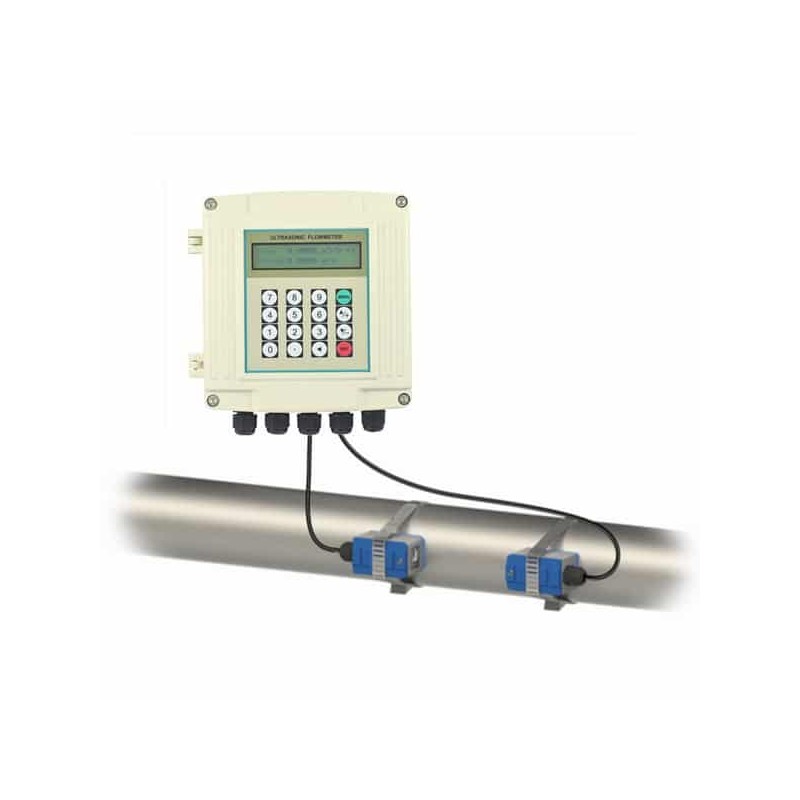

AO-TUF-2000SW Digital Fixed Ultrasonic Flow Meter

Reference AO-TUF-2000SW

Condition: New

TUF-2000SW Wall Mounted ultrasonic flow meter + TM-1

Volume discounts

Quantity	Price (tax excl.)	You Save %
1+	380,00 €	0%
3+	350,00 €	7.89%
10+	340,00 €	10.53%

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

SPECIFICATIONS
INCLUDED IN THE PACK
Data sheet

The Sensor measures:	Water Flow
Output Signal:	RS485

Accuracy：≤1%

Velocity range: 0-±10m/s, Bi-directional measurement

Pipe size: DN15-DN6000mm

Temperature：-30-160°c

Type of liquid:
Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.

Pipe material:
Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

Signal output:
1 way 4-20mA output
1 way OCT pulse output
1 way Relay output

Signal input:
3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.

Interface:
RS485, support MODBUS

Data storage:
SD card regularly store the pre-set results(optional)

Power supply:
DC8-36V or AC85-264V

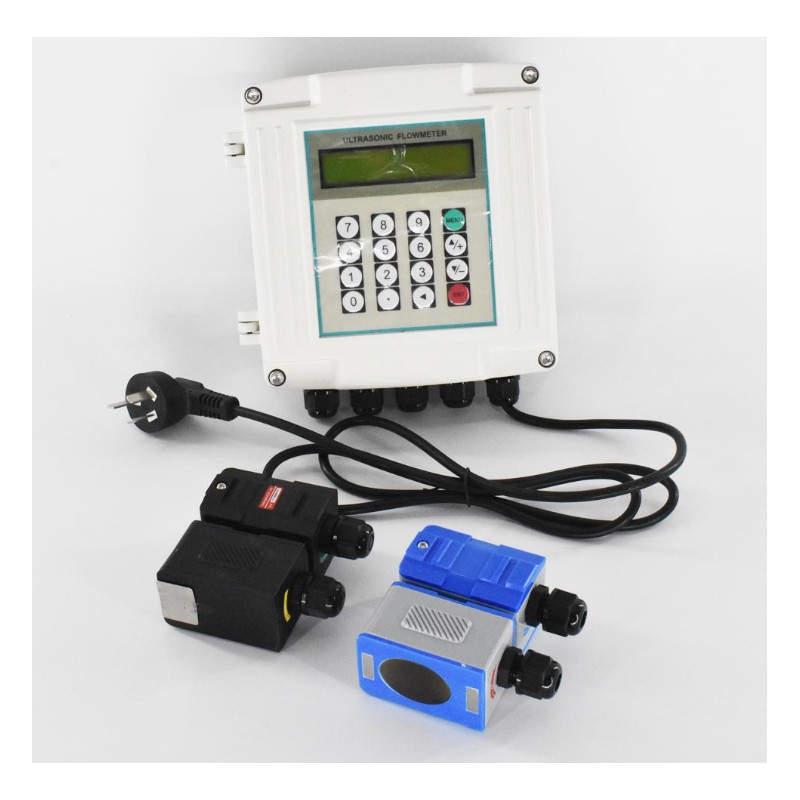

Standard Packing:

AO-TUF-2000SW Host

Steel Belt

TM-1 Ultrasonic Transducers

5M*2 meters Flow Signal Cable

Connection terminal and Screwdriver

User manual
