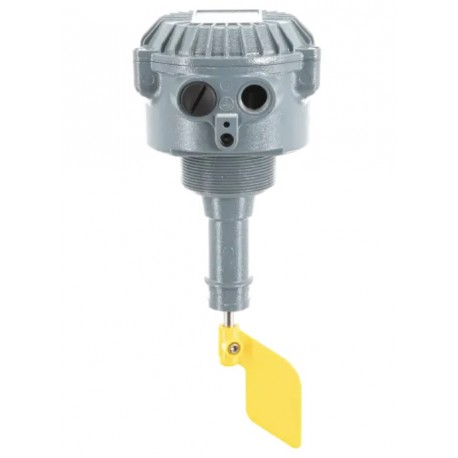

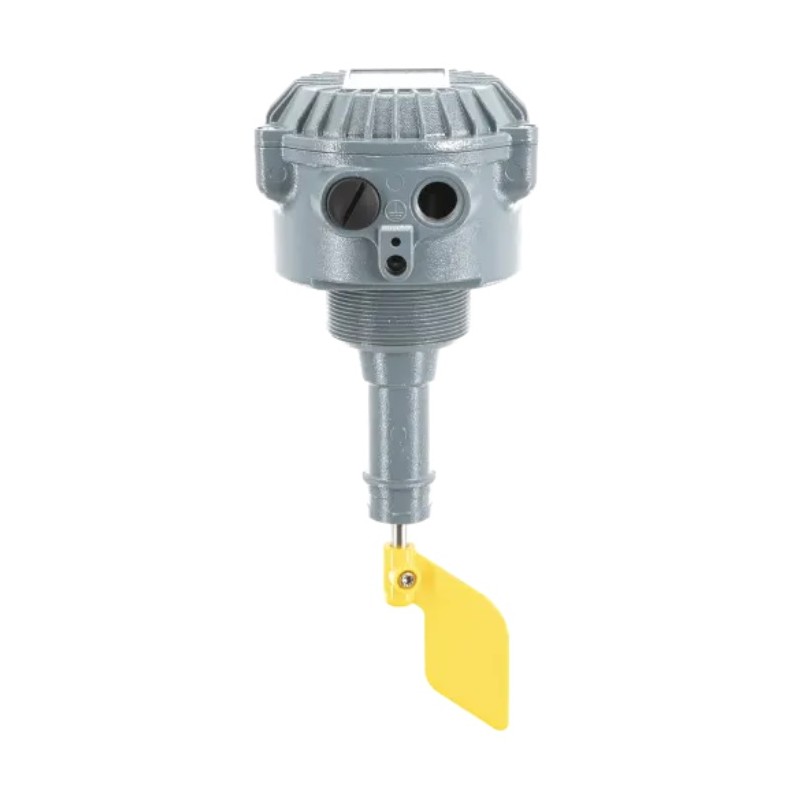

CamLogic PFG05 Rotary blade level switch for monitoring level thresholds of bulk solids in silos or bins

Reference PFG05

Condition: New

Rotary blade level switch for monitoring a level threshold, generally full or empty mode, and used for bulk solids in silos or bins.
Of sturdy construction with aluminum casing.
Guaranteed reliability at an excellent quality vs. price ratio.
It is the ideal sensor for heavy-duty conditions and continuous cycling, even in atmospheres that are potentially explosive due to the presence of dusts or powders.

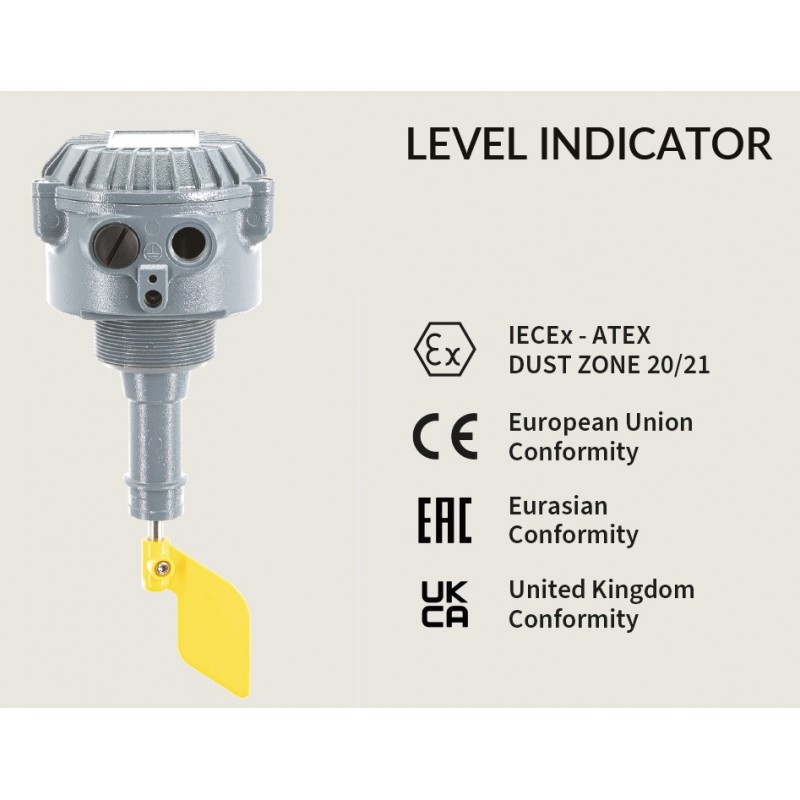

The unit conforms to the most recent ATEX standards.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Connections
Paddles

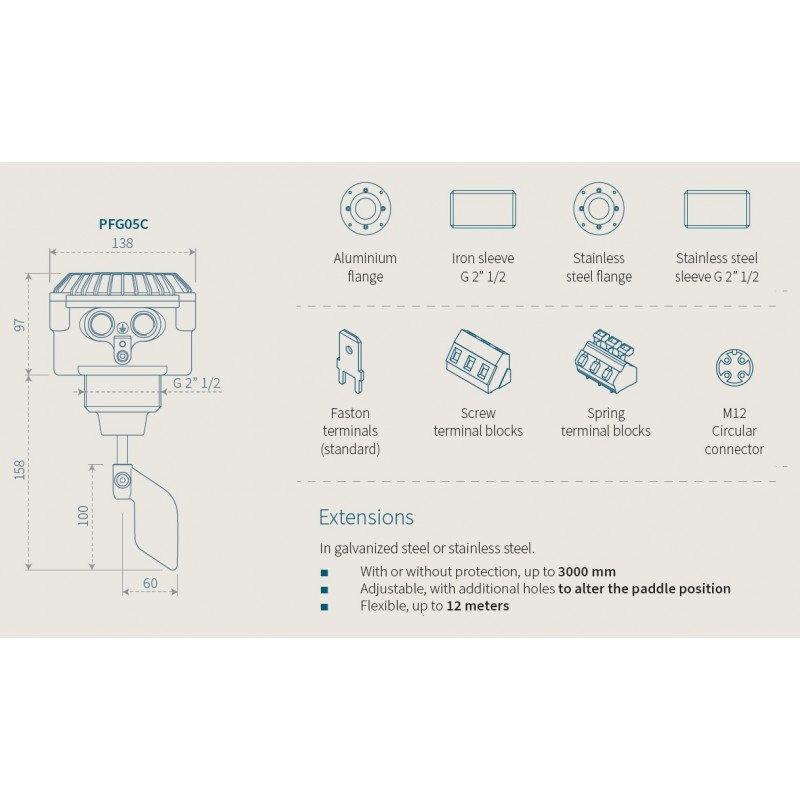

OPTIONS
Data sheet
Download

The Sensor measures:	Level

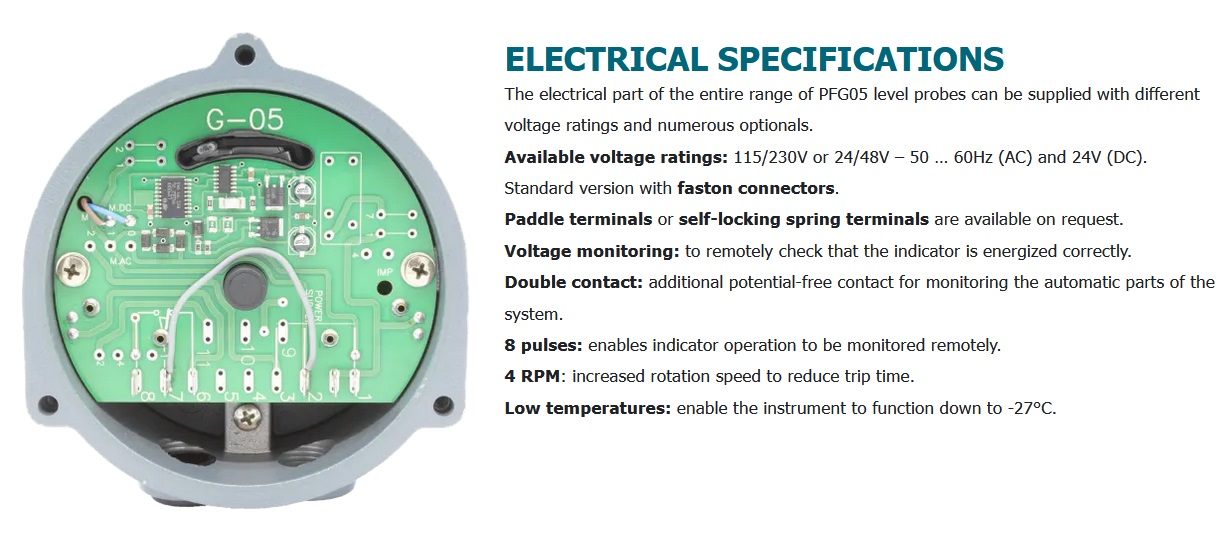

Power Supply:	115/230V or 24/48V – 50 … 60Hz (AC) and 24V (DC).
Sensor IP Rating	IP65

PFG05 Data Sheet Download (691.61k)

PFG05 CE Certificate Download (163.6k)

PFG05 Technical Data Sheet Download (1.19M)

PFG05 Paddles List Download (1.44M)

PFG05 Manual Download (1.58M)

► Easy to install due to the fact that specific tools or settings are not required.
► Unit provides the highest standard of safety in the presence of potentially explosive dusts/powders.
► The probe can be adapted to the material with a wide range of plastic or stainless steel blades.

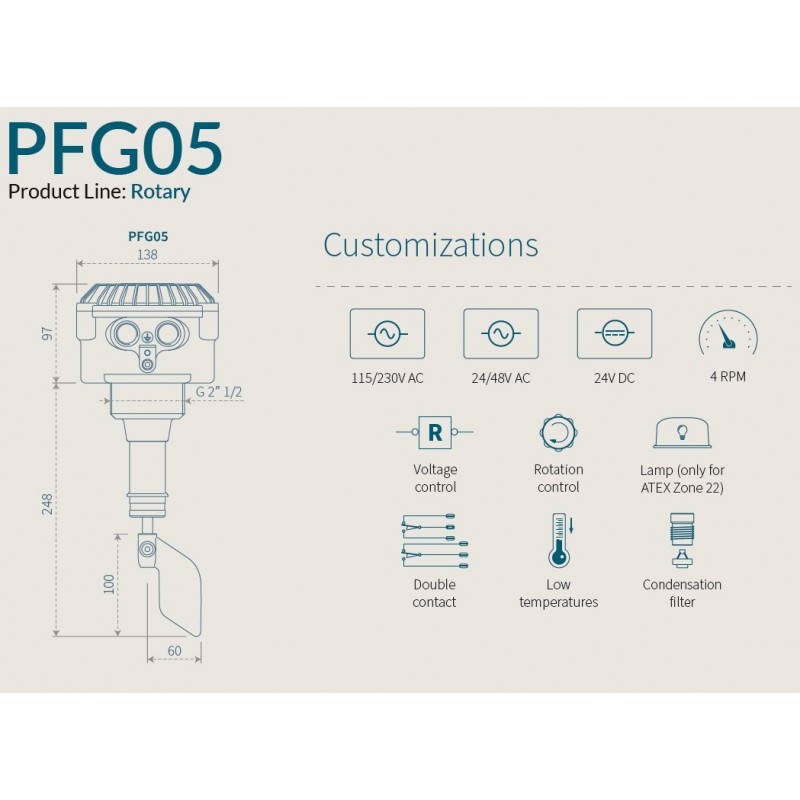

► Mechanical and electrical customizing of the measuring instrument can be made on request.
► The instrument is extremely reliable and can be used in addition to radar, capacitive, ultrasound or continuous level probes as a safe signal.

◆ Casing and cover in die-cast aluminium
◆ Shaft in AISI 303 / EN 1.4305 stainless steel on life-lubricated sealed bearings, with dust-tight retaining ring in NBR
◆ Broad range of paddles in polyamide or AISI 304 / EN 1.4301 stainless steel

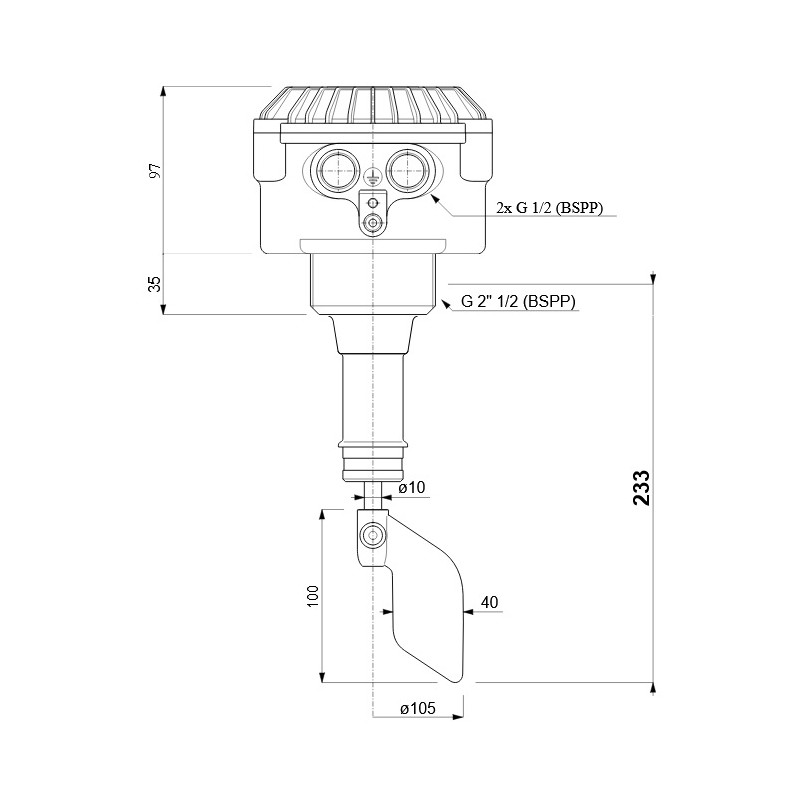

◆ 2” 1/2 Gas (BSPP) process connection and 1/2 Gas (BSPP) double cable entry
◆ Rotation speed 1 turn / minute
◆ Ambient temperature -20° to +90°C (-4° ... +194°F)
◆ Process temperature -20° to +90°C (-4° ... +194°F)
◆ Process pressure 0.8 to 5 bar (11.6 to 72,5 psi)
◆ IP65 protection rating (dustproof, protection against water jets)
◆ Power consumption max 4 W
◆ Contact capacity 10A at 250V (AC)
◆ Micro switch SPDT output signal

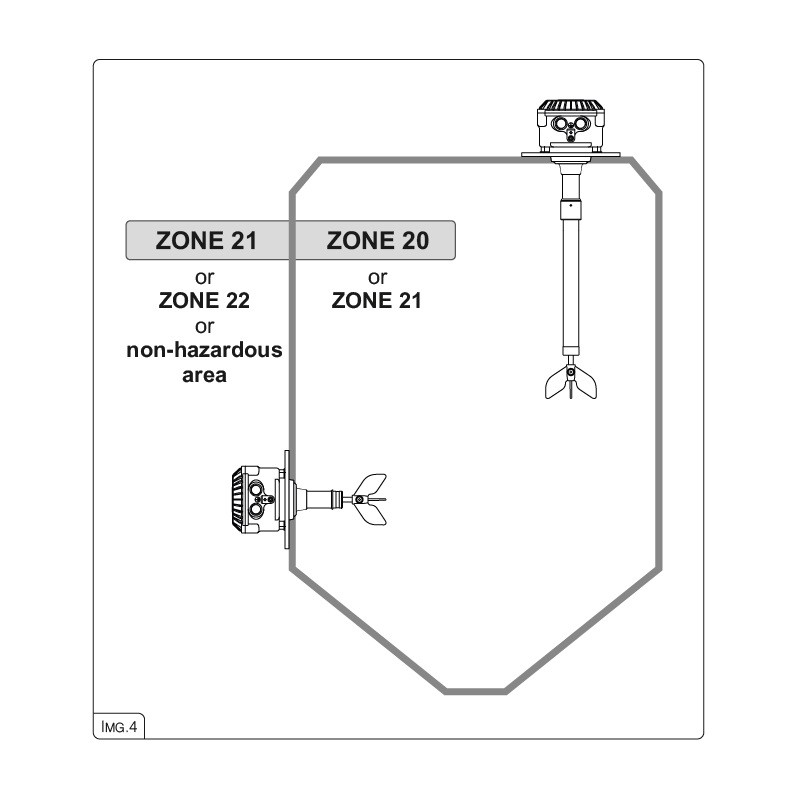

If the product is to be used in areas with explosive atmospheres, the following characteristics apply:
◆ Ambient temperature -20° to +70°C (-4° ... +158°F)
◆ Process temperature -20° to +70°C (-4° ... +158°F)
◆ Process pressure 0.8 to 1.1 bar (11.6 to 15.9 psi)
