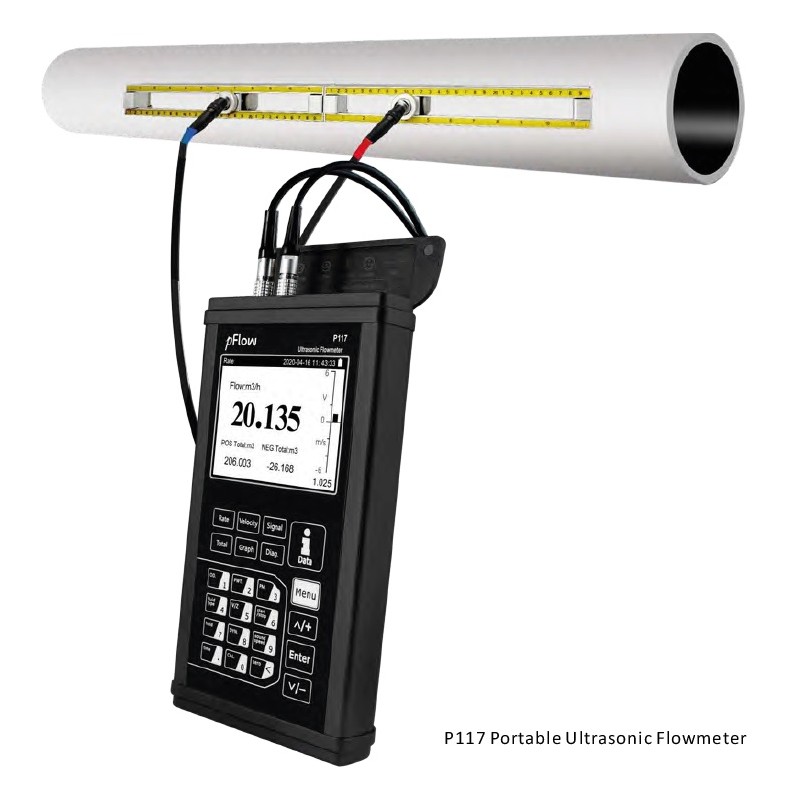

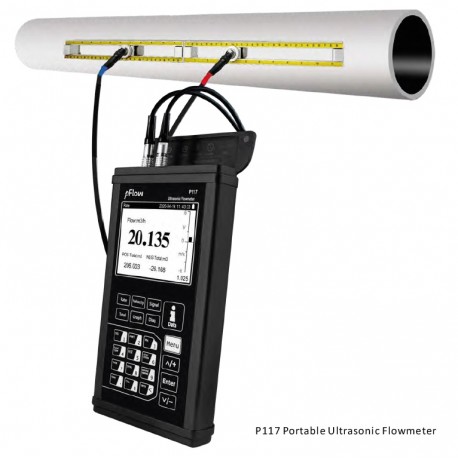

Portable Ultrasonic Flowmeter P117

Reference P117

Condition: New

P117 Portable Ultrasonic Flowmeter enables the user to do flow measurement checks at many points in a flow processwithout the need for a permanent installation.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
VIDEO
MODELS
Data sheet
Download

The Sensor measures:	Water Flow
Sensor IP Rating	IP68
Sensor for use in:	Outdoor

P117 Data Sheet Download (824.87k)

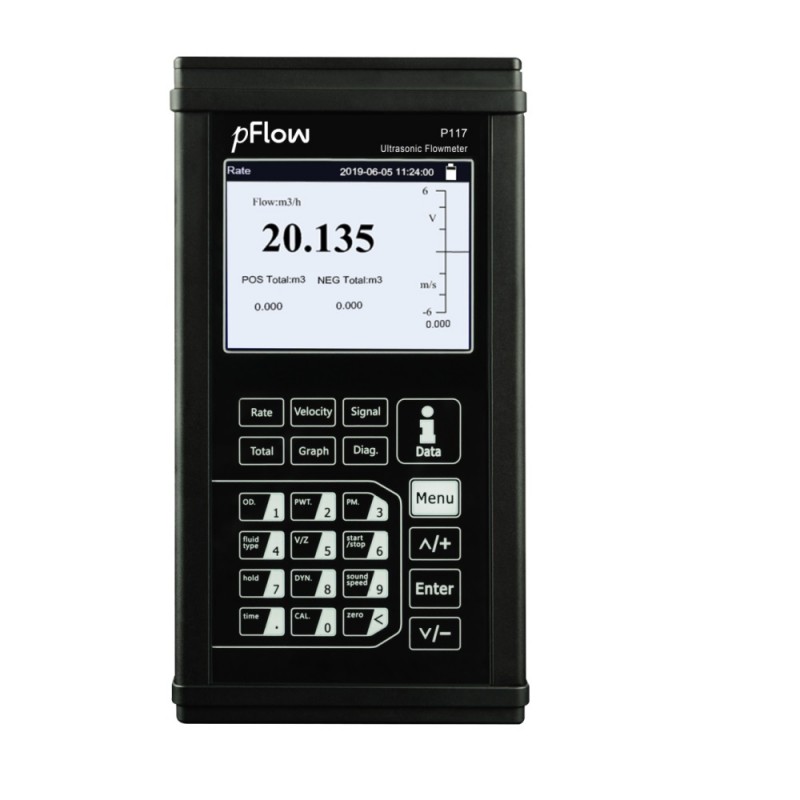

This universal transit-time meter features a dual-function push button interface, ergonomic handheld design and a beautiful 3.5 in TFT backlit digital display that significantly simplifies setup and data collection.
Comparing with other traditional flowmeter or ultrasonic flowmeter, it has distinctive features such as high precision, high reliability, high capability and low cost, the flowmeter features other advantages: TVT technology designed.
Less hardware components, low voltage broadband pulse transmission, low consumption power.
Clear, user-friendly menu selections make flowmeter simple and convenient to use.
Daily, monthly and yearly totalized flow. Parallel operation of positive, negative and net flow totalizes with scale factor (span) and 7 digit display, while the output of totalize pulse and frequency outputs are transmitted via a relay and open collector.
