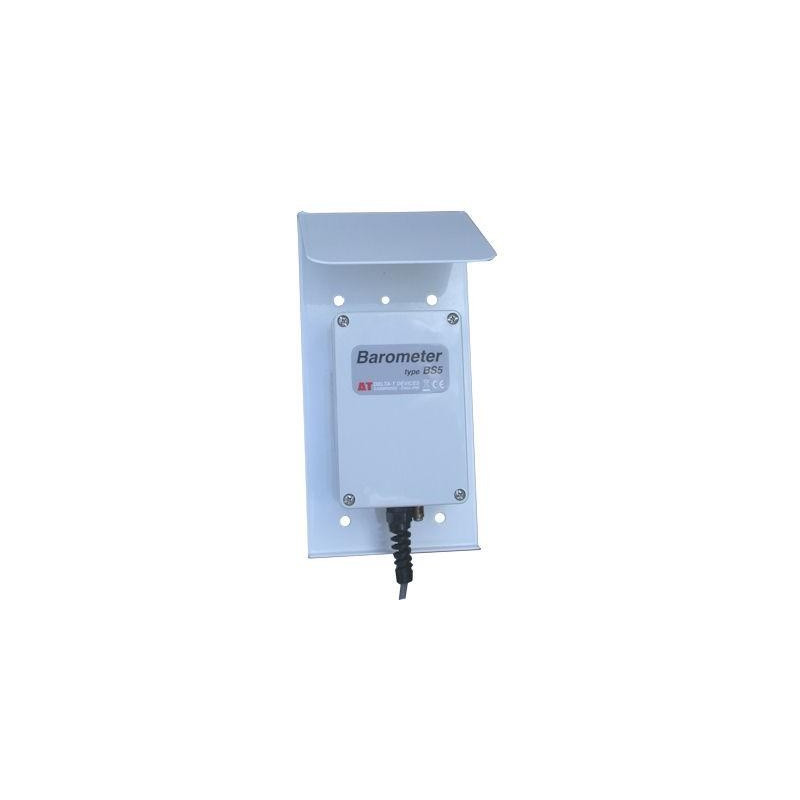

BS5-03 Barometric Pressure Sensor

The BS5 Barometric Pressure Sensor offers selectable full scale analogue output ranges and a selectable pressure scale wrapped up in a weatherproof housing with a sun shield.� It is packaged with a 3m output cable, and a mounting bracket for attachment to the Delta-T Weather Station.� The selectable output ranges make the sensor suitable for all Delta-T loggers.

The BS5/N barometer version is supplied without the housing or mounting bracket. It is intended for use in non-condensing atmospheres where the housing is not needed.

The barometer uses the rugged Climatronics 102663 pressure sensor for accurate and stable measurement of barometric pressure.

The pressure transmitter requires a power source of 6-16VDC, 10mA at 12VDC.
