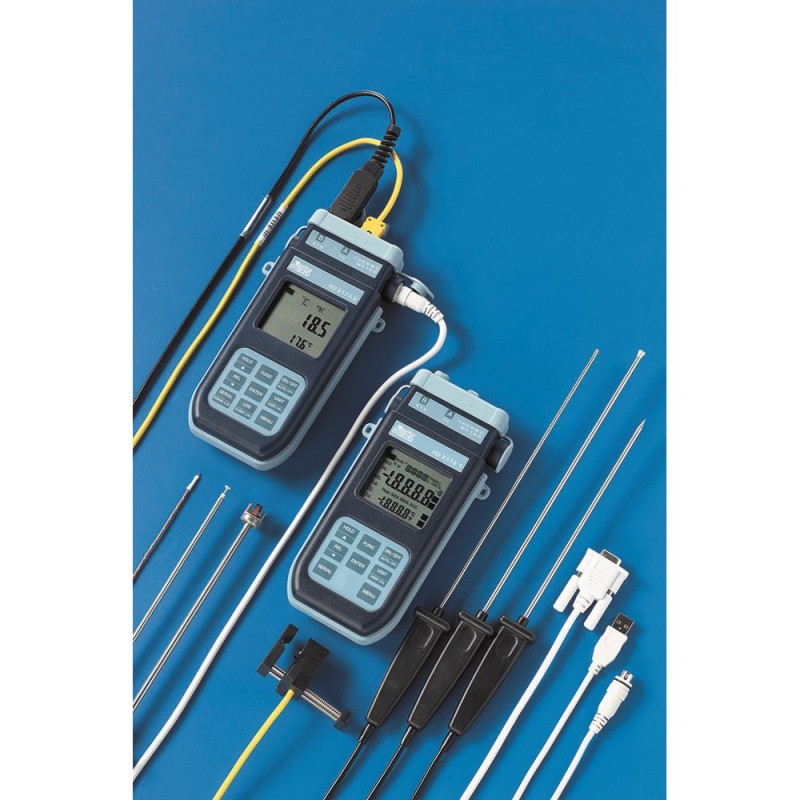

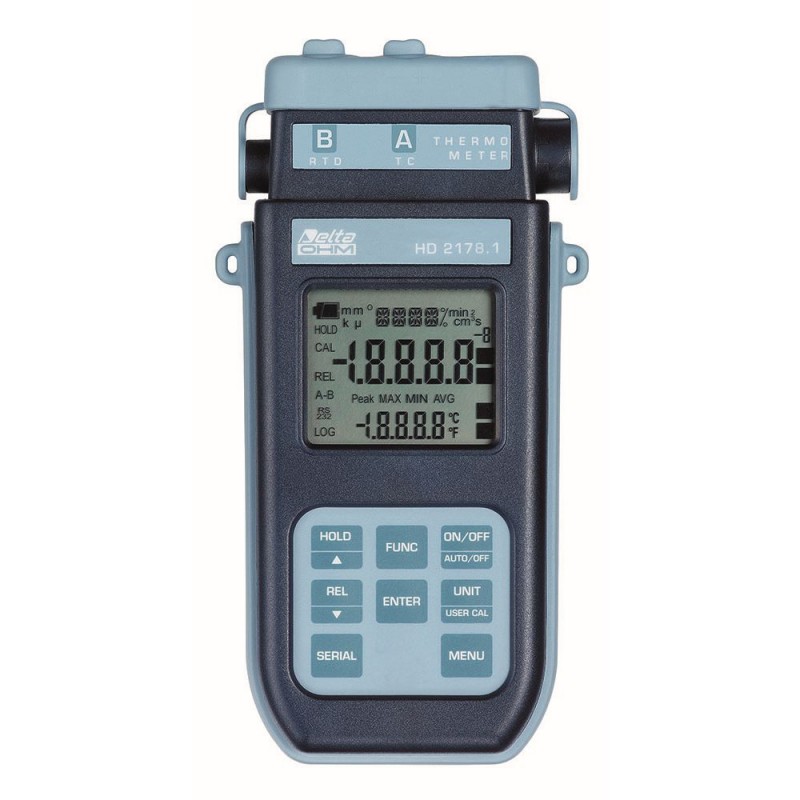

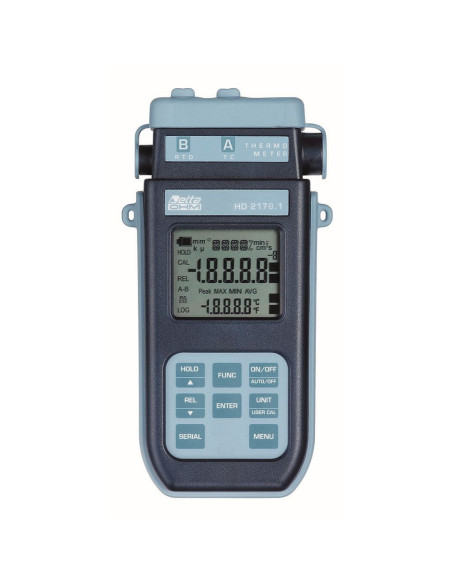

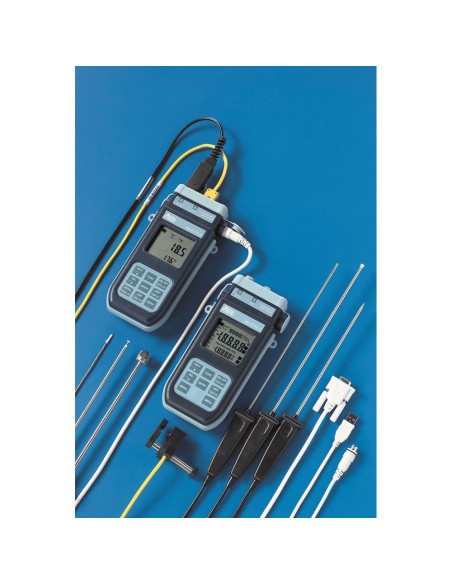

HD2178.1 Thermometer with Pt100 and Thermocouple inputs

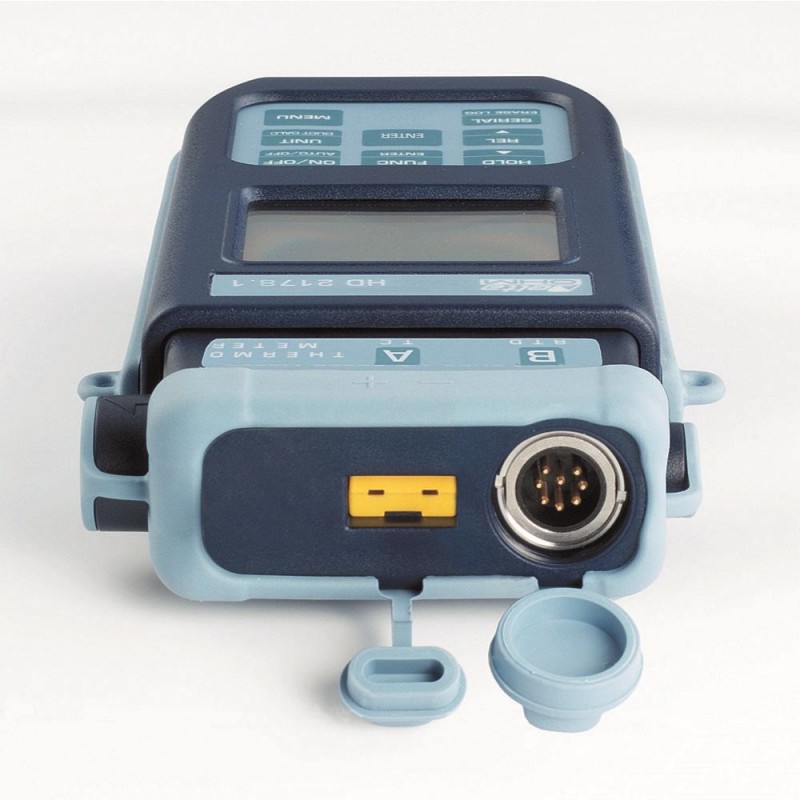

Thermometer with two inputs, the first for Pt100 probes equipped with SICRAM module, the second input for thermocouple type K, J, T, E, N, large display.

Storage of maximum, minimum, average value, RS232 C output for data transfer in real time to a PC or printer. Functions: REL, HOLD and auto power off which can be disabled, IP 67 protection degree. Complete with carrying case, instruction manual, 4 batteries, Software DeltaLog 9

The probes and cables for data download have to be ordered separately. Pt100 probes of the TP47… series and K,J,T,E,N type thermocouple probes with miniature connector are suitable.

HD2178.1: The kit consists of instrument HD2178.1, 4 per 1.5V alkaline batteries, instruction manual and case, software Deltalog9
Probes and cables have to be ordered separately.

HD2178.2: The kit consists of instrument data logger HD2178.2, 4 per 1.5V alkaline batteries, instruction manual and case, CP23 USB cable, software Deltalog9.
Probes have to be ordered separately.

HD2110CSNM: 8-pole connection cable MiniDin - Sub D 9-pole female for RS232C.

C.206: Cable for instruments of the serie HD21...1 to connect directly to USB input of PC.

SWD10: Stabilized at 230Vac/12Vdc-1000mA mains

HD40.1: Upon request, portable, serial input, 24 column thermal printer, 58mm paper width. Use cable HD 2110 CSNM (option). For all Pt100, Pt1000 and thermocouple probes, see Accessories.
