View larger

P311 Handheld Particle Counter (0.3 µm a 5.0 µm - 0.1 CFM, 2.83 LPM))

Reference P311

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
accesories
Data sheet
Download

Type of Instrument	Particles in Air Monitor
The instrument measures:	Optical Particle Counting
Instrument for:	Particle Size
Function:	Analyze Particle Size

P311 Download (466.56k)

P311 Airy Download (17.35M)

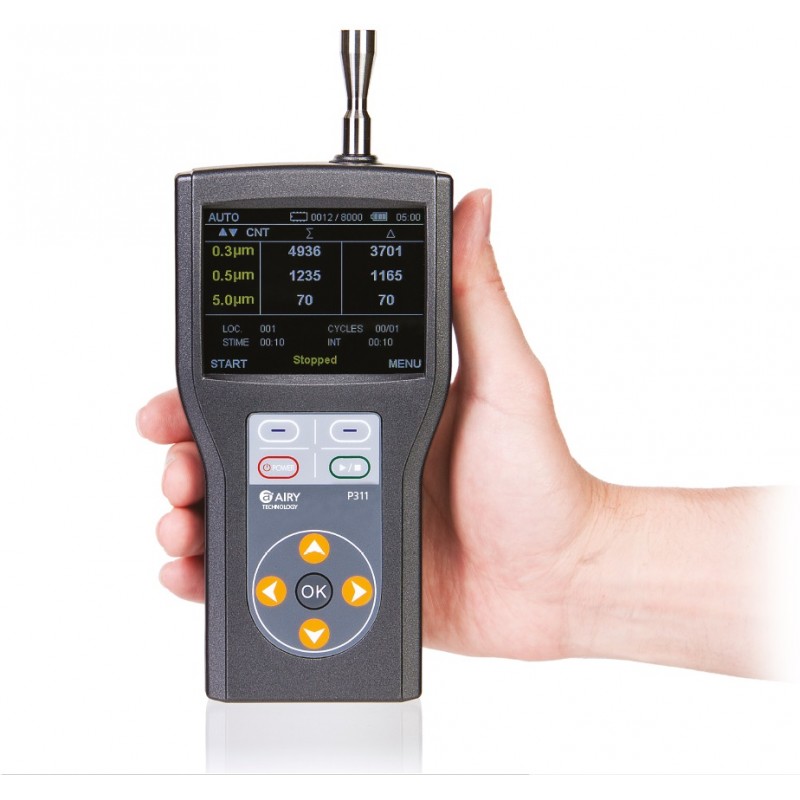

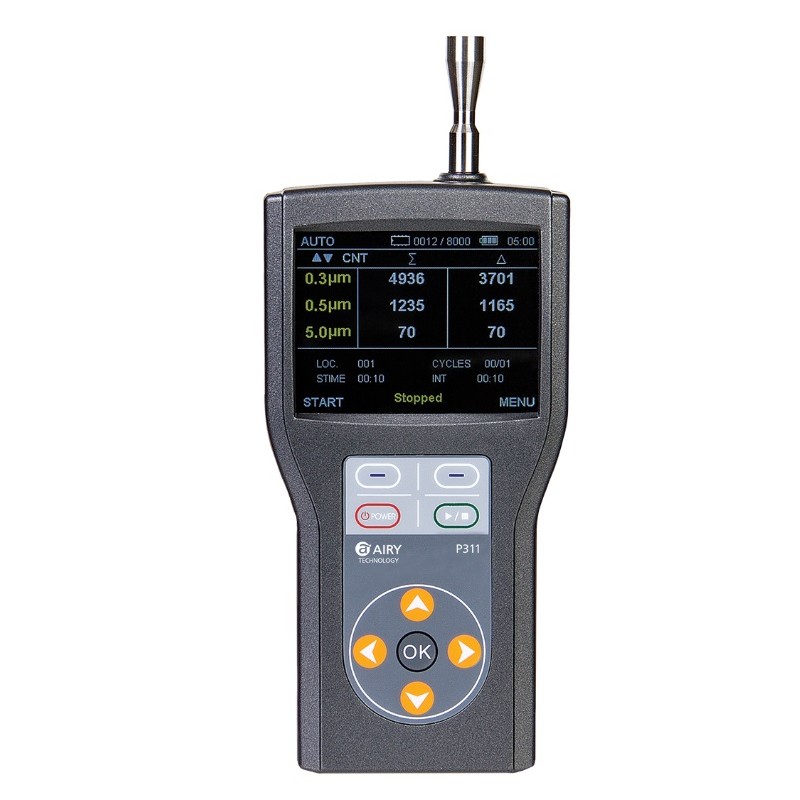

Only 1.26 lb (0.57 kg), user-friendly and easy to configure, this handheld particle counter displays up to 3 size channels on its 3.5” LCD display.

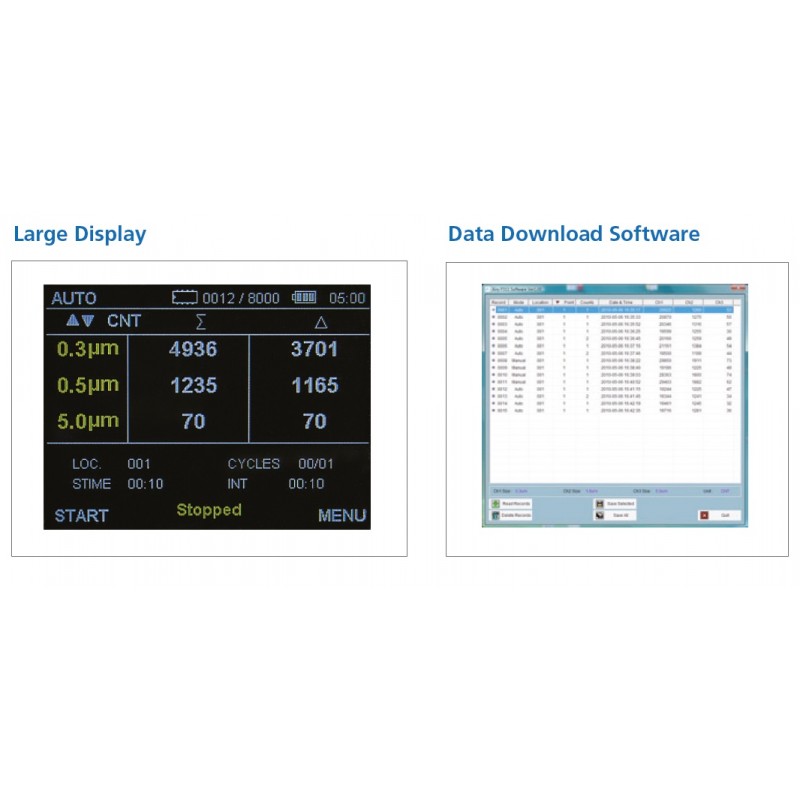

The Airy Technology P311 stores 8,000 sample records that can be viewed on the unit or on a computer via USB cable. The P311 complies with ISO 21501-4 and includes a one year warranty. With excellent quality and reliable performance, the Airy Technology P311 is the best priced handheld particle counter in the market.

Channel 1: 0.3/0.5 μm

Channel 2: 0.5/1.0/2.0/2.5 μm

Channel 3: 5.0 μm

Size Range	0.3 to 5.0 μm
Channel Sizes	Channel 1: 0.3/0.5 μm; Channel 2: 0.5/1.0/2.0/2.5 μm; Channel 3: 5.0 μm
Counting Efficiency	50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Concentration Limit	4,000,000 Particles/ft³ @ 5% coincidence loss
Light Source	Long Life Laser Diode
Zero Count Level	<1 count / 5 minutes (<2 particles / ft³) (per ISO 21501-4 & JIS)
Size Resolution	<15% at 0.5 μm (per ISO 21501-4)
Flow Rate	0.1 CFM (2.83 LPM)
Flow Rate Control	Automatic flow control
Calibration	NIST traceable
Sample Probe/Tubing	Isokinetic sampling probe and probe for tubing
Sampling Modes	Manual, automatic, ISO¹, cumulative, differential, count/concentration
Sampling Time	1 second to 99 minutes 59 seconds (configurable)
Sampling Frequency	1 to 1,999 cycles or continuous (configurable)
Sample Output	Internal HEPA filter
Vacuum Source	Internal Pump
Communication Interface	USB
Data Storage	8,000 sample records
Display	3.5″ (8.9 cm) 320 x 240 Color LCD
Power	DC 5V 1A (Mini USB TYPE-B)
Battery	Removable AA Ni-MH
Dimensions (L x W x H)	7” x 3.5” x 1.9” (17.8 cm x 9 cm x 4.7 cm) does not include probes
Weight	1.26 lb (.57 kg)
Standards	ISO 21501-4 and JIS B9921
Warranty	1 year limited warranty
Operating Conditions	5° to 35° C 20% to 95%RH non-condensing
Storage Conditions	-20° to 50° C 20% Up to 98%RH non-condensing
Accessories	Operating manual on CD, AC adapter, isokinetic inlet, USB cable, purge filter, data download software, 4 x AA batteries with charger, calibration certificate, carrying case.
Optional Accessories	Barbed fitting hose adapter

Included Accessories:
- AC adapter
- Isokinetic inlet
- Probe for tubing
- USB cable
- Zero filter
- Software
- 4 x AA batteries with charger
- Calibration certificate
- Carrying case
