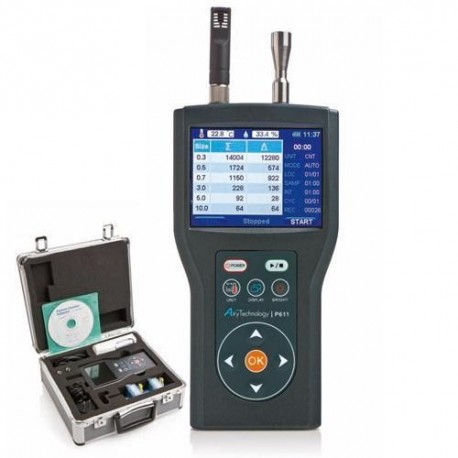

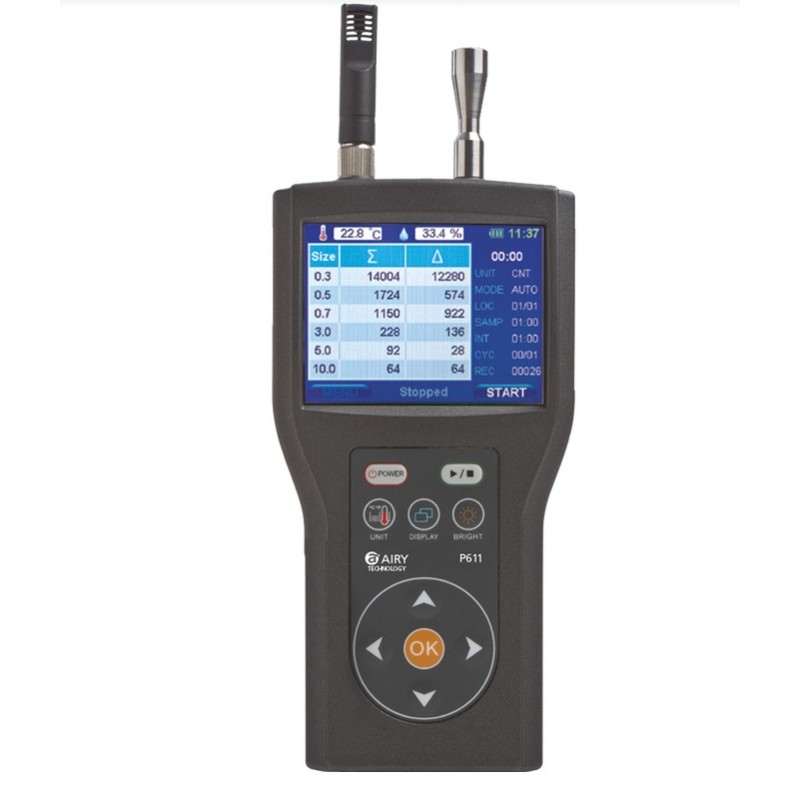

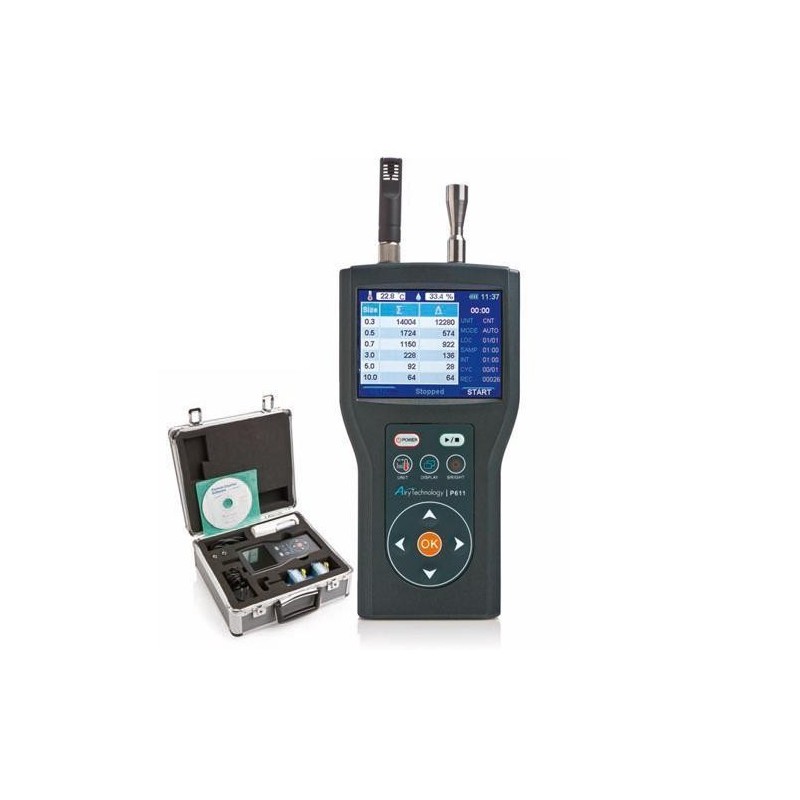

P611 Handheld Particle Counter (0.3 µm to 10.0 µm / 0.1 CFM (2.83 LPM)

Reference P611

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Optional Accessories
Models
Data sheet
Download

Type of Instrument	Particles in Air Monitor
The instrument measures:	Optical Particle Counting
Instrument for:	Particle Size
Function:	Analyze Particle Size

P611 Airy Tech. Download (5.3M)

The Airy Technology P611 handheld particle counter measures 0.3 µm to 10.0 µm with a flow rate of 0.1 CFM (2.83 LPM).

Only 1.26 lb (0.57 kg), user-friendly and easy to configure, this handheld particle counter displays up to 6 size channels as well as (optional) temperature and relative humidity on its 3.5” color LCD display.

The Airy Technology P611 stores 10,000 sample records that can be viewed on the unit or on a computer via USB cable. The P611 complies with ISO 21501-4 and includes a two-year warranty. With excellent quality and reliable performance, the Airy Technology P611 is the best solution for professionals who validate ISO cleanrooms (Class 5 - 9) or investigate indoor air quality matters.

Size Range	0.3 to 10.0 μm

Counting Efficiency	50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Concentration Limit	4,000,000 Particles/ft³ @ 5% coincidence loss
Light Source	Long Life Laser Diode
Zero Count Level	<1 count / 5 minutes (<2 particles / ft³) (per ISO 21501-4 & JIS)
Size Resolution	<15% at 0.5 μm (per ISO 21501-4)
Flow Rate	0.1 CFM (2.83 LPM)
Flow Rate Control	Automatic flow control
Calibration	NIST traceable
Sample Probe/Tubing	Isokinetic sampling probe and probe for tubing
Sampling Modes	Manual, automatic, ISO¹, GMP², cumulative, differential, count/concentration
Reports	ISO 14644-1 and EU GMP
Sampling Time	1 second to 99 minutes 59 seconds (configurable)
Sampling Frequency	1 to 9999 cycles or continuous (configurable)
Sample Output	Internal HEPA filter
Vacuum Source	Internal Pump
Communication Interface	USB
Data Storage	10,000 sample records
Security	2-level password protection
Alarm	Counts, low battery, flow and laser status
Display	3.5″ (8.9 cm) 320 x 240 Color LCD
Power	DC 5V 1A (Mini USB TYPE-B)
Battery	Removable AA Ni-MH
Environmental Sensors	Optional temperature/humidity probe
Dimensions (L x W x H)	7” x 3.5” x 1.9” (17.8 cm x 9 cm x 4.7 cm) does not include probes
Weight	1.26 lb (.57 kg)
Standards	ISO 21501-4 and JIS B9921
Warranty	2 year limited warranty
Operating Conditions	5° to 35° C 20% to 95%RH non-condensing
Storage Conditions	-20° to 50° C 20% Up to 98%RH non-condensing
Accessories	Operating manual on CD, AC adapter, isokinetic inlet, USB cable, purge filter, data download software, 4 x AA batteries with charger, calibration certificate, carrying case.
Optional Accessories	Temperature/Humidity probe, barbed fitting hose adapter
