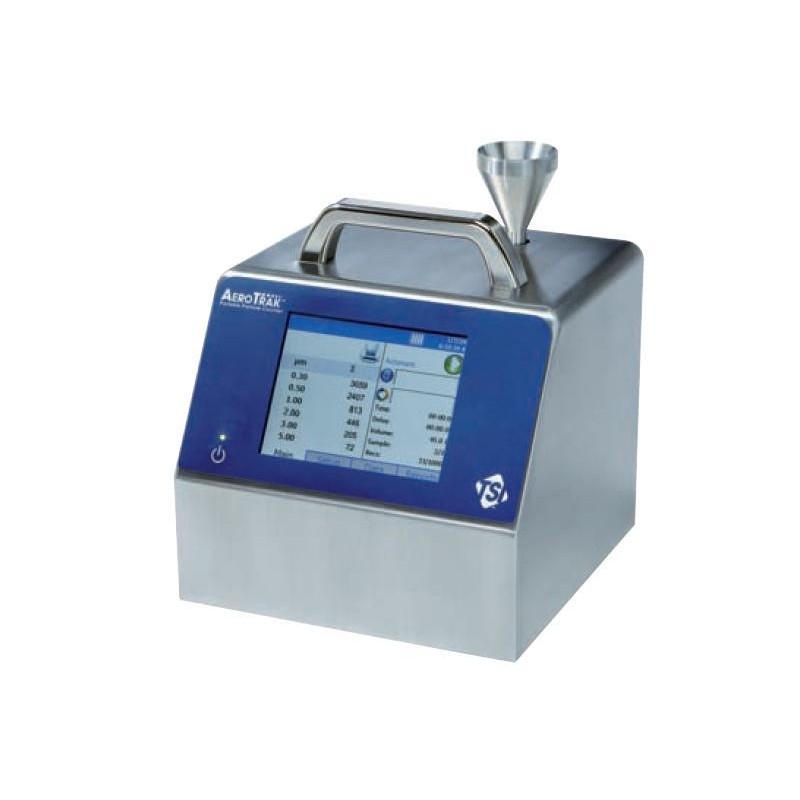

AEROTRAK-9350-02 Handheld Particle Counter (0,3 a 25µm-10.000 Samples)

The TSI AEROTRAK 9350 and 9550 Portable Particle Counters offer the most features and flexibility for customers interested in manually monitoring particle contamination at high flow rates. These particle counters can be used as stand-alone portable counters or can be integrated into a facility monitoring system.

Both models offer a compact light weight ergonomic design for ease of use.
The 5.7-inch high-contrast color touch screen interface makes these instruments easy to operate and facilitates viewing data from a greater distance.

These particle counters can also store up to 10,000 sample records which can be conveniently downloaded using USB, Ethernet (TCP/IP) port or printed directly via its built-in printer.

The instrument reports up to 6 particle sizes simultaneously and includes an internal alarm.
Backed with a standard 2 year warranty and TSI commitment for superior service and support, there is no other portable particle counter on the market today with such features and benefits.

Features 9350 9550
Size Range 0.3 to 25 μm 0.5 to 25 μm
Channel Sizes
0.3, 0.5, 1.0, 2.0, 3.0, 5.0 μm
Additional channel sizes available
0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm
Additional channel sizes available
Counting Efficiency 50% 0.3 μm; 100% for particles > 0.45 μm (per JIS and ISO 21501-4) 50% 0.5 μm; 100% for particles > 0.75 μm (per JIS and ISO 21501-4)
Concentration Limits 250,000 particles / ft3 at 5% coincidence loss
Light Source Laser diode
Zero Count Level <1 count / 5 minutes (meets JIS B9921 and ISO 21501-4)
Flow Rate 1.77 CFM (50 LPM) with ± 5% accuracy (meets JIS and ISO 21501-4)
Calibration NIST traceable
Sampling Modes Manual, automatic, beep; cumulative/differential count or concentraion
Sampling Time 1 second to 99 hours
Sampling Frequency 1 to 9999 cycles or continuous
Sample Output Internal HEPA filter
Vacuum Source Internal pump with patented* flow control technology
Communication Mode USB and Ethernet (TCP/IP) output
Data Storage 10,000 sample records
Alarm/Status Audible alarm on counts; low battery and sensor status indicators
Display QVGA 5.7-inch touch screen display with Microsoft® Windows® CE
Printer Built-in thermal printer (also available without printer)
Reports On screen viewable and printable FS-209E and EC GMP reports
External Surface Stainless steel
Power 110 to 240 VAC 50 to 60 Hz Universal internal power supply
Battery Removable/rechargeable Li-Ion
Battery Life Up to 3 hours continuous use
Recharge Time 3.5 hours (internal or external)
Dimensions (L x W x H) 10 in. x 7 in. x 9.5 in. (25.6 cm x 17.6 cm x 26.1 cm)
Weight 12.8 lbs (5.8 kg) with battery, 11.8 lbs (5.4 kg) without battery
Standards CE, JIS B9921, ISO 21501-4 as listed above
Warranty 2 years. Extended warranties available
Operating Conditions 41° to 95°F (5° to 35°C) 20% to 95% non-condensing
Storage Conditions 32° to 122°F (0° to 50°C) Up to 98% non-condensing
