MRC Lab Reac-N5l-V2 Double-wall Glass Laboratory Reactor, Volume 5L, Temp. range (-80 ~ 200°C)
Features and Advantages
● High borosilicate glass 3.3 has good physical and chemical properties.
● Wide working temperature range: -80~200℃.
● It can work under normal pressure and negative pressure, its vacuum degree can reach to-0.095MPa.
● Frequency and constant speed control system, digital display stirring speed.
● PTFE stirring blade, push-type stirring paddle , corrosion resistant.
● Anti-corrosion discharge valve.
● Stainless steel frame, corrosion resistant. Lockable casters makes it easier to move andpositioned.

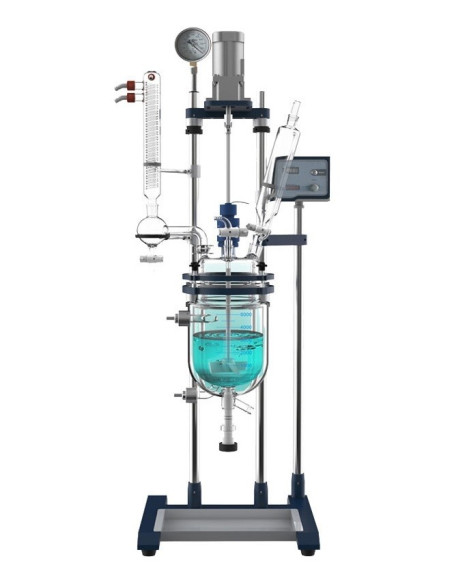

Double-wall Glass Laboratory Reactor - 5 Liter
Double-wall Glass Reactor
Vessel volume: 5 L
Jacket volume: 1.5 L
Glass material: High borosilicate glass 3.3
Working temperature range: -80~200℃
Bearable temperature difference: 90℃
Operating pressure: Ordinary or negative pressure; its vacuum degree can reach to -0.095MPa.
Stirring Motor: 50~500rpm, 90 W
Anti-corrosion discharge valve
PTFE stirring blade
Stirring shaft is stainless steel coated with PTFE
Dimensions: 591W×520D×1594H mm
.jpg)
a) Processes that need high temperatures or low temperature conditions.
b) Processes that need reduce pressure and stirring at the same time.
c) Dispersion processes.
d) Distillation (reflux), concentration.

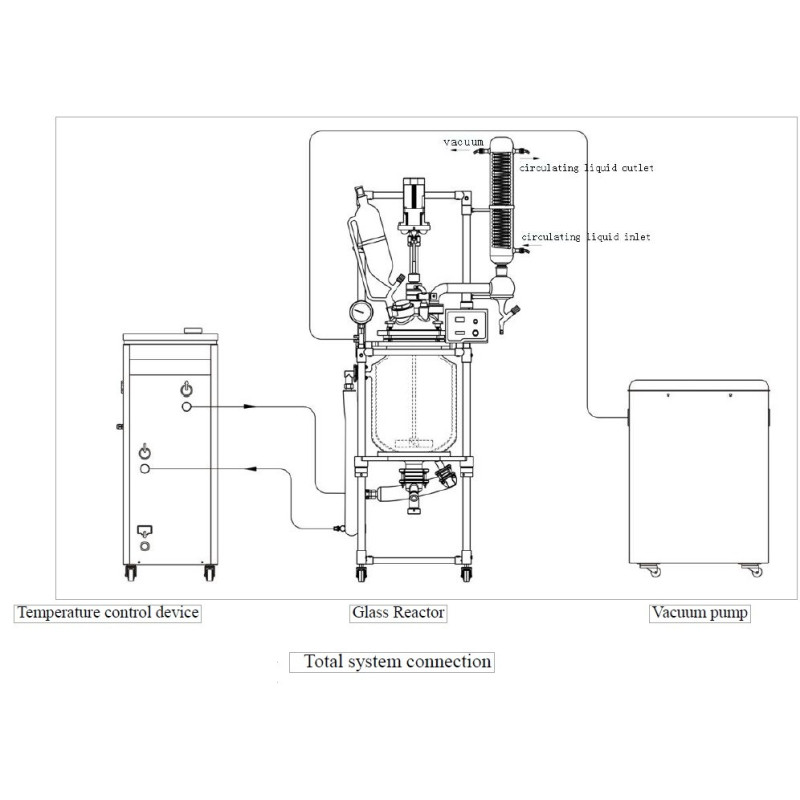

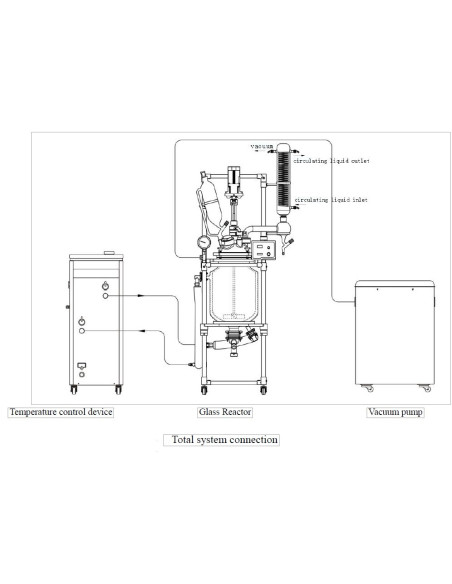

e) Assembled into a glass reactor total system according to the specific requirements.
- Instrument for:
- Hospitals, Lab's, Clinics
- Function:
- Glass reactor
