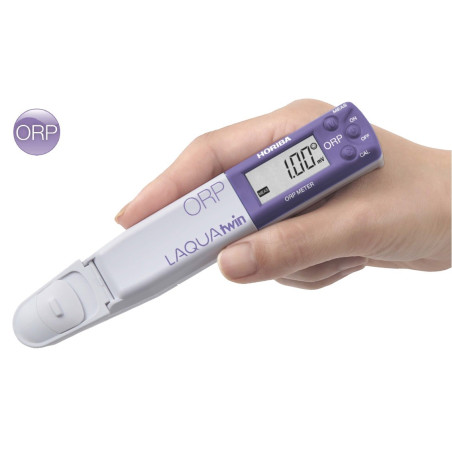

LAQUAtwin ORP-11 Pocket Redox Potential (ORP) Meter

The Oxide Reduction Potential (ORP) indicates the oxidation or reduction capacity of chemical species of a solution. This capacity is related to the amount of oxygen present in the water. In some applications, ORP is a measure of the disinfecting (oxidation) power of oxidants in a solution, such as chlorine, chlorine dioxide, and ozone.

Positive ORP values indicate a generally oxidizing medium, while negative values indicate a reducing medium. The ORP value is expressed in millivolts (mV) using a combination of an inert noble metal (gold or platinum) electrode with a reference electrode.

This tool can be useful for decision making when carrying out quality inspections, as it provides an immediate assessment of the ORP value in many applications such as:

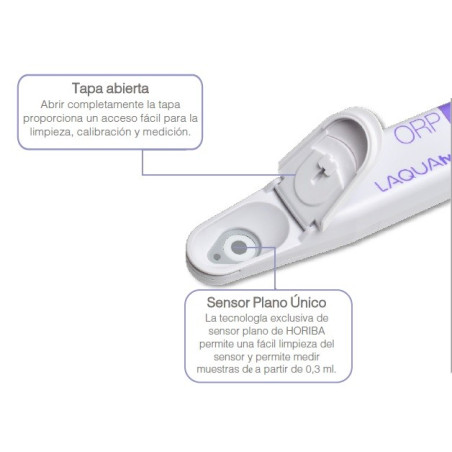

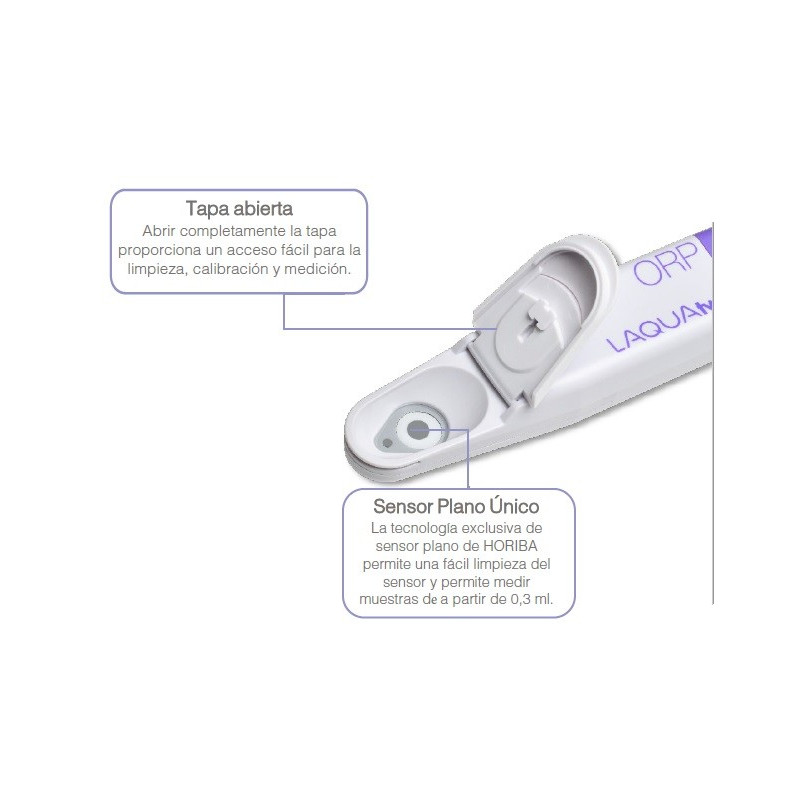

These devices incorporate a platinum flat ion electrode for microvolume measurement. They only require a few drops (0.3 ml) to provide a fast and accurate analysis.

It can be used as a traditional ORP meter by immersing the electrode in a liquid.

Measurement in three simple steps:

1. Calibration: For a correct calibration, the sensor must be clean beforehand. If not, rinse with water and put some standard solution on the sensor and press the calibration button. A smiley face will appear indicating that calibration is complete. Clean the sensor with water until the calibration solution is removed and dry it with a soft, clean tissue.

2. Analysis: Only a tiny amount of sample is required, so just fill the sensor and wait a few seconds until the smiley face appears.

3. Cleaning: Always keep the sensor clean.

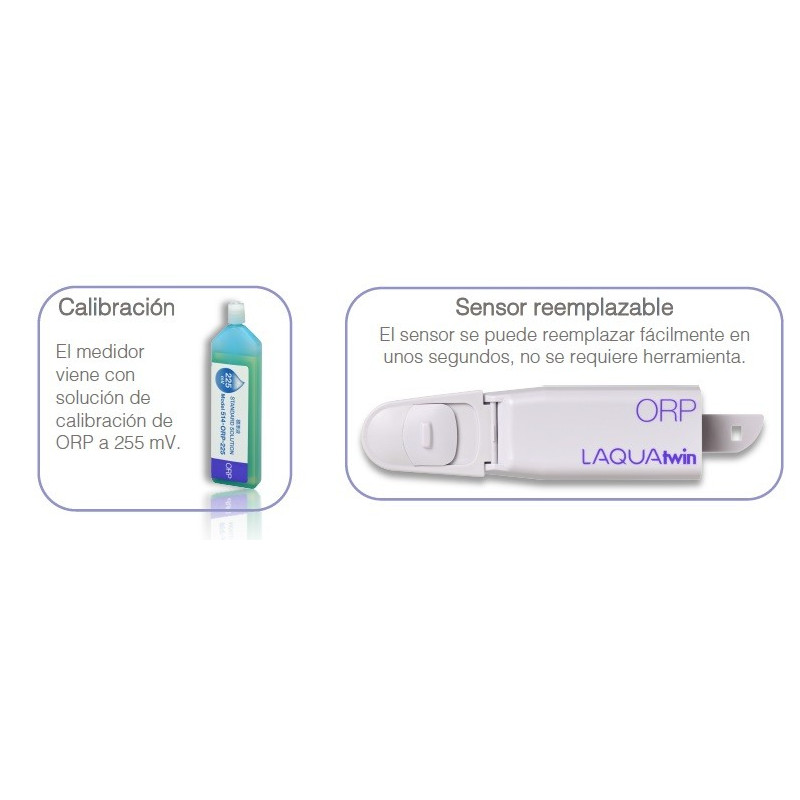

Sensors should be replaced after approximately 1500 measurements or when calibration cannot be performed. Sensors are sold separately and can be easily removed and replaced.

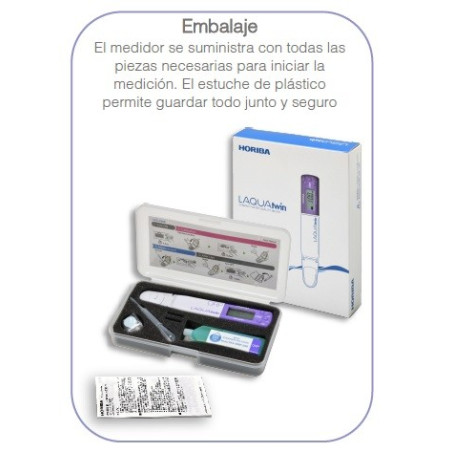

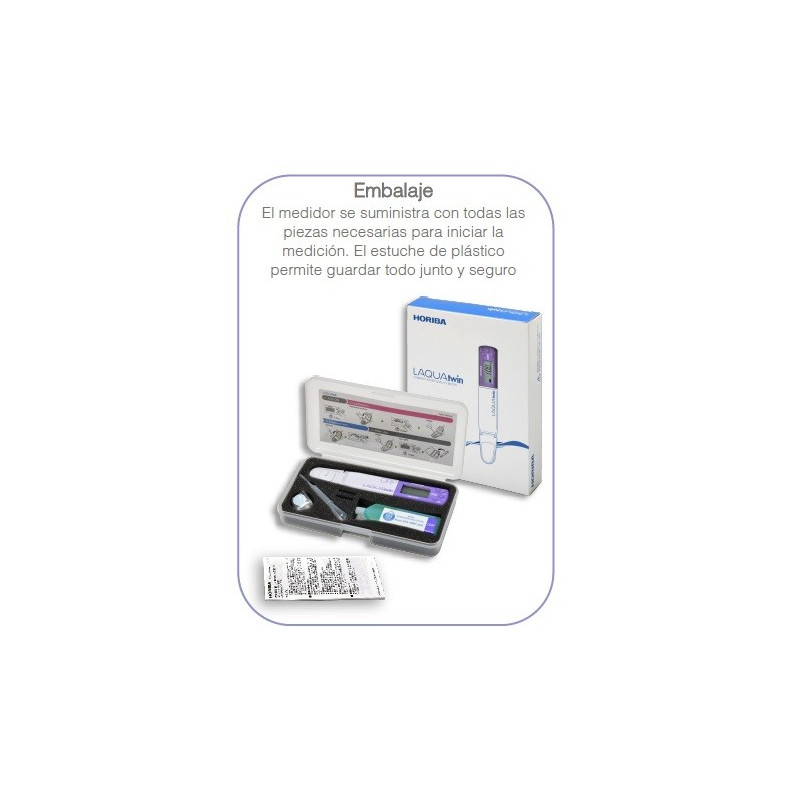

The ORP-11 meter is supplied with:
-2 CR2032 batteries
-1 pipette.
-Instruction manual and Quick Start Guide.
-Storage case.
-225 mV calibration solution (14 ml).
-Abrasive cotton swab.

• ORP measurement in the field, easy and fast
• Measurement range from -1,000 to +1000mV.
• Minimum sample volume required: 0.3 ml
• Accurate reading in just a few seconds
• Simple single point calibration (compensation)
• Replaceable sensor
• Waterproof - IP67
• Screen with feedback

• Swimming pools
• Quality analysis of water
• Food industry
• Agriculture
• Aquaculture
• Industry
• Environmental monitoring
