HH-8306 Handheld Particle Counter (0.3 – 25 µm @ 0.1 CFM)

HH-8306

Particles Plus

New

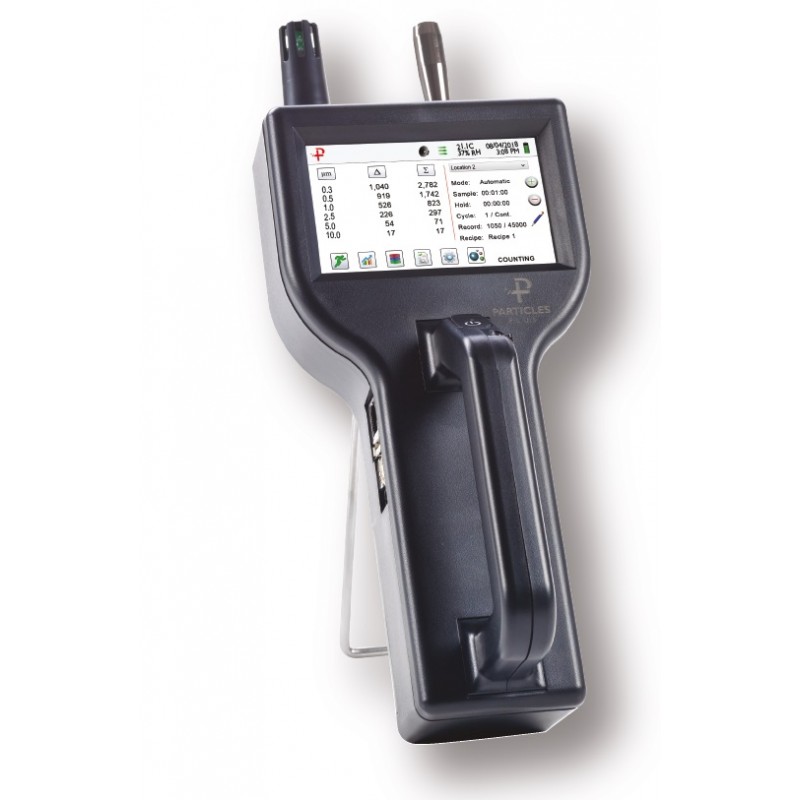

The Particles Plus 8306 Handheld Particle Counter measures 0.3 to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).

Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Particles Plus data-download software. Particles Plus counters can be controlled and monitored remotely via web browser. The 8306 has a mass concentration mode that approximates density in μg/m³.

All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 8306 ensures compliance with an on-board pulse height analyzer.

6 126,00 €

tax excl.

Add to wishlist

Type of Instrument Particles in Air Monitor
The instrument measures: Optical Particle Counting
Instrument for: Particles in the Air
Function: Analyze Particle Size

• Industry's highest concentration of 15,000,000 particles/ft3 @ 10% coincidence loss
• Ideal for use in Cleanrooms, Industrial Health & Safety, and Air Quality applications
• >10 hours continuous operation on a fully charged battery
• Industry's first Sleep Mode and Power Conservation Mode with intelligent battery
• Unparalleled and most comprehensive internal self-diagnostics of any handheld particle counter
• Real-Time Meter detects particle contamination sources with visual and audible indication
• Internet of Things (JSON) communication allows for network or cloud based data options.

Measures 0.3 μm to 25.0 μm
0.1 CFM (2.83 LPM) flow rate
Long-life laser diode technology
Measures up to 6 channels of simultaneous data
Approximates mass concentration in μg/m³
Integrated handle for one-handed operation
Large easy-to-use icon driven color touch screen display
Temperature and relative humidity probe included
Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
Easy configuration and transferable from instrument to instrument
Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232
Displays and externally prints reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
Internal audible alarm
User-definable reports
User-selectable channel sizes
Complies with ISO 21501-4 and JIS B9921 standards
Easy to clean and wipe down with minimal particle traps
Seamless integration into a facility monitoring system
Lightweight high-impact injection molded plastic enclosure
2 year warranty. Extended warranties available.
