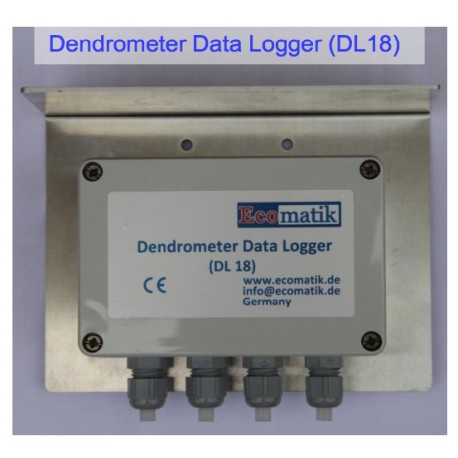

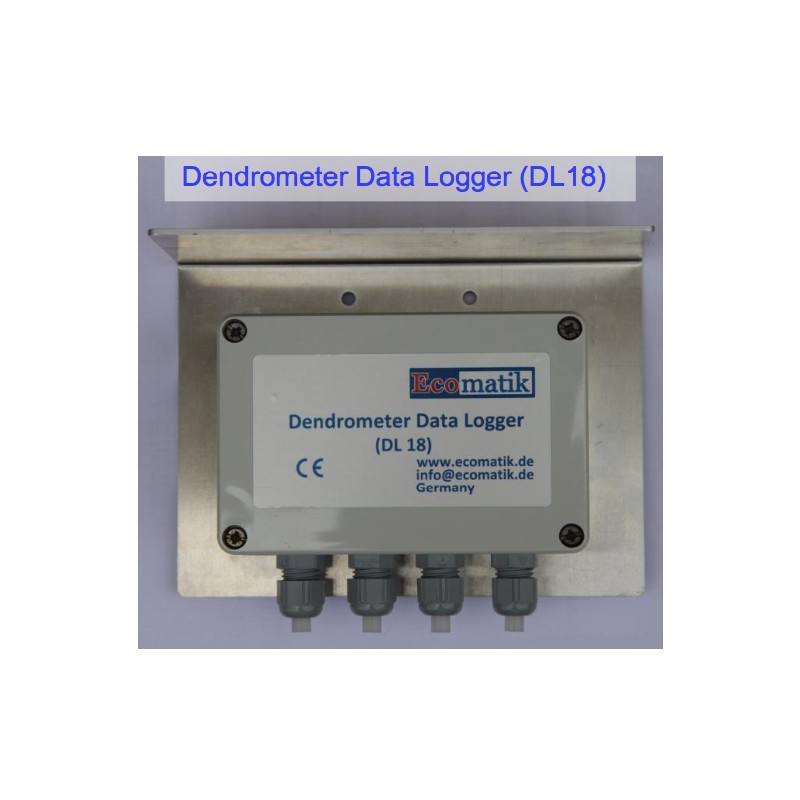

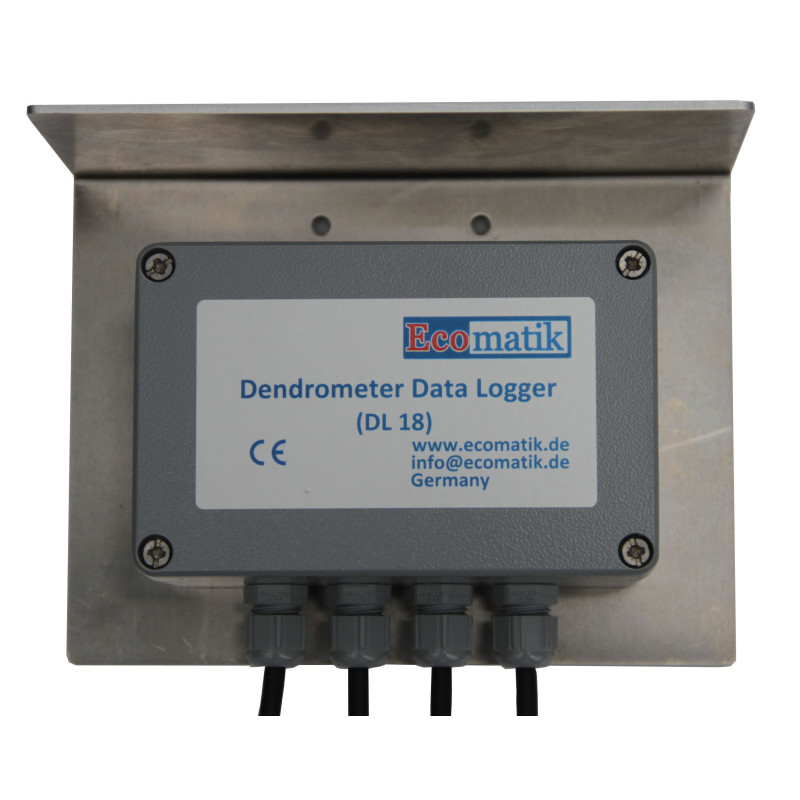

DL18 Data Logger for Dendrometers and Sap Flow Sensors

Reference DL18

Manufacturer: Ecomatik

Condition: New

The DL18 is a battery powered, weather proof, 4- channel data logger. It runs on an internal battery more than one year. It is suitable for long-term monitoring tree growth.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview

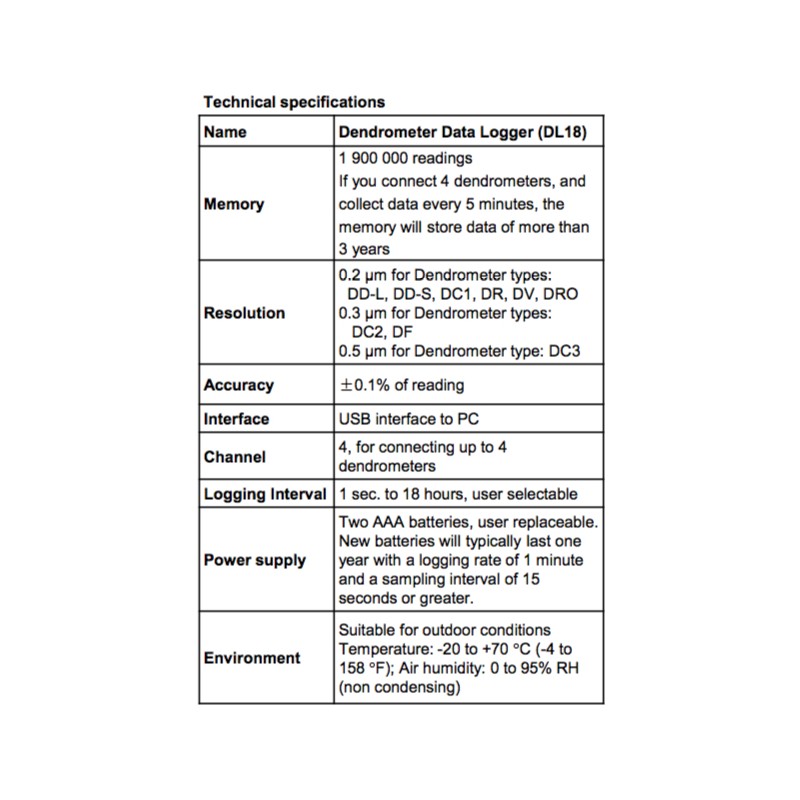

SPECIFICATIONS
COMPATIBLE SENSORS
Data sheet
Download

Number of Channels	4 channels for dendrometers and sap flow meters
IP Classification	IP67
Communications	USB
Battery Life	3 years
Memory Capacity	1.9 million measurements

DL18 Data Sheet Download (132.99k)

DL18 Manual Download (634.18k)

ECOMATIK provides the DL18 dendrometric data logger that covers all relevant logging features and options for accurate and efficient dendrometric measurements.

Suitable for connecting 1-4 dendrometers, temperature compensated effects, 16 bits, resolution 0.2-0.5 µm (regardless of dendrometer type), RAM for data storage of 1,900,000 (enough for a one-year measurement with 4 dendrometers, 1 min measurement interval), USB port, an internal battery lasts more than 1 year of measurement.
Ideal for long-term measurements with dendrometers.
Supplied with weather box and protective visor.

ECOMATIK dendrometers are compatible with all popular data loggers (eg Campbell, Delta-T, DT80).
We provide assistance in connecting our dendrometers with the data loggers of these brands.
