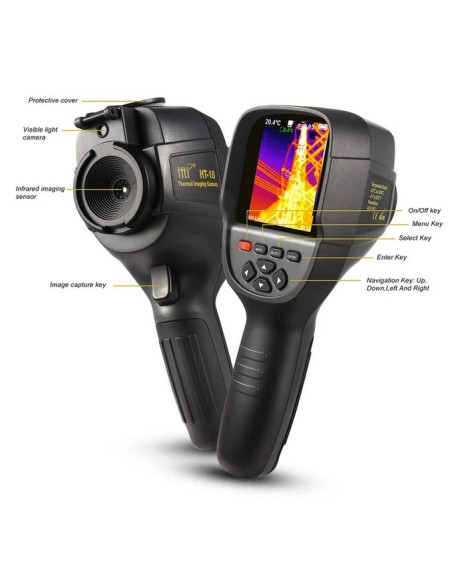

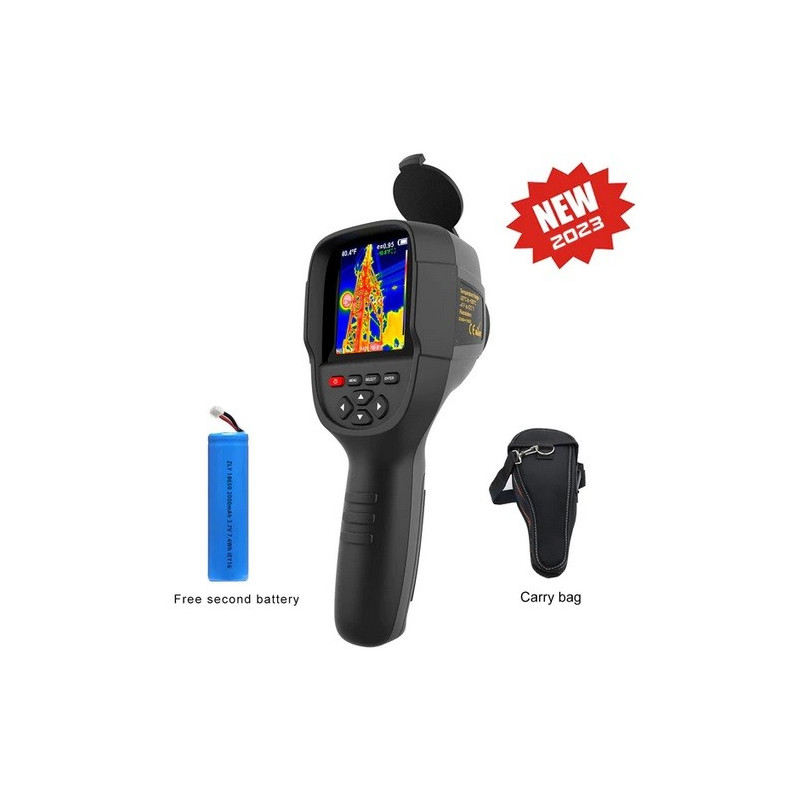

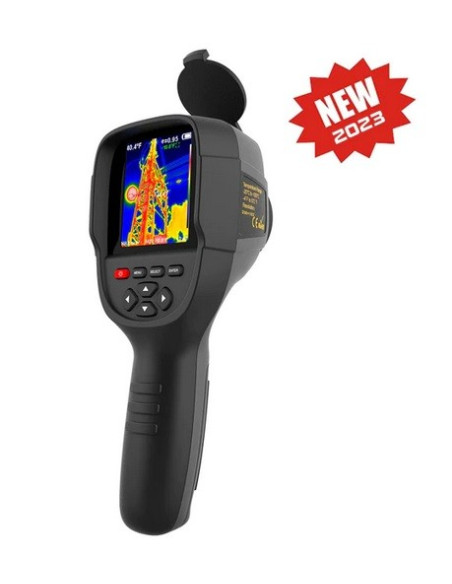

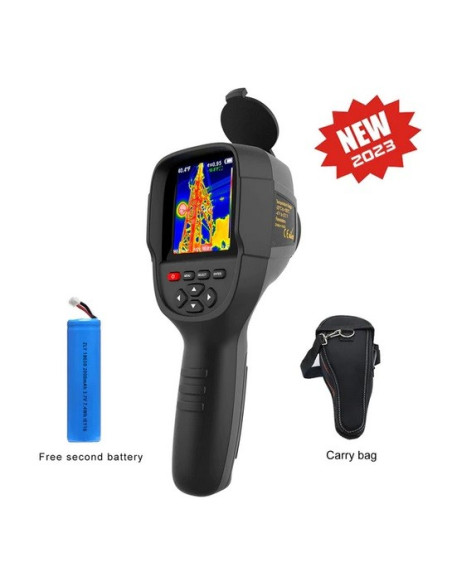

AO-HT-18 Thermal Camera for Visible Light Imaging and Thermal Detection (220 x 160)
AO-HT-18
New

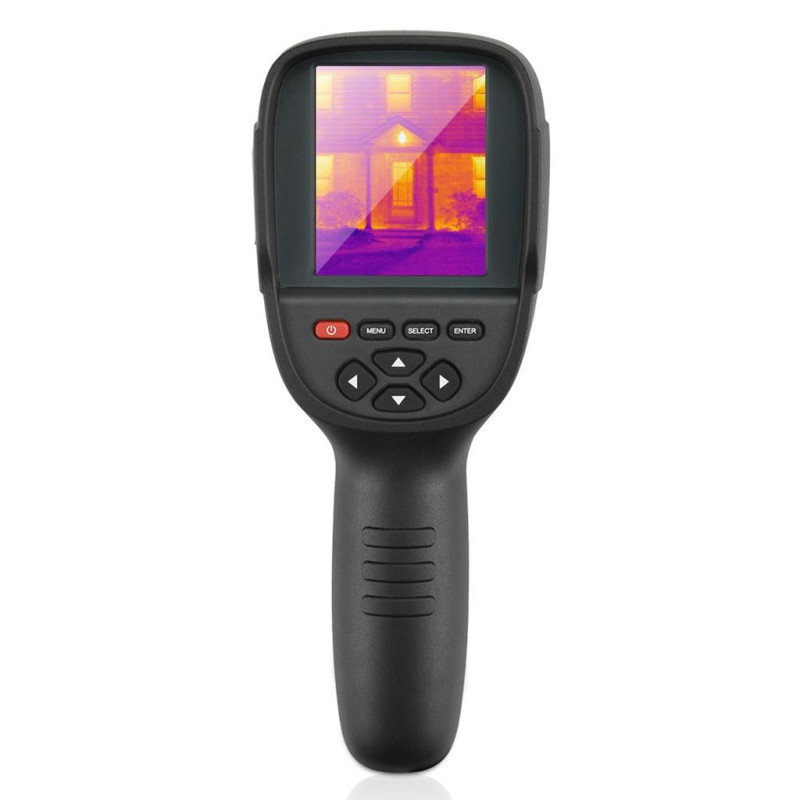

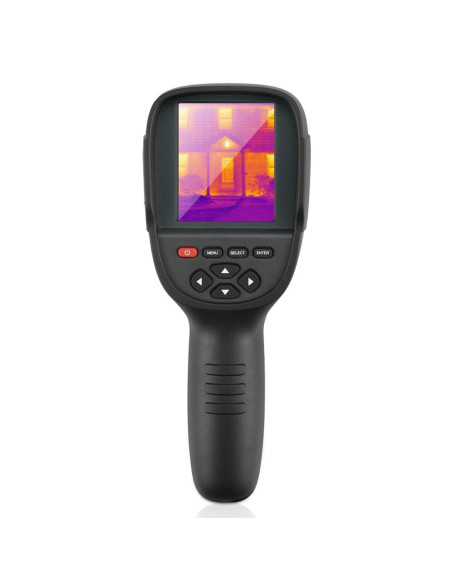

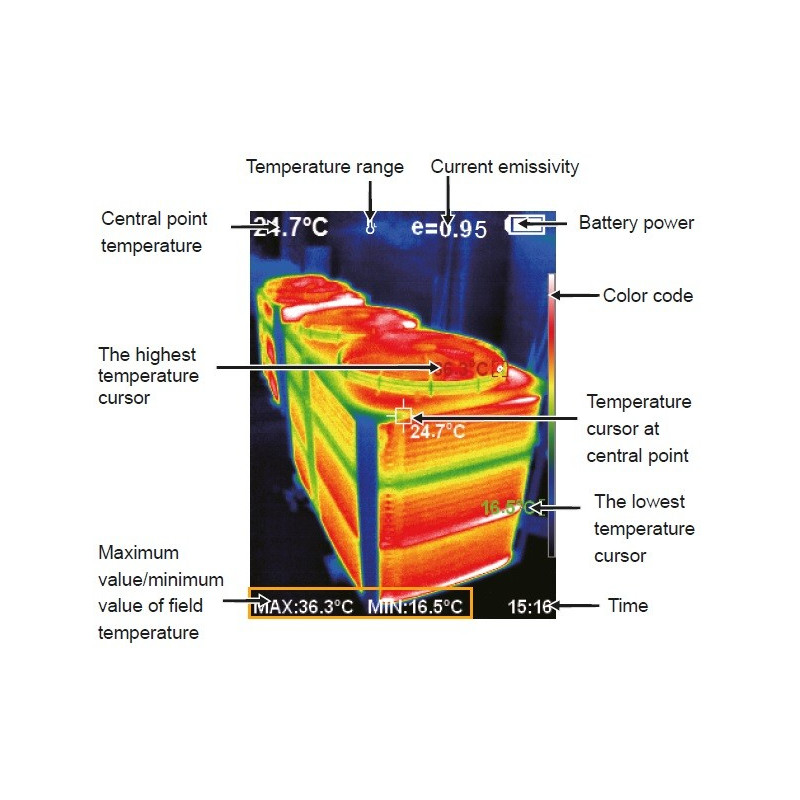

HIGH RESOLUTION IMAGES - Our 3.2 "full color display screen displays visible light and thermal sensing images in 220 x 160 resolution, allowing the user to view the full range of infrared images.
In recent years, more affordable cameras have been developed and Hti tapped into this market and is currently one of the leading players in this industry.
Most thermal cameras would cost upwards of thousands of dollars, making it nearly impossible for regular homeowners to have access to one.
- More info about this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
| Type of Instrument | Infrared camera |
| The instrument measures: | Non-contact temperature |

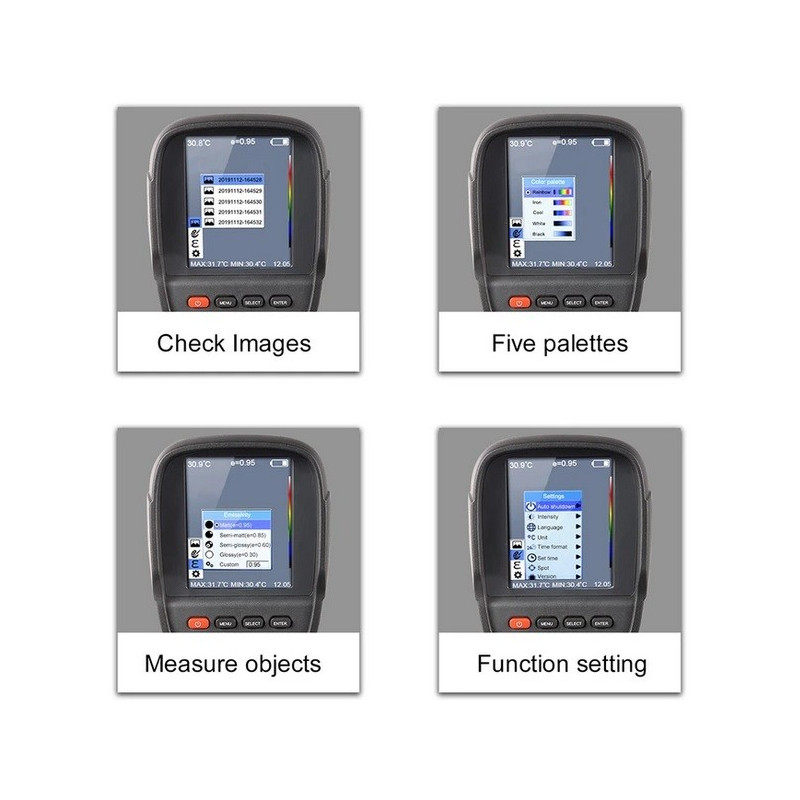

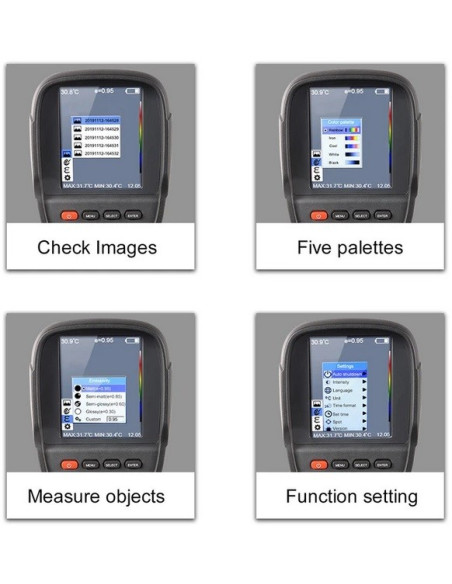

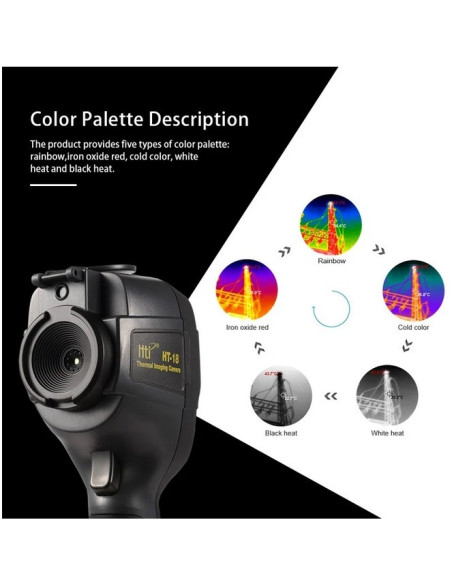

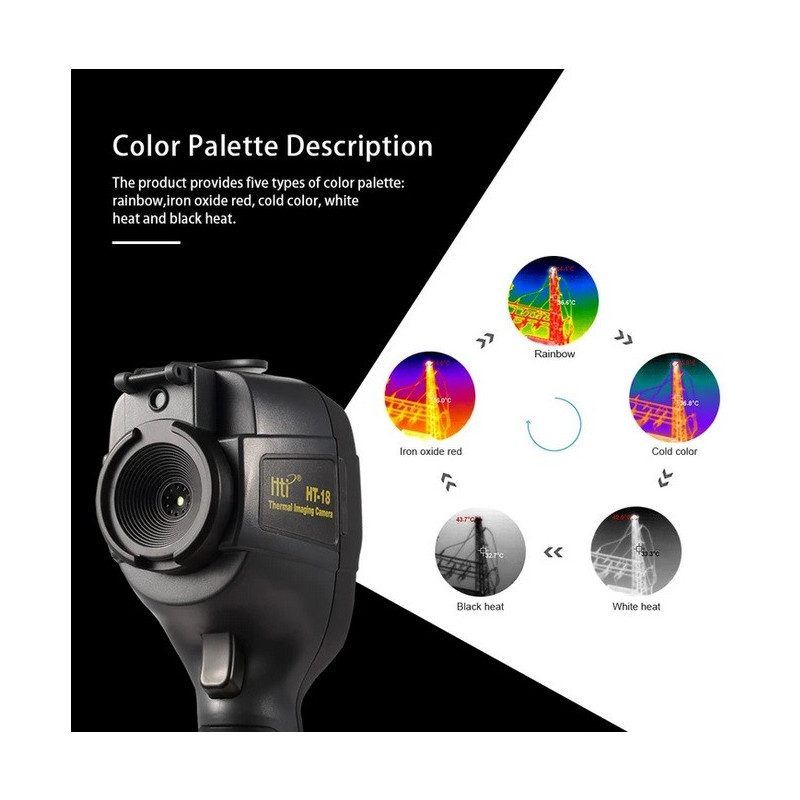

CHOOSE FROM 5 PALETTES - Choose the ideal color scale for your job - Rainbow, Iron Red, Cool Color, Black and White, or Black and White
4GB SD CARD INCLUDED - No need to worry about buying an additional SD card or losing your recordings - we include 4GB of storage so you can look back at recordings on a laptop, TV, or other device.

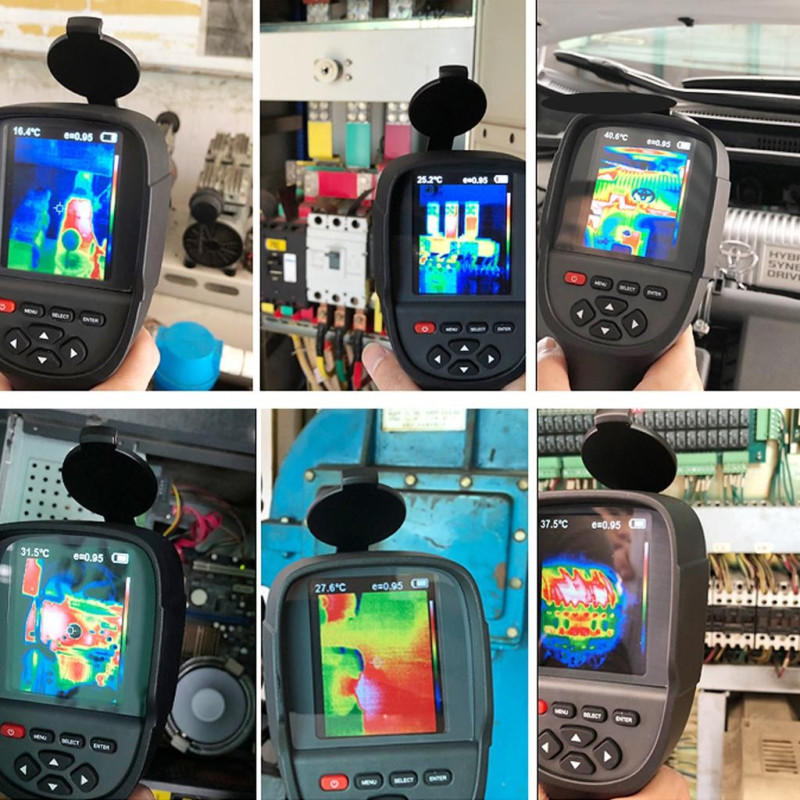

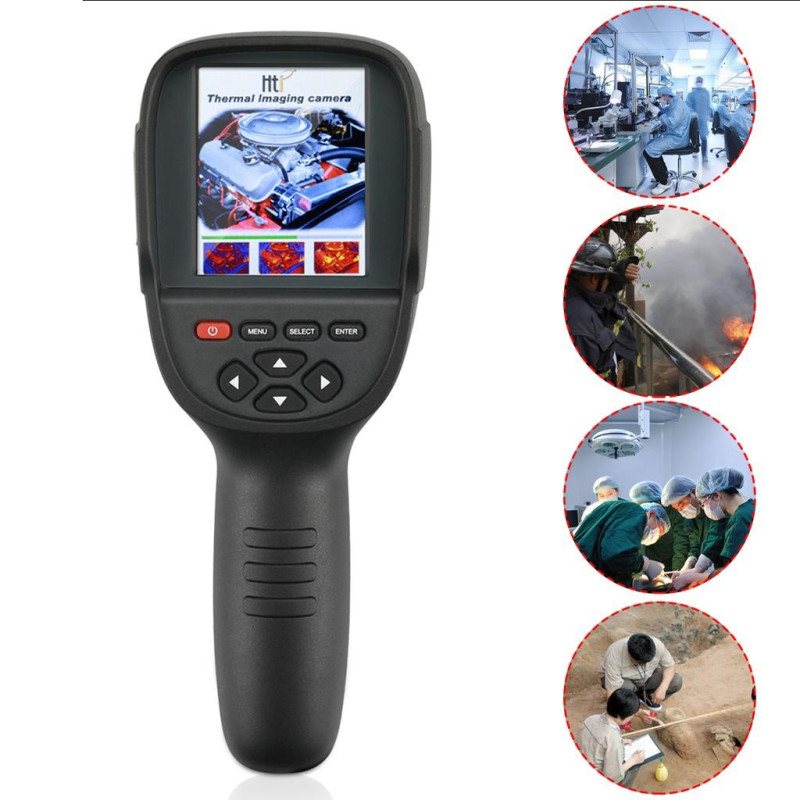

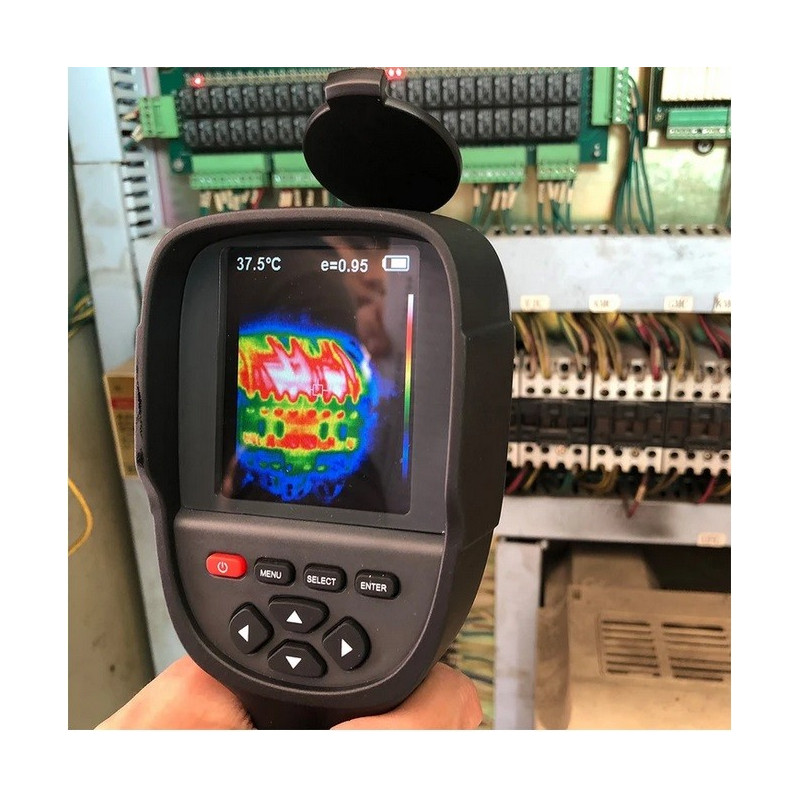

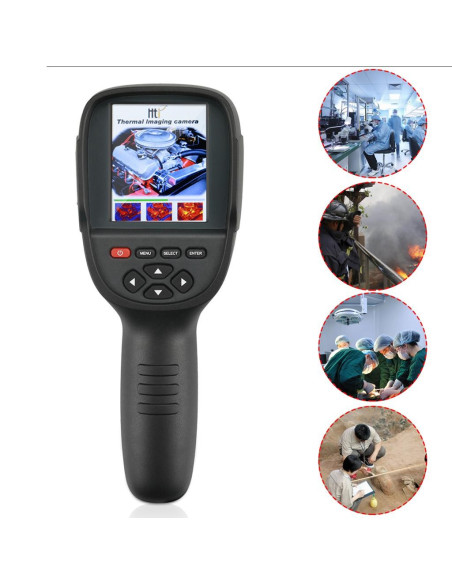

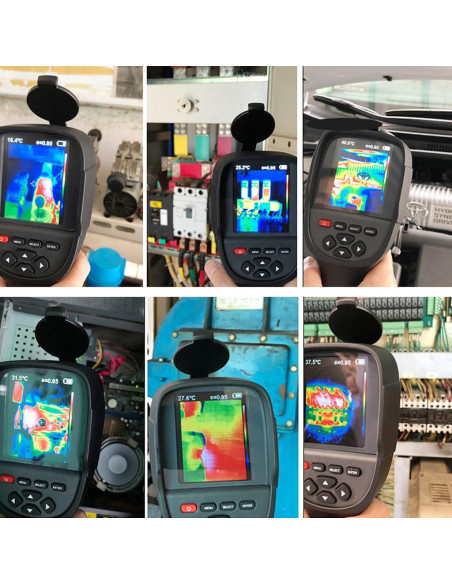

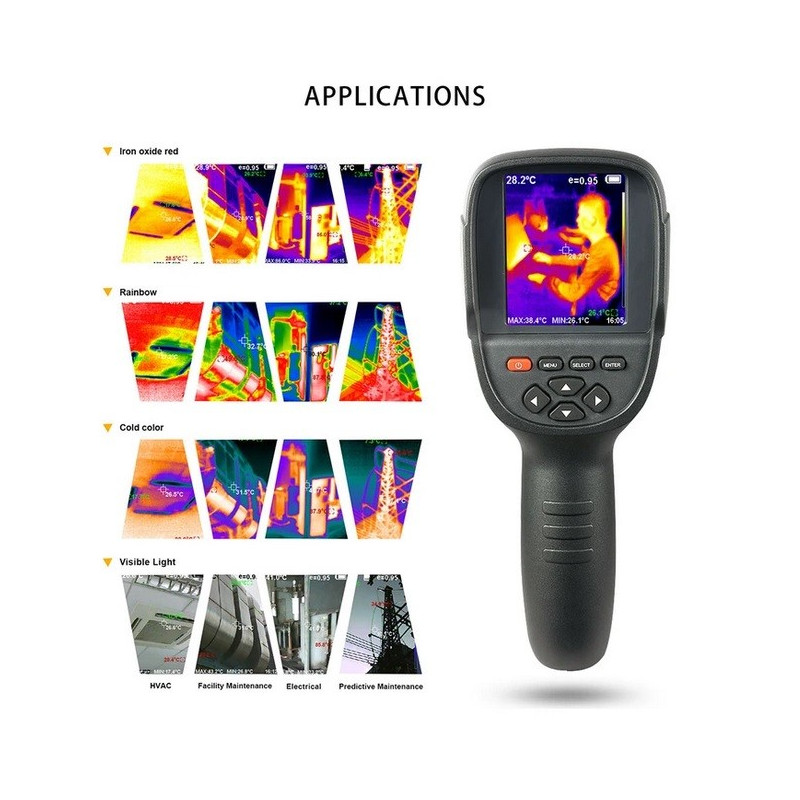

IDEAL FOR PROFESSIONALS - This imaging camera is ideal for jobs in home inspection, fire fighting, archeology, traffic, agriculture, and electronics manufacturing fields, as well as any job that requires accurate temperature readings (accurate to 2, 5 ° F).

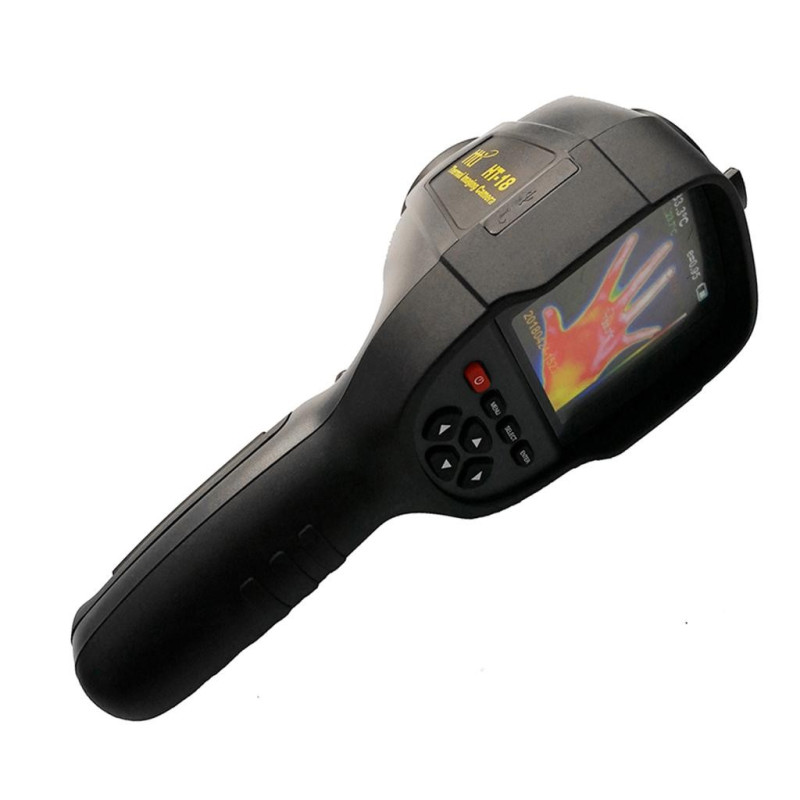

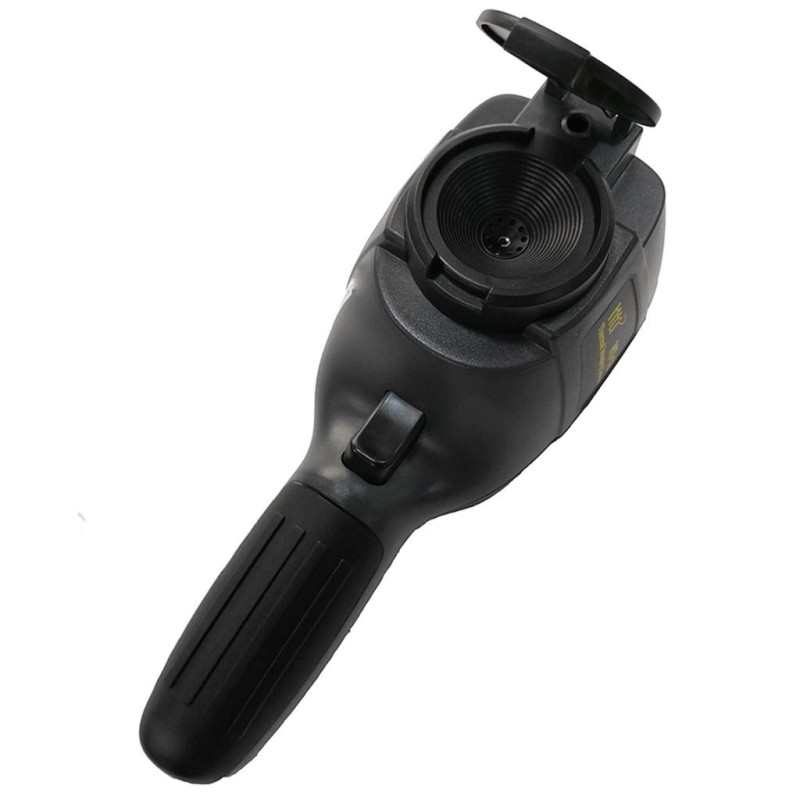

LIGHTWEIGHT AND COMFORTABLE GRIP: This camera weighs just 0.83 pounds, perfect for easy storage and take-anywhere, and it comes with a travel bag. Shaped like a "pistol" with an ergonomic handle, for comfort and ease at any angle.
Material: ABS
Colour: Black
Size: 22.3cm x 10.5cm x 9cm

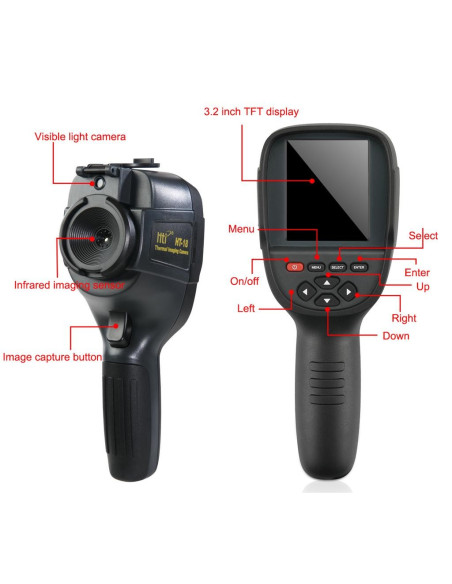

Display: 3.2 inch full viewing angle TFT display
Infrared image resolution: 220 x 160
Visible light image resolution: 300,000 pixels
Field of view / shortest focal length: 27 degrees x 35 degrees / 0.5m
Thermal sensitivity: 0.07 degrees Celsius
Temperature measurement range: -20~300 degrees Celsius
Test measurement accuracy: 2.5 degrees Celsius or 2.5%
Emissivity: 0.1-1.0 adjustable
Image capture frequency: 8HZ
Wavelength range: 8~14m
Focusing mode: fixed
Palette: Rainbow / Iron Red / Cool / Black / White / Black
View options: 2% full-infrared and full-visual visual images
Storage media: built-in 4G
Image format: JPG

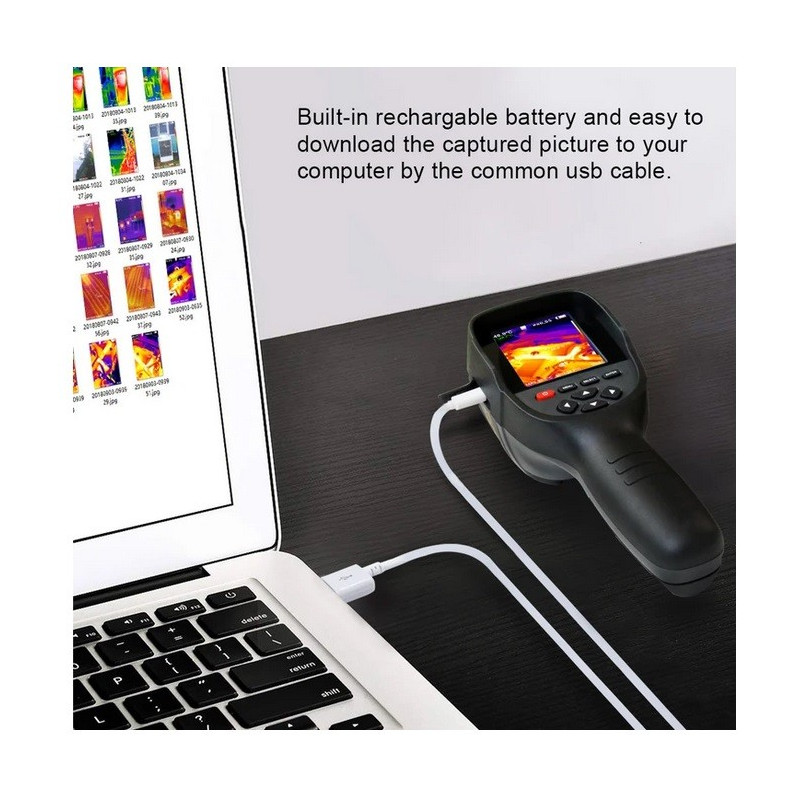

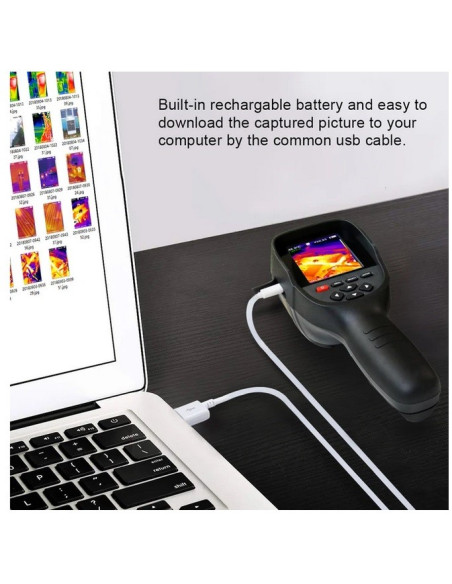

Power: built-in rechargeable 18650 battery
USB: MICRO USB 2.0
Shutdown time: selectable: 5 minutes / 20 minutes / no automatic shutdown
Working temperature: 0 degrees Celsius ~ 50 degrees Celsius
Storage temperature: -40 degrees Celsius ~ 80 degrees Celsius
Relative humidity: <85% RH
Package Contents:
1 x infrared temperature detector
1 x usb cable
1 x user manual
1 x carry pouch
1 x carry pouch strap
