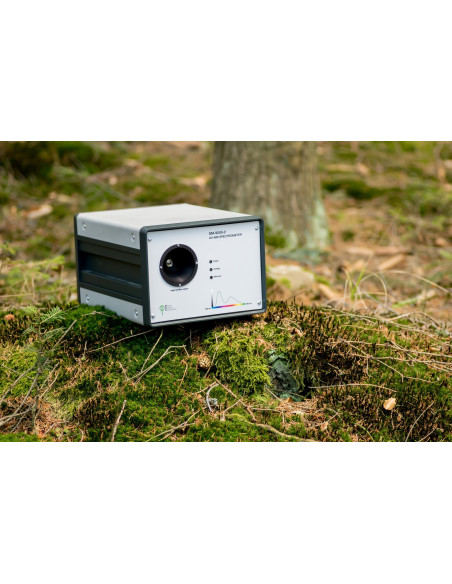

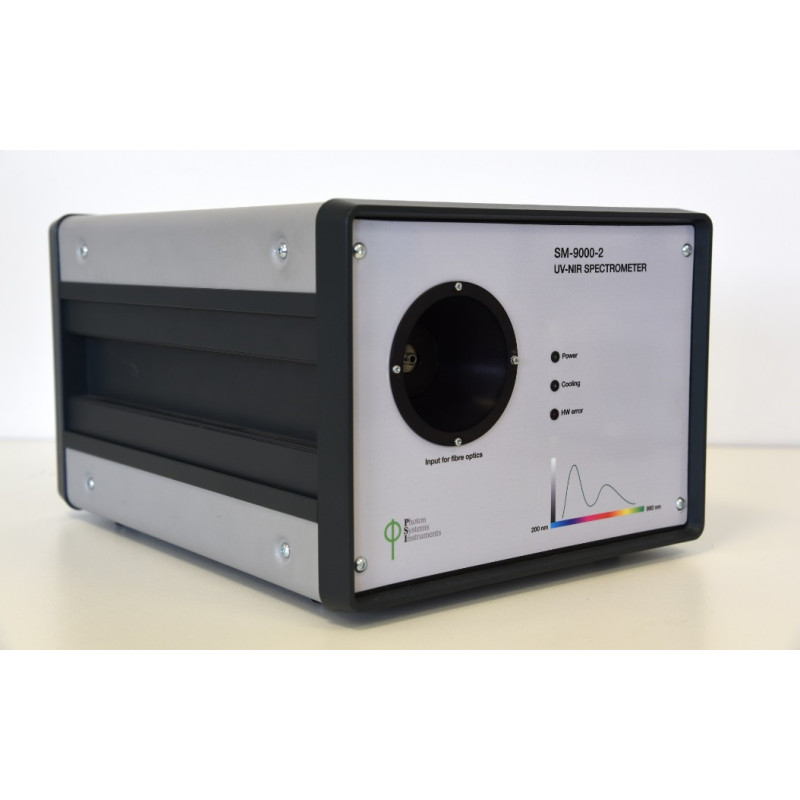

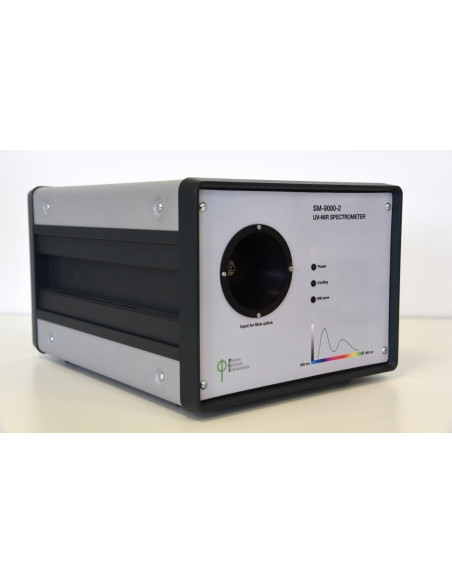

Spectrometer SM-9000
The SM-9000 spectrometer is used for high-resolution, high-sensitivity measurements in fiber optic spectroscopy applications. Covers UV / VIS or NIR spectral range. The SM 9000 can be used as a standalone instrument or as an optional upgrade to other PSI instruments for precise analysis of spectral curves (in irradiance, absorption, emission mode).
The very high sensitivity and thermal stability of the instrument allows single cell fluorescence emission spectra to be measured when combined with our µ-FluorCam device. Spectra can be measured in the range of UV (200 nm) to NIR (980 nm) with a resolution of 3.5 nm (FWHM). Fast recording can capture up to 300 spectra per second (external trigger input) with 16-bit data resolution.
Measured parameters
Transmittance
Absorbance
Irradiance
Fluorescence spectra
Software
Online data presentation as transmittance / absorbance / range graphs
Acquisition of reference signals
External trigger / button click acquisition control

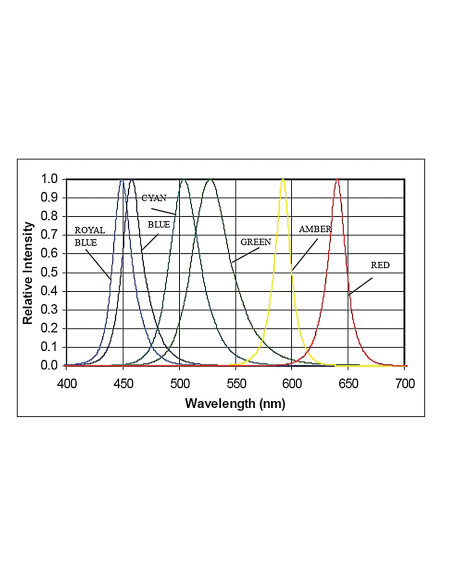

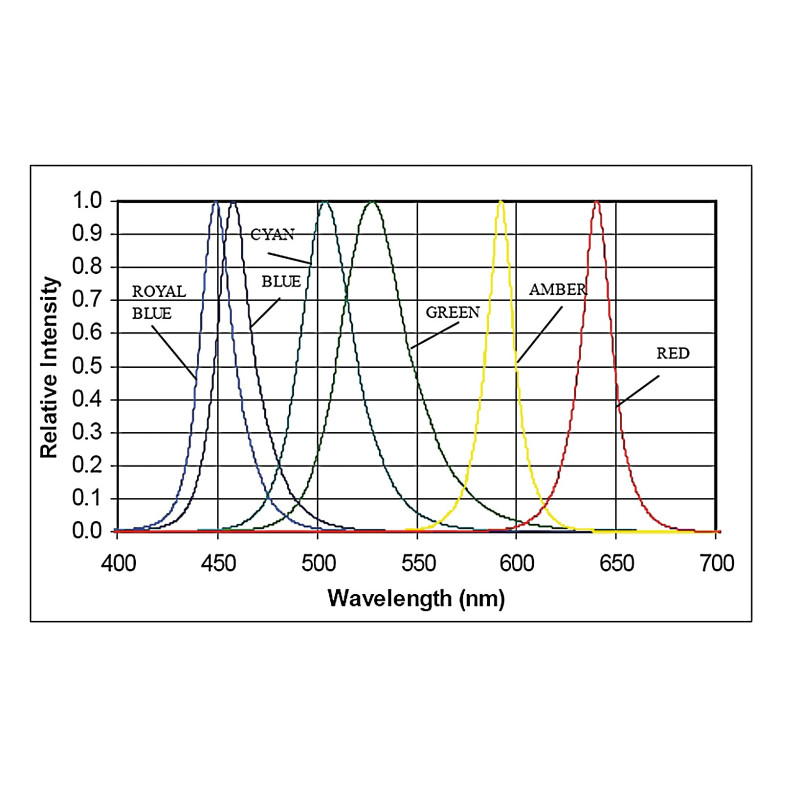

Color and intensity control of the LED light source
Applications
Accurate measurements of irradiance spectra
Fluorescence Emission Spectra Measurements
Spectrally resolved fluorescence induction
Optical input:
diameter 0.5 NA = 0.22 mounted on SMA coupling, removable
Inlet slit:
70 × 1400 µm (optical input)
Rack:
Flat field correction
Spectral range:
200 - 980 nm
Absolute wavelength accuracy:
<0.5 nm
Reproducibility:
<0.1 nm
Temperature induced drift:
<0.01 nm / K
Pixel spectral distance:
Δλ pixel ≈ 0.8 nm
FWHM (Maximum Half Full Width):
Δλ <3-4 nm (UV-NIR version)
Stray light:
0.1% measured at 340 nm with deuterium lamp (transmission of NaNO2 solution, 50 g / l, 1 cm)
CCD matrix:
Hamamatsu S 7031 thermoelectrically cooled
Number of pixels:
1,044 × 64
Pixel Dimensions:
24 × 24 mm2
System data:
16-bit A / D conversion
Noise:
2-4 standard deviation of count
