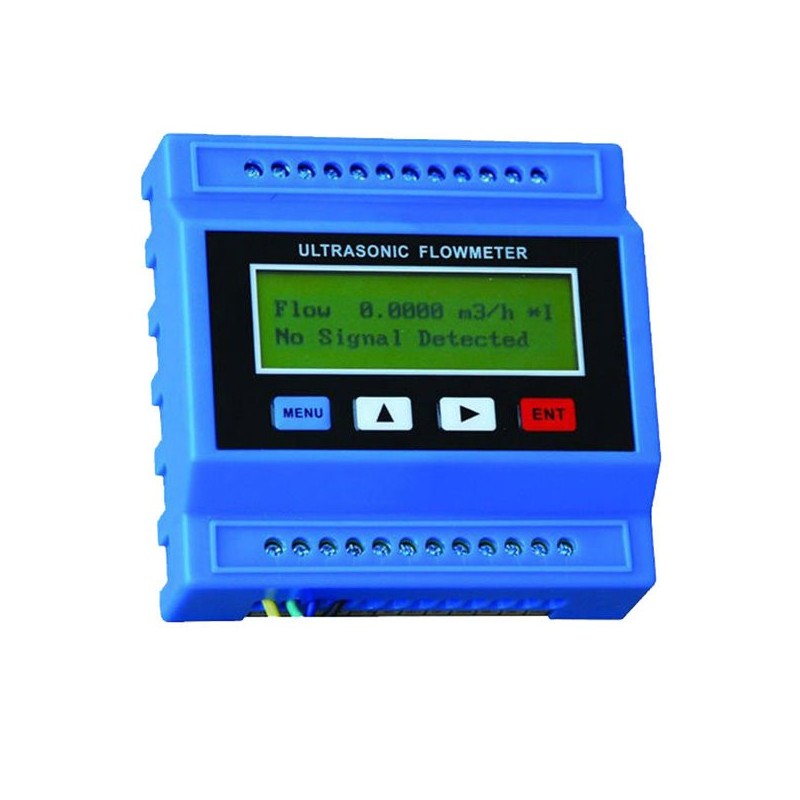

AO2000M Ultrasonic Flow Module/ RTU

Reference AO2000M

Condition: New

This flowmeter can be virtually applied to a wide range of measurement. A variety of
liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw

High accuracy.
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than +-1%.

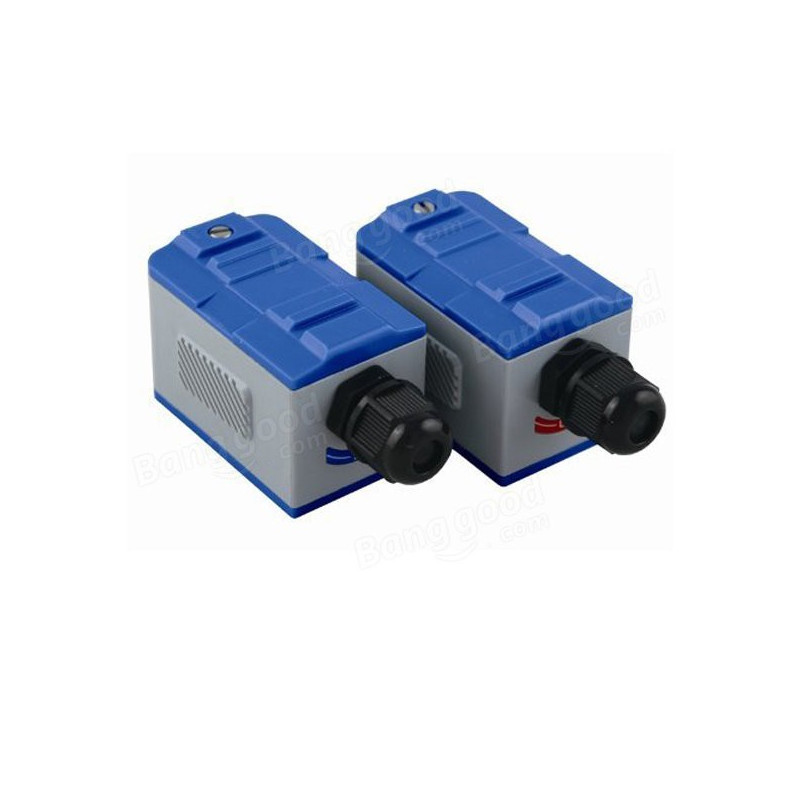

Wide measuring range: Several types transducer for selection, pipe size from DN15mm to DN6000mm
Far transmission distance: Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Download

AO2000M MANUAL Download (1.7M)

Powerful Functions:
Current output: 4-20mA, one channel, can be used for flow/heat transmitter;
OCT output: two channels, can be used for flow /heat switch;
Current input: 4-20mA, three channels, can be used for data collector;
Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter.

Wide Application:
Its unique features, particularly low cost, small size, high performance, local display, make it the ideal choice for industrial automation, processing control, flow meter networking, composing multi-channel, high accuracy flow meter.
