PlanTherm PT-200 Compact System for fast and easy estimation of heat stability of algae and plants

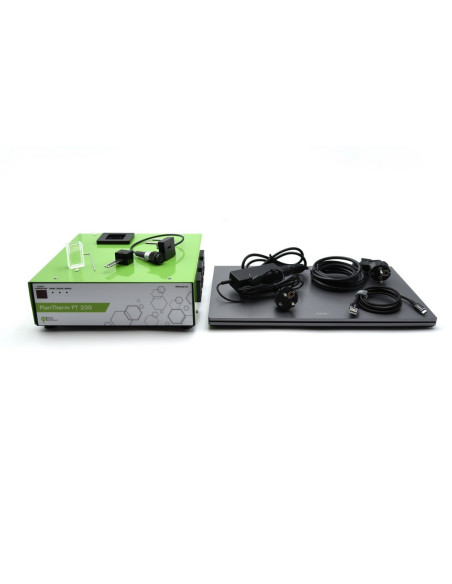

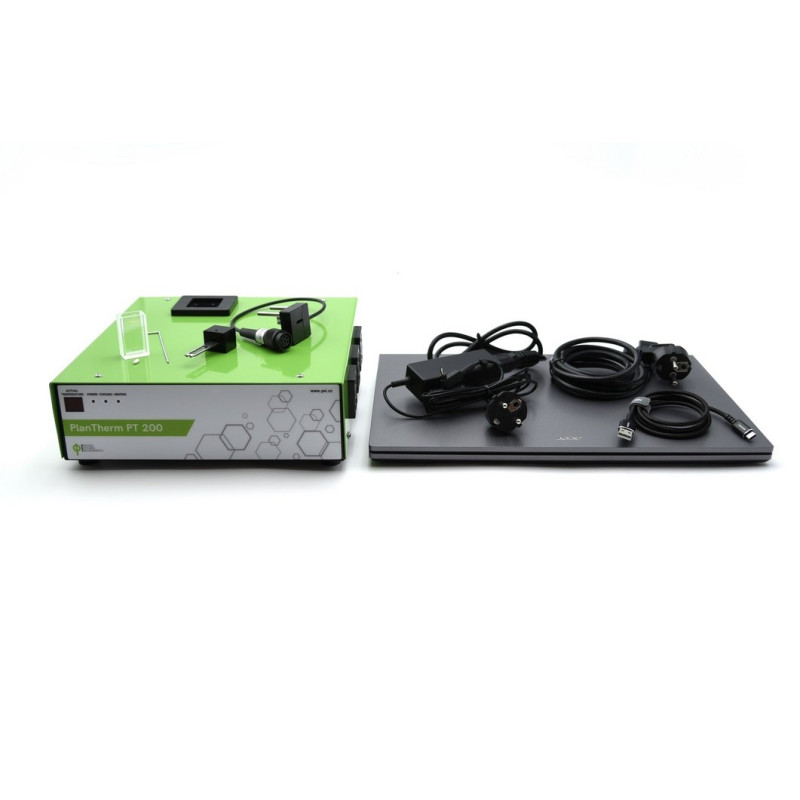

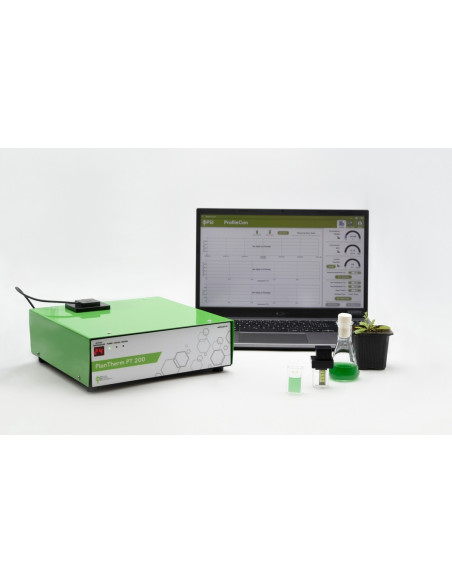

- The PlanTherm PT 200 System is provided with a laptop computer with preinstalled Windows 11 operation system.

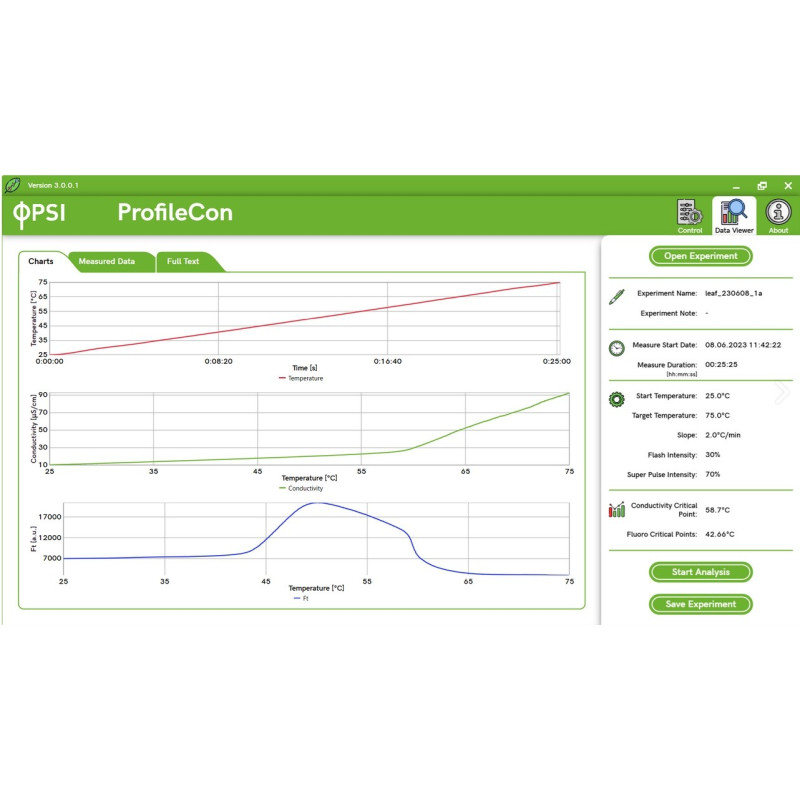

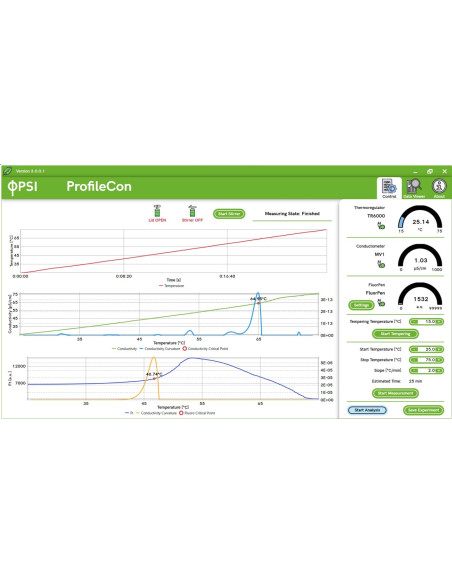

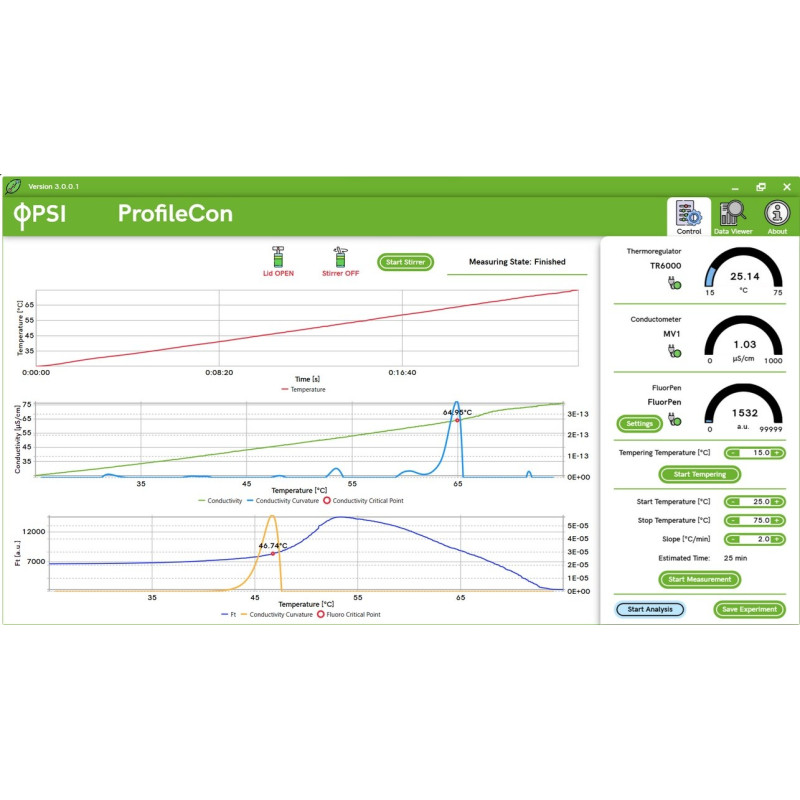

- This new intuitive user-interface ProfileCon v3 software allows to setup experiments, analyze data and export measured curves to textual output files.

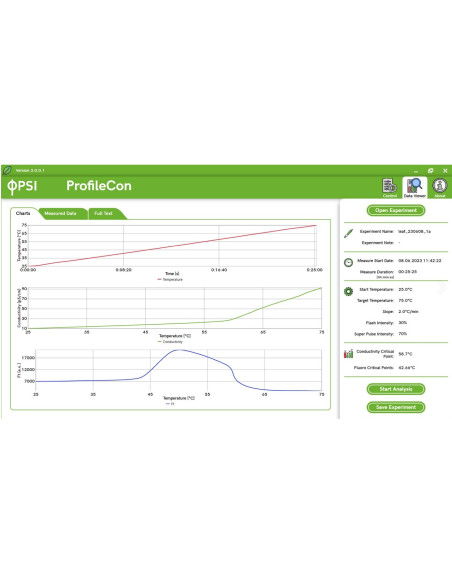

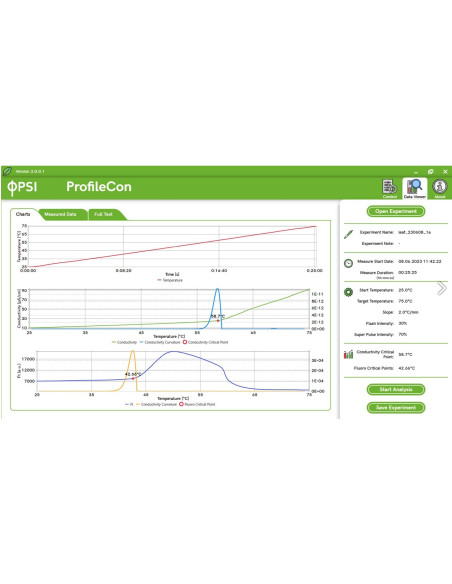

- The Plots of currently running experiments, measured raw data and analyzed results can be displayed on the main screen.

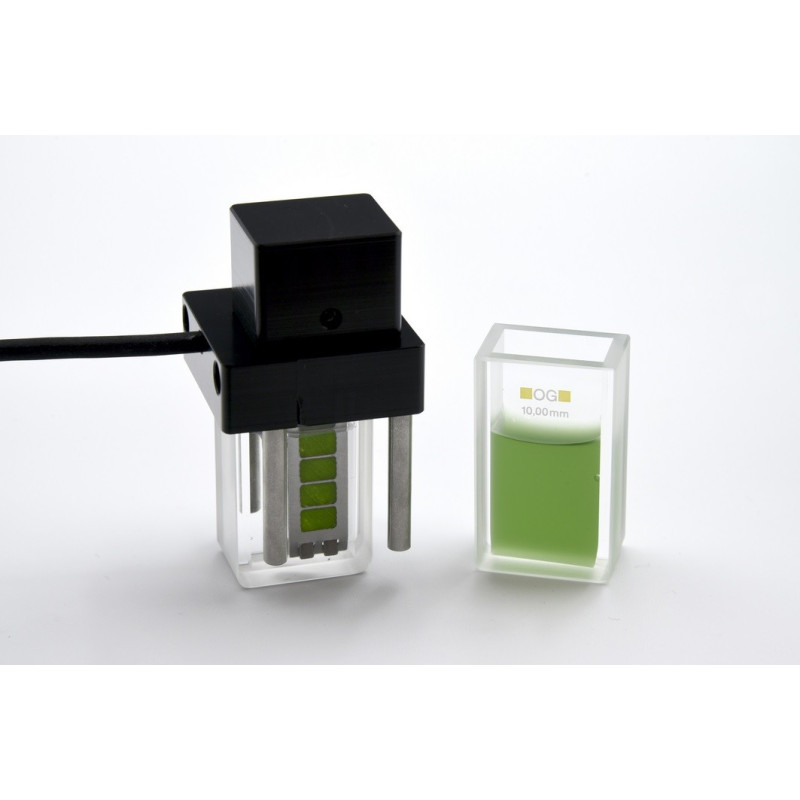

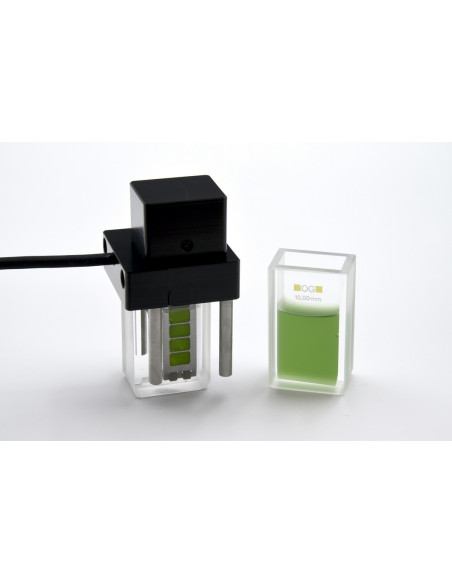

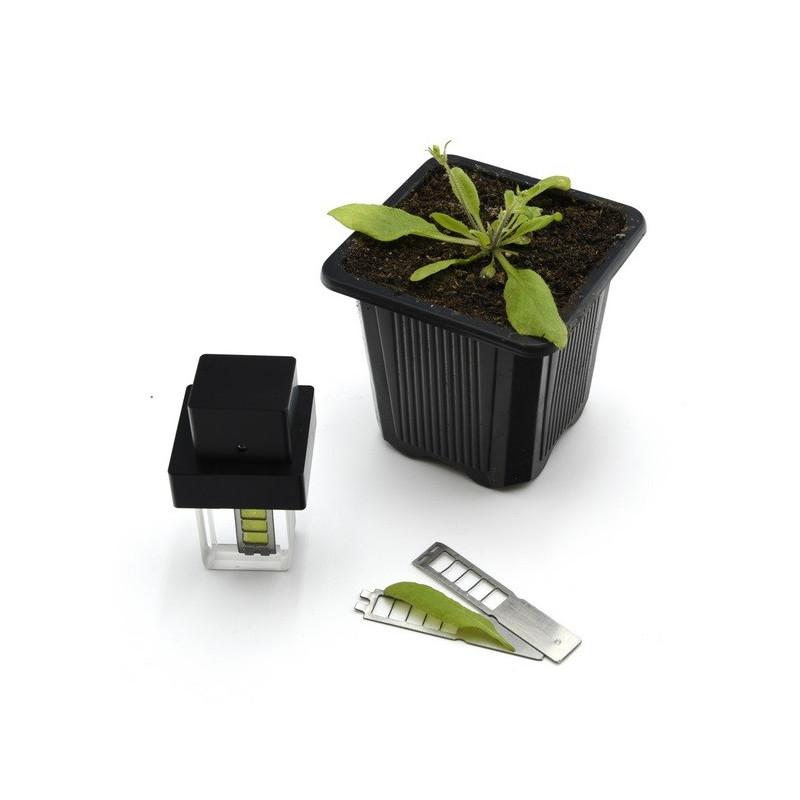

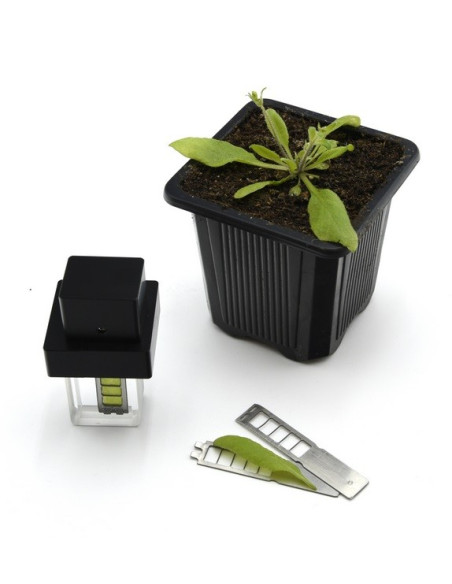

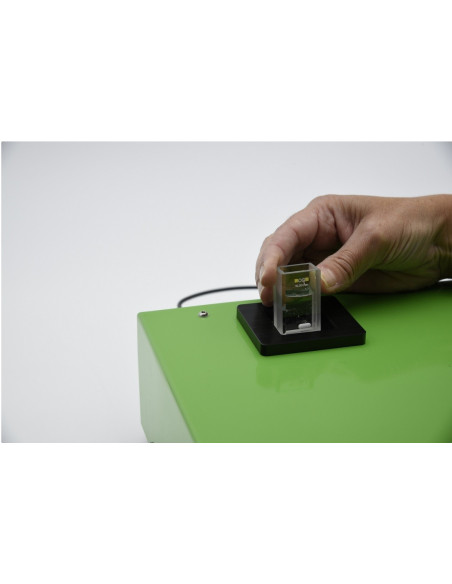

► Sample chamber for small up to middle site leaves, leaf segments, algae or cyanobacteria suspensions.
► Precisely controlled gradual (linear) heating of plant segments with the slope up to 3 °C/min.
► Accurate temperature measurements (±0.3 °C) within the range of 20 – 75 °C.
► Conductivity measurement within 1 – 1,000 µS/cm
► Measurement of the minimal chlorophyll a fluorescence intensity (Ft level)
► Compact device including measuring unit, magnetic stirrer, thermoregulator in one case.
► Intuitive graphic interface ProfileCon and built-in scripting (R environment) language allows custom analysis of measured responses in control PC.

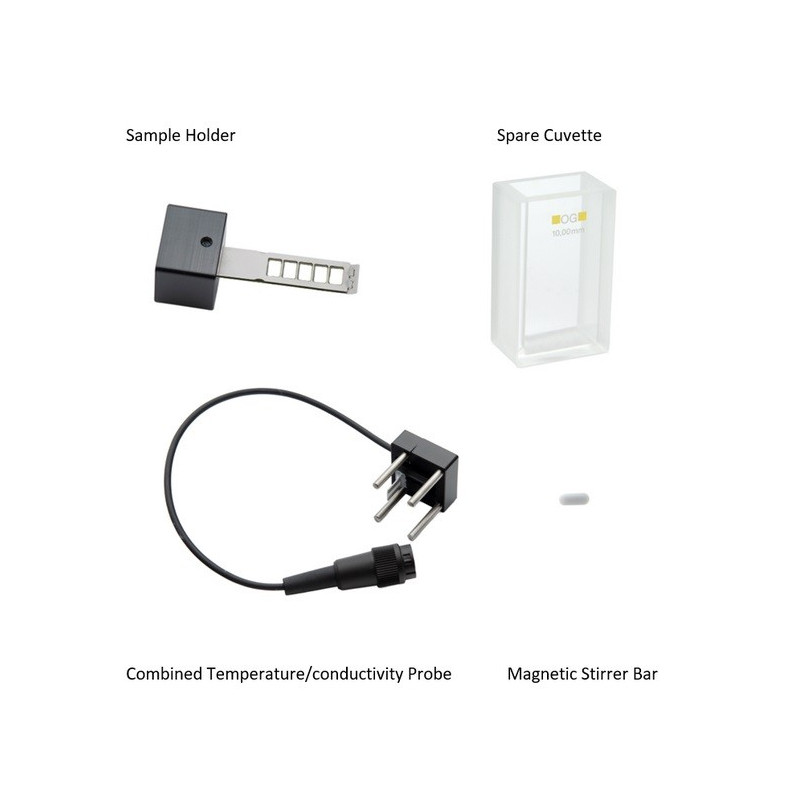

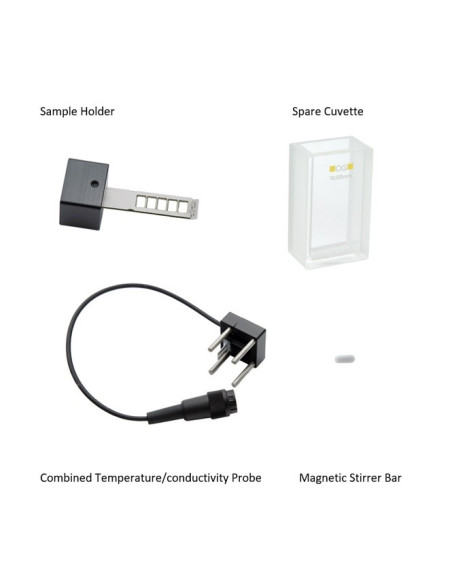

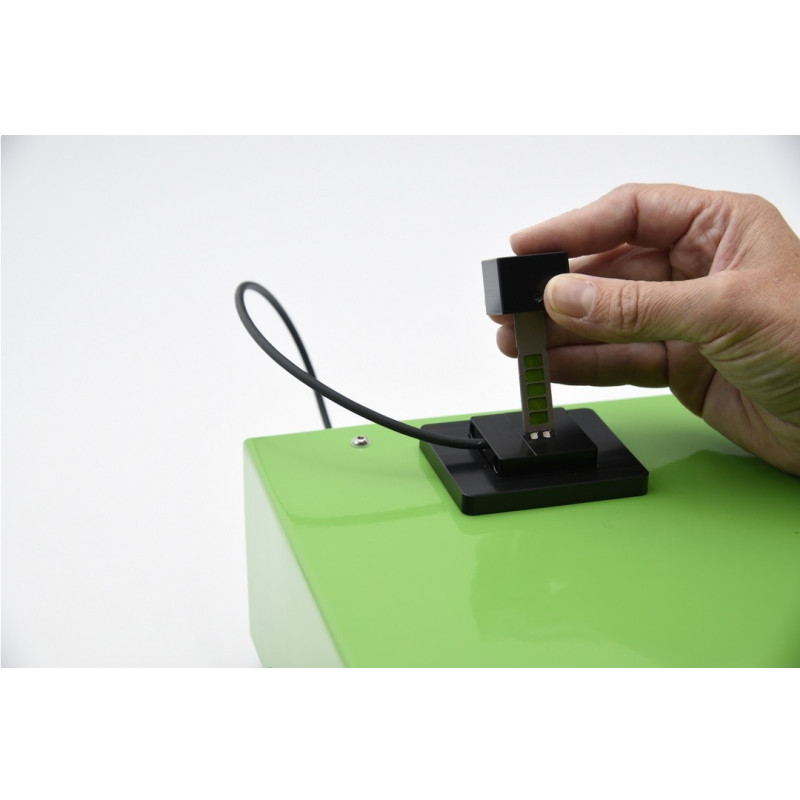

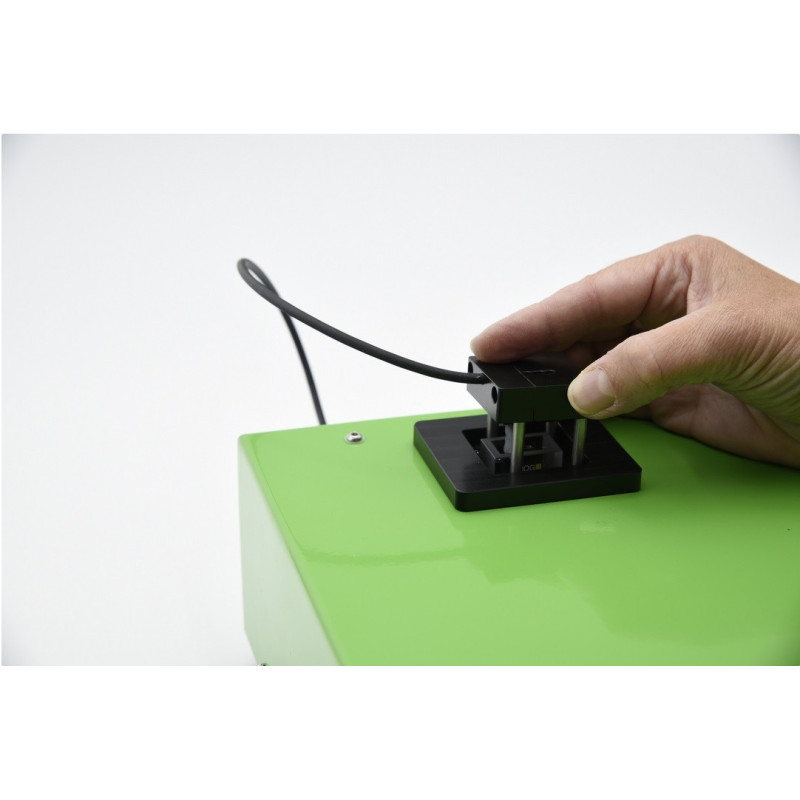

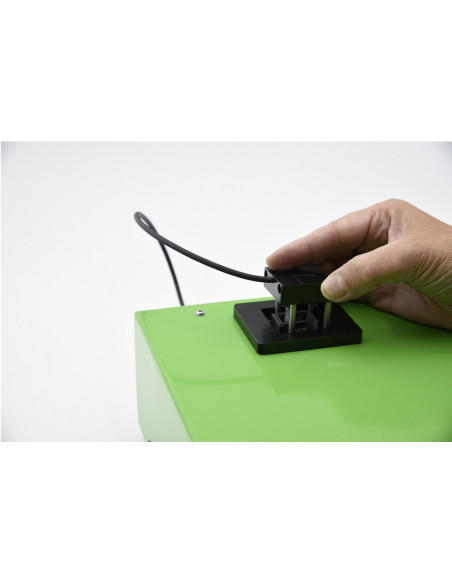

Sample Holder for PlanTherm PT 200

Includes sample holder and sample holder cube, Allen wrench

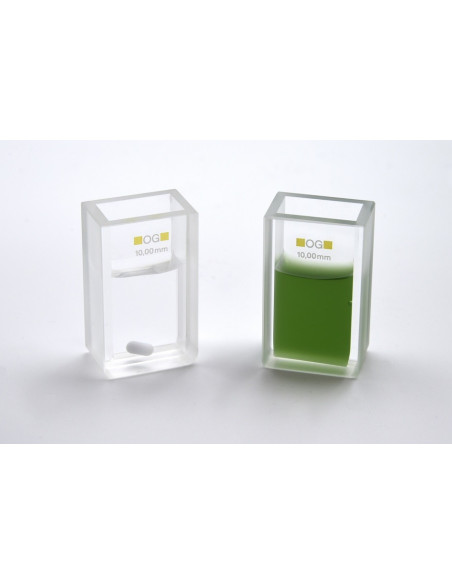

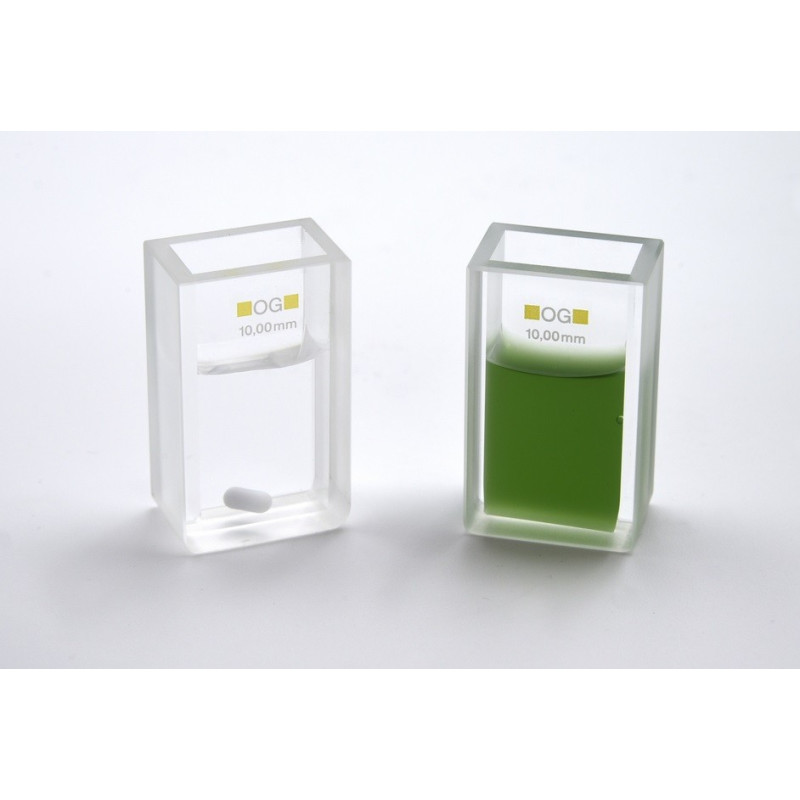

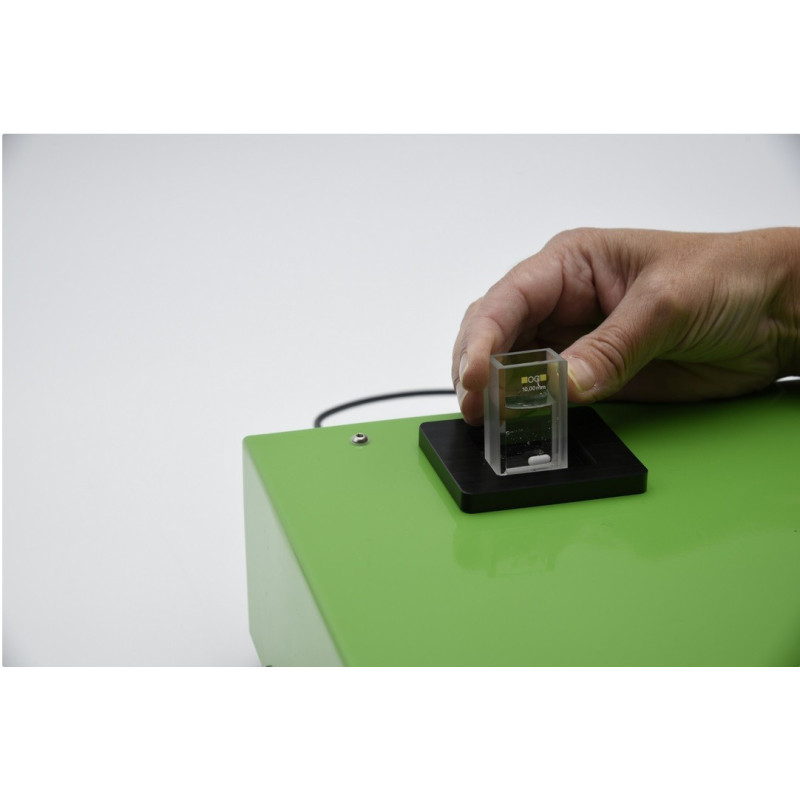

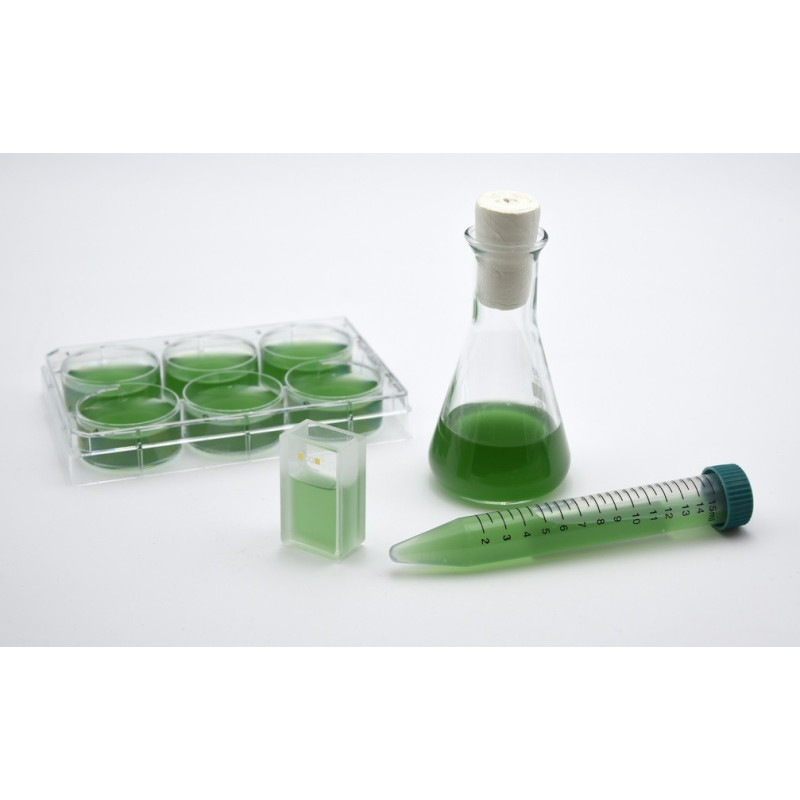

Spare Cuvette for PlanTherm PT 200

Cuvette 402.000-OG 10mm

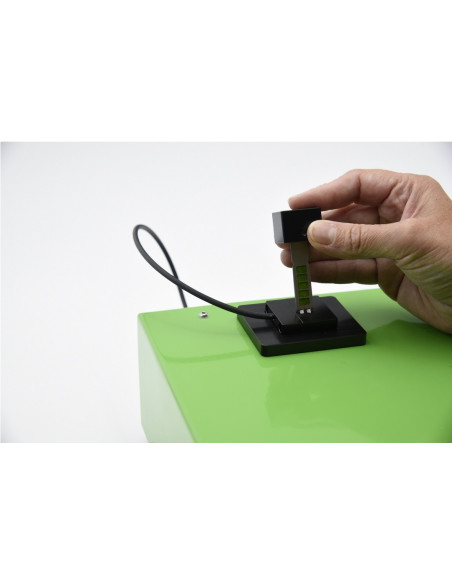

Combined Temperature/conductivity Probe for PlanTherm PT 200

PlanTherm sensor PT1000/MV1

Magnetic Stirrer Bar for PlanTherm PT 200

Magnetic stirrer bar PTFE 3x8 mm

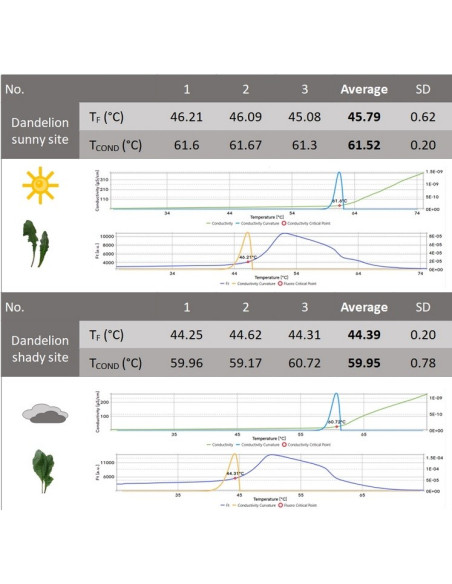

PlanTherm PT 200 can be used in basic photosynthetic research, in agriculture, and horticulture for:

► fast estimations of both the constitutive and inducible heat tolerance of plants, algae and cyanobacteria
► quick measurements of thermal stability of cell membranes
► studies of stress tolerance and acclimation responses - detection of organism’s resistance or susceptibility to given stress factors, detection of biotic and abiotic stress
► screenings of transgenic lines
