V10 The newest veterinary ultrasound scanner is high-end machine. 7 inch screen ,waterproof ,Used for various animals

View larger

AO-V10 High-end Ultrasound Scanner, for Veterinary use in various animals

Reference

Condition: New

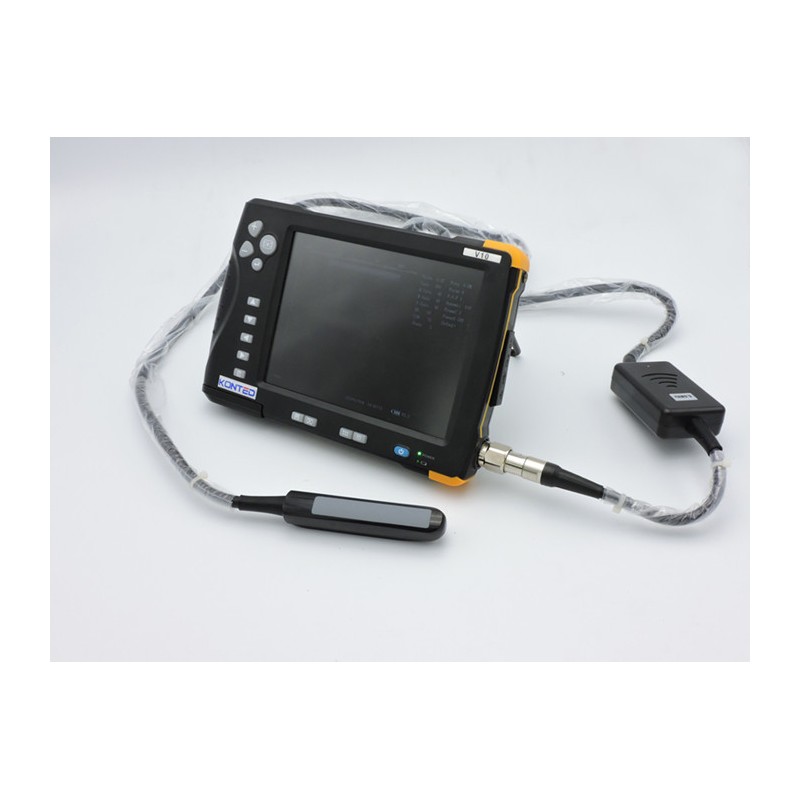

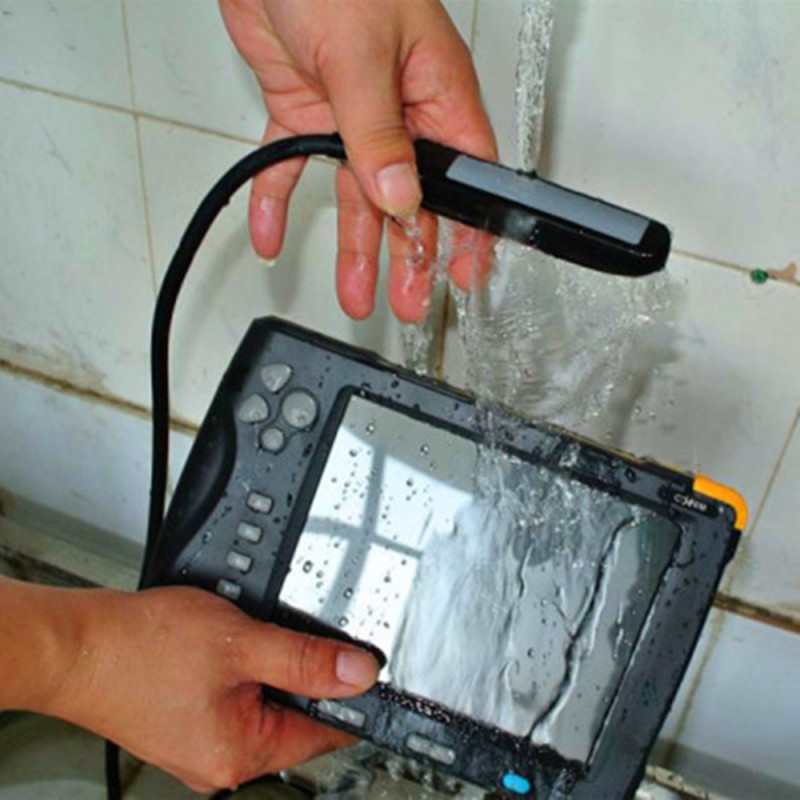

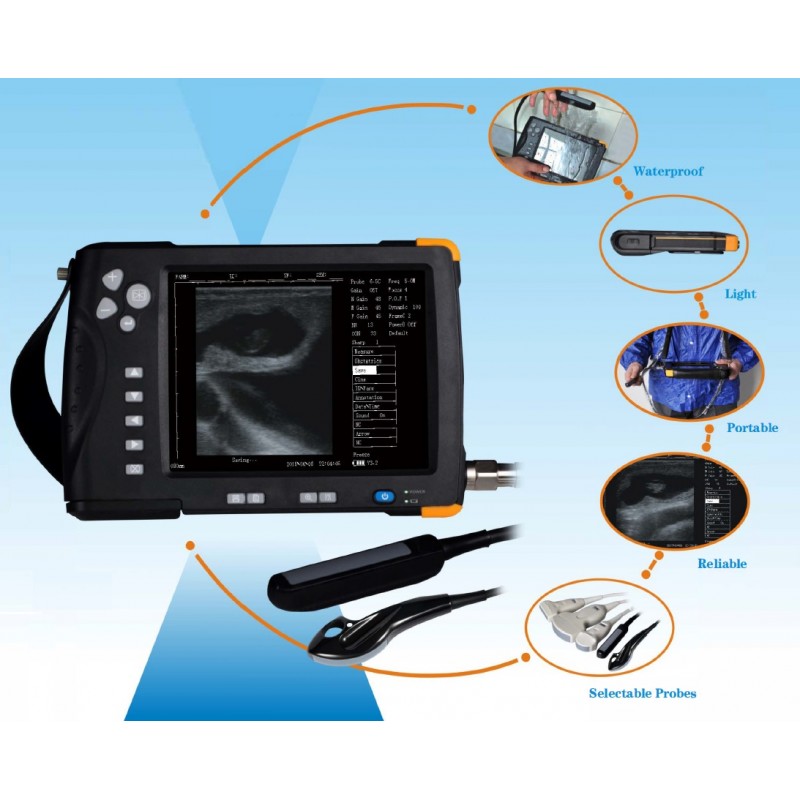

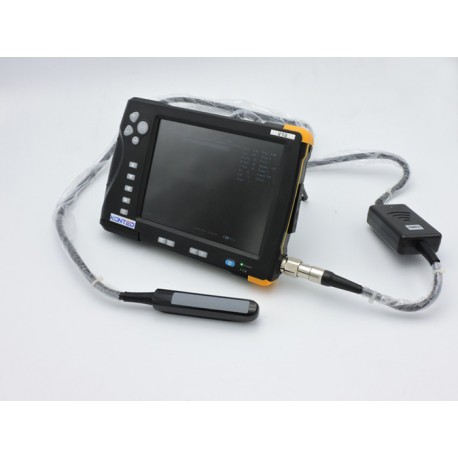

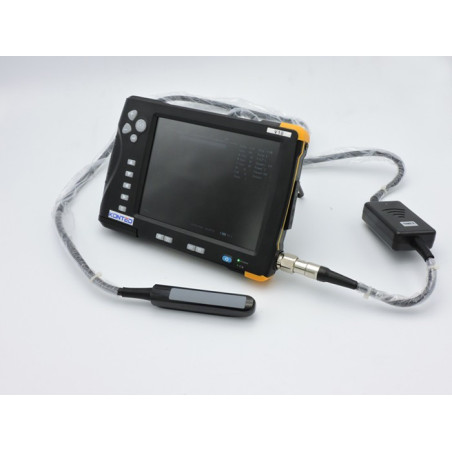

7-inch screen, waterproof. 3.5 MHz convex probe.

- Excellent total weight (including battery): no more than 950g.

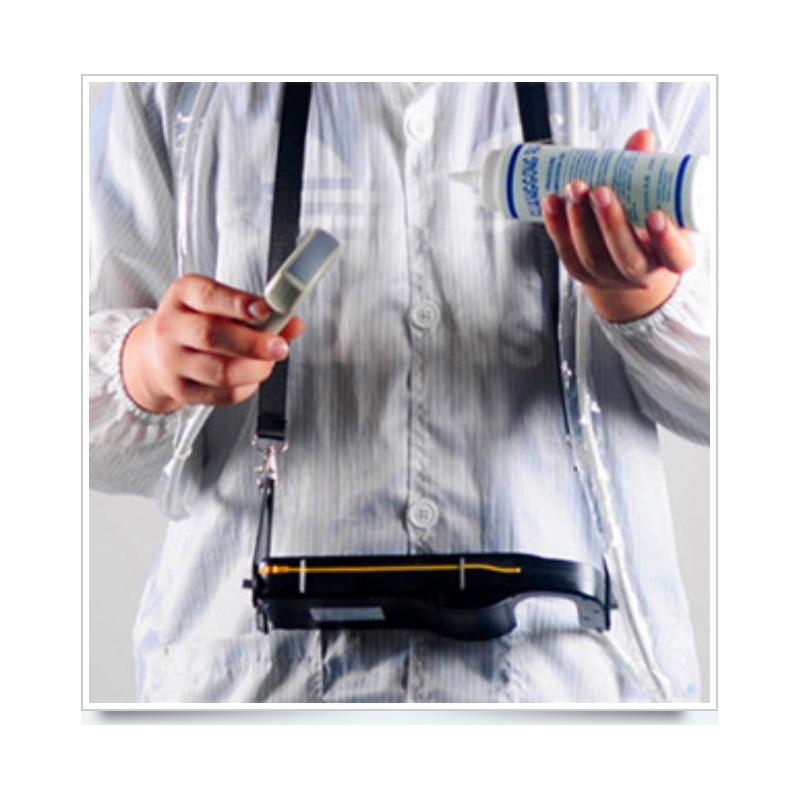

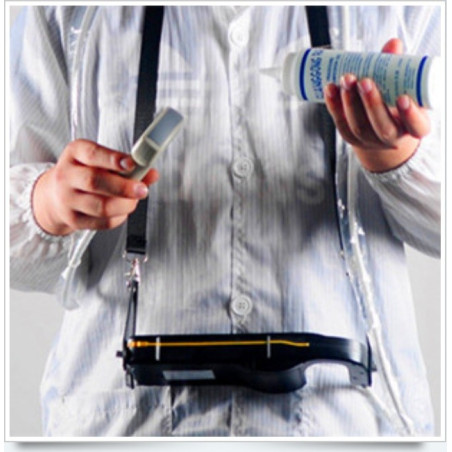

- Very portable handheld work

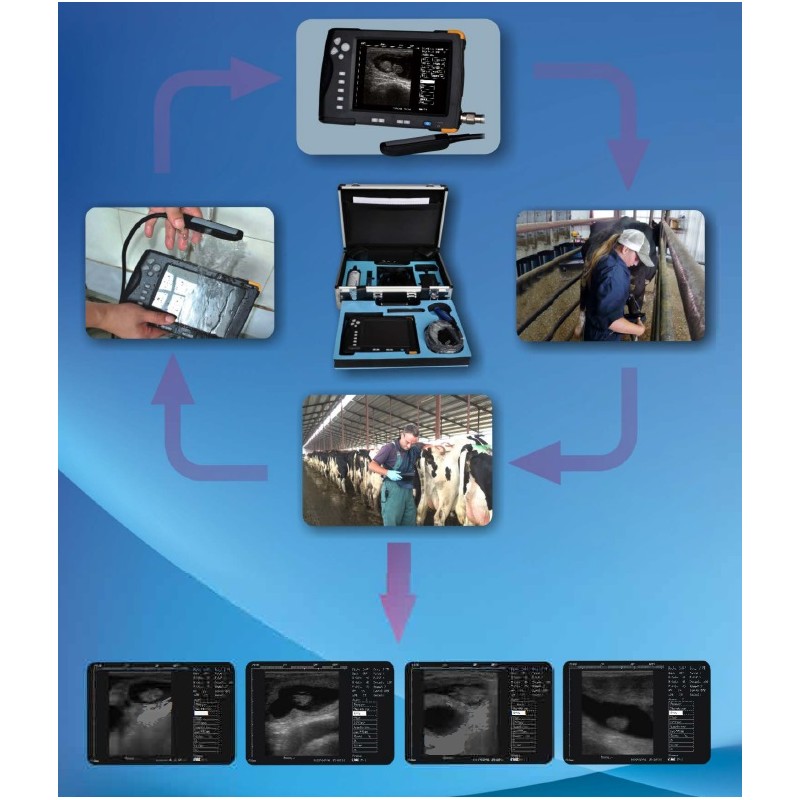

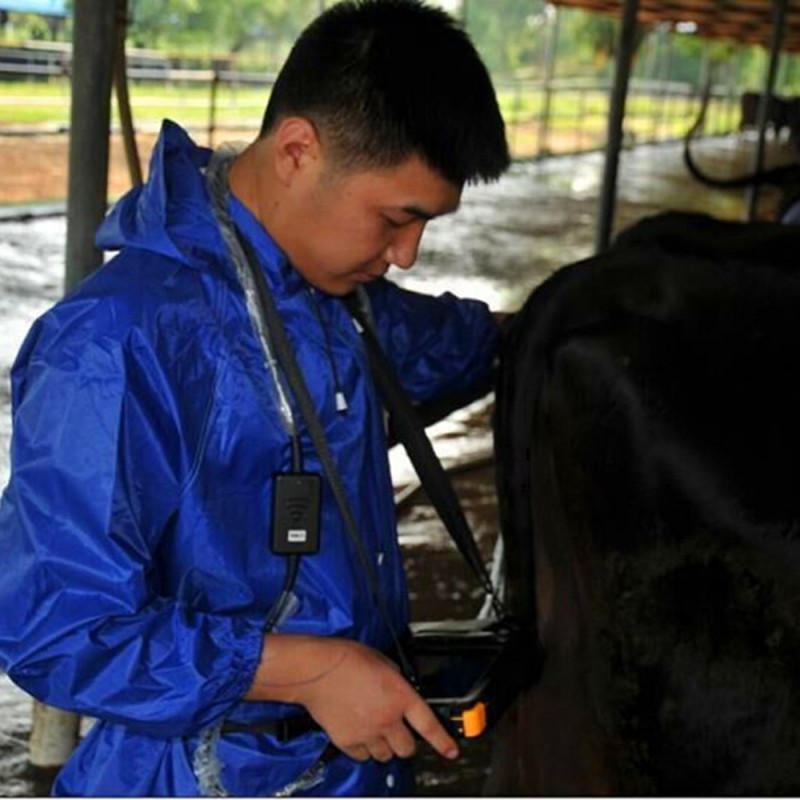

- Good shell reinforcement design: the product adapts to farm and wild & rugged working environments.

- Excellent display technology allows image display performance to adapt to both weak light and bright light.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

1 800,00 €

tax excl.

Quantity

Select Probe

Add to wishlist

OVERVIEW
SPECIFICATIONS
AVAILABLE TRANSDUCER/PROBES
Data sheet
Download

Instrument for:	Medicine/Veterinary Analyzer
Function:	Body Scanner

AO-V10 Data Sheet Download (629.42k)

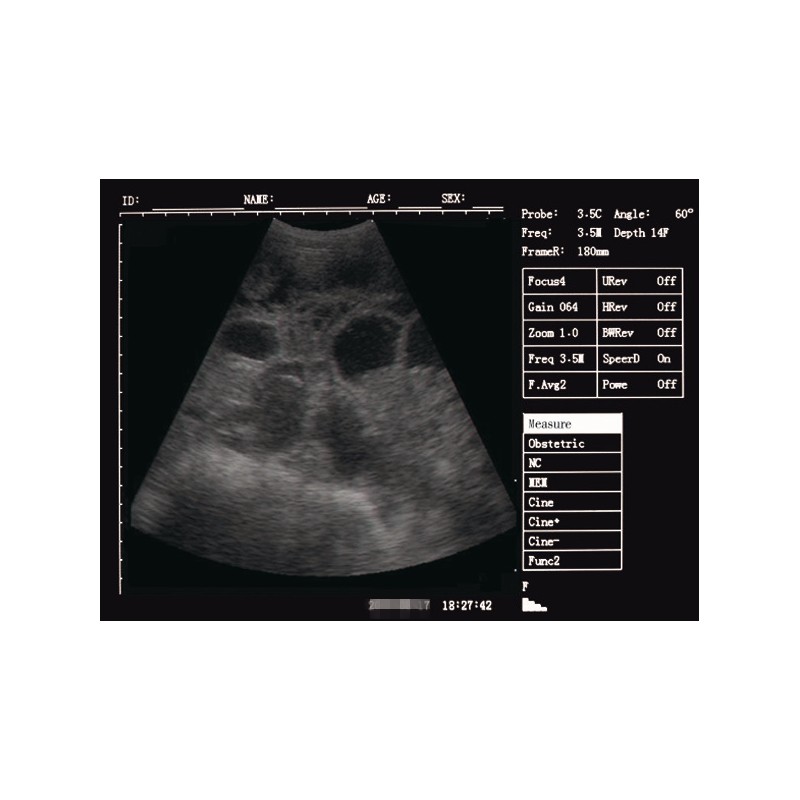

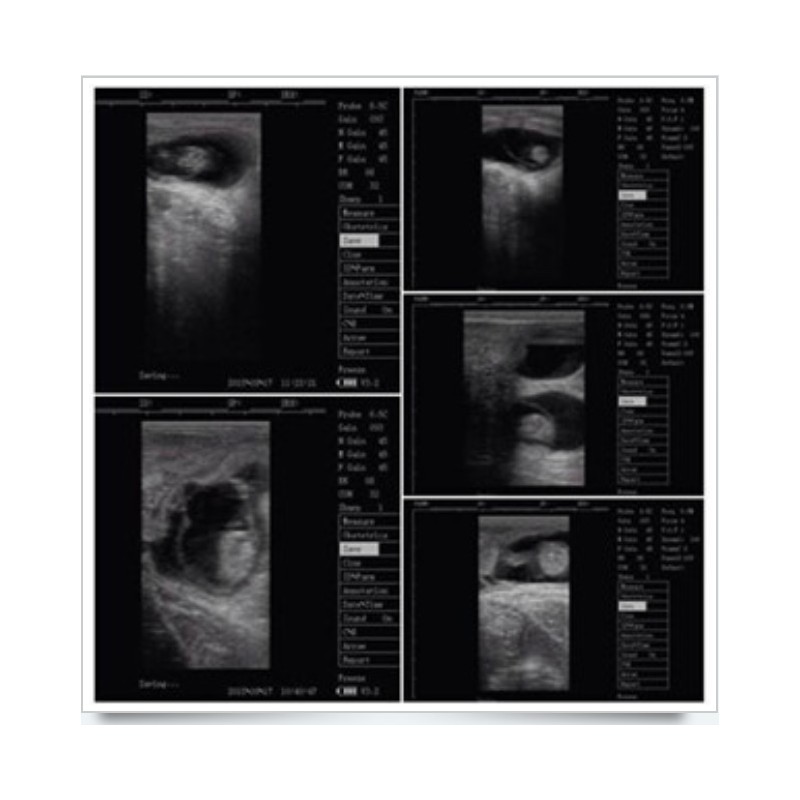

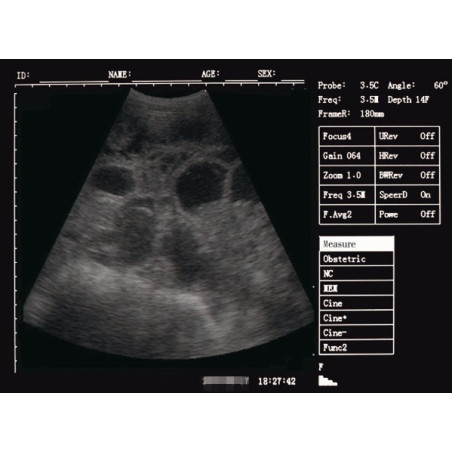

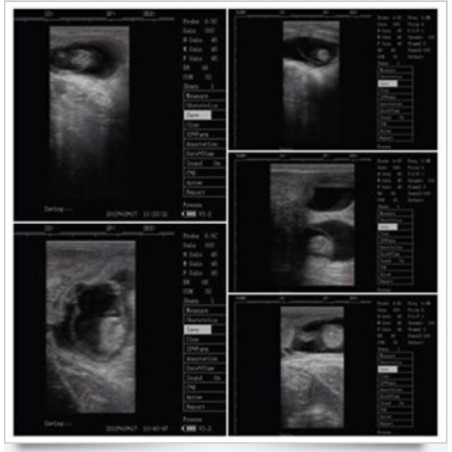

- Image smoothing, filtering, edge enhancement, frame correlation, linear interpolation and other processes, the image is sharp and clear, high resolution.
-Measured by distance, perimeter, area, obstetric, etc.
-Individually adjustable near field, far field gain (adjustable in 5 stages).
-Single-B display, real-time continuous state in the field of view to move the function.
-With screen reproduction, gamma correction, histogram and other image processing functions.
-With built-in memory and has an external USB interface, transferring data from the built-in memory to the PC.
-Light weight and convenient.

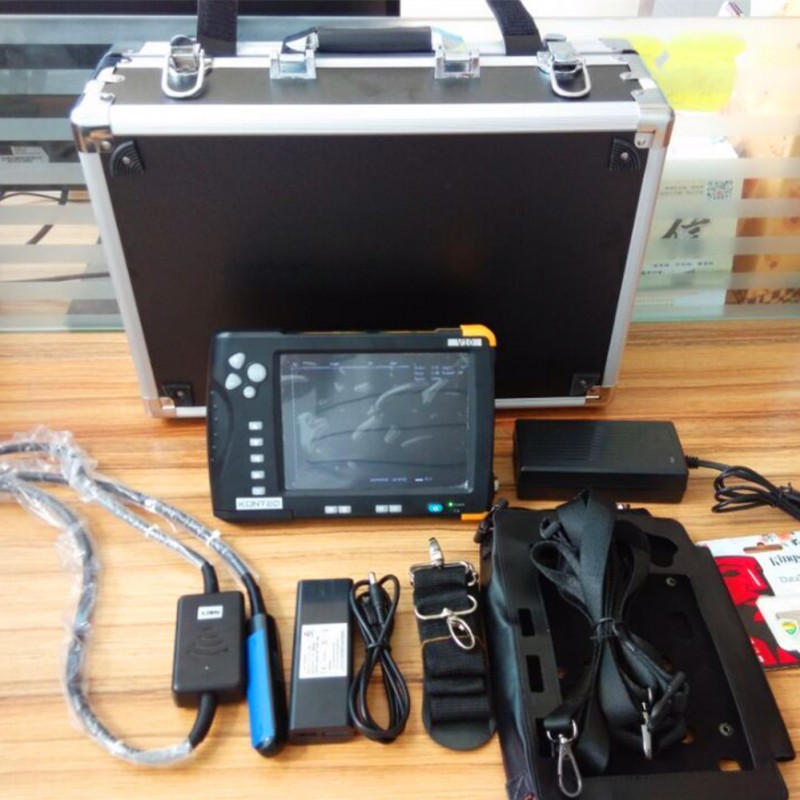

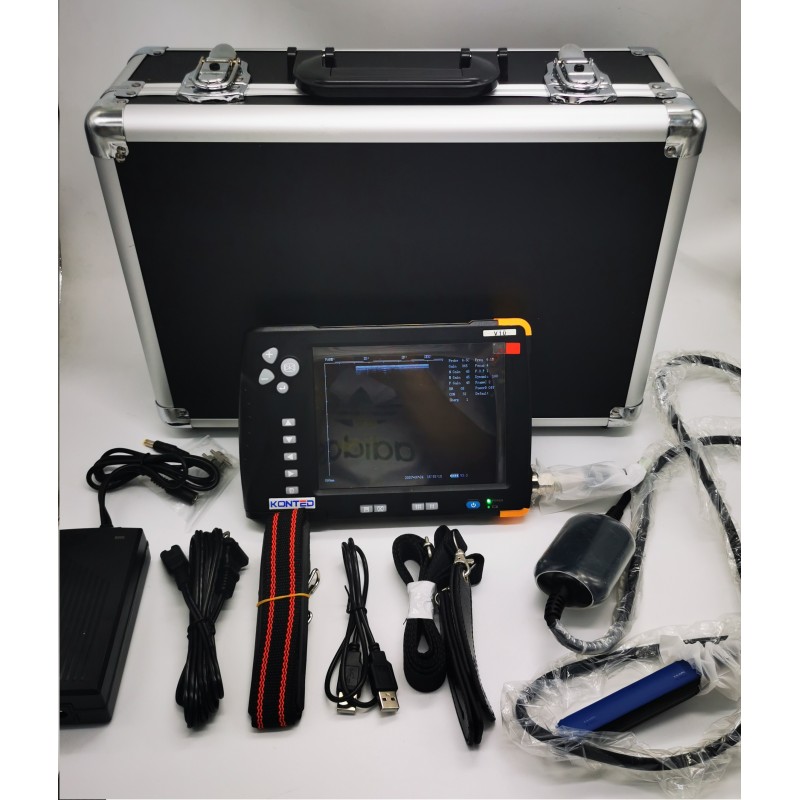

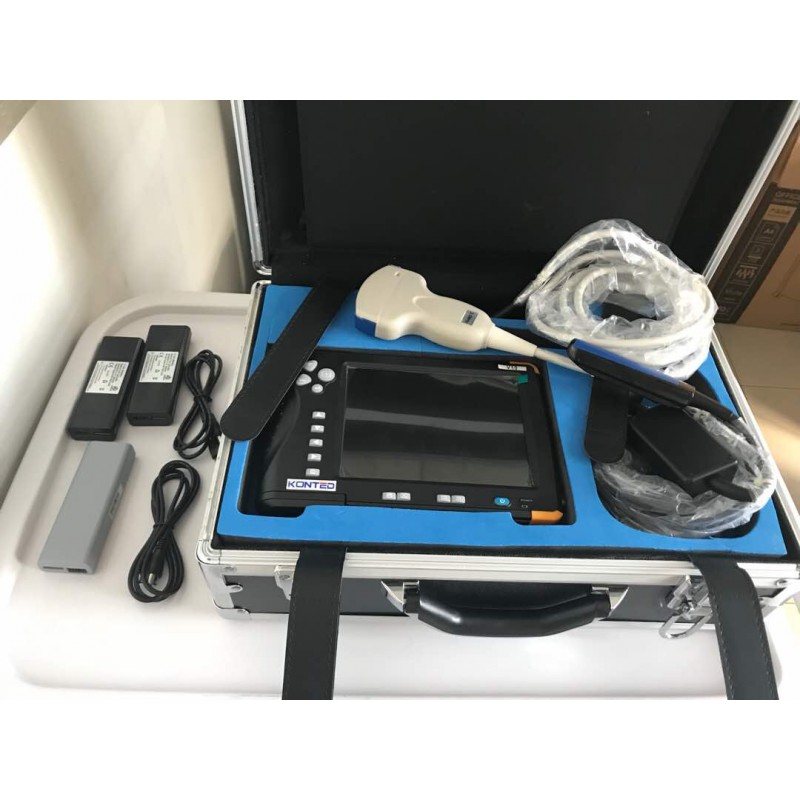

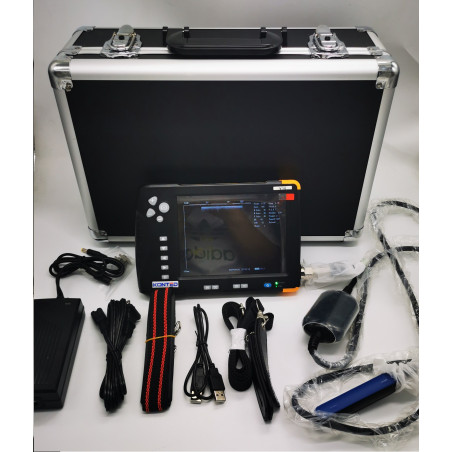

Standard configuration	-Main Unit - AC adapter - battery -3.5MHz convex probe -powder wire -250ml couplant -Manual/ technical instructions -bag with strap

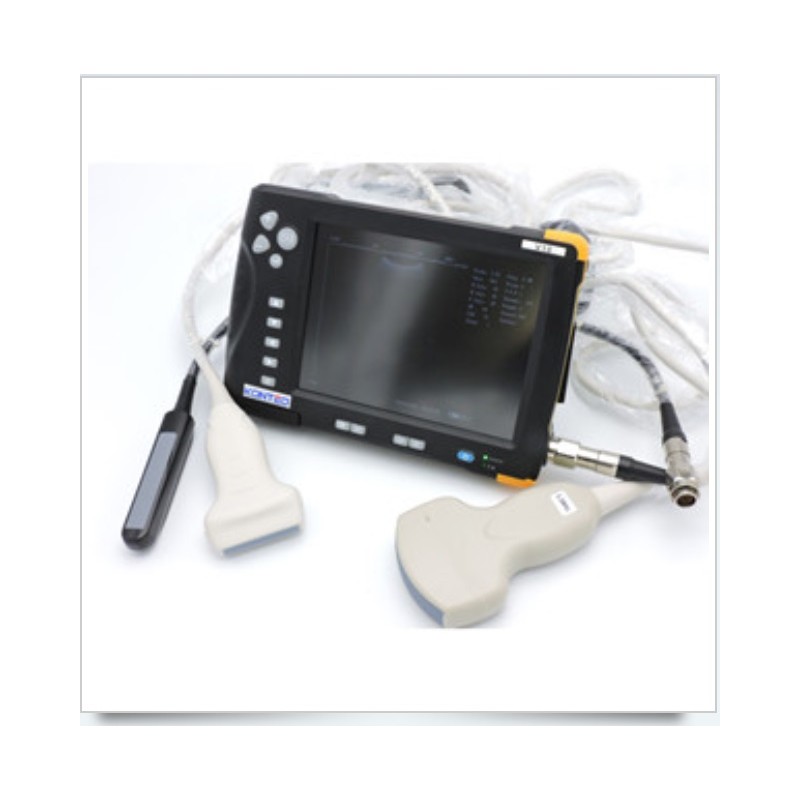

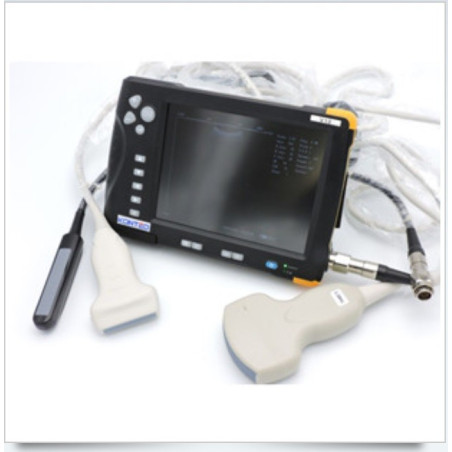

Options:	-7.5MHz linear probe -6.5MHz rectal probe -5.0MHz micro-convex probe -Video printer -Video wire
Technical specification	Monitor size	7”-TFT
	Display mode	B, B+B, B+M, M, 4B
	Image gray scale	256
	Scan range	convex array
	Scan lines	512 lines/ frame
	Frame rate	30 frame/second
	Digital scan converter	512x512x8bits
	Body marks	≥15
	Multi-frequency	2MHz-10MHz
	Memory capacity	≥2GB
	Video output	PAL
	Size	216mm(L) x 147mm(W) x 27mm(H)
	Net weight	900G
	Battery	3000Mah/7.4V
	Battery continuous work	≥3hours

Warranty:	Any quality problems, it can be replaced within 18 months and life-long service.
