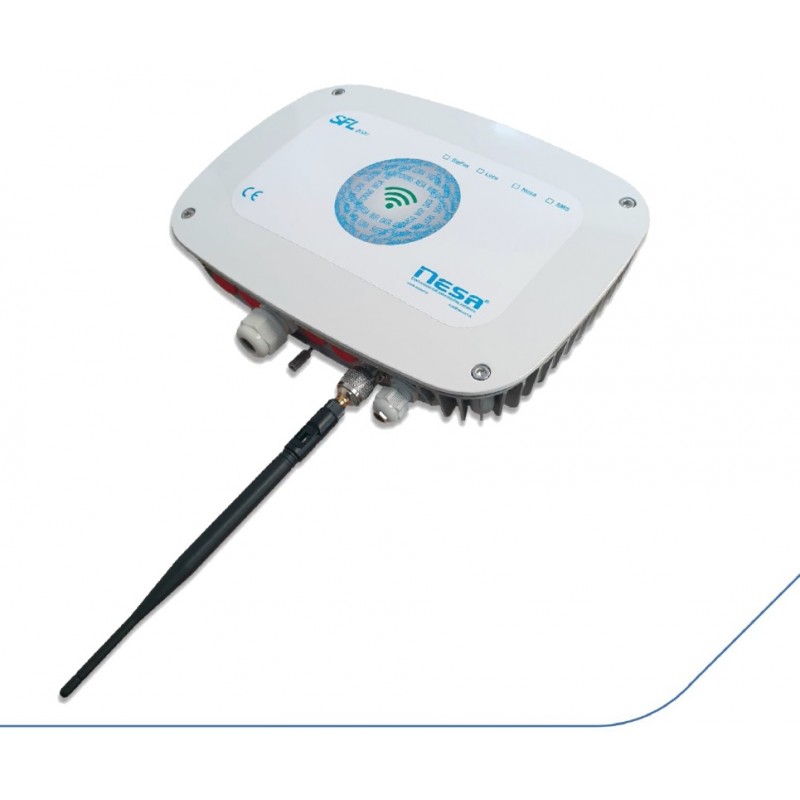

IoT radio interface for analog and digital sensors - SFL

Reference SFL

Manufacturer: Nesa srl

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
VIDEO
MODELS
Data sheet
Download
Accessories

Environment of Use	Outdoor
Type of Logger	Portable
Number of Channels	4 channels
IP Classification	IP65
Communications	IoT
Type of Instrument	Estación Meteorológica

SFL Data Sheet Download (417.67k)

Quido Wireless...

Compact Agrometeorological Station - 3 year battery, Quido

Add to cart

Radio module, for data acquisition and transmission with Narrow-Band technology at programmable frequency (868MHz in Europe), or 3-4G, or SMS (GSM/GPRS), able to read digital and analogue electrical signals, at very high resolution.
Data are then processed, and can be sent directly to a cloud platform, or through point-to-point connections, or networks with specific protocol (LoRa- LoRaWan, Socket, MQTT etc.) be forwarded to gateways up to a distance of several kilometres between transmitters and receiver (gateway).
The device is configurable to send data at specific intervals and reads signals in current, voltage, Pt100, status and frequency.

Highlighted specs
- Suitable for a wide range of sensors with different output signals
- 18bit DAC acquisition system
- Latest generation narrow-band technology
- Battery powered and long autonomy
- Four different ways of sending data
- IP65 enclosure
- According to CE norms
