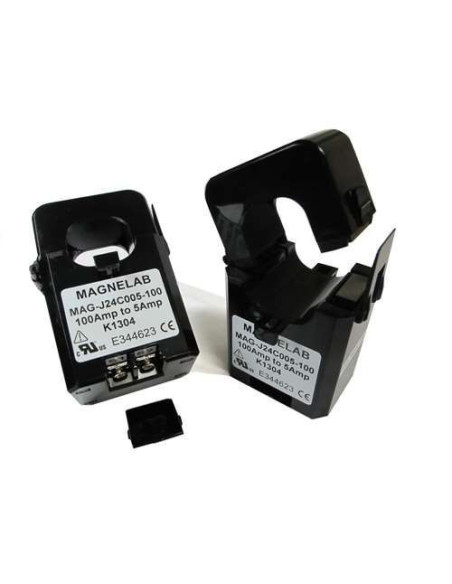

ACT-0024 split-core current sensors transform an AC input current up 100 to 300 Amps to a 5A

Magnelab's ACT-0024 (previously MAG-J24C005) is a 24mm opening split-core current sensor that transforms an AC current input 100 to 300 Amps to a 5 Amp output. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The ACT-0024-300 has a self-locking mechanism.

Frequent Applications

• Power meter
• Switchgear
• Distibuted measurement systems
• General Sets
• Control panels

Features

• Rated input 100 to 300 Amp
• Output of 5 Amps at rated current
• Accuracy Class 3 up to 1.5 VA
• Accuracy at 5% to 120% of rated current
• Protection level 6.5Vp Bipolar
• Frequency range 50/60 Hz
• 2 X M3-Screw terminals
• System Voltage: 720 V, CAT II or CAT III 600 VAC
• UL recognized, CE and RoHS Compliant
• 10-Year Warranty
