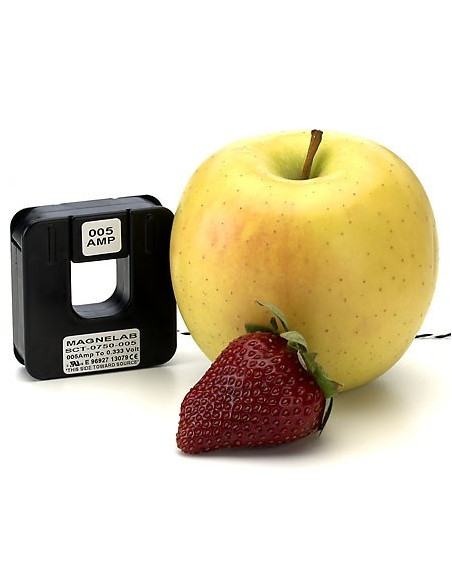

SCT-0750 split-core current sensors transform an AC input current up to 200 Amps to a 0.333 Volt outpu
The SCT-0750 has a self-locking mechanism and a 0.75" opening.
Magnelab's SCT-0750 Series split-core current sensors transform an AC input current up to 200 Amps to a 0.333 Volt output. Split-core transformers are ideal for installation on existing electrical wiring by snapping around the conductor. The SCT-0750 has a self-locking mechanism and a 0.75" opening.
Frequent Applications
- Data logging
- Recording
- Power monitoring
- Energy management
- Cost allocation
Features
- Rated input up to 200 Amp
- Output of 0.333 Volt at rated current
- Linearity accuracy +/- 1%
- Accuracy at 10% to 130% of rated current
- Phase angle < 2 degrees (valid for 70A or higher)
- Operates from 30 Hz to 1,000 Hz
- 8 ft. twisted-pair lead
- Maximum Voltage: 600 V (on bare conductor)
- UL recognized, CE, and RoHS compliant
- 10-Year Warranty
